SENCO FUSION Cordless Framing Nailer F-35FRHXP Instruction Manual
DANGER: The Fusion tool is charged with compressed air in a sealed chamber. Prior to any service or repair, release the charge of pressurized air. The pressurized air must be released prior to service. Major components such as the piston/driver assembly, gearbox, piston stop and guide body are all part of the drive assembly. Deliberate tampering with the drive assembly may result in the release of the driver. Any repair or upgrade requiring access to the pressure chamber may be handled by an authorized Semco dealer or service center.
NFD010H · January 7, 2021 (Replaces 9/14/20)
KYOCERA SENCO Industrial Tools 4270 Ivy Pointe Blvd.
Cincinnati, OH 45245 1-800-543-4596
www.senco.com
Questions? Comments? call SENCO’s toll-free Action-Line: 1-800-543-4596 (North and South America Only) or email: [email protected]

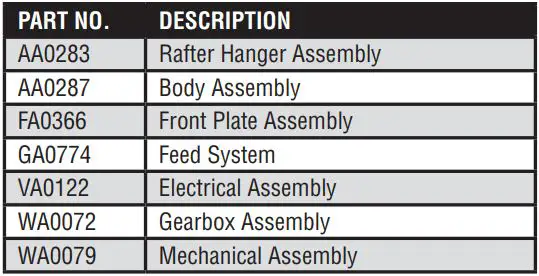

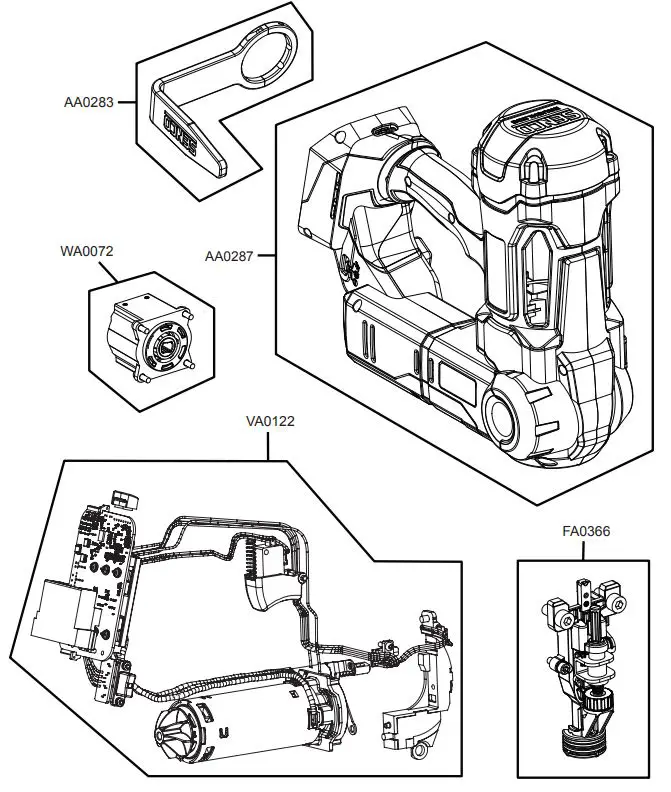

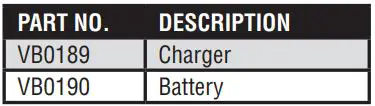

MAJOR ASSEMBLIES

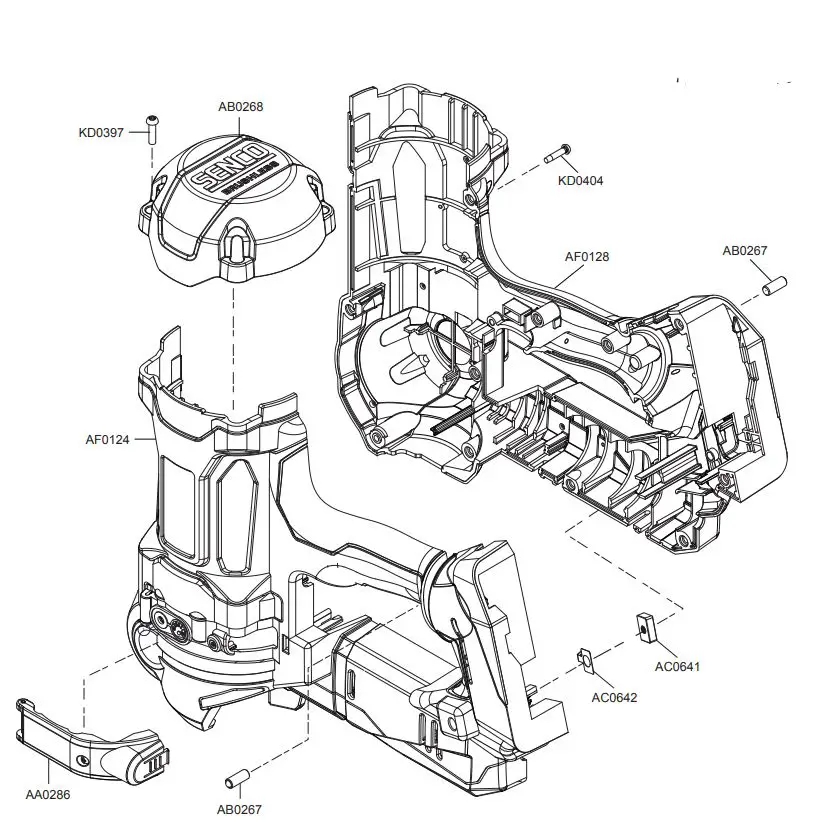

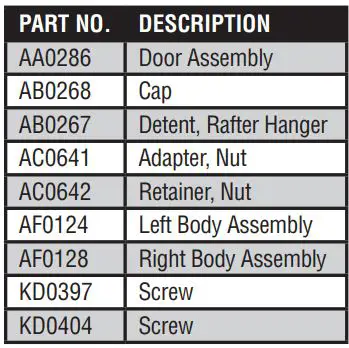

BODY ASSEMBLY

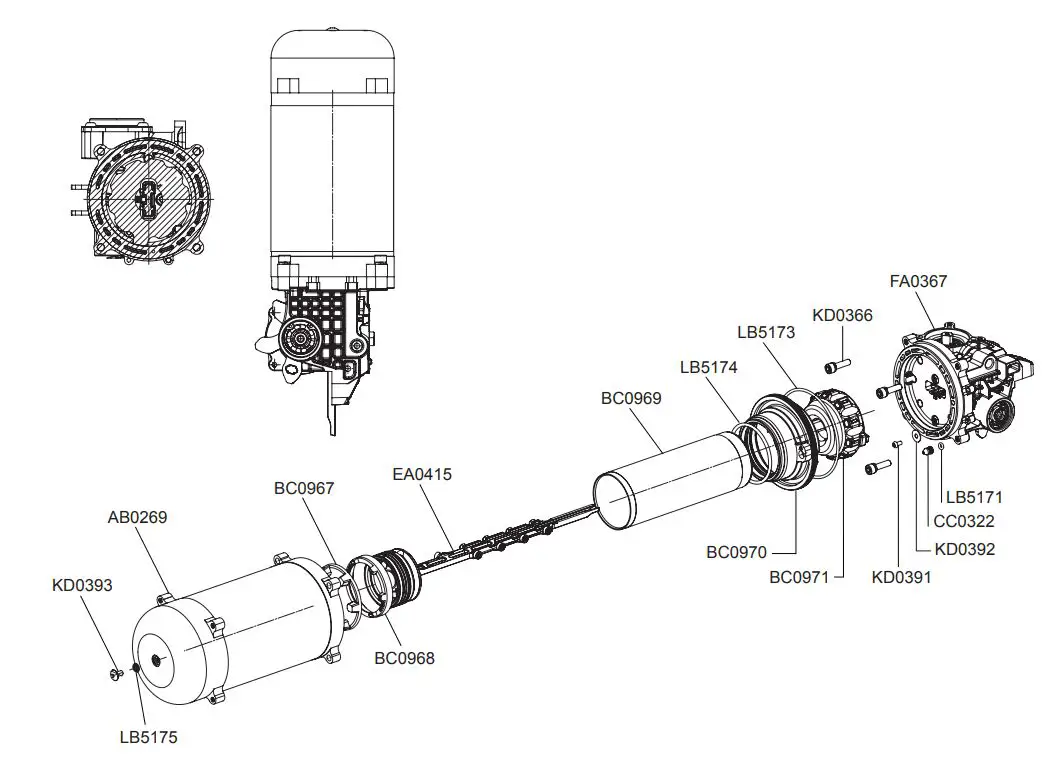

MECHANICAL ASSEMBLY

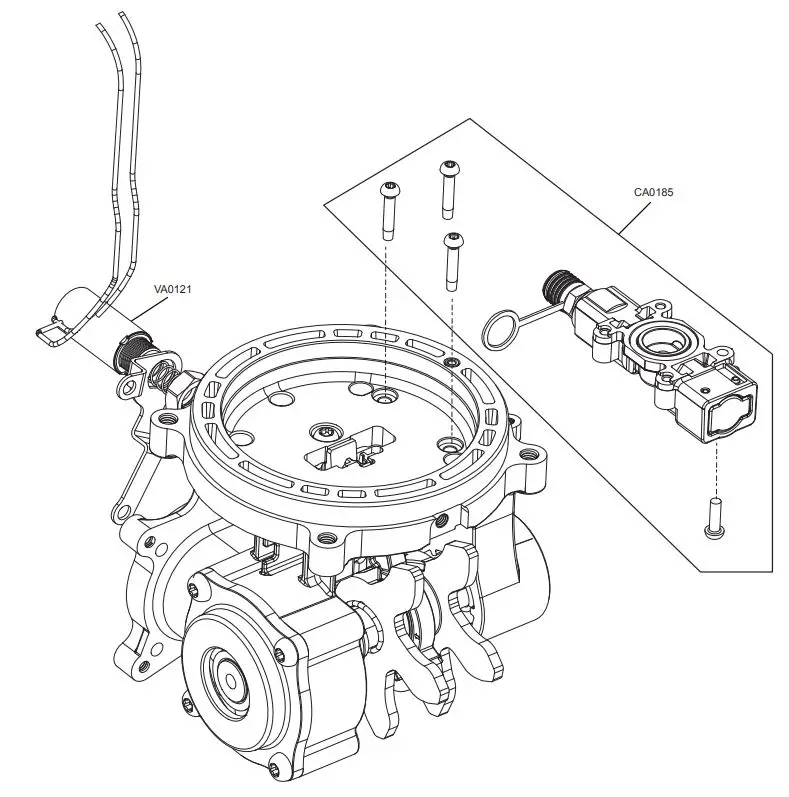

FA0367 CHASSIS ASSEMBLY

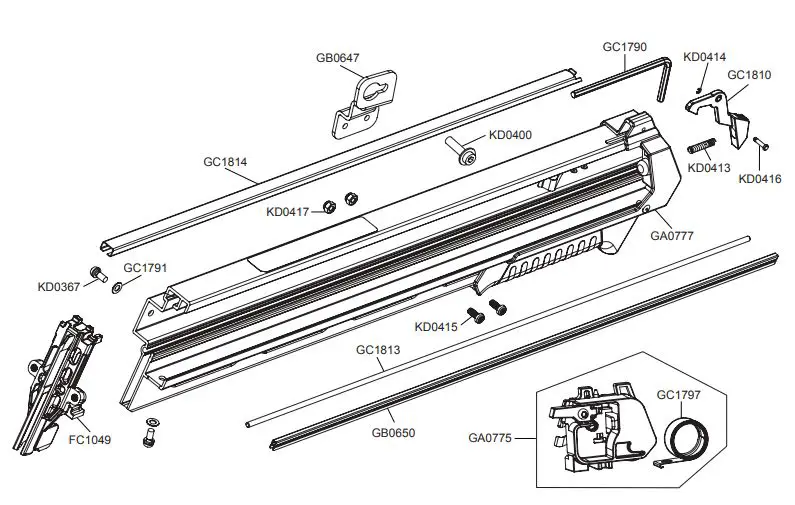

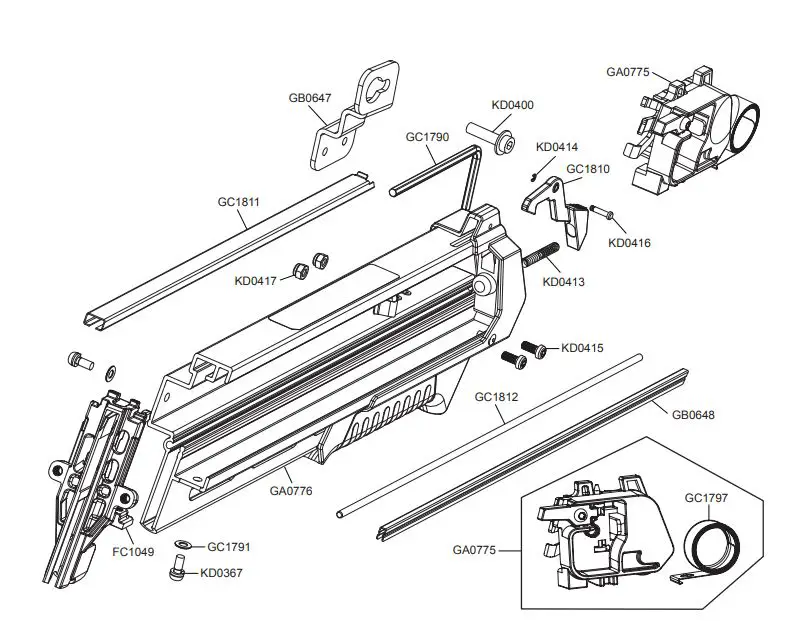

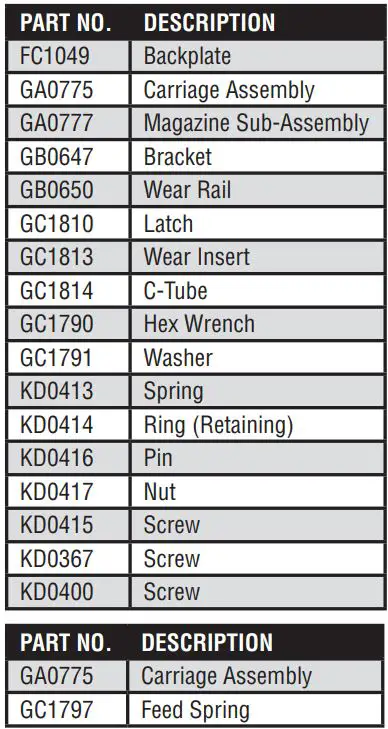

FEED SYSTEM
GA0778 EXTENDED FEED SYSTEM (OPTIONAL)

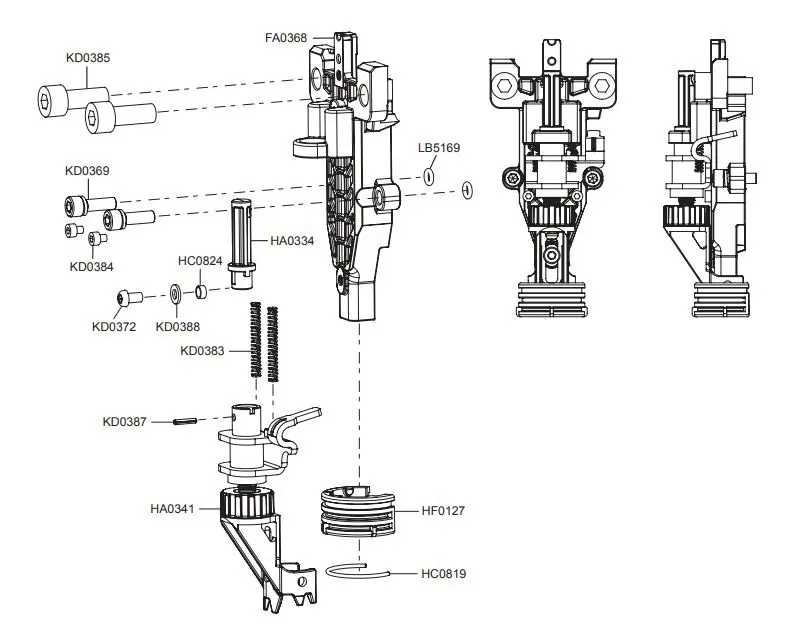

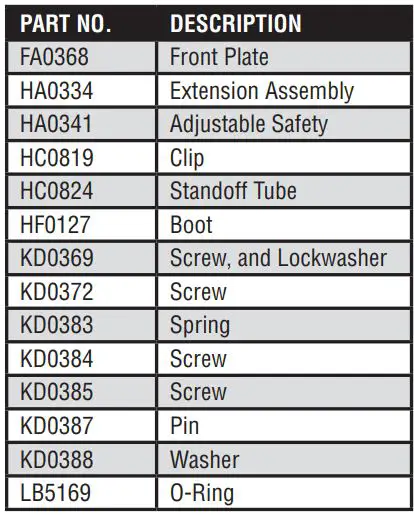

FRONT PLATE ASSEMBLY

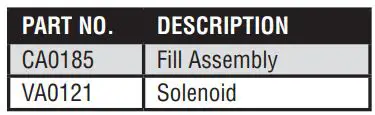

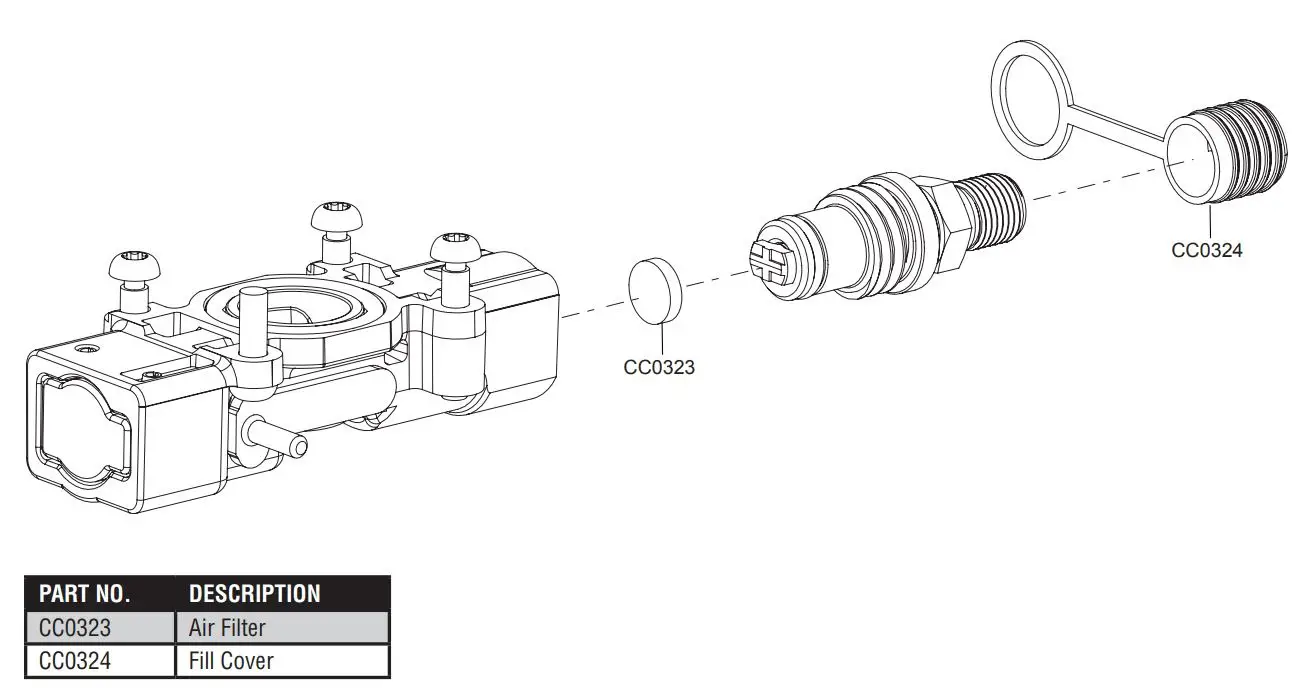

FILL ASSEMBLY

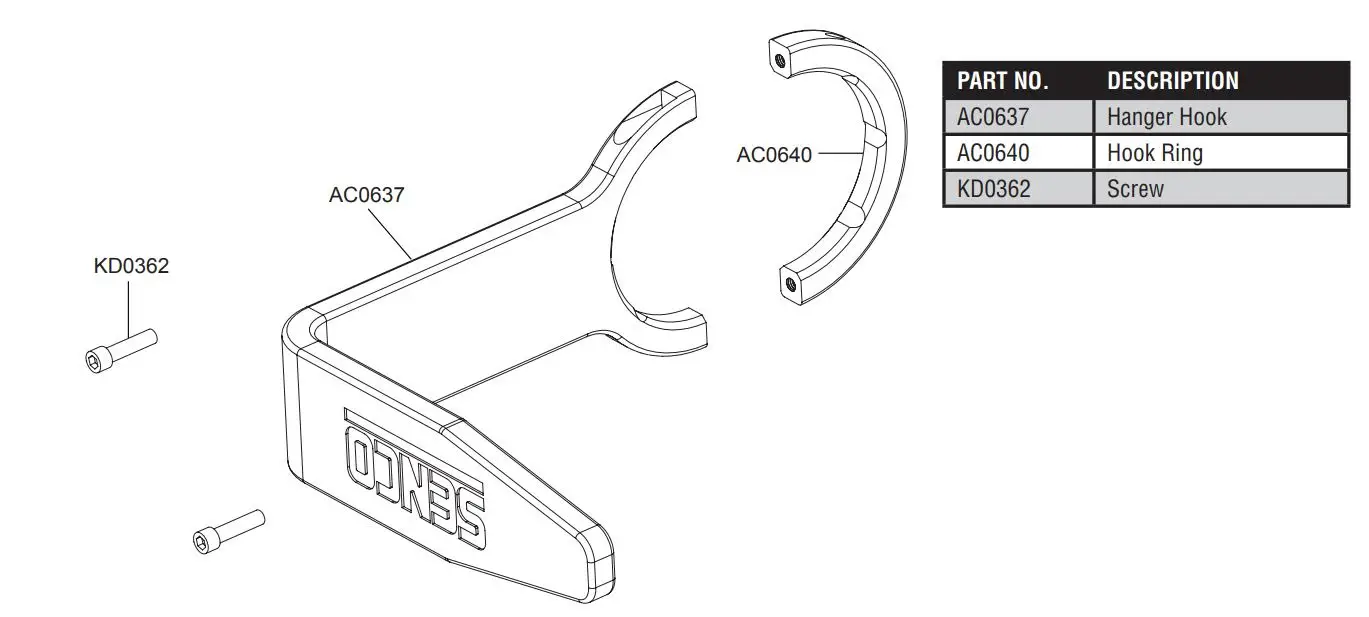

HANGER ASSEMBLY
GEARBOX ASSEMBLY

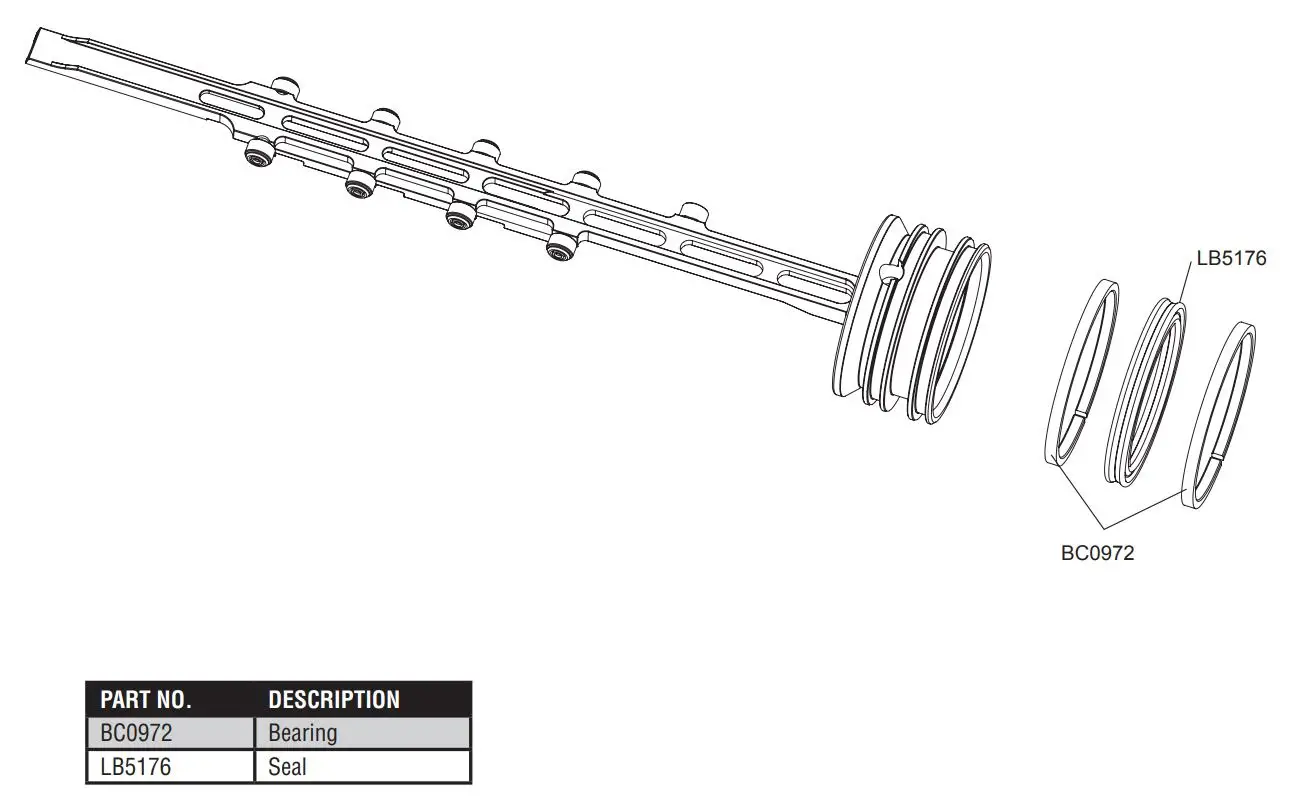

PISTON AND DRIVER ASSEMBLY
ELECTRICAL ASSEMBLY
Solenoid Assembly

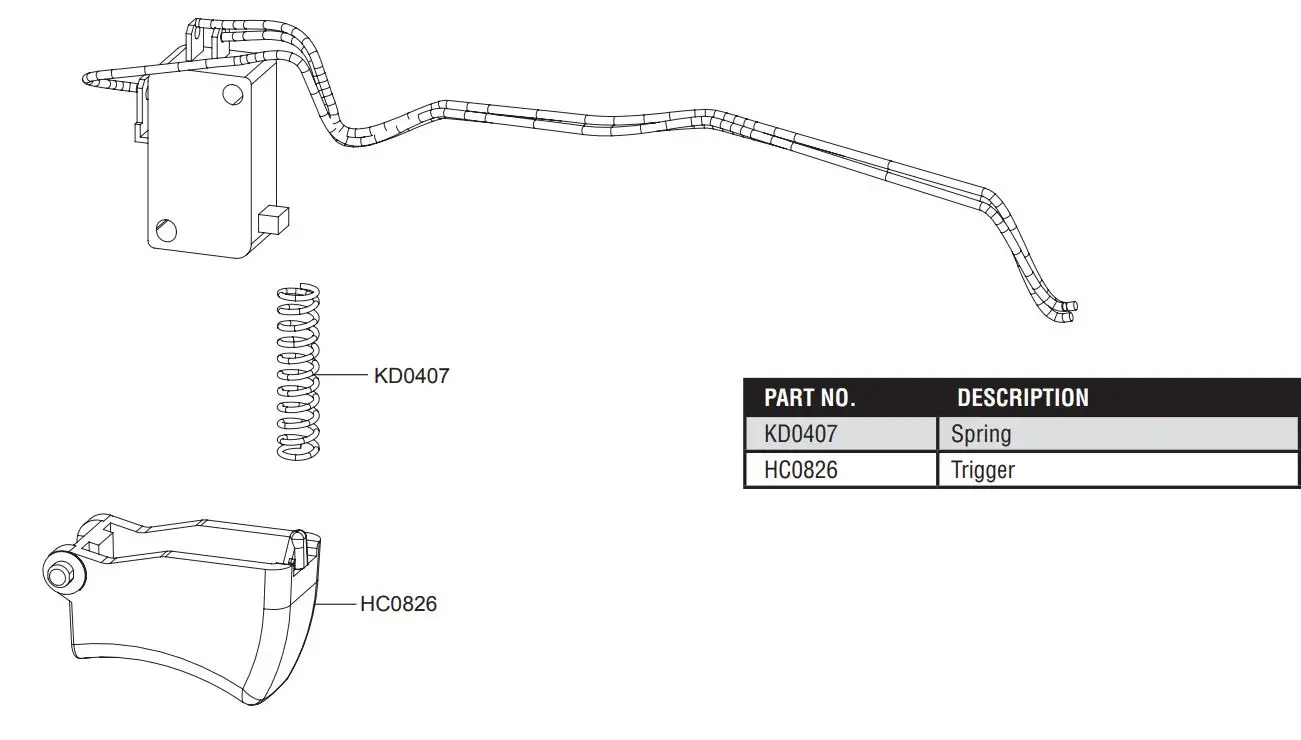

TRIGGER ASSEMBLY
NOTES
