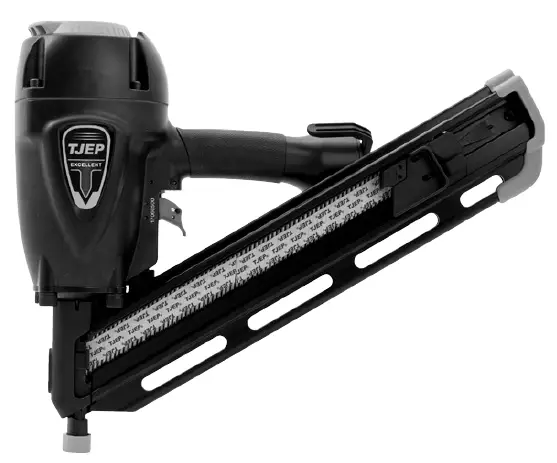

TJEP GRF 34-100 Excellent Framing Nailer

Tool specification

Model	TJEP GRF 34/100 Excellent
TJEP no.	100030
Length	449 mm
Width	141 mm
Height	364 mm
Weight	3.54 kg
Capacity	77 nails
Pressure	5.5 – 8.3 bar / 80 – 120 psi
Diameter, nails	2.9 – 3.8 mm
Length, nails	63 – 100 mm
Angle	34°
Type	Nails 34° e.g. TJEP GF and GR nails
LPA	89.1 dB
LWA	97.3 dB
Uncertainty (LPA/ LWA)	2.5 dB
ahwz	4.86 m/s2
Uncertainty (ahwz)	0.98 m/s2
Air consumption per cycle	2.791 litres @ 6 bar

As we are constantly developing and improving our tools, the information in this overview is subject to change without notice. Updated information can be found at www.tjep.eu

Tool application

Timber Framing e.g. for laths and raftering.
Tools in bump fire mode shall only be used for production applications.

Accessories

Description		Description
TJEP Superflex air hose		Belt hook set
TJEP air hose		Flooring nose piece
TJEP Hose reel		Driver unit

Declaration of conformity

We;
TRUSTY SOURCES CORP., No. 7, Jingke 6th Rd., Taichung Precision Machinery Park, Taichung 40852, Taiwan
declare under our sole responsibility that the;
TJEP GRF 34/100 Excellent
conforms with the directive(s), its amedment(s) and standard(s); 2006/42/EC · EN ISO 11148-13: 2018
Authorized contact in EU to compile the Technical File; KYOCERA UNIMERCO Fastening A/S, Drejervej 2, DK-7451 Sunds, Tel: +45 97 14 14 40, Mr. Ebbe Hornstrup
Serial number can be found on the front page.
Date; 11.29.2019
Angela Lin
General Manager, TRUSTY SOURCES CORP., Taichung, Taiwan
