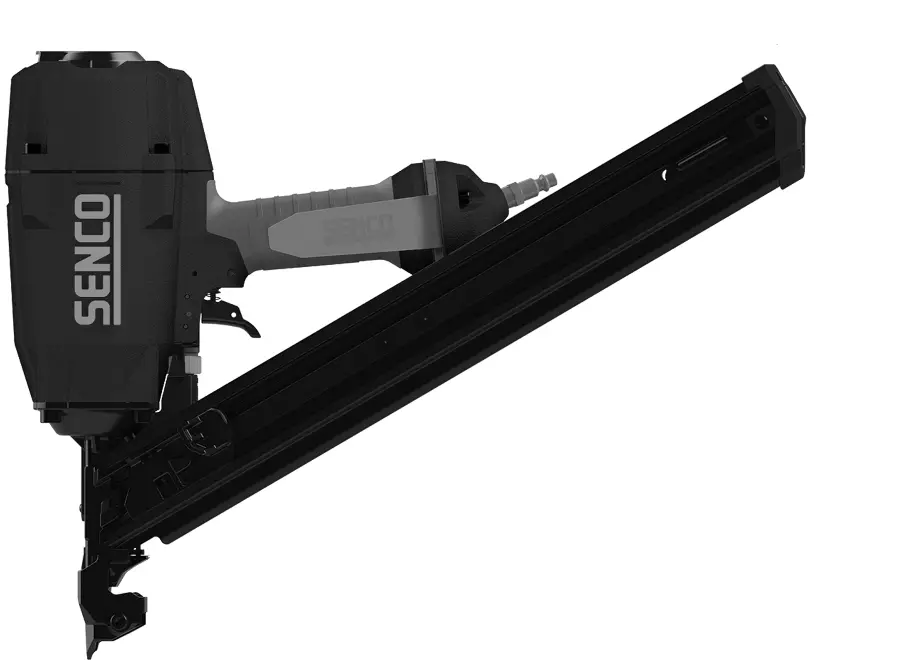

SENCO JN91P2 Metal Connector Nailer
INSTRUCTION

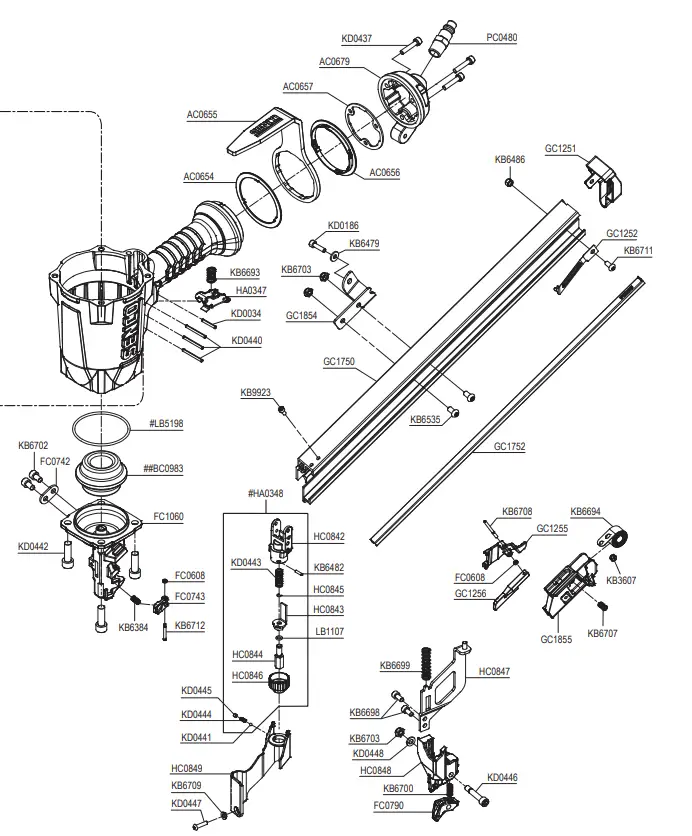

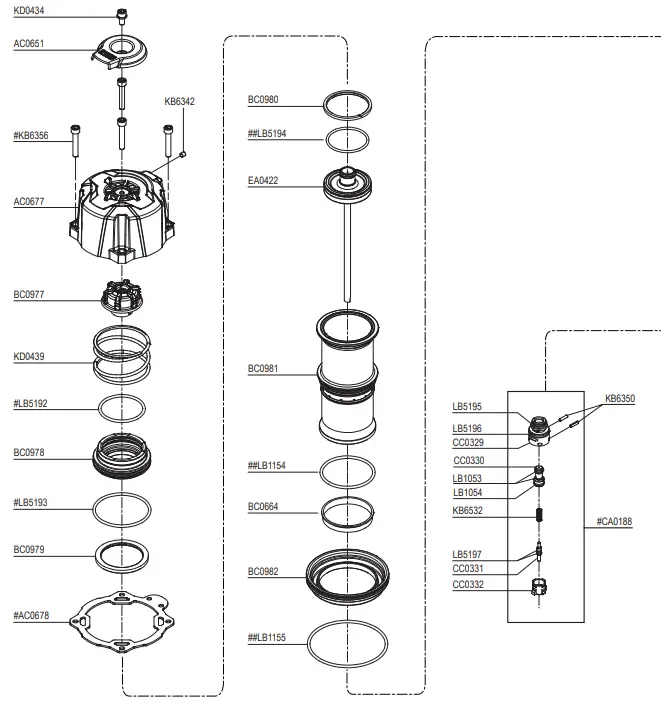

REPLACEMENT PARTS LIST
| Part No. | Description | Descripción | Désignation |
| AC0651 | Deflector | Desviador | Déflecteur |
| AC0654 | Bearing | Llevando | Palier |
| AC0655 | Belt Hook | Gancho para cinturón | Crochet de ceinture |
| AC0656 | Bearing | Llevando | Palier |
| AC0657 | Gasket | Seal | Joint |
| AC0677 | Cap | Tapa | Bouchon |
| AC0678 | Gasket | Seal | Joint |
| AC0679 | Cap | Tapa | Bouchon |
| BC0664 | Ring | Anillo | Anneau |
| BC0977 | Seal | Sello | Joint |
| BC0978 | Valve | Válvula | Valve |
| BC0979 | Collar | Cilindro | Cylindre |
| BC0980 | Ring | Anillo | Anneau |
| BC0981 | Cylinder | Cilindro | Cylindre |
| BC0982 | Spacer | Separador | Entretoise |
| BC0983 | Stop | Tope | Arrêt |
| CA0188 | Valve Assembly | Asamble De Válvula | Valve d’Assemblée |
| CC0329 | Cap | Tapa | Bouchon |
| CC0330 | Valve | Válvula | Valve |
| CC0331 | Core | Vástago | Noyau |
| CC0332 | Cap | Tapa | Bouchon |
| EA0422 | Driver Assembly | Percusor | Couteau |
| FC0608 | Retainer | Junta Tórica | Retenue |
| FC0742 | Seal | Sello | Joint |
| FC0743 | Plate | Placa | Plaque |
| FC0790 | Guide Block | Bloque | Bloc |
| FC1060 | Guidebody | Placa De Nariz | Front |
| GC1251 | Cover | Cubierta | Couvercle |
| GC1252 | Stop | Toppe | Arrêt |
| GC1255 | Feedershoe | Alimentador | Poussoir |
| GC1256 | Stop | Toppe | Arrêt |
| GC1750 | Magazine | Cargador | Magasin |
| GC1752 | Tube | Cilindro | Cylindre |
| GC1854 | Bracket | Soporte | Support De Fixation |
| GC1855 | Feeder Shoe | Alimentador | Poussoir |
| HA0347 | Trigger | Gatillo | Gâchette |
| HA0348 | Safety Element | Seguro | Palpeur De Sécurité |
| HC0842 | Safety Element | Seguro | Palpeur De Sécurité |
| HC0843 | Safety Element | Seguro | Palpeur De Sécurité |
| HC0844 | Safety Element | Seguro | Palpeur De Sécurité |
| HC0845 | Safety Element | Seguro | Palpeur De Sécurité |
| HC0846 | Safety Element | Seguro | Palpeur De Sécurité |
| HC0847 | Safety Element | Seguro | Palpeur De Sécurité |
| HC0848 | Safety Element | Seguro | Palpeur De Sécurité |
| HC0849 | Cover | Cubierta | Couvercle |
| KB3607 | Nut | Tuerca | Écrou |
| KB6342 | Screw | Tornillo | Vis |
| KB6350 | Pin | Pasador | Goupille |
| KB6356 | Screw | Tornillo | Vis |
