FN81T1
3 ½” Pneumatic Framing Nailer
Parts Reference Guide

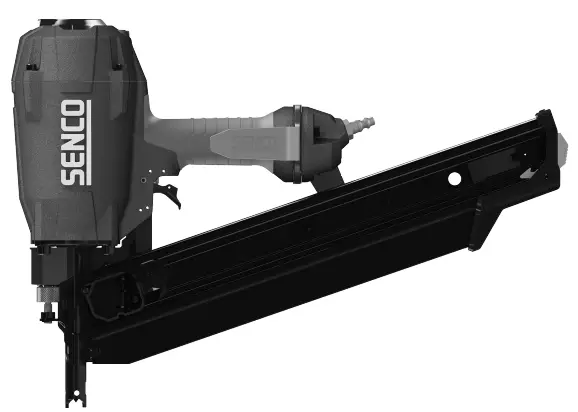

FN81T1 3 ½ Inch Pneumatic Framing Nailer

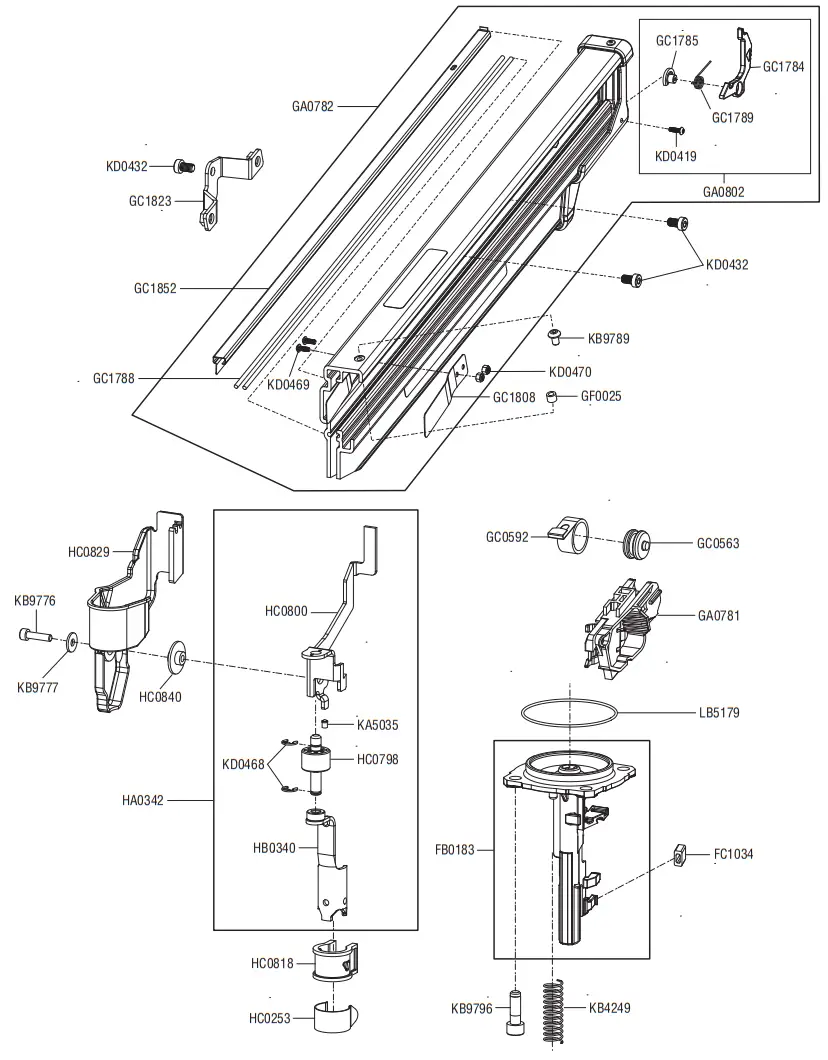

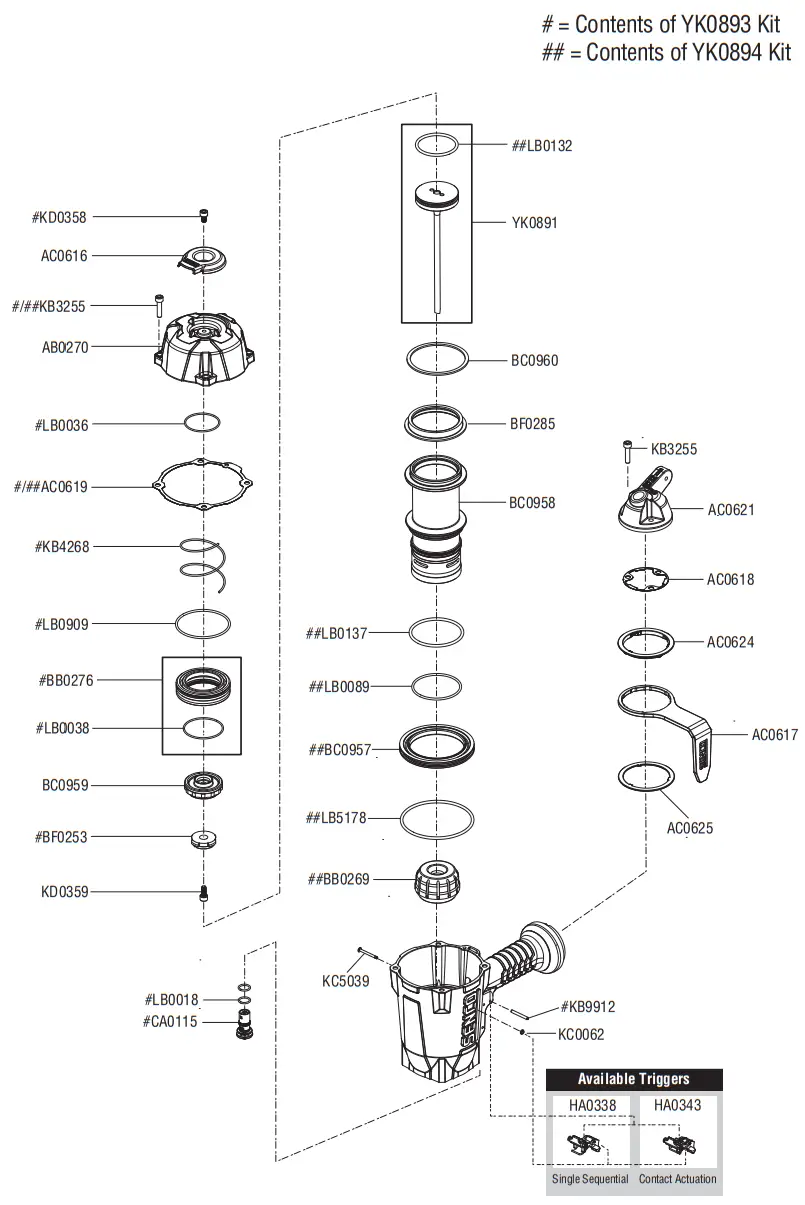

Schematic Drawings Inside
Repair Kit
YK0893/YK0894
REPLACEMENT PARTS LIST
| PART NO. | DESCRIPTION |
| AB0270 | Cap |
| AC0616 | Deflector |
| AC0617 | Belt Hook |
| AC0618 | Gasket |
| AC0619 | Gasket |
| AC0621 | End Cap |
| AC0624 | Bearing |
| AC0625 | Bearing |
| BB0269 | Stop |
| BB0276 | Valve |
| BC0957 | Seal |
| BC0958 | Cylinder |
| BC0959 | Valve |
| BC0960 | Ring |
| BF0253 | Bumper |
| BF0285 | Retainer |
| FB0183 | Guide Body |
| FC1034 | Bumper |
| GA0781 | Feeder Shoe |
| GA0782 | Magazine |
| GA0802 | Latch Assembly |
| GC0563 | Roller |
| GC0592 | Spring |
| GC1784 | Latch |
| GC1785 | Bushing |
| GC1788 | Rod |
| GC1789 | Spring |
| GC1808 | Pusher Bar |
| GC1823 | Bracket |
| GC1852 | Rail |
| GF0025 | Bumper |
| HA0338 | Trigger Assembly |
| HA0342 | Safety Element |
| HA0343 | Trigger Assembly |
| HB0340 | Safety Element |
| HC0253 | Retainer |
| HC0798 | Wheel |
| HC0800 | Safety Element |
| HC0818 | No-Mar Pad |
| HC0829 | Cover |
| HC0840 | Spacer |
| KA5035 | Detent |
| KB3255 | Screw |
| KB4249 | Spring |
| KB4268 | Spring |
| KB9776 | Screw |
| KB9777 | Washer |
| KB9789 | Screw |
| KB9796 | Screw |
| KB9912 | Pin |
| KC0062 | Retainer |
| KC5039 | Pin |
| KD0358 | Screw |
| KD0359 | Screw |
| KD0419 | Screw |
| KD0432 | Screw |
| KD0468 | Retainer |
| KD0469 | Screw |
| KD0470 | Nut |
| LB0018 | Seal |
| LB0036 | Seal |
| LB0038 | Seal |
| LB0089 | Seal |
| LB0132 | Seal |
| LB0137 | Seal |
| LB0909 | Seal |
| LB5178 | Seal |
| LB5179 | Seal |
| YK0891 | Piston Assembly |
| YK0893 | Repair Kit |
| YK0894 | Repair Kit |
Questions? Comments?
call SENCO’s toll-free Action-line: 1-800-543-4596
(North & South America only) or
e-mail: [email protected]
NFG0FN81T1 • Issued July 8, 2022 (Replaces 5/12/2022)
KYOCERA-SENCO Industrial Tools, Inc.
8450 Broadwell Road
Cincinnati, OH 45244
1-800-543-4596
www.senco.com
