Wall luminaire
31 196IP 64

Instructions for use

Application

Wall luminaire with directed light.
A shield made of aluminium screens the light of the luminaire upwards and forwards and directs it onto the surface to be illuminated.
A small light aperture on the back illuminates additionally the luminaire shape.
The luminaire can be installed with the light distribution opening directed upwards or downwards.

Product description

Luminaire made of aluminium and stainless steel
BEGA Unidure® coating technology Antique glass

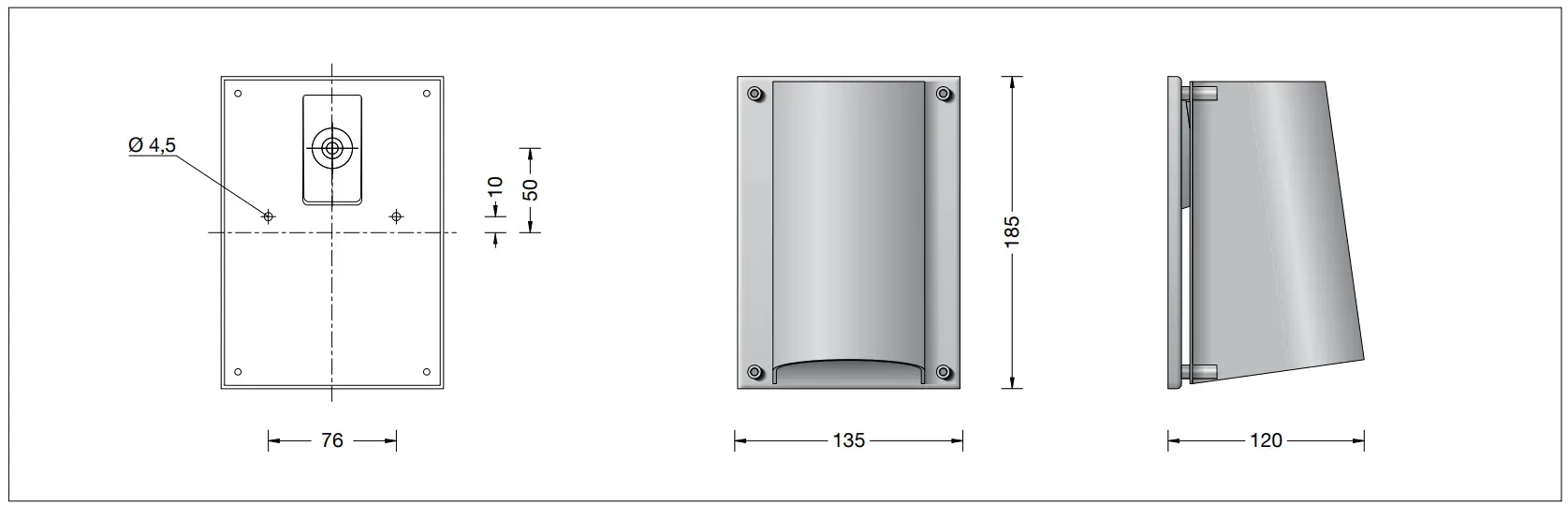

Silicone gasket 2 mounting holes ø 4.5 mm
Distance apart 76 mm 1 cable entry for mains supply cable up to ø 10,5 mm
Lampholder terminal 2.5@
Earth conductor connection
Lampholder E 14
Safety class I
Protection class IP 64
Dust-tight and protection against splash waterImpact strength IK02
Protection against mechanical impacts < 0.2 joule
– Safety mark
– Conformity mark
Weight: 0.95 kg
Lamp
Luminaire with screw base E 14
Lamp output max. 40 W
This product contains light source of energy efficiency class E
Supplied lamp
BEGA LED lamp 13594
LED Retrofit 4 W · 470 lm · 3000 K Luminaire efficiency: 13% Additional BEGA LED lamps are available for this luminaire:
13 593 LED 4 W · 470 lm · 3000 K Bulb design: clear
Detailed technical and lighting data for the lamps can be found in the data sheets on our website.

Safety

The installation and operation of this luminaire are subject to national safety regulations. Installation and commissioning may only be carried out by a qualified electrician. The manufacturer accepts no liability for damage caused by improper use or installation.
If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.

Installation

Undo fixing screws of the shield and remove shield.
Screw out glass from the luminaire housing.
Undo hexagon socket head screws M4 and remove mounting plate with lampholder.
Lead the mains supply cable through the cable entry of the luminaire base.
Fix the luminaire base with enclosed or any other suitable fixing material onto the mounting surface.
Make earth conductor connection at the mounting plate with lampholder.
Push silicone sleeves over the lines and make electrical connection at the lampholder. Insert lamp. Screw glass with gasket into the luminaire housing. Put on shield and fix it.
Relamping · Maintenance
Disconnect the electrical installation.
Open the luminaire and clean.
Use only solvent-free cleaning agents. Change the lamp.
Check the gasket and replace, if necessary.
Close the luminaire.
For cleaning, do not use high pressure cleaners.

Spares
