Bega 33242 Wall Luminaire Instruction Manual

Wall luminaire with directed light.
A luminaire with concentrated light distribution downwards which additionally utilises the reflection properties of the mounting surface.

Luminaire made of aluminium alloy and stainless steel
BEGA Unidure^® coating technology Matt safety glass Silicone gasket
Reflector made of pure anodised aluminium

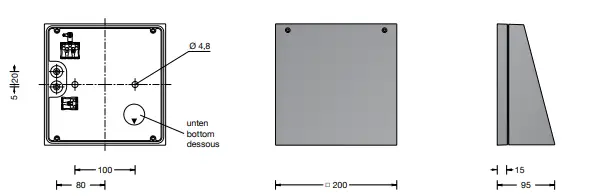

2 mounting holes ø 5 mm Distance apart 100 mm
2 cable entries for through-wiring of mains supply cable ø 7-10.5 mm, max. 5 G 1.5@ Connecting terminal and
earth conductor terminal 2.5@ BEGA Ultimate Driver^®
LED power supply unit 220-240 V x 0/50-60 Hz DC 176-264 V
DALI-controllable
Number of DALI addresses: 1
Basic insulation is provided between the mains and control cables
BEGA Thermal Control^®
Temporary thermal regulation to protect temperature-sensitive components without switching off the luminaire
Safety class I Protection class IP 65
Dust-tight and protection against water jets Impact strength IK06
Protection against mechanical impacts < 1 joule
r – Safety mark c – Conformity mark Weight: 2.0 kg
This product contains light sources of energy efficiency class(es) C

The light from this luminaire is directed evenly and highly efficiently onto the surface to be illuminated and emits less than 1 % of the luminaire luminous flux into the upper half- space of the luminaire.

The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be
carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation.
If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.

The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
To achieve an additional protection against
e. g. transients, etc. we recommend separate overvoltage protection components.
You can find them on our website at www.bega.com.

Module connected wattage                       17.6 W
Luminaire connected wattage                 20 W
Rated temperature                                     t_a = 25 °C
Ambient temperature                               t_amax = 45 °C

33 242 K3
Module designation                                  LED-0313/830
Colour temperature                                   3000 K
Colour rendering index                             CRI > 80
Module luminous flux                              3340 lm
Luminaire luminous flux                          2446 lm Luminaire luminous efficiency       122,3 lm / W

33 242 K4

Module designation                                    LED-0313/840
Colour temperature                                    4000 K
Colour rendering index                              CRI > 80
Module luminous flux                                3435 lm
Luminaire luminous flux                           2516 lm Luminaire luminous efficiency       125,8 lm / W

LED are high-quality electronic components! Please avoid touching the light output opening of the LED directly during installation or relamping.
Undo the screws and lift off the luminaire top. Lead the mains supply cable through the cable entry of the luminaire base.
Note position of application of the luminaire “arrow down”.
Fix luminaire base with enclosed or any other suitable fixing material onto the mounting surface.
Be sure to use the gasket rings supplied. Make the earth conductor connection and the electrical connection.
For digital control please use the connecting terminal DA, DA.
In case this terminal is not used the luminaire will be operated at full light output.
In order to guarantee the maximum service life of the electrical components, the enclosed desiccant pouch must be placed in the luminaire.
Remove the desiccant pouch from the foil packaging and place it in the position marked by the red information label immediately before finally closing the luminaire.
Make sure that gasket is positioned correctly. Make earth conductor connection between luminaire top and luminaire base. Replace the luminaire top and tighten the screws evenly.

The designation of the LED module is noted on a label in the luminaire.

The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted.

The module can be replaced by qualified

persons using standard tools.

Disconnect the system and open the luminaire. Please follow the installation instructions for the LED module.

Inspect and, if necessary, replace the luminaire gaskets.

Defective glass must be replaced. Close the luminaire.

Spares

LED power supply unit                          DEV-0340/700
LED module 3000 K                               LED-0313/830
LED module 4000 K                               LED-0313/840
Reflector                                                     76 001 160
Gasket                                                         83 001 011
