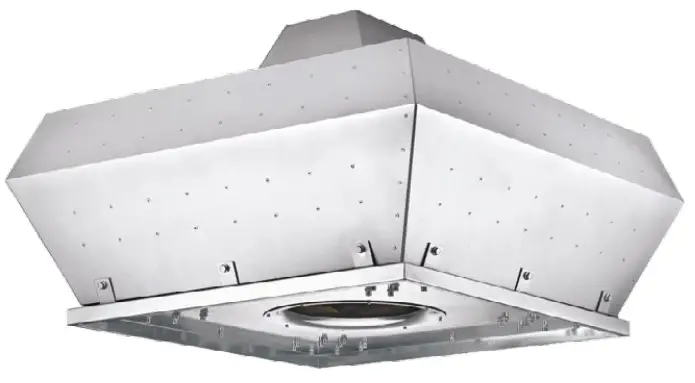

RKV-450 5500 T Roof Type Radial Fans with Vertical Air Discharge
WENTYLATORY DACHOWE Z PIONOWYM WYRZUTEM POWIETRZA ROOF TYPE RADIAL FANS WITH VERTICAL AIR DISCHARGE
USER’S MANUAL AND TERMS OF WARRANTY
| RKV-315/2000 M RKV-355/3000 M RKV-400/4000 M RKV-315/2000 T RKV-355/3000 T | RKV-400/4000 T RKV-450/5500 T RKV-500/7500 T RKV-560/10000 T |
SAFETY WARNINGS
- Fans contain rotating parts and electrical connections. Therefore, pay attention to safety warnings during their installation, maintenance, and operation.
- Electrical connections must be carried out by qualified electricians, according to the attached wiring diagrams.
- During transport, installation, and maintenance, hands should be protected with gloves.
- Do not use the product at ambient temperature over 40 °C.
- The fan is capable of carrying air at a temperature max 120 °C
TRANSPORTATION
- The fan should be kept in the original package in a vibration-free, dust-free environment, away from aggressive substances until it’s delivered to the installation site.
- The fan should be checked for any damage that may originate during transport – check if the impeller rotates free of friction.
- Eventual damaged revealed must be communicated to the carrier and proper protocol should be made, specifying the type of damage.
INSTALLATION
- Power supply, current, and frequency values shall comply with the product label.
- Use elastic connectors to prevent transmitting the unit vibrations onto the installation.
- The fan can be mounted in any position.
- Check if the impeller rotates in the correct direction.
- Check if consumption – Intensity I(A) – does not exceed the maximum value, indicated on the fan nameplate.
- Do not use the fan in an area in which flammable gasses and acidic or corrosive substances are present, as it may cause irreversible damage to the fan.

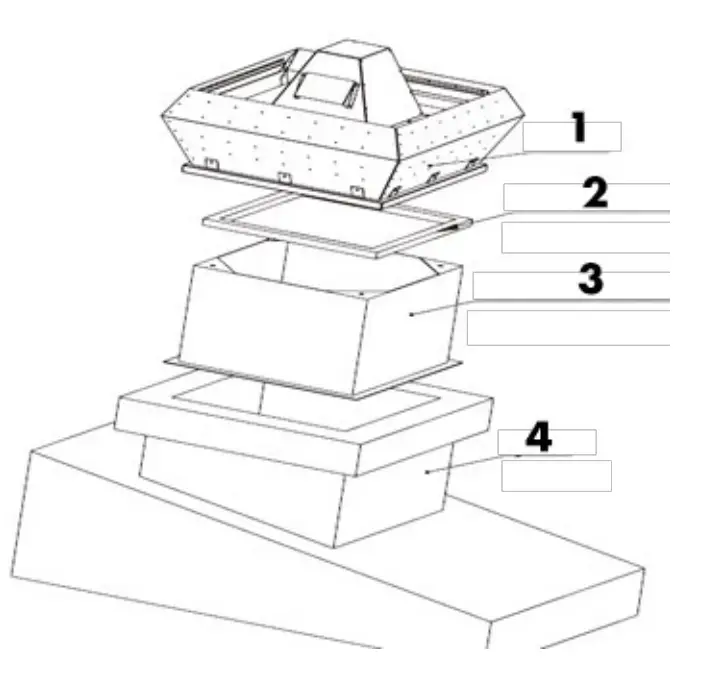

- RKV Fan
- Sealing gasket
- Roof base
- Roof
WIRING DIAGRAM

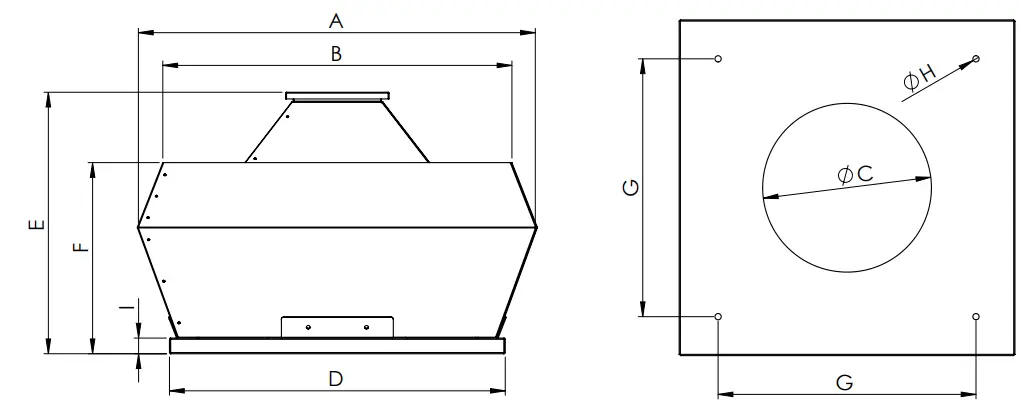

TECHNICAL DRAWING
Wymiary
| Typ | A | B | C | D | E | F | G | H | I |
| RKV-315/2000 | 845 | 740 | 185 | 700 | 550 | 395 | 576 | 14 | 35 |
| RKV-355/3000 | 845 | 740 | 235 | 700 | 550 | 395 | 576 | 14 | 35 |
| RKV-400/4000 | 895 | 780 | 270 | 750 | 585 | 430 | 576 | 14 | 35 |
| RKV-450/5500 | 960 | 855 | 282 | 800 | 595 | 440 | 625 | 14 | 35 |
| RKV-500/7500 | 1030 | 915 | 320 | 850 | 695 | 490 | 675 | 14 | 35 |
| RKV-560/10000 | 1195 | 960 | 360 | 950 | 820 | 610 | 740 | 14 | 35 |
TECHNICAL DATA
| Typ | m3/h | [rpm] | [kW] | [A] | [V] | [Hz] | [µF] | [dB(A)] | Klasa | IP | [kg] |
| RKV-315/2000 M | 1900 | 1380 | 0,25 | 2,1 | 230 | 50 | 10 | 48-40 | F | 55 | 22 |
| RKV-355/3000 M | 2850 | 1380 | 0,25 | 2,1 | 230 | 50 | 10 | 50-42 | F | 55 | 27 |
| RKV-400/4000 M | 4000 | 1390 | 0,37 | 3,4 | 230 | 50 | 15 | 51-43 | F | 55 | 33 |
| RKV-315/2000 T | 1900 | 1380 | 0,25 | 0,87 | 400 | 50 | – | 48-40 | F | 55 | 22 |
| RKV-355/3000 T | 2850 | 1380 | 0,25 | 0,87 | 400 | 50 | – | 50-42 | F | 55 | 27 |
| RKV-400/4000 T | 4000 | 1390 | 0,37 | 1,2 | 400 | 50 | – | 51-43 | F | 55 | 33 |
| RKV-450/5500 T | 5300 | 1365 | 0,55 | 1,6 | 400 | 50 | – | 54-46 | F | 55 | 38 |
| RKV-500/7500 T | 8000 | 1410 | 1,1 | 2,6 | 400 | 50 | – | 56-48 | F | 55 | 49 |
| RKV-560/10000 T | 10500 | 1420 | 2,2 | 4,9 | 400 | 50 | – | 65-57 | F | 55 | 58 |
CLEANING AND MAINTENANCE
- Maintenance and cleaning of the product should be carried out by qualifiedlifstaff.
- Before cleaning or maintenance disconnect the fan from the mains supply.
- All electrical connections should be regularly controlled – any worn out or damaged cables should be replaced.
- Periodic maintenance should be carried out at least once every six months to prevent dust accumulation which may cause the lower performance of the fan, and unbalance of the impeller which may greatly reduce the lifespan of the unit.
- Clean the fan with a soft brush or damp cloth. Do not use inflammable or combustible cleaners.
- While cleaning the impeller pay attention to protecting the balance weights.
- Bolts that might become loose during operation should be checked.
