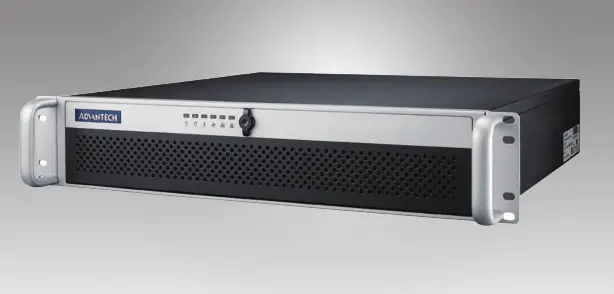

ACP-2020
2U Rackmount Short Depth Chassis for
ATX and uATX Motherboard
Features
- 398 mm short depth 2U rackmount chassis
- Supports ATX and uATX form factor single processor motherboard
- Two Internal 2.5″ drive bay and two “hot-swap or external” drive bay
- Supports 80 Plus single 350W or 500W redundant power supply
- Front-accessible system fan without opening top cover for easy maintenance
- Built-in Intelligent System Module enabling whole system fan control and remote manageability
Specifications
| Drive Bay | External | Internal | |
| Slim Optical Drive | 1 | – | |
| 2.5″ | 2 (hot-swap tray module as optional)* | 2 | |
| Cooling | Fan | 1 (8 cm/41CFM) | |
| Air Filter | Yes | ||
| Front I/O Interface | USB 3.0* | 2 | |
| Miscellaneous | LED Indicators | Power, HDD, temperature, fan, LAN1, and LAN2 | |
| Rear Panel | Two 9-pin D-Sub | ||
| Intelligent System Module Hardware Monitoring | CPU/System fan speed, CPU/System temperature (Only Advantech AIMB-78X, PCE-51XX/71XX mainboards can enable CPU fan speed and temperature monitoring function of Intelligent System Module) | ||
| Environment | Operating | Non-Operating | |
| Temperature | 0 ~ 40 °C (32 ~ 104 °F) | -20 ~ 60 °C (-4 ~ 140 °F) | |
| Humidity | 10 ~ 85% @ 40 °C, non-condensing | 10 ~ 95% @ 60 °C, non-condensing | |
| Vibration (5 ~ 500 Hz) | 1 Grms | 2 G | |
| Shock | 10 G (with 11 ms duration, half sine wave) | ||
| Physical Characteristics | Dimensions (W x H x D) | 482 x 88 x 398 mm (19″ x 3.46″ x 15.7″) | |
| Weight | 8.6 kg (18.96 lbs) | ||
The USB 3.0 ports do not operate if the motherboard has no onboard USB 3.0 box header.
* ACP-2020 2.5″ drive bay, both default internal and hot-swap tray module support 2.5″ HDD with thickness less than 14.7mm.

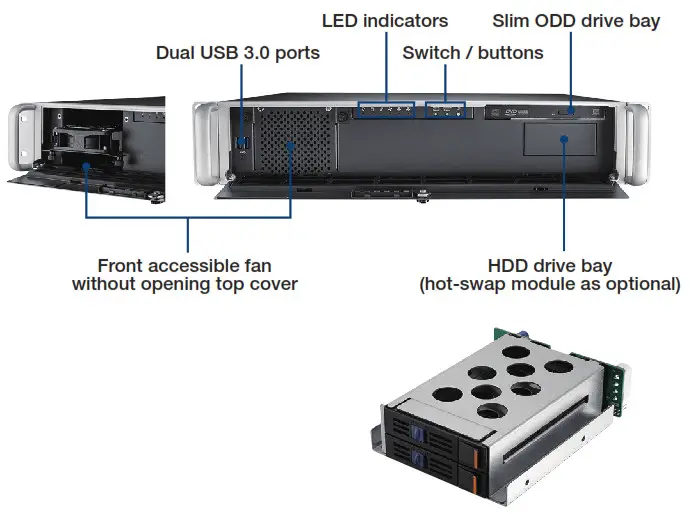

Front View

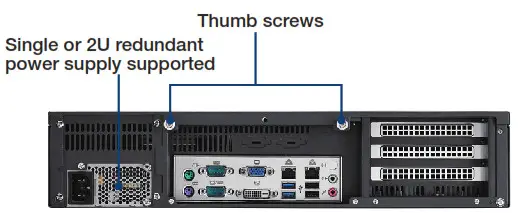

Rear View
Top View
Industrial Chassis
All product specifications are subject to change without notice.

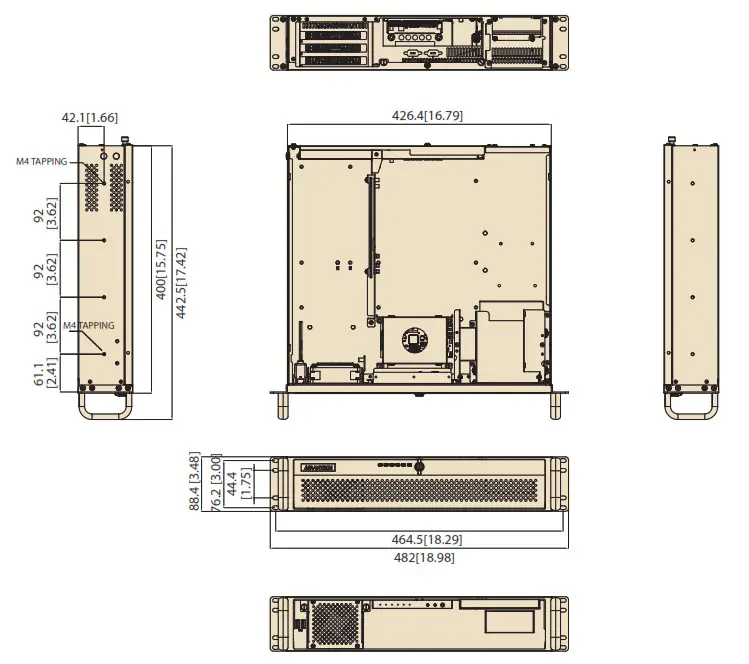

Dimensions
Ordering Information
| Part Number | Power supply | 80 Plus grade | Power supply type | Wattage | Switch |
| ACP-2020MB-35B | PS8-350FATX-GB | Bronze | Single | 350W | ATX |
| ACP-2020MB-50RE | RPS8-500U2-XE | Bronze | 1+1 redundant | 500W | ATX |
Suggest using CPU cooler 1960052651N021, max. CPU TDP 84W.
Optional Accessories
| Part Number | Description |
| 96CB-SATAPOWER-6P2 1990021407T000 | SATA power wire 6-pin to big 4-pin (for slim ODD) |
| 98R1310010E | Door filter |
| Part Number | 2.5″ SATA/SAS Hot-swap module |
| Rear I/O panel kit for low-profile add-on cards | |
| 1939000361 | Screws (should purchase 7 pcs) |
| 1960074850T000 | I/O bracket (should purchase 7 pcs) |
| 1960019475T201 | Rear panel for low-profile |
Online Download www.advantech.com/products
Advantech Co-Creating the Future of the IoT World
