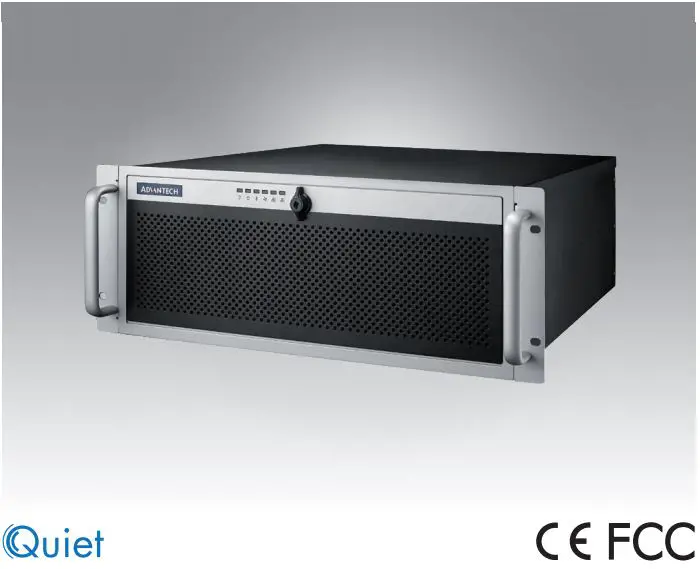

ADVANTECH ACP-4340 4U Rackmount Chassis User Manual
ACP-4340
4U Rackmount Chassis for Full-size SHB/SBC or ATX/MicroATX Motherboard with 4 Hot Swap Drive Trays
Features
- Supports a PICMG backplane with up to 14 slots or an ATX/Micro-ATX motherboard
- Shock-resistant disk drive bay holds four hot-swap 3.5″ and 2.5″ SATA disk trays, one slim optical disk drive, and one 2.5″ internal drive
- Dual front USB 3.0 ports
- Front-accessible system fan without opening top cover for easy maintenance
- LED indicators and alarm notification for system fault detection
- Built-in Intelligent System Module enabling whole system fan control and remote manageability

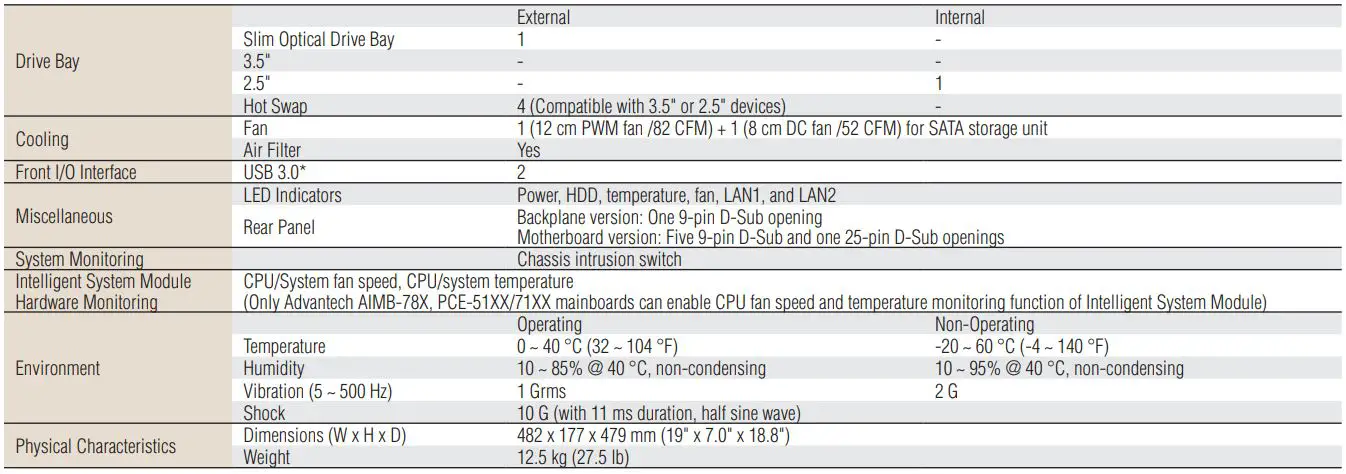

Specifications
The USB 3.0 ports do not operate if the motherboard has no on-board USB 3.0 box header.

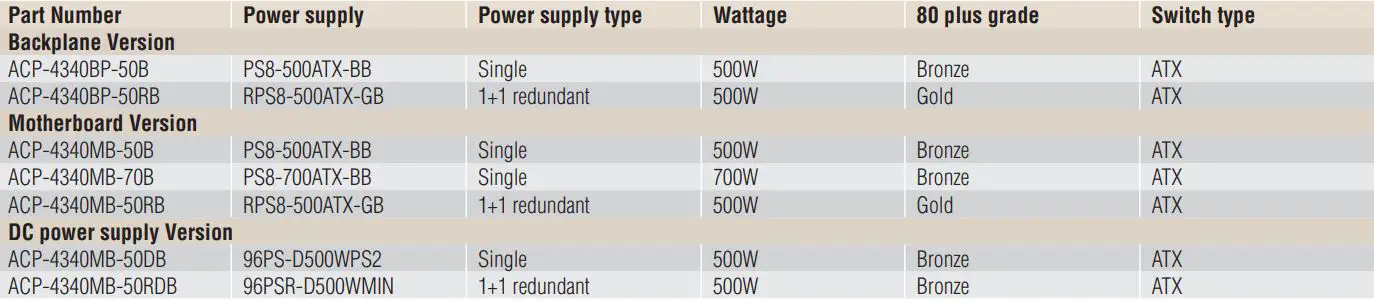

Ordering Information

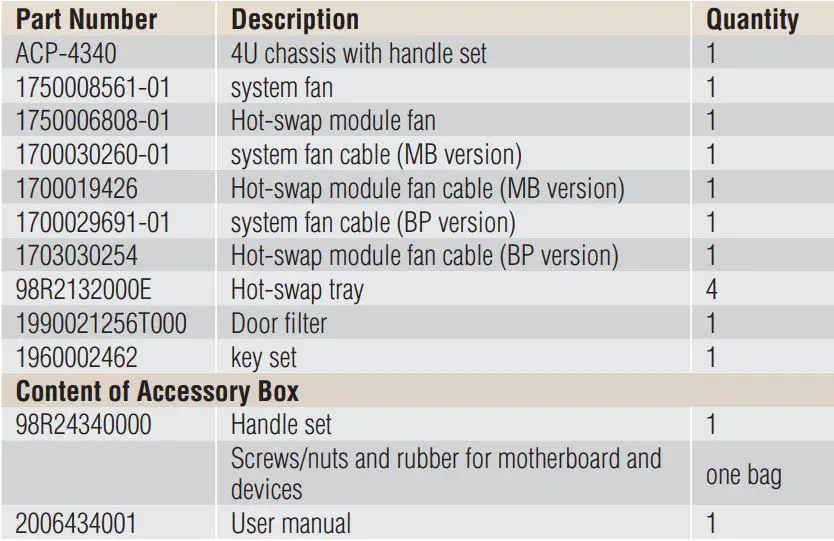

Packing List
Optional Accessories
* If GPU card with 2 power connectors, please use 1700029268-01*1 + 1700024754-01*1; If GPU card with 1 power connector, please use 1700029268-01.
* Only 500W or higher wattage PSU support 1700029268-01 and 1700024754-01 for high-end GPU card.
