WISE DeviceOn Intel 10th Gen Xeon W / Core i LGA1200 Expansion Fanless Box PC User Manual

Features

  • Support Intel® 10th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor
  • Triple independent display: VGA + HDMI + Optional Display
  •  DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB
  • 9-36VDC wide range power input
  •  Up to 4sets 2.5″ hard drive bays, support Intel® SW RAID
  • Support 4GbE, 8USB, 6COM, 16bit DIO, TPM2.0
  • SUSI API, WISE-DeviceOn, McAfee and Acronis bundled
  • 2 x Independent USB 3.0 with lockable design

Specifications







Processor System

CPU                                                 W-1290TE               i9-10900E                i7-10700E                i5-10500E                i3-10100E                                             G5900E
Frequency                                          1.8-4.5GHz               2.8-4.7GHz               2.9-4.5GHz               3.1-4.2GHz                                              3.2~3.8GHz              3.2GHz
L3 Cache                                                 20MB                      20MB                      16MB                      12MB                      6MB        2MB
Cores                                                10                          10                          8                           6                            4                2
TDP                                                 35W                       65W                       65W                       65W                       65W       65W
Chipset                                                        W480E
BIOS                                                           AMI EFI 256Mbit


Memory

Technology                                                  DDR4 2933 MHz
Max. Capacity                                              64 GB
Socket                                                          2 x 260-pin SO-DIMM






Graphics

Chipset                                                        Intel® UHD Graphics 630
DirectX 12, OpenGL 4.5

Graphic Engine                                            HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.

HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9

VGA                                                        1920×1200@ 60Hz
HDMI                                                       1 HDMI port, HDMI 1.4 for HD video playback, 4096×2160@30Hz
Optional 3rd Display module                   DVI-D / DP / HDMI Display Port
Triple Display                                          VGA+HDMI + 3rd display module
EthernetLAN1                                                     10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan
LAN2, 3, 4                                             10/100/1000 Mbps Intel I210 GbE, support Wake On Lan
AudioInterface                                                Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch)
OthersWatch dog Timer                                  255-level timer interval, setup by software
TPM                                                      TPM 2.0 (by optional AMO-I029)


I/O Interface

Serial Port                                             4 x RS-232/422/485 port with auto flow control, 2 x RS-232; COM3 support 5V/12V power supply (by jumper)
USB                                                       4 x USB 3.2 (10Gbs), 2 x USB 3.0, 2 x Independent USB 3.0
GPIO                                                    16bit GPIO






Expansions

Mini PCIe                                              1 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder) #1
M.2                                                        1 x E key for WiFi #1
1 Slot PCIex4 + 2 Slot PCI + 1 Slot PCIex16

Suggest maximum power consumption 10W for each slot

Add-on Card Slot                                 Support add-on card power consumption up to 120W for PCIe*16 slot

If add-on card power consumption over 30W , an external adapter (must need be 12V with LOCKABLE DC JACK , and more than 120W ) and AMO-3509 is required to use in ARK-3532D for power and thermal solutions

Maximum card size                                    110mm (H) x 180mm (L)
StorageHDD                                                 2 x 2.5″ SATAIII 15mm height HDD bay support Intel SW RAID (Up to 4 x 2.5″ SATAIII HDD bays by optional AMK-A0035)
mSATA                                             1 x mSATA socket (Share with Mini PCIe)
Software SupportMicrosoft Windows                                 Windows 10
Linux                                                      By Project Support


Power Requirements

Power Type                                            AT/ATX
Power Input Voltage                              9-36V
Power Adapter                                      AC to DC, 230W (Optional)
Power Consumption (CPU/Memory Only)Typical                                                   30W
Max.                                                      64.8W


Mechanical

Construction                                          Aluminum housing
Mounting                                               Desk mounting
Dimensions (W x H x D)                     197.2 x 204 x 230 mm
Weight                                                    6.41Kg






Environment

Operating Temperature                         Up to 65W processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow

with HDD: 0 ~ 40° C with 0.7m/s air flow

Storage Temperature                                -40 ~ 85° C
Relative Humidity                                   95% @ 40° C (non-condensing)
Vibration During Operation                     With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock During Operation                           With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMC                                                         CE/FCC Class B, CCC, BSMI
Safety                                                          CB, UL, CCC, BSMI

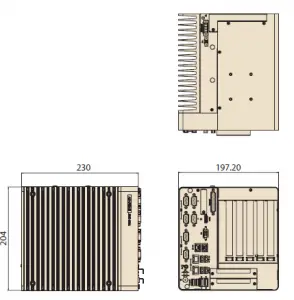

Dimensions

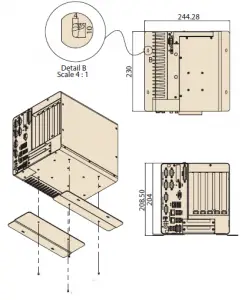

Wallmount

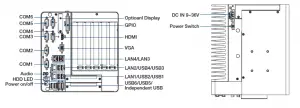

External I/O Mechanical Layout/Drawing

Ordering Information

Part No.CPUDDR4GbeVGAHDMIOption 3rd display moduleRS-232RS-232/422/485USBMiniPCIeSIMM.2DC InputExpansion
ARK-3532D-00A1LGA1200

Socket Type

Up to 64GB41112481119-36VPCIex4 + 2PCI + PCIe x 16

Packing List

Part NumberDescription
ARK-3532D Unit
User Manual (Simplified Chinese)
China RoHS
Desk mounting kit
36WSWPDOBUND11WISE-DeviceOn
36WSWPDOBD0211McAfee Application Control Lite/Acronis Backup 11.7 for Windows PC

Embedded OS

Part NumberDescription
20706WX9HS0125Windows 10 IoT Enterprise 2019 LTSC 64bit for Xeon/Core i9/Core i7
20706WX9VS0129Windows 10 IoT Enterprise 2019 LTSC 64bit for Celeron/ Core i5/Core i3

ARK-3532D Optional Expansion Kit  for add-on Cards

Part NumberDescription
AMO-3509ARK-3532D fan kit

Optional adapter for AMO-3509

Part NumberDescription
XARK-DPS-150AB-15ADP A/D 100-240V 150W 12V C14 LOCKABLE DC JACK

Support add-on card power consumption up to 120W for PCIe*16 slot If add-on card power consumption over 30W , an external adapter (must need be 12V
with LOCKABLE DC JACK , and more than 120W) and AMO-3509 is required to use in ARK-3532D for power and thermal solutions

ARK-3532D Default SKU Option Items

Optional Item for Default SKU
Part NumberDescription
96PSA-A230W24P4-3AC to DC adapter, DC 24V 230W, -20 ~ 60 °C
1702002600Power cable 3-pin 183cm, USA type
1702002605Power cable 3-pin 183cm, EU type
1702031801Power cable 3-pin 183cm, UK type
1700000237Power cable, 3-Pin 183cm, PSE type

ARK-3532D Optional HDD expansion  Kit

Part NumberDescription
AMK-A00352 x internal HDD bays kit (Max Height 15mm)

Optional Display Module

Part NumberDescription
AMO-D001EDVI-D module
AMO-D002EDP module
AMO-D003EHDMI module

Optional TPM Module

Part NumberDescription
AMO-I029TPM 2.0 Infineon SLB9670V2.0
