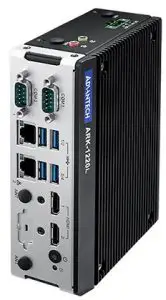

WISE DeviceOn ARK-1220F Intel Atom Fanless Box PC User Manual
Features
- Intel Atom E3940 Quad Core SoC turbo burst up to 1.8 GHz
- DIN-Rail system with essential I/O ports on front-side bezel
- 2 x Isolated Intel GbE with protection to 2.5K VDC
- 2 x Isolated COM with protection to 2.5K VDCIsolated 8 bit GPIO (4DI/4DO) with with protection to 2.5K VDC
- 4 x USB 3.0 and 1 x USB 2.0
- Dual independent displays with one 4K HDMI and one VGA
- 1 x full-size mPCIe with nano SIM holder and 1 x M.2 2230 for WIFI
- mSATA and 1 x 2.5″ SATA storage device
- 12V ~ 28V wide range power input
- -30 ~ 60 °C extended operating temperature
- Advantech Device On support
Specifications
| Model Name | ARK-1220F-S6A1 | |
| Processor System | CPU | Intel Atom E3940 Quad Core SoC |
| Frequency | 1.6 GHz, turbo burst up to 1.8 GHz | |
| Core Number | 4 | |
| BIOS | AMI EFI 128 Mbit | |
| Memory | Technology | DDR3L 1866 Mhz |
| Max capacity | 8GB | |
| Socket | 2 x 204-pin SO-DIMM, 2 x 4GB or 1 x 8GB memory | |
|
Graphics | Chipset | Intel HD Graphics 500, CPU integrated |
| Graphic Engine | Gen9 Low Power; 18 Execution Units Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG 3D HW Acceleration: OpenGL 4.4, DirectX* 12, OpenCL* 2.0 | |
| HDMI | Up to 3840 x 2160 @ 30Hz | |
| VGA | Up to 1920 x 1200 @ 60 Hz | |
| Dual Display | HDMI + VGA | |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel i210-IT GbE, support Wake On LAN |
| LAN2 | 10/100/1000 Mbps Intel i210-IT GbE, support Wake On LAN | |
| Audio | Interface | Realtek ALC888S, High Defination Audio, Mic-in, Line-out |
| I/O Interface | Seriel Ports | 1 x 2.5K VDC Isolated RS232/RS422/RS485 1 x 2.5K VDC Isolated RS422/RS485 (default RS485 for both ports) |
| 4 x USB3.0, 1 x USB2.0 | ||
| GPIO | 8-bit Programmable DIO | |
| Expansion | Mini PCIe | 1 x Full-size mPCIe with nano SIM holder #1 |
| M.2 1 x M.2 2230 E key for WIFI module #1 | ||
| Storage | SSD/HDD | 1 x 2.5″ SATAIII Drive bay (compatible with 15mm height) |
| mSATA | 1 x Full-size mSATA (*share with mPCIe slot) | |
| Other | WatchDog Timer | 255 levels timer interval, setup by software |
| TPM | SLB9665XQ2.0 FW5.62 | |
| Software Support | Microsoft Windows | Windows 10 Enterprice |
| Linux | Support by project | |
| Power Requirement | Power Type | ATX/AT |
| Power Input Voltage | 12 ~ 28 VDC | |
| Power Adaptor | AC to DC, 60W (Optional) | |
| Power Consumption | Typical | 7.6W |
| Max. | 19W | |
| Mechanical | Construction | Aluminum housing |
| Mounting | DIN-rail/Wall Mount | |
| Dimensions (W x H x D) | 60 x 158 x 114 mm (2.34″ x 6.22″ x 4.49″) | |
| Weight | 1.5 kg (3.3lb) | |
|
Environment | Operating Temperature | With extended temp. peripherals: -30 ~ 60 °C (-22 ~ 140 °F) with 0.7 m/s air flow |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185°F) | |
| Relative Humidity | 95% @ 40 °C (non-condensing) | |
| Vibration during Operation | With SSD: 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis | |
| Shock during Operation | With SSD: 30 G, IEC-60068-2-27, half sine, 11 ms duration | |
| EMC | Heavy industrial certificates, CE/FCC Class B | |
| Safety | UL, CB, CCC and BSMI | |
1 SIM holder and M.2 slot are hardware interfaces for wireless communication integration only. System level RF certification is not available

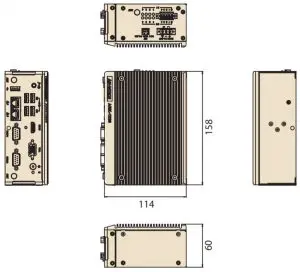

Dimensions

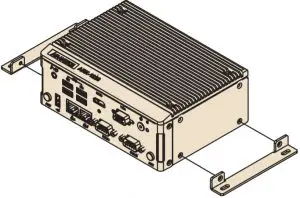

Wall Mount

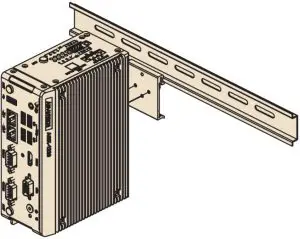

DIN Rail

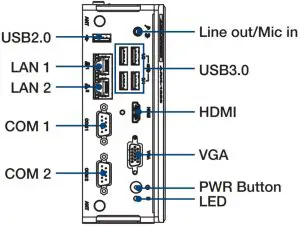

Front Panel External I/O Mechanical Layout/Drawing

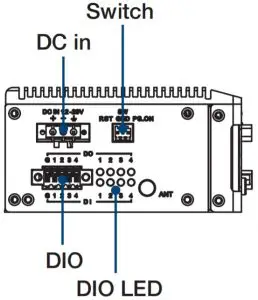

Top Panel External I/O Mechanical Layout/Drawing
Ordering Information
| Part No. | CPU | RAM HD | MI | VGA | GbE | USB 3.0 | USB 2.0 | RS-232/ 422/485 | Audio | Full-size MiniPCIe | SIM | M.2 | 2.5″ SATA III HDD Bay | mSATA | Power Input | Operating Temp. |
| ARK-1220F-S6A1 | Intel Atom E3940 1.6 GHz SoC | Up to 1 8GB | 1 | 2 | 4 | 1 | 2 | Mic-in, Line-out | 1 | 1 | 1 | 1 | 1 (shared w/ mPCIe) | 12~28 VDC | -30 ~ 60 °C |
Packing List
| Part Number | Description |
| – | 1 x ARK-1220L Unit |
| – | 1 x User Manual (Simplified Chinese) |
| – | Wrench for top cover |
| 1960015198T011 | 1x DIN-rail bracket |
| 1652004519 | 1x 3-pin plug-in block for power in |
| 1652007619-01 | 1 x 10-pin plug-in block for DIO |
| 1652008227-01 | 1 x 3-pin terminal block for switch |
Optional Items
| Part Number | Description |
| 96PSA-A60W24T2-3 | AC to DC Adaptor, 24V/2.5A 60W |
| 1702002600 | Power cable 3-pin 183cm, USA type |
| 1702002605 | Power cable 3-pin 183cm, EU type |
| 1702031801 | Power cable 3-pin 183cm, UK type |
| 1700000237 | Power cable 3-pin 183cm, PSE type |
| 1700023855-01 | 1M lockable HDMI cable |
| 1700023856-01 | 3M lockable HDMI cable |
| AMK-W004 | ARK-1220F wall mount kit |
Embedded OS
| Part Number | Description |
| 20706WX9ES0143 | Win10 IoT Ent 2019 LTSC 64bit, English |
Online Download www.advantech.com/products
