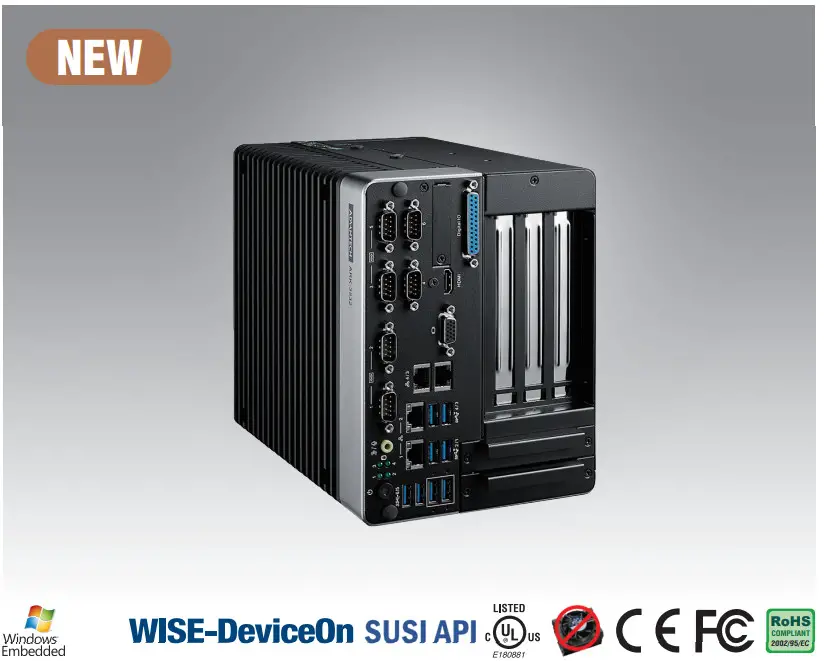

ARK-3532B
Intel® 10 th Gen Xeon® W / Core™ i
LGA1200 Expansion Fanless Box PC
Contents hide
Features
- Support Intel® 10 th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor
- Triple independent display: VGA + HDMI + Optional Display
- DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB
- 9-36VDC wide range power input
- Up to 4sets 2.5″ hard drive bays, support Intel® SW RAID
- Support 4GbE, 8USB, 6COM, 16bit DIO, TPM2.0
- SUSI API, WISE-DeviceOn, McAfee and Acronis bundled
- 2 x Independent USB 3.0 with lockable design
Specifications
| Processor System | CPU | W-1290TE | i9-10900E | i7-10700E | i5-10500E | i3-10100E | G5900E |
| Frequency | 1.8-4.5GHz | 2.8-4.7GHz | 2.9-4.5GHz | 3.1-4.2GHz | 3.2~3.8GHz | 3.2GHz | |
| L3 Cache | 20MB | 20MB | 16MB | 12MB | 6MB | 2MB | |
| Cores | 10 | 10 | 8 | 6 | 4 | 2 | |
| TDP | 35W | 65W | 65W | 65W | 65W | 65W | |
| Chipset | W480E | ||||||
| BIOS | AMI EFI 256Mbit | ||||||
| Memory | Technology | DDR4 2933 MHz |
| Max. Capacity | 64 GB | |
| Socket | 2 x 260-pin SO-DIMM | |
| Graphics
| Chipset | Intel® UHD Graphics 630 |
| Graphic Engine | DirectX 12, OpenGL 4.5 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 | |
| VGA | 1920×1200@ 60Hz | |
| HDMI | 1 HDMI port, HDMI 1.4 for HD video playback, 4096×2160@30Hz | |
| Optional 3rd Display module | DVI-D / DP / HDMI Display Port | |
| Triple Display | VGA+HDMI + 3rd display module | |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan |
| LAN2, 3, 4 | 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan | |
| Audio | Interface | Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) |
| Others | Watch dog Timer | 255-level timer interval, setup by software |
| TPM | TPM 2.0 (by optional AMO-I029) | |
| I/O Interface | Serial Port | 4 x RS-232/422/485 port with auto flow control, 2 x RS-232; COM3 support 5V/12V power supply (by jumper) |
| USB | 4 x USB 3.2 (10Gbs),2 x USB 3.0, 2 x Independent USB 3.0 | |
| GPIO | 16bit GPIO | |
| Expansions | Mini PCIe | 1 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder) #1 |
| M.2 | 1 x E key for WiFi #1 | |
| Add-on Card Slot | 1 Slot PCIex4 + 1 Slot PCIex16 Suggest maximum power consumption 10W for each slot Support add-on card power consumption up to 120W for PCIe*16 slot | |
| Maximum card size | 110mm (H) x 180mm (L) | |
| Storage | HDD | 2 x 2.5″ SATAIII 15mm height HDD bay support Intel SW RAID (Up to 4 x 2.5″ SATAIII HDD bays by optional AMK-A0035) |
| mSATA | 1 x mSATA socket (Share with Mini PCIe) | |
| Software Support | Microsoft Windows | Windows 10 |
| Linux | By Project Support | |
| Power Requirements
| Power Type | AT/ATX |
| Power Input Voltage | 9-36V | |
| Power Adapter | AC to DC, 230W (Optional) | |
| Power Consumption (CPU/Memory Only) | Typical | 30W |
| Max. | 64.8W | |
| Mechanical | Construction | Aluminum housing |
| Mounting | Desk mounting | |
| Dimensions (W x H x D) | 156 x 204 x 230 mm | |
| Weight | 5.705Kg | |
| Environment | Operating Temperature | Up to 65W processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s airflow with HDD: 0 ~ 40° C with 0.7m/s airflow |
| Storage Temperature | -40 ~ 85° C | |
| Relative Humidity | 95% @ 40° C (non-condensing) | |
| Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. | |
| Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half-sine, 11 ms duration | |
| EMC | CE/FCC Class B, CCC, BSMI | |
| Safety | CB, UL, CCC, BSMI |

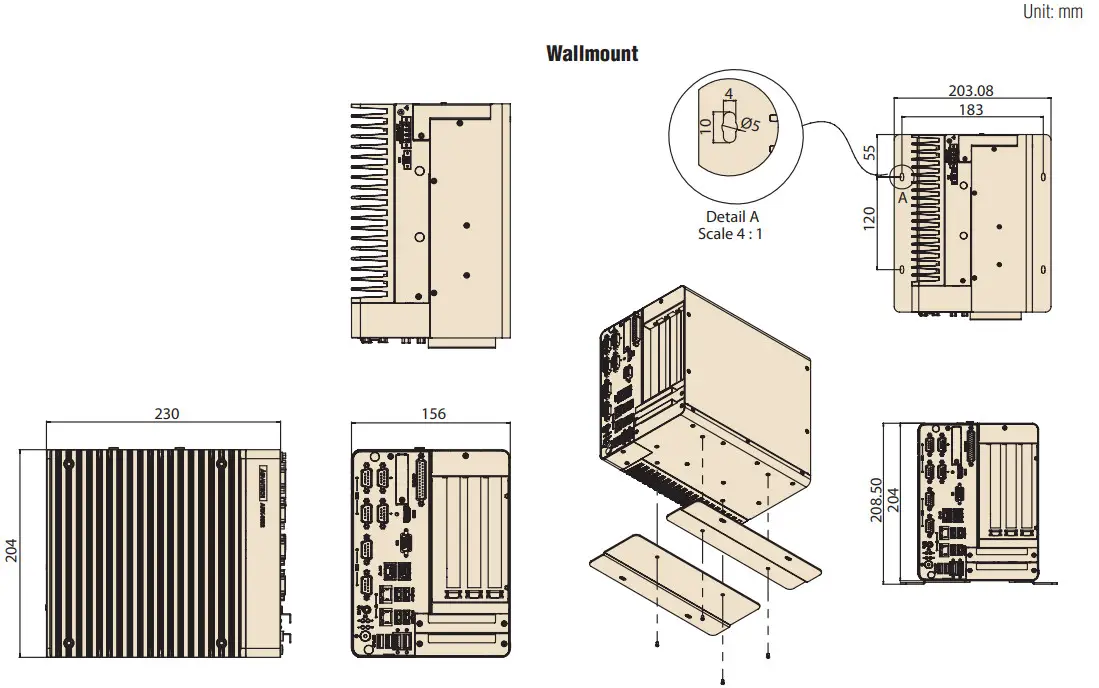

Dimensions

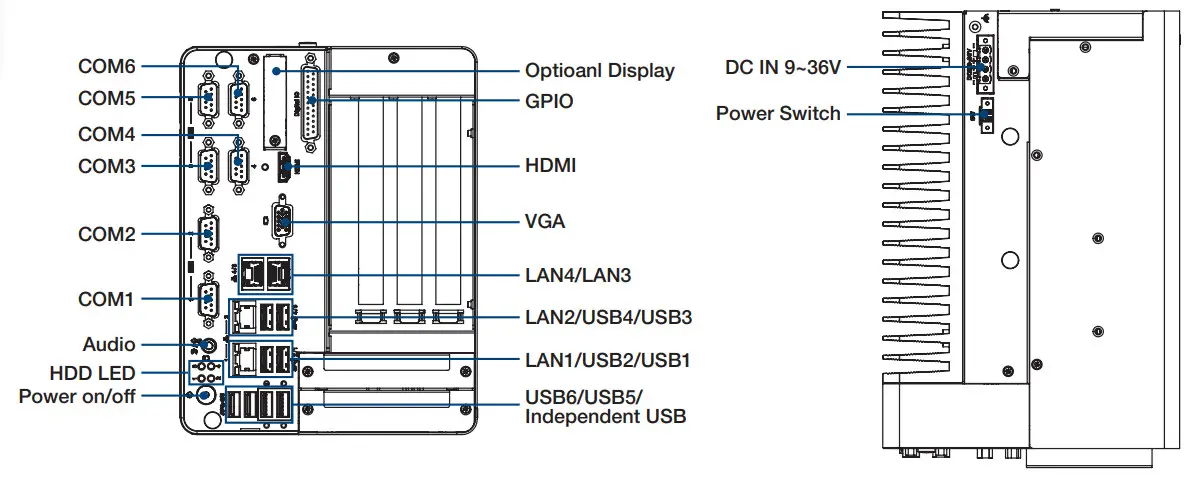

External I/O Mechanical Layout/Drawing
Ordering Information
| Part No. | CPU | DDR4 | Gbe | VGA | HDMI | Option 3rd display module | RS-232 | RS- 232/422/485 | Audio | USB | MiniPCIe | SIM | M.2 | DC Input | Expansion |
| ARK-3532B-00A1 | LGA1200 Socket Type | Up to 64GB | 4 | 1 | 1 | 1 | 2 | 4 | Mic-in or Line-out | 8 | 1 | 1 | 1 | 9-36V | PCIex4 + PCIex16 |
| ARK-3532B-00A2 | LGA1200 Socket Type | Up to 64GB | 4 | 1 | 1 | 1 | 2 | 4 | N/A | 8 | 1 | 1 | 1 | 9-36V | PCIex4 + PCIex16 |
Packing List
| Part Number | Description |
| – | ARK-3532B Unit |
| – | User Manual (Simplified Chinese) |
| – | China RoHS |
| – | Desk mounting kit |
| 36WSWPDOBUND11 | WISE-DeviceOn |
| 36WSWPDOBD0211 | McAfee Application Control Lite/Acronis Backup 11.7 for Windows PC |
Embedded OS
| Part Number | Description |
| 20706WX9HS0125 | Windows 10 IoT Enterprise 2019 LTSC 64bit for Xeon/Core i9/Core i7 |
| 20706WX9VS0129 | Windows 10 IoT Enterprise 2019 LTSC 64bit for Celeron/ Core i5/Core i3 |
ARK-3532B Optional Expansion Kit for add-on Cards
| Part Number | Description |
| AMO-3508 | ARK-3532B/C fan kit |
Optional adapter for AMO-3508
| Part Number | Description |
| XARK-DPS-150AB-15 | ADP A/D 100-240V 150W 12V C14 LOCKABLE DC JACK |
Support add-on card power consumption up to 120W for PCIe*16 slot If add-on card power consumption is over 30W, an external adapter (must need be 12V
with LOCKABLE DC JACK , and more than 120W) and AMO-3508 is required to use in ARK-3532B for power and thermal solutions
ARK-3532B Default SKU Option Items
Optional Item for Default SKU
| Part Number | Description |
| 96PSA-A230W24P4-3 | AC to DC adapter, DC 24V 230W, -20 ~ 60 °C |
| 1702002600 | Power cable 3-pin 183cm, USA type |
| 1702002605 | Power cable 3-pin 183cm, EU type |
| 1702031801 | Power cable 3-pin 183cm, UK type |
| 1700000237 | Power cable, 3-Pin 183cm, PSE type |
ARK-3532B Optional HDD expansion Kit
| Part Number | Description |
| AMK-A0035 | 2 x internal HDD bays kit (Max Height 15mm) |
Optional Display Module
| Part Number | Description |
| AMO-D001E | DVI-D module |
| AMO-D002E | DP module |
| AMO-D003E | HDMI module |
Optional TPM Module
| Part Number | Description |
| AMO-I029 | TPM 2.0 Infineon SLB9670V2.0 |
