EPC-R3430
NXP ARM® Cortex®-A9 i.MX6 Dual 1GHz
Fanless Box

Contents hide

1 Features

2 Specifications

3 Dimensions

4 Ordering Information

5 Packing List

6 Optional Accessories

7 Front I/O

8 Features

9 Product Highlights

10 Documents / Resources

10.1 References

11 Related Posts

Features

NXP i.MX 6 Dual 1GHz
On-board 1GB DDR3L and 4GB eMMC
HDMI
RS-232/422/485, 2 USB, 1 GbE
1 Micro SD socket
I/O selection of UIO-4030, UIO-4032 and UIO-4034
Mini-PCIe w/ SIM socket for 3G/LTE
M.2 Key E, Type 2230 for Wi-Fi & BT

Specifications

Model		EPC-R3430ID-PLA100	EPC-R3430ID-PLA120		EPC-R3430ID-PLA140
Processor System	CPU	NXP ARM Cortex -A9 i.MX6 Dual 1 GHz
Memory	Technology Capacity Flash	DDR3 1 GB On-board 4 GB Onboard eMMC Flash for OS and 4 MB of NOR Flash for boot code
Graphics	HDMI Graphics Engine H/W Video Codec	HDMI with 1920 x 1080 resolution 1 x IPU. OpenGL ES 2.0 for 3D, BitBlt for 2D 1 x IPU. OpenVG 1.1 Decoder: MPEG-4 ASP, H.264 HP, H.263, MPEG-2 MP, MJPEG BP Encoder: MPEG-4 SP, H.264 BP, H.263, MJPEG BP
Ethernet	Chipset Speed	NXP i.MX6 integrated RGMII 1 10/100/1000 Mbps
Watchdog Timer	Watchdog Timer	1~6553s, power on/off 4s
Front I/O	USB CART GbE	2 x USB 2.0 Type A 1 x RS-232/ 422/ 485 1 x RJ45 for GbE
Rear I/O		1 x RS-485, 1 x 2 wires RS-232 1 x 8 GPIO		2 x 2 wires RS-232 1 x GbE, 2 x USB 2.0		2 x 2 wires RS-232 1 x CAN Bus 2.0B
Expansion	Full-Size Mini PCIe M.2 Micro SD Socket SIM Antenna Holes	1 (with USB signal only) 1 M.2 Key-E, Type 2230 1 Micro SD Socket 1 Nano SIM socket 2
Power	Power Supply Voltage Power Type Power Consumption	12 VDC DC-Jack 2 Watts (max. load)
Environment	Operating Temperature Operating Humidity	-20 ~ 60 °C 5 ~ 95% relative humidity, non-condensing
Mechanical	Dimensions Mounting Weight	174 x 108 x 25 mm Wall mount 480 g
Operating System	Linux Android	Yocto, Ubuntu Android
Certifications		CE/FCC Class B

RISC Computing Platforms
All product specifications are subject to change without notice.

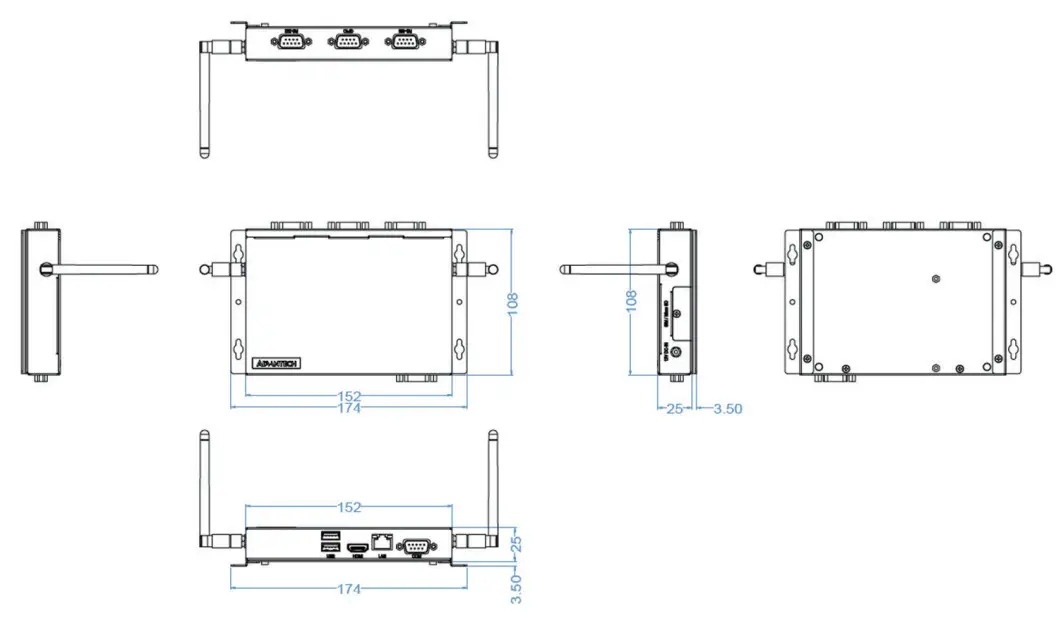

Dimensions

Ordering Information

Part Number

CPU

Memory

Flash

HDMI

LAN

USB

GPIO

Serial Port

Micro SD

SIM

CAN

Operating
Temperature

EPC-R3430ID-PLA100

Dual 1 GHz

1 GB

4 GB

–

-20 ~ 60 °C

EPC-R3430ID-PLA120

Dual 1 GHz

1 GB

4 GB

–

-20 ~ 60 °C

EPC-R3430ID-PLA140

Dual 1 GHz

1 GB

4 GB

–

-20 ~ 60 °C

Packing List

Part Number	Description
1960093165N001	EPC-R3430 series mount bkt

Optional Accessories

Part Number	Description
96PSA-A36W12R1	ADAPTER 100-240V 36W 12V 3A
EWM-W162M201E	802.11 ac/a/b/g/n Wi-Fi and BT4.2 M.2 card
EWM-C117FL01E	LTE/HSPA+/GPRS module, w/o SIM Slot, for USA AT&T, T-Mobile, w/o voice function
1.75E+09	Antenna SMA(F)/MHF 15cm SMALFN8-3150A-00X00R (4G Cable)
1750007990-01	Antenna 4G/LTE full band L=11 cm 50 Ohm
1750007965-01	Wi-Fi cable, SMA (M) to MHF4, 50 cm
1.75E+09	2DBI 2.4 GHz SMA CONN

Front I/O

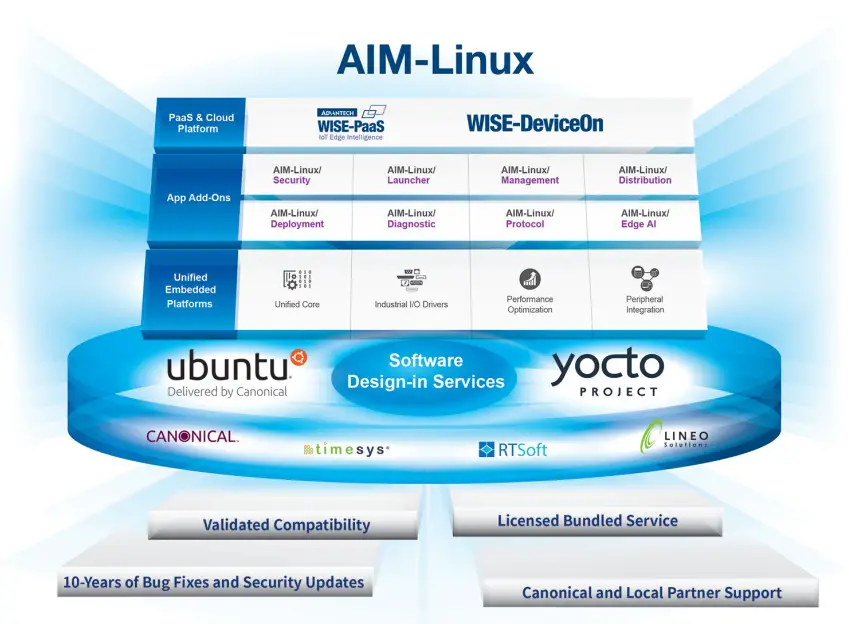

Embedded Linux Support and Design-in Services

Hardware Certified Ubuntu and Yocto with Eco Partner Services,_

Linux is the most popular embedded OS for transportation, outdoor services, factory automation, and mission-critical applications. Its open-source and kernel reliability features ease security updates, and make it particularly adaptable to new Al and Edge computing technology. Advantech has cooperated with Canonical and other software partners to provide hardware-certified Ubuntu image and Yocto BSP as Linux offerings. The Advantech, Embedded Linux, and Android Alliance (ELAA) delivers local software services and consultation.

Features

Certified OS and BSP	Licensed Services	Numerous Al and Edge Resources	Local Partner Alliance
Platform compatibility tests	The license authorized Canonical delivers 10-years of bug fixes and security updates	Containerized technology for service provision and deployment	Embedded Linux and Android Alliance (ELAA)
Preloaded functional driver and software stacks	In-house bundled service	Al resources from Caffe, TensorFlow, and mxnet

WISE-DeviceOn

Massive loT Device Management Utility

loT deployment and management typically involve numerous disparate devices installed on multiple sites. These devices require effective monitoring, managing, and tracking. Advantech’s easy-to-use WISE-DeviceOn interface enables users to remotely monitor device health, troubleshoot problems, and send software/firmware updates over the air (OTA). In sum, DeviceOn empowers quick real-time responsiveness to emerging problems.

Comprehensive Management	Remote Access	Efficient Operations
Devices status	Real-time monitoring	Zero-touch onboarding
Peripherals/firmware	Remote controls	OTA updates
Open for extension	Troubleshooting	Batch control
