advantech Modular Fanless Box PC
Features
- Intel 6th/7th Gen Intel® CoreTM U-series (i3/i5/i7)
- VGA and HDMI dual display, option 3rd display for triple display
- 12V lockable DC jack power input
- 9-36V optional power module compatible with all-in-one ordering
- -20 ~ 60 °C extend temperature operating
- 2 x full-size mPCIe expansion for WIFI/Cellular communication module
- 1 x full-size mSATA and 1 x 2.5″ SATA storage device
- Advantech iDoor module compatible
- Advantech ARK Plus module support by dual-layer configurations

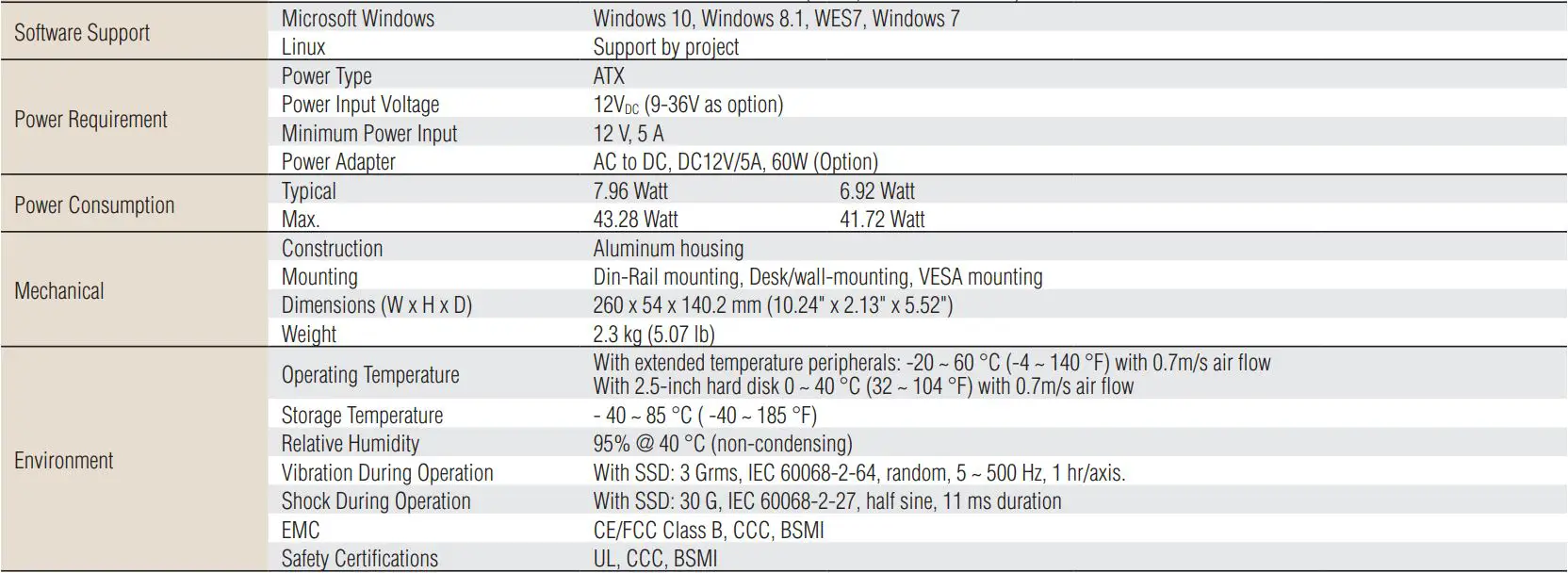

Specifications
#1 SIM holder is the hardware interface for wireless communication integration only. System-level RF certification is not available.
Fanless Embedded Box PCs
All product specifications are subject to change without notice.

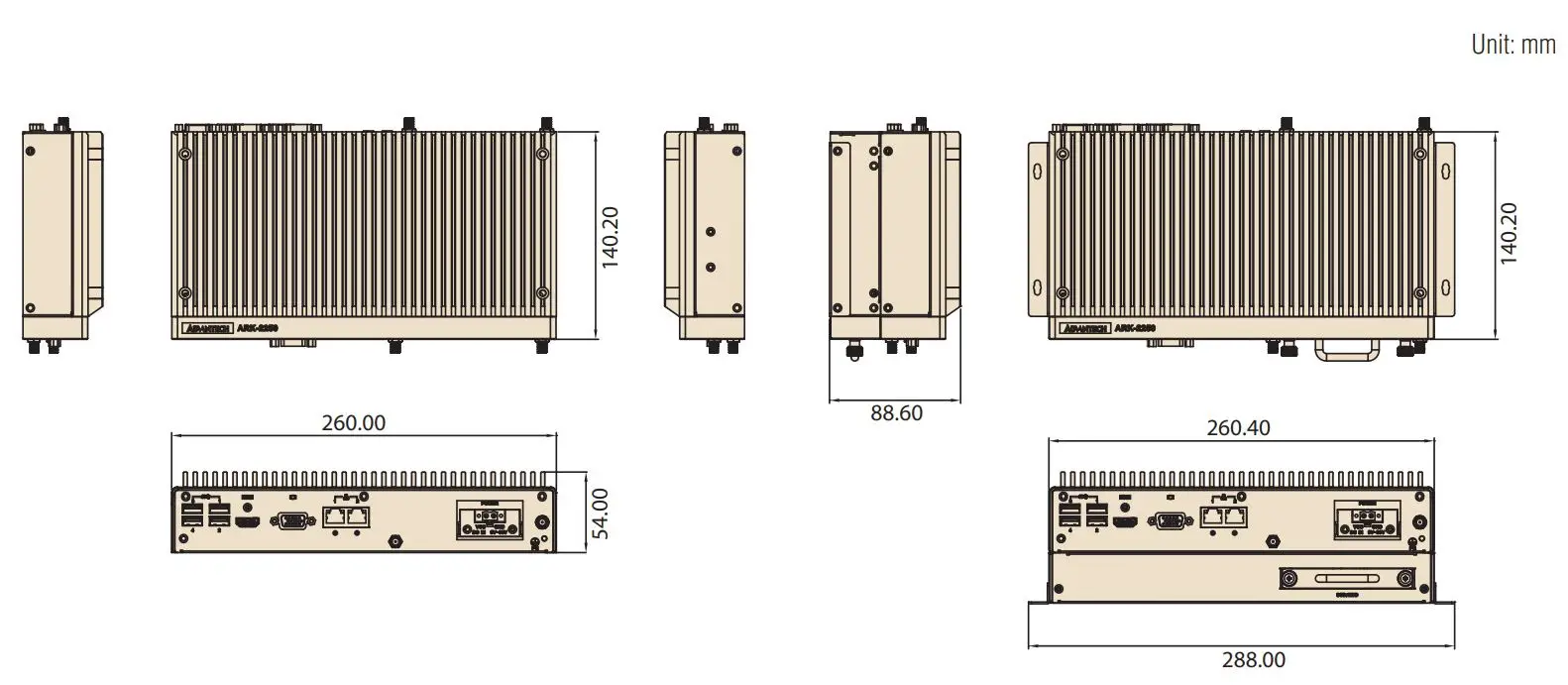

Dimensions

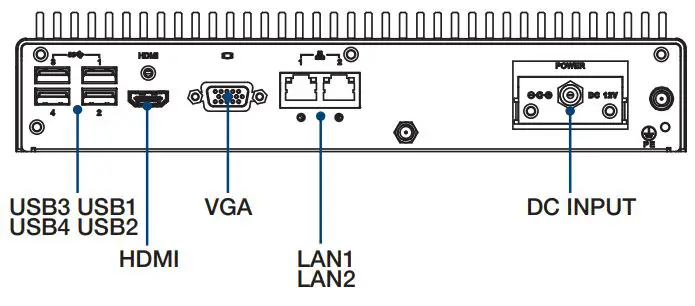

Front Panel External I/O Mechanical Layout/Drawing
*Power Input module by option

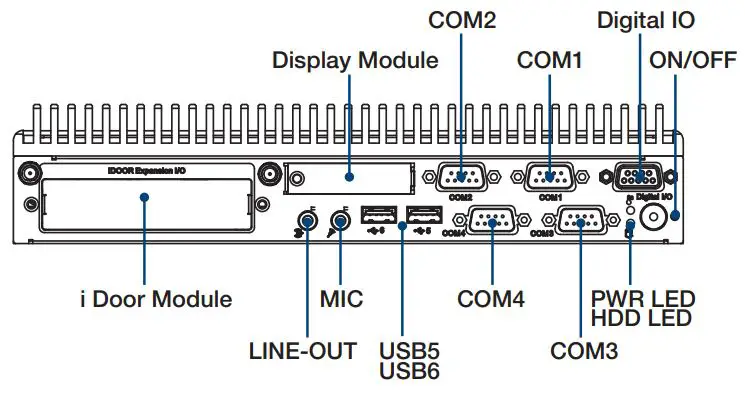

Rear Panel External I/O Mechanical Layout/Drawing

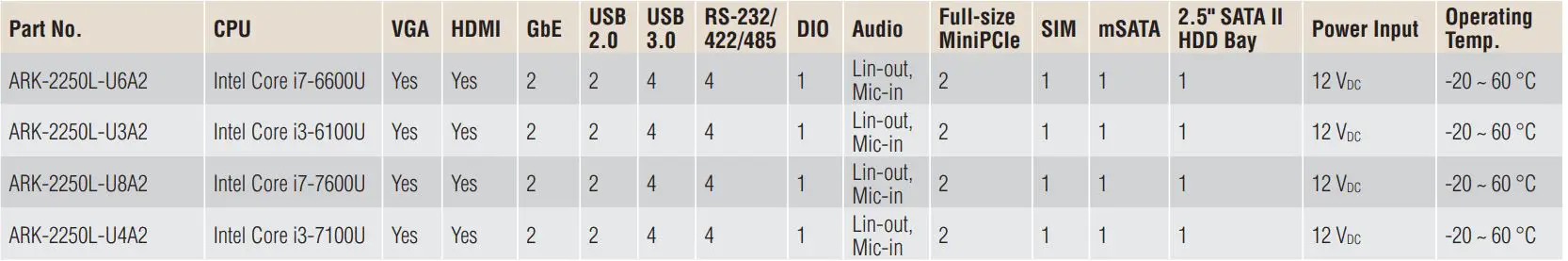

Ordering Information
Note: Memory, storage, and an operating system bundled by request.
* i5-6300U/i5-7300U are supported by T-P/N with MOQ 30 pcs.

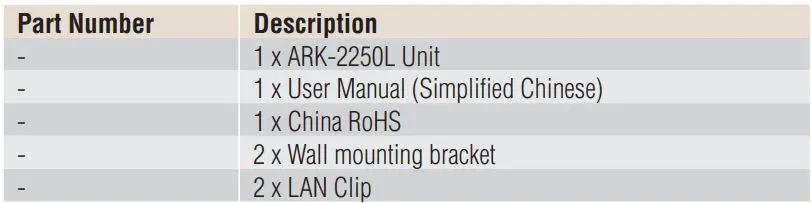

Packing List
ARK-2250 Expansion Option Items

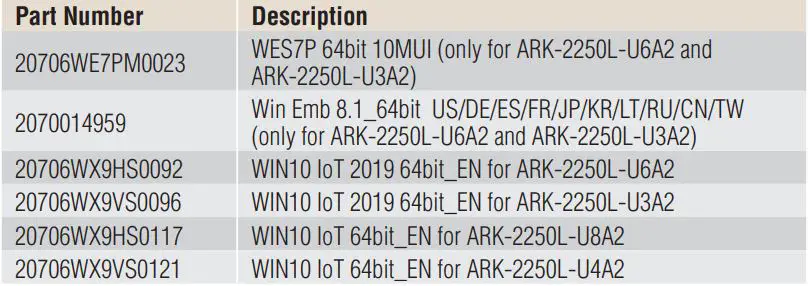

Optional Embedded OS
Note: Default BIOS is for 64bit OS support only. 32bit OS will need to update BIOS

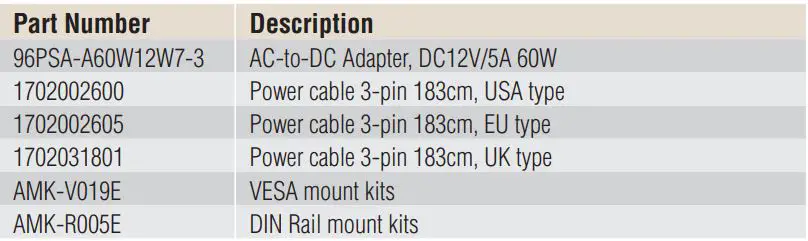

Optional Item for Default SKU
Optional MOS modules for iDoor Expansion
* When configuring with MOS-2120-Z1201, please update BIOS with Advantech part number 1420048565.

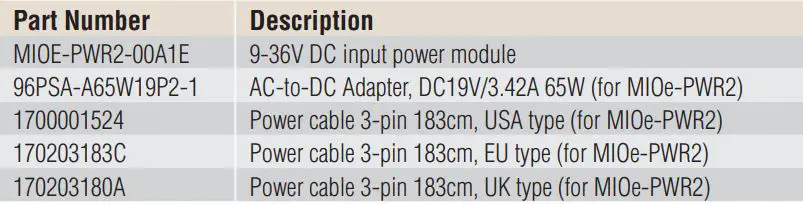

Optional 9-36V DC Power module

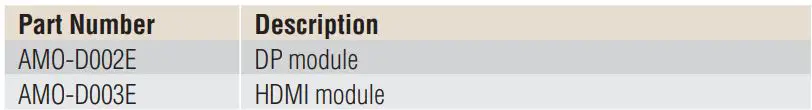

Optional Display Module
ARK-2250 Dual Layer Expansion Option Items

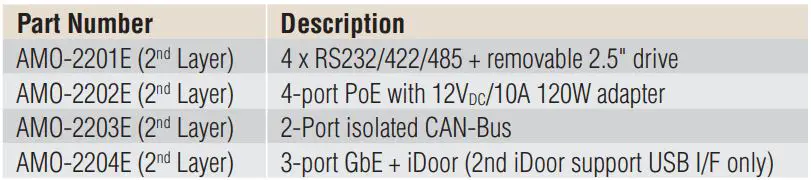

Optional modules for ARK Plus Expansion
ARK Plus Extended Modules
AMO-2201E
4 x RS232/422/485 + removable 2.5″ drive bay
Specifications
Ordering Information
AMO-2202E
4 x 10/100/1000Base T(X) PoE
Specifications
Ordering Information

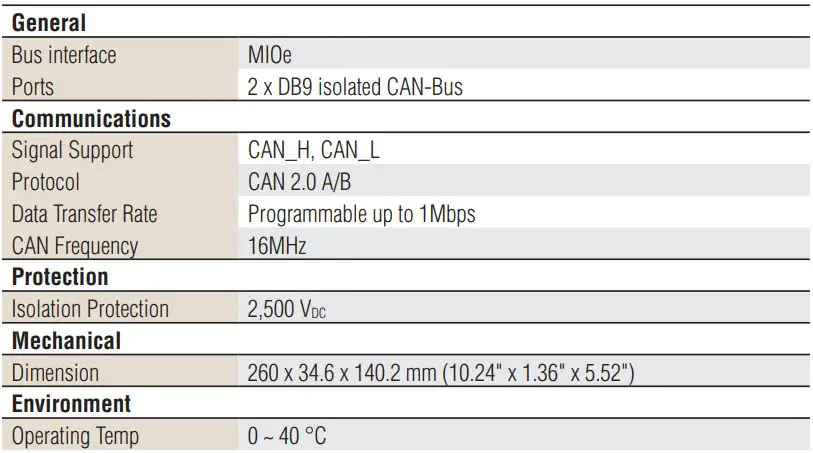

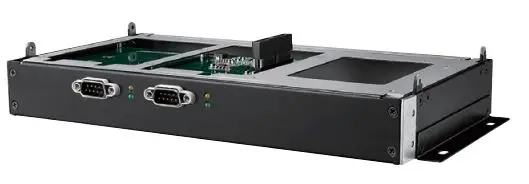

AMO-2203E
2-Port isolated CAN-Bus
Specifications
Ordering Information

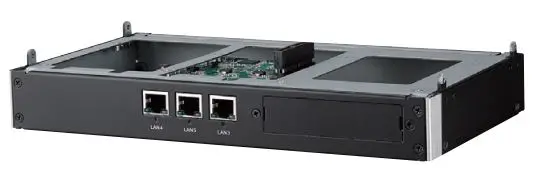

AMO-2204E
3-Port GbE + iDoor
Specifications
Ordering Information
* 2nd iDoor supported. Please refer to “Optional MOS modules for iDoor Expansion
