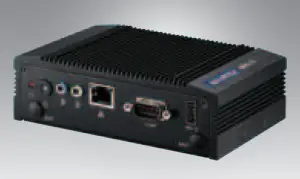

CEFCC Fanless Box PC User Manual

Features

Intel® Celeron J1900 Quad Core 2.0 GHz SoC
2G DDR3L Memory & 500G 2.5″ 24×7 SATA HDD Built In
2 x GbE for Multiple Internet Transmission
2 x RS-232/422/485 (BIOS selection)
1 x Full-Size MiniPCIe (ex. WLAN or WWAN module) #1
Optional VESA / DIN Rail / Wall Mounting kits
Threaded DC jack design
Supports WISE-PaaS DeviceOn and Embedded Software APIs

Specifications

ARK-10-U0A3
Processor System	CPU Frequency L2 Cache BIOS	Intel® Celeron Processor J1900 Quad Core SoC 2.0 GHz (Up to 2.41 GHz w/ burst frequency enabled) 2 MB AMI EFI 64 Mbit (Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported by project)
Memory	Technology Socket	DDR3L 1333 MHz 1 x 204-pin SO-DIMM, 2 GB Memory Built In
Graphics	Chipset Graphic Engine VGA	Intel® Atom SoC integrated DirectX* 11.1, OGL 3.0, OCL 1.1, OGL ES 2.0 Encode: H264, MPEG2/4, VC1, WMV9 Decode: H264, MPEG2 1 x VGA, support up to 1920 x 1200 at 60Hz
Audio	Main System	ALC-888S, High Definition Audio. Line-out & Line-in
Ethernet	LAN #1 LAN #2	10/100/1000 Mbps Intel I210 GbE, support Wake on LAN 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN
I/O Interface	Serial Ports USB Interface	2 x RS-232/422/485 (BIOS selectable) 2 x USB 2.0 & 1 x USB3.0
Other	Watchdog timer	255-level timer interval, setup by software
Expansion	Mini PCIe	1 x Full-size Mini PCIe, support WLAN or WWAN module #1
Storage	2.5″ Drive Bay mSATA	1 x 500GB 2.5″ 24×7 SATA HDD Built In 1x half-size mSATA (Suggest to assembly by CTOS or T-Part due to complex installation)
Software Support	Microsoft Windows Linux	WES7, Windows 7, WE8S, Windows 8 (32-bit support by project) Support (by Project)
Power Requirement	Power Input Voltage Power Adapter	Single 12 VDC AC to DC, DC12 V/3 A, 36 W with threaded design
Mechanical	Construction Mounting Dimensions (W x H x D)	Aluminum housing VESA/DIN Rail/Wall Mounting Kits (Optional) 133.8 x 43.1 x 94.2 mm (5.27″ x 1.7″ x 3.71″)
Environment	Operating Temperature Storage Temperature Relative Humidity Vibration During Operation Shock During Operation	0 ~ 50° C with 0.7m/s air flow -40 ~ 85 °C (-40~185 °F) 95% @ 40 °C (non-condensing) 0.5Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis 10G, IEC 60068-2-27, half sine, 11 ms duration
Regulation	EMC Safety	CE/FCC Class A, CCC, BSMI UL, CCC, BSMI, CB

#1 Mini PCIe is hardware interface for wireless communication integration only. System level RF certification is not available.

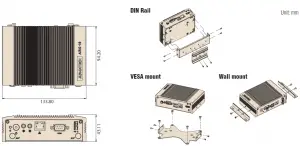

Dimensions

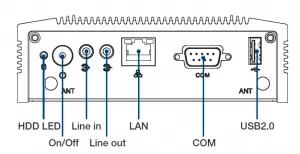

Front Panel External I/O Mechanical Layout/Drawing

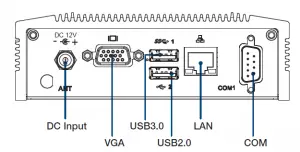

Rear Panel External I/O Mechanical Layout/Drawing

Ordering Information

Packing List

Part Number	Description
–	1 x ARK-10 Unit
–	1 x User Manual (Simplified Chinese)
96PSA-A36W12W7-5	1 x AC to DC adapter DC 12V/3A 36W

Embedded OS

(Only available for T-Parts OEM, and CTOS service)

Part Number	Description
2070013062	WES7E 64-bit with EN/JP/TC/SC (OS size around 11G)
2070013368	WE8S 64-bit with EN/JP/TC/SC (OS size around 13G)

* Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported
by project.

Optional Items

Part Number	Description
1700001524	Power Cable 3-pin 180cm, USA type
170203183C	Power Cable 3-pin 180cm, Europe type
170203180A	Power Cable 3-pin 180cm, UK type
1700008921	Power Cable 3-pin PSE Mark 183cm
AMK-V003E	ARK-112X series VESA mounting kit
AMK-R001E	ARK-112X series DIN-rail mounting kit
AMK-W001E	ARK-112X series Wall mounting kit
