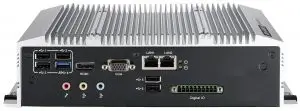

WISE DeviceOn J1900 Intel Fanless Box PC User Manual
Features
- Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support.
- VGA and HDMI dual independent display.
- 6 x COM, 6 x USB, isolated DIO.
- 9 ~ 36 VDC wide range power input.
- -20 ~ 70° C extend temperature operating.
- Mini PCIe expansion with SIM holder for communication module.
- mSATA and 1 x 2.5″ SATA storage device
- Optional DVI/2nd HDMI/4x GbE by project support.
- Internal USB for security dongle.
Specifications
Specifications | ARK-2121F-U0A2E | |
| Processor System | CPU | Intel Celeron Processor J1900 Quad Core SoC |
Frequency | 2.0 GHz, turbo boost up to 2.42 GHz | |
L2 Cache | 2 MB | |
BIOS | AMI EFI | |
| Memory | Technology | DDR3L 1333 MHz |
Max. Capacity | 8 GB | |
Socket | 1 x 204-pin SO-DIMM | |
|
Graphics | Chipset | Intel Celeron J1900 SoC integrated, 7th Gen. Intel Graphic core |
| Graphic Engine | DirectX 11.1, OCL 1.2, OGL 3.2 Encode: H.264, MPEG2/4, VC1, WMV9 Decode: H.264, MPEG2 | |
VGA | Up to 2048 x 1152 @ 60Hz | |
HDMI | 1 HDMI port (default), HDMI 1.4a for HD video playback, 1080P at 60Hz (2nd HDMI support by project only) | |
DisplayPort* | Up to 2560 x 1600 at 60Hz (by Project only) | |
DVI-D | Up to 1920 x 1200 at 60Hz (by Project only) | |
Dual Display | Yes, VGA + HDMI | |
Ethernet | LAN1/LAN2 | 10/100/1000Mbps Intel i210 GbE, support Wake On LAN, optional LAN3/LAN4 support by project |
Audio | Interface | Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in |
| IO Interface | Serial Ports | 6 x RS-232/422/485 with auto flow control |
USB Interface | 1 x USB 3.0, 5 x USB 2.0, 1 x internal USB 2.0 for security dongle | |
PS/2 | Yes ( by project only) | |
Other | Watchdog timer | 255 levels timer interval, setup by software |
Digital I/O | 4ch digital input and 4ch digital output with 3kV isolation | |
Expansion | Mini PCIe | 2 x full size Mini PCIe (1 with SIM holder) #1 |
Storage | HDD | Supports one SATA 2.5″ HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s) |
mSATA | 1 x full size mSATA socket, with USB signal co-lay | |
Software Support | Microsoft Windows | WES8, Windows 8, WES7, Windows 7 |
Linux | Support by project | |
| Power Requirement | Power Type | ATX |
Power Input Voltage | 9 ~ 36 VDC | |
Minimum Power Input | 12 V, 1.5 A | |
Power Adapter | AC to DC, DC19 V/3.42 A, 65 W (Optional) | |
Power Consumption | Typical | 8.4W |
Max. | 16.2W | |
| Mechanical | Construction | Aluminum housing |
Mounting | Din-Rail mounting, Desk/wall-mounting, VESA mounting | |
Dimensions (W x H x D) | 264.5 x 68.4 x 133.0 mm (10.41″ x 2.69″ x 5.24″) | |
Weight | 2.3 kg (5.07 lb) | |
|
Environment | Operating Temperature | With extended temperature peripherals: -20 ~ 70° C (-4 ~ 158° F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow |
Storage Temperature | – 40 ~ 85° C ( -40 ~ 185° F) | |
Relative Humidity | 95% @ 40° C (non-condensing) | |
Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. | |
Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | |
EMC | CE/FCC Class A, CCC, BSMI | |
Safety Certifications | UL, CB, CCC, BSMI | |
- DisplayPort is supported by project only.
#1 SIM holder is the hardware interface for wireless communication integration only. System level RF certification is not available.

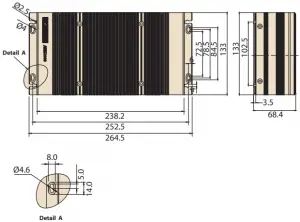

Dimensions

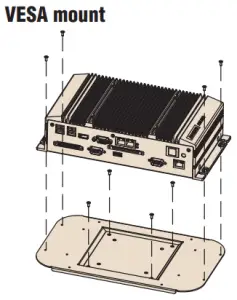

- VESA mount
- Wall mount

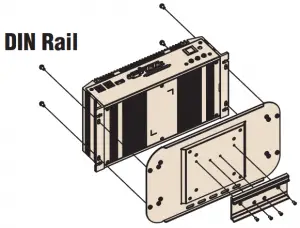

- DIN Rail

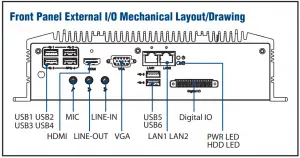

- Front Panel External I/O Mechanical Layout/Drawing.

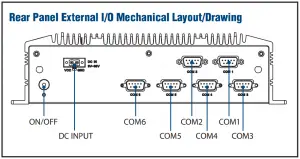

- Rear Panel External I/O Mechanical Layout/Drawing.
Ordering Information
Part No | CPU | VGA | HDMI/DP | GbE | USB 2.0 | USB 3.0 | RS-232/ 422/485 |
ARK-2121F-U0A2E | Intel Celeron J1900 2.0GH | Yes | Yes | 2 | 5 | 1 | 6 |
Audio | Full-size MiniPCIe | SIM
| mSATA | 2.5″ SATA II HDD Bay | Power Input | Operating Temp. | |
Lin-out, Line-in, MIC | 2 | 1 | 1 | 1 | 9 ~ 36 VDC | -20 ~ 70° C |
Packing List
Part Number | Description |
– | 1 x ARK-2121 Unit |
– | 1 x User Manual (Simplified Chinese) |
– | 1 x China RoHS |
1700009001 | 1x 2-pin Phoenix to DC-Jack power cable |
1960069484N000 | 2 x LAN clip |
Embedded OS
Part Number | Description |
20706WE7ES0020 | WES7E ARK-2121F 64b 1709 ASIA 4 MUI |
2070013716 | WES8E 64bit ENG/JP/TC/SC |
20706WE7PS0020 | WES7P ARK-2121F 64b 1709 10 MUI |
20706WX9ES0129 | W10 19EL ARK-2121F 64b 1809 ENU |
Optional Items
Part Number | Description |
96PSA-A65W19P2-1 | AC-to-DC Adapter, DC 19V/3.42A 65W, 0 ~ 40° C for Home and Office Use |
1700001524 | Power cable 3-pin 183cm, USA type |
170203183C | Power cable 3-pin 183cm, EU type |
170203180A | Power cable 3-pin 183cm, UK type |
AMK-V019E | VESA mounting kit |
AMK-R005E | DIN-rail mounting kit |
1652003235 | 10pin DIO Plug in block |
