ASUS TF120 TUF Gaming ARGB Fan

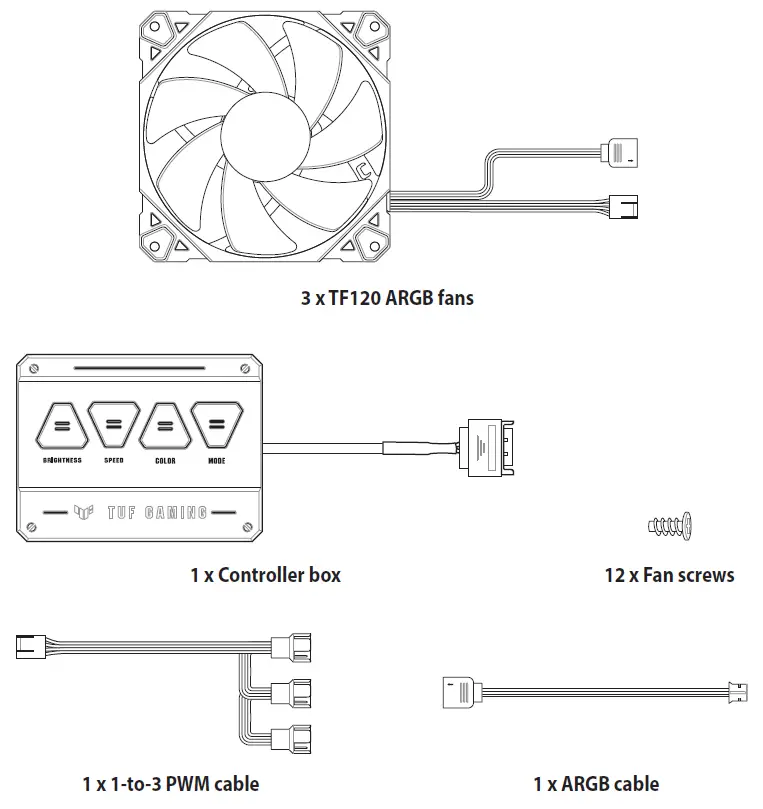

Accessory Kit Contents

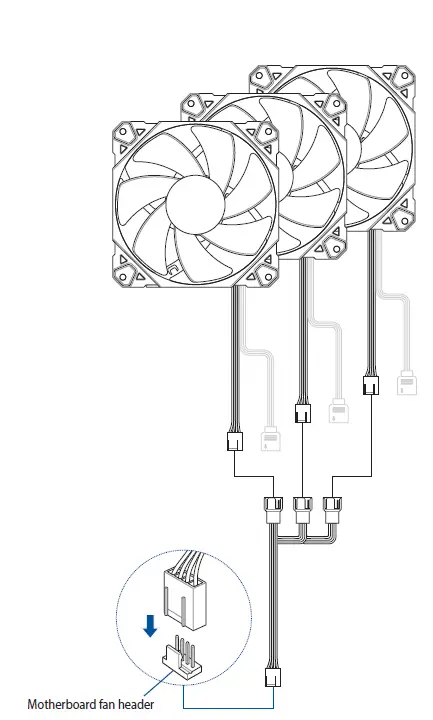

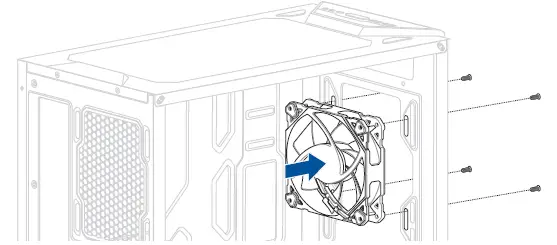

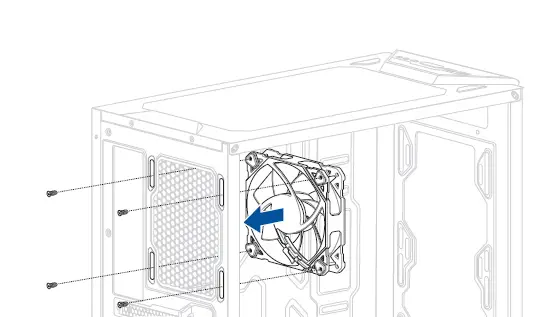

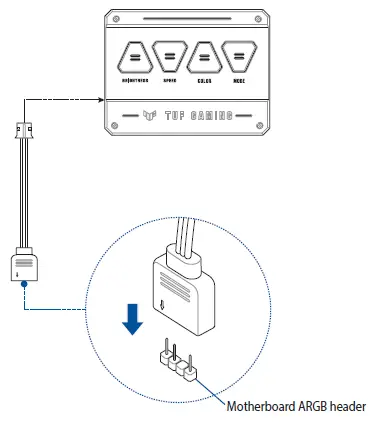

Installation Guide
OR

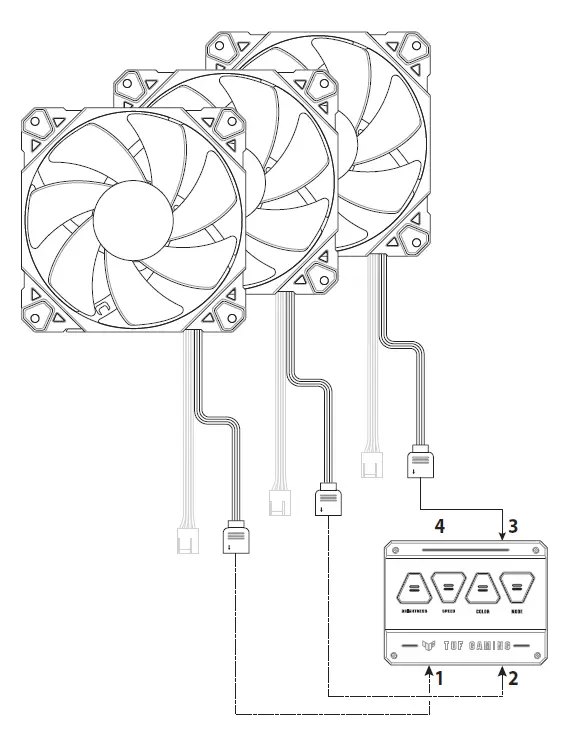

NOTE: Ensure to connect the fans to the ARGB connectors on the controller box in the order you would like them to light up in.

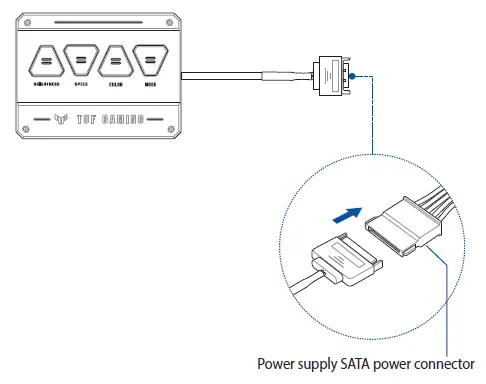

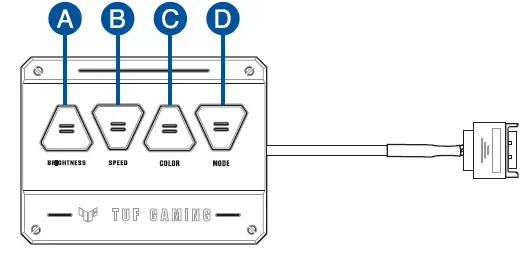

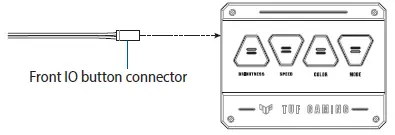

Addressable RGB Controller Hub
| Brightness: Allows you to adjust the brightness of the ARGB fan LEDs. |
| Speed: Allows you to adjust the speed of the ARGB fan LED lighting effects. |
| Color: Allows you to switch between the LED colors for each lighting effect. Press and hold for 3 seconds to reset to default factory settings. |
| Mode: Allows you to select the lighting effect mode. Press and hold for 3 seconds to switch AURA SYNC. |
| Effects and the color | Brightness | Speed | Color | Mode |
| Rainbow (default) | 4 levels | 4 levels | X | Mode 1 |
| Static | 4 levels | X | 7 sets | Mode 2 |
| Radar | 4 levels | 4 levels | 6 sets | Mode 3 |
| Umbrella | X | X | 4 sets | Mode 4 |
| Umbrella (Slideshow) | X | 4 levels | 4 sets | Mode 5 |
| Centaur | X | 4 levels | 5 sets | Mode 6 |
| Centaur (Slideshow) | X | 4 levels | 5 sets | Mode 7 |
| Signal | 4 levels | 4 levels | 5 sets | Mode 8 |
| Meteors | 4 levels | 4 levels | 5 sets | Mode 9 |
| Darkness | X | X | X | Mode 10 |
Declaration of compliance for product environmental regulation
ASUS follows the green design concept to design and manufacture our products and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS discloses the relevant information based on regulation requirements. Please refer to http://csr.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with
EU REACH and Article 33
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.
EU RoHS
This product complies with the EU RoHS Directive. For more details, see http://csr.asus.com/english/article.aspx?id=35 Japan JIS-C-0950 material declarations
Information on Japan RoHS (JIS-C-0950) chemical disclosures is available on http://csr.asus.com/english/article.aspx?id=19
India RoHS
This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.
Vietnam RoHS
ASUS products sold in Vietnam, on or after September 23, 2011,meet the requirements of the Vietnam Circular 30/2011/TT-BCT.
Turkey RoHS
AEEE Yönetmeliğine Uygundur
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.
