WISE DeviceOn Motherboard

Features

Supports Intel Pentium, Celeron, Atom, Quad Core & Dual Core processor
Two 260-pin SO-DIMM up to 32 GB DDR4 3200 MHz SDRAM
Supports DP++ 1.2/HDMI 1.4b/eDP (optional)/LVDS(optional)
Supports 1 PCIE x1 or 2 M.2 (B+E key), 6 COMs(4 COM optional), 3 USB 3.2 Gen2, and 5 USB 2.0
Lower total cost of ownership with DC12V support and onboard TPM2.0 (optional)
Supports Device-On and Embedded Software APIs

Specifications

Processor System	CPU (10nm) J6413 J6412 J6426 N6211 N6210 x6413E
	Core Number 4 4 4 2 2 4
	Base Frequency 1.8GHz 2.0GHz 2.0GHz 1.2GHz 1.2GHz 1.5GHz
	BIOS AMI 256 Mbit SPI
Expansion Slot	M.2 E key for wireless module (Type: 2230) B key for storage and LTE module, only support PCIex1 signal (Type: 2242/2280)
Expansion Slot	PCIe PCI Express x1
Memory	Technology Dual channel DDR4 3200 MHz SDRAM
	Max. Capacity 32 GB/32 GB per SO-DIMM
	Socket 2 x 260-pin SO-DIMM (Non-ECC)
Graphics	Controller Intel Gen 11 Graphics Engines
	LVDS/eDP 1 (Sku option) / 1 (BOM option)
	HDMI 1 HDMI 1.4b
	DP++ 1 DP 1.2
	Triple display DP + HDMI, DP + HDMI + eDP (optional), DP + HDMI + LVDS(optional)
Ethernet	Interface 10/100/1000 Mbps
	Controller GbE LAN1: Realtek 8111H GbE LAN2: Realtek 8111H
	Connector Max. RJ-45 x 2
SATA	Max Data Transfer Rate 600 MB/s
SATA	Channel 1
Rear I/O	DP 1.2 1
	HDMI 1.4b 1
	Ethernet 2
	USB 4 (3USB 3.2 Gen2 + 1USB2)
	Audio 1 (supports Line-out by default, converts to Mic in or Line in)
	DC jack 1 (2.5 mm)
Internal Connector	LVDS & Inverter 1 (optional)
	eDP 1 (optional)
	USB 4 USB2.0
	Serial 6 (COM1 support 5V/12V selection; COM2 support RS-232/422/485, set by Jumper; COM3~COM6 support RS-232 (COM3~6 BOM option))
	SATA 1
	SATA PWR Connector 1
	M.2 2 (B key for storage and LTE module, E key for wireless module support)
	GPIO 8-bit
	PS/2 KB & MS 1
Watchdog Timer	Output System reset
Watchdog Timer	Interval Programmable 1 ~ 255 sec/min
Power	Power Type Single voltage 12V DC input; 1 x External DC jack; 1 x Internal 4-pin (2×2) power connector; Supports AT/ATX mode
Power	Typical Power Consumption TBD
Environment	Operating Non-Operating
Environment	0 ~ 60 °C (32 ~ 140 °F) with 0.7m/s air flow (for D/J/L Temperature SKU) -40 ~ 85 °C (-40 ~ 185 °F) -20 ~ 70 °C (-4 ~ 158 °F) with 0.7m/s air flow (for Z SKU)
Physical Characteristics	Dimensions 170 x 170 mm (6.69″ x 6.69″)

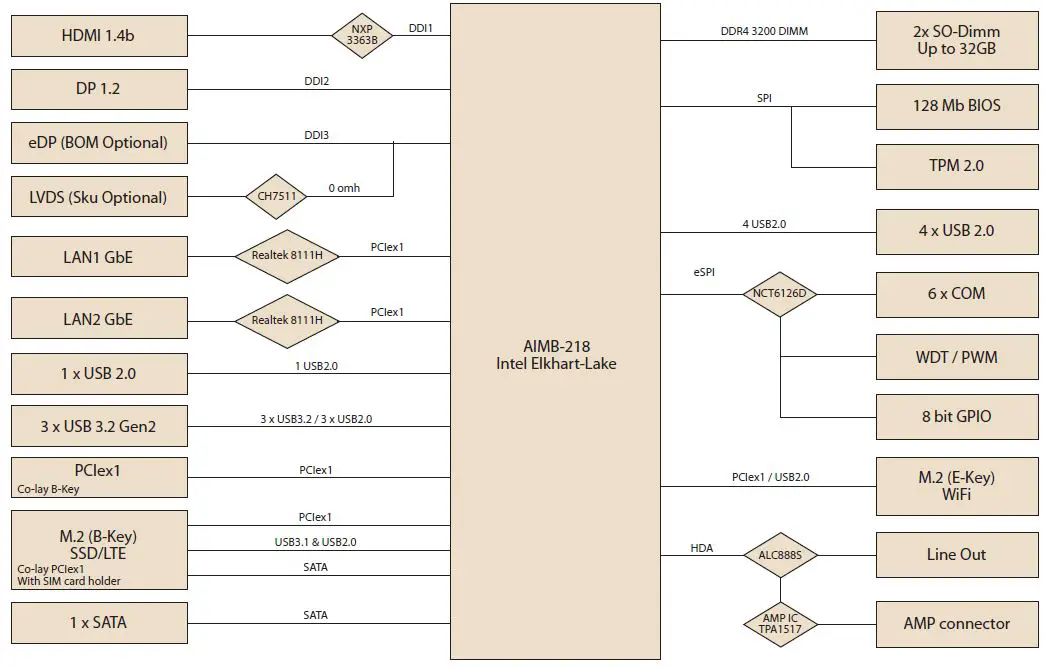

Block Diagram

Ordering Information

Part Number	CPU	Memory	LVDS/eDP	HDMI	DP	GbE LAN	COM	SATA III	USB3.2/2.0	M.2	TPM	AMP	PCIex1	Thermal Solution	Operating Temp.
**AIMB-218L-S0A1E	N6211	2	-/-	1	1	1	2	1	3/5	2	–	–	1	Passive	0 ~ 60 °C
**AIMB-218LA-S0A1E	N6210	2	-/-	1	1	1	2	1	3/5	2	–	–	1	Passive	0 ~ 60 °C
AIMB-218D-S0A1E	J6426	2	1/(1)	1	1	2	6(High Speed)	1	3/5	2	1	2 x 6W	1	Passive	0 ~ 60 °C
AIMB-218J-S0A1E	J6413	2	(1)/(1)	1	1	2	2(+4)	1	3/5	2	(1)	(2 x 6W)	1	Passive	0 ~ 60 °C
AIMB-218JA-S0A1E	J6412	2	(1)/(1)	1	1	2	2(+4)	1	3/5	2	(1)	(2 x 6W)	1	Passive	0 ~ 60 °C
AIMB-218Z-S0A1E	x6413E	2	1/(1)	1	1	2	6(High Speed)	1	3/5	2	(1)	(2 x 6W)	1	Passive	-20 ~ 70 °C

Note: Passive = fanless

() BOM options available on MP version
Bulk packing(wo/Cables, Startup manual, M.2 Screw)

Packing List

Part Number	Description	Quantity
1700003194-21	SATA HDD cable	1
1700018785-01	SATA power cable	1
1701200220-01	1-to-2 serial ports cable kit, 22 cm	1
1700029538-01	1-to-4 serial port cable, 35cm for AIMB-218D	1
1960100026T001	I/O port bracket	1
2046021800	Startup manual	1
1960064228T011	Fanless heatsink for AIMB-218L/J/D	1
1700023082-11	ATX 210P to 13P-2.0 25cm cable	1
