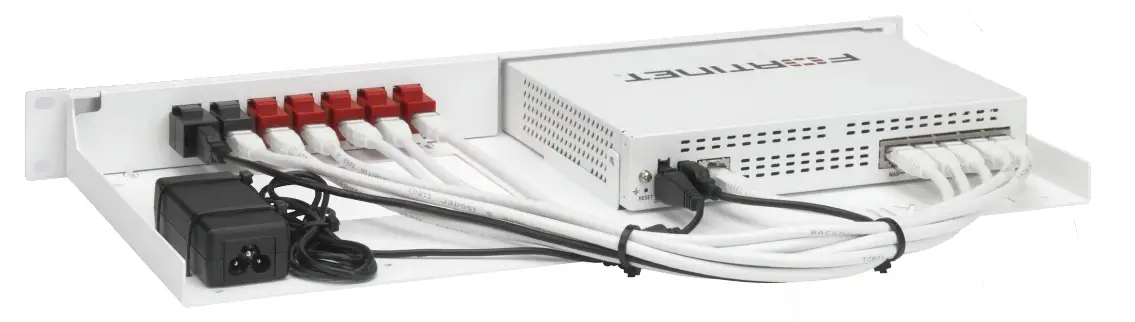

RACKMOUNTH FORTIRACK RM-FR-T14, RM-FR-T14i Rackmount
Supported Models
FORTIGATE 40F
FORTIADC 60F
SPECIFICATIONS
| DIMENSIONS | 1U |
| COLOR | RAL 9003 White |
| PACKING DIMENSIONS | 80 x 520 x 270 mm 3.14 x 20.47 x 10.63 in |
| PRODUCT DIMENSIONS (height x width x depth) | 44 x 482 x 217 mm 1.73 x 18.98 x 8.54 in |
MOUNTING INSTRUCTIONS
Depending on your FortiGate model:
- Option 1: place your FortiGate on the rack & fix the FortiGate with the 2 countersunk bolts from the bottom and tighten them lightly.
Option 2: remove the original bolt from one side of the appliance, place your FortiGate on the rack & use the provided bolt to fix the FortiGate. - Place the power supply on the rack and tie it down with the 2 zip ties, tie the excess length of the power cable down with the 3rd zip tie.
- Connect the cables from your FortiGate to the connectors.
- Optional: use two zip ties to hold the cables together.
- Place your FortiRack in your 19 inch rack.
Please ensure proper ventilation according to the network appliance manufacturer guidelines.
PACKAGE CONTENTS
Qty | Description |
1 | FortiRack + RJ45 couplers |
3 | Bolts M3x6mm |
5 | Zip ties |
7 | Cables – 0.5 meter |
Industrial version is supplied with shielded couplers and cables
Consider the environment, recycle where applicable.
Rackmount.IT rack mount kits are RoHS compliant, developed & manufactured in the Netherlands and made of first quality parts.
In case of problems please contact your reseller or [email protected]
