U Rackmount Chassis for ATX/
MicroATX Motherboard with Low-Profile
Rear Bracket Option
ACP-2010/2320
Features
- LED indicators and audible alarm notification for system fault detection
- ACP-2010: One 5.25″ and three 3.5 shock-resistant drive bays
- ACP-2320: One Slim optical disk drive, two internal 3.5″ drives, and dual how-swap SATA HDD trays
- Various riser card options to support three full-size PCI or PCIe cards for expansion
- Supports 250W /350W single power supply
- Reusable and washable air filters
- Built-in Intelligent System Module enabling whole system fan control and remote manageability
Specifications
| Drive Bay | External | Internal | |
| Slim Optical Disk Drive | – / 1 | – | |
| 5.25″ | 1 / 0 | – | |
| 3.5″ | 1 / 2 | 2 / 2 | |
| Hot Swap | – / 2 (Compatible with 3.5″ or 2.5″ devices) | ||
| Cooling | Fan | 2 (8 cm PWM /47 CFM each) / 2 (8 cm PWM /47 CFM each) + 1 (6 cm PWM /28 CFM) for SATA storage unit | |
| Air Filters | Yes | ||
| Smart Fan | System fan speed referring to chassis thermal sensor, or CPU temperature | ||
| Front I/O Interface | USB 2.0 | 2 | |
| PS/2 | 1 | ||
| Miscellaneous | LED Indicators | Power, HDD, temperature, fan | |
| Rear Panel | Two 9-pin D-Sub openings | ||
| Intelligent System Module Hardware Monitoring | CPU/System fan speed, CPU/system temperature (Only Advantech AIMB-78X, PCE-51XX/71XX mainboards can enable CPU fan speed and temperature monitoring function of Intelligent System Module) | ||
| Environment | Operating | Non-operating | |
| Temperature | 0 ~ 40 °C (32 ~ 104 °F) | -20 ~ 60 °C (-4 ~ 140 °F) | |
| Humidity | 10 ~ 85% @ 40 °C, non-condensing | 10 ~ 95% @ 40 °C, non-condensing | |
| Vibration (5 ~ 500 Hz) | 1 Grms | 2 G | |
| Shock | 10 G (with 11 ms duration, half sine wave) | ||
| Physical Characteristics | Dimensions (W x H x D) | 482 x 88 x 480 mm (19″ x 3.46″ x 18.9″) | |
| Weight | 10.7 kg (23.5 lb) / 11.7 kg (25.7 lb) | ||
Front View
 |  |

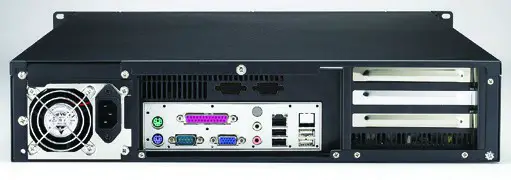

Rear View
 |  |

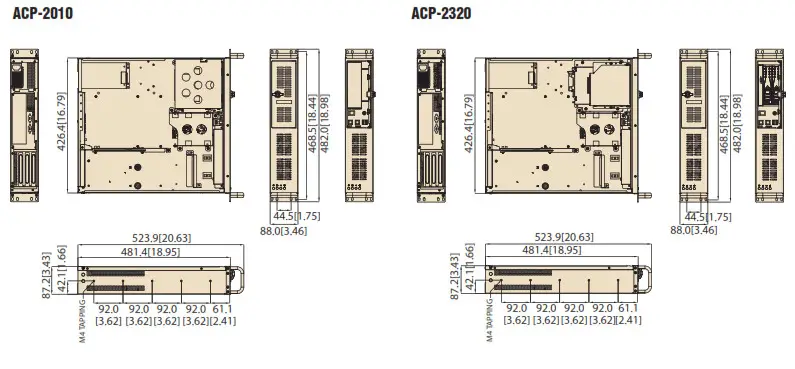

Dimensions
Ordering Information
| Part Number | Power supply | Power supply type | Wattage | 80 plus grade | Switch type |
| ACP-2010MB-25D | PS8-250FATX-BB | Single | 250W | Bronze | ATX |
| ACP-2010MB-35D | PS8-350FATX-GB | Single | 350W | Gold | ATX |
| ACP-2320MB-35D | PS8-350FATX-GB | Single | 350W | Gold | ATX |
Packing List
| Part number | Description | Quantity |
| ACP-2010 / ACP-2320, Rev.D | 2U rackmount chassis with a handle set | 1 |
| 1700018888 | chassis power on/off switch cable | 1 |
| 1750009329-01 | System fan – 8cm | 2 |
| 1700030260-01 | system fan cable | 2 |
| 1750009289-01 | hot-swap module fan – 6cm (in ACP-2320) | 1 |
| 1700024778-11 | hot-swap module fan cable (in ACP-2320) | 1 |
| 1700026158-01 | 4P Y cable for system fan (in ACP-2320) | 1 |
| 1990007986S000 | Filter behind the door 156 x 45 x 5 mm | 1 |
| 1990001949 | Filter in the front of the fans 168 x 58 mm | 1 |
| 98R2132000E | hot-swap tray HDD drawer (compatible with both 2.5″ and 3.5″ HDD/SSD) | 2 |
| Content of Accessory Box | ||
| 98R22010000 | Handle set | 1 |
| Screws/nuts and rubber for motherboard | one bag | |
| 2001201000 | and devices | 1 |
Optional Accessories
| Part Number | Description | |
| 96CB-SATAPOWER-6P2 | SATA power wire 6-pin to big 4-pin (for slim ODD) | |
| IPC-DT-3120E | Mobile rack for converting a 3.5″ drive bay to dual2.5″ SATA HDD trays | |

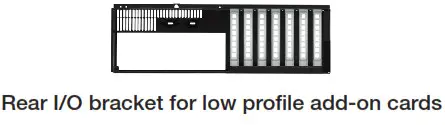

| Rear I/O panel kit for low-profile add-on cards | ||
| Part number | Description | Quantity |
| 1939000361 | Screws | 7 |
| 1960074850T000 | I/O bracket | 7 |
| 1960019475T201 | 2U Rear panel for low-profile | 1 |
