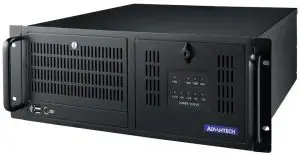

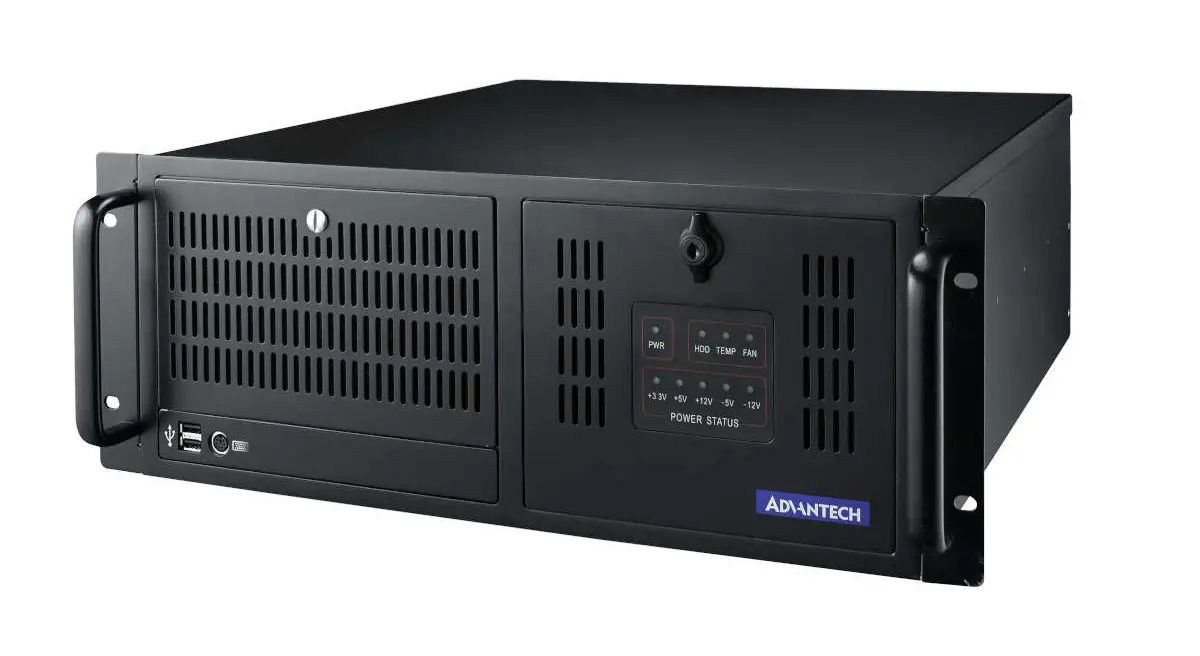

Quiet 4U Rackmount Chassis ACP-4000 Specifications
Quiet 4U Rackmount Chassis with Visual & Audible Alarm Notification
Features
- Supports either an ATX motherboard or PICMG backplane with up to 15 slots
- Shock-resistant disk drive bay design holds up to three 5.25″ and one 3.5″ disk drives
- LED indicators and alarm notification for system fault detection
- Low noise PWM controlled system fans
- Built-in Intelligent System Module enables whole system fan control and remote manageability
Specifications
Drive Bay | 3.5″ 3.5″ | External 1 5.25″ 3 | |

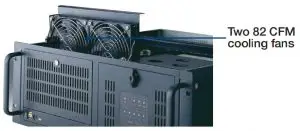

Cooling | Fan Air Filter | 2 (12 cm PWM / 82 CFM each) Yes | |
Front I/O Interface | USB 2.0 PS/2 | 21 | |
Miscellaneous | LED Indicators Rear Panel | Power, HDD, temperature, fan, and power voltage status Backplane version: One 9-pin D-Sub opening Motherboard version: Five 9-pin D-Sub & one 25-pin D-Sub openings | |
Intelligent System Module Hardware Monitoring | CPU/System fan speed , CPU/System temperature (Only Advantech AIMB-78X, PCE-51XX/71XX mainboards can enable CPU fan speed and temperature monitoring function of Intelligent System Module) | ||
Environment | Temperature HumidityVibration (5 ~ 500 Hz) | Operating 0 ~ 40 °C (32 ~ 104 °F) 10 ~ 85% @ 40 °C, non-condensing 1 Grms | Non-Operating -20 ~ 60 °C (-4 ~ 140 °F) 10 ~ 95% @ 40 °C, non-condensing2 G |
Physical Characteristics | Dimensions (W x H x D) Weight | 482 x 177 x 479 mm (19″ x 7″ x 18.9″) 15.2 kg (33.5 lb) | |

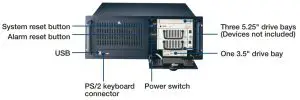

Front View

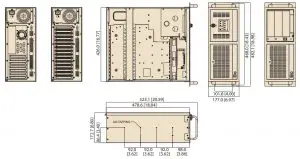

Dimensions
Ordering Information
Part Number | Power supply | Power supply type | Wattage | 80 plus grade | Switch type |
| Backplane Version | |||||
ACP-4000BP-30F | PS8-300ATX-ZBE | Single | 300W | Bronze | ATX |
| ACP-4000BP-50F | PS8-500ATX-BB | Single | 500W | Bronze | ATX |
| Motherboard Version | |||||
ACP-4000MB-30F | PS8-300ATX-ZBE | Single | 300W | Bronze | ATX |
| ACP-4000MB-50F | PS8-500ATX-BB | Single | 500W | Bronze | ATX |
Packing List
| Part number | Description | Quantity |
| ACP-4000 | 4U chassis with handle set | 1 |
| 1750008561-01 | system fan | 2 |
| 1700030260-01 | system fan cable ( MB version) | 2 |
| 1700029691-01 | system fan cable ( BP version ) | 2 |
| 2130006147S000 D | Door filter 97.6 x 36.6 x 5 mm | 2 |
| 2130004803S000 | Fan filter 115 x 195 x 5 mm | 1 |
| 1960002462 | key set | 1 |
| Content of Accessory Box | ||
| 98R24000000 | Handle set | 1 |
| 1 Screws/nuts and rubber for motherboard and devices | One bag | |
| 2002061063 | User manual | 1 |
Optional Accessories
Part number | Description |
IPC-DT-5230E | Mobile rack for converting dual 5.25″ drive bays to three 3.5″ SATA HDD trays |
1700029268-01 | Power cable for GPU card (Two 4-pin 12V connectors to one 6+2 pins PCIe power connector) |
1700024754-01 | Power cable for GPU card (Two B4P Molex connectors to one 6+2 pins PCIe power connector) |
- If GPU card with 2 power connectors, please use 1700029268-01*1 + 1700024754-01*1; If GPU card with 1 power connector, please use 1700029268-01.
- Only 500W or higher wattage PSU support 1700029268-01 and 1700024754-01 for high-end GPU card.
