Boya By-cm3 Desktop Usb Microphone User Manual

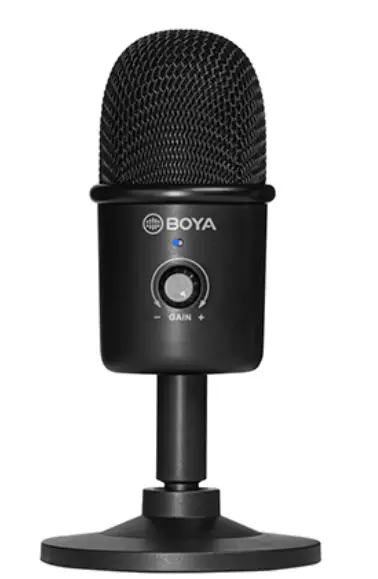

BOYA BY-CM3 Desktop USB Microphone

General Introduction

Thanks for choosing BOYA!
The BOYA BY-CM3 is a USB condenser microphone, compatible with most Android devices, tablets with USB-C port and Mac/WindowS computers.
Thanks to its cardioid polar pattern, the BY-CM3 clearly captures speech in front of the mic while effectively reducing unwanted background noise. It is ideal for streaming, podcasting, vocals, instruments recording,
and more.

Cautions

• If you do not intend to use the microphone for a long period of time, please remove the USB cable.
• Do not touch the microphone while recording, as this will cause noise to be recorded.
• Do not let the microphone close to high-voltage equipment or to devices that emit strong electromagnetic fields; otherwise, it may cause the noise to be recorded.
• Do not use or leave the microphone in hot, humid places.

Package Contents

• BY-CM3 Microphonexl
• USB-C to USB-A Charging Cable (2m)x1

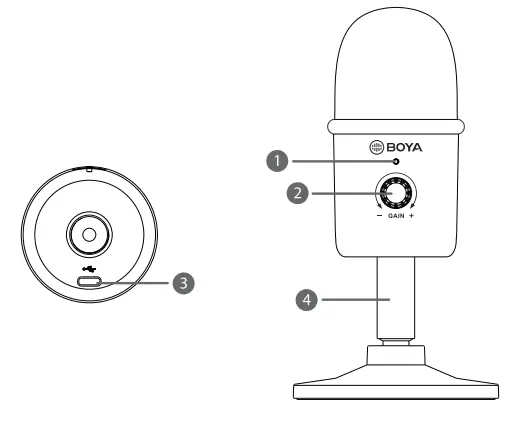

Product Structure

1. Status indicator
2. Gain control
3. USB-C port
4. Adjustable mlc stand

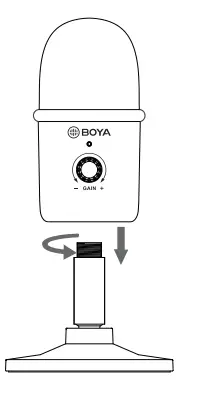

Mounting the BY-CM3 to a boom arm

1. Unscrew to remove the microphone from the desktop stand.
2. Mount the microphone to a boom arm through its 5/8″ threaded hole.Note: the boom arm is not included.

How to use

1. Connect the microphone to your computer with the supplied cable. (Blue indicator will light up. )

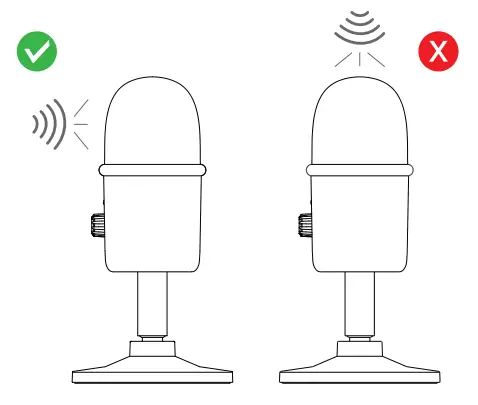

2. Adjust the microphone at your desired angle.
3. Turn the knob to adjust the microphone gain according to your needs.
4. You are ready to record.

Features

High-quality desktop microphone with USB-C connectivity

• Compatible with most Android devices, tablets with USB-C
• port and Mac/Windows computers
• Cardioid polar pattern
• Gain control function
• Adjustable integrated microphone desktop stand
• Plug and play, easy to operate

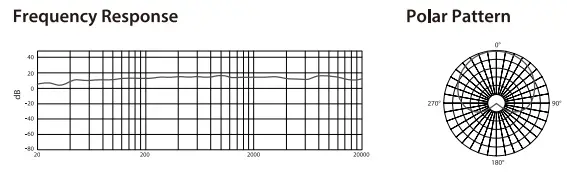

Specifications
