BOYA BY-BM6040 MICROPHONE User Manual
Instruction
Thanks for purchasing BOYA!
The BY-BM6040 is a cardioid shotgun microphone that captures natural-sounding audio for broadcast, TV shoots, location shooting, documentaries, and more.
The microphone is in compliance with 12-48V external phantom power making it ideal for use with video cameras and portable recording devices. Its rugged alloy aluminum construction ensures a great free-interference capability during recording. With a full frequency response from 90 Hz to 20 kHz, the mic delivers exceptional sound reproduction with full lows, clear and precise mids, and crisp highs. There is a high-pass filter at 150 Hz that minimizes unwanted noise and rumble.
Package Contents
- BY-BM6040 Microphone
- 60cm (2′) XLR cable
- Mic stand
- Rubber ring
- Foam windscreen
- Fur windshield
- Zipper bag
- User Manual
- Warranty card

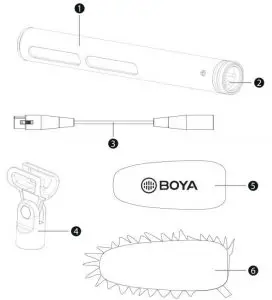

Product Structure
- Microphone boom
- 3-pin XLR output
- XLR audio cable
- Mic holder mount
- Foam windscreen
- Fur windshield
Features
- Ideal for broadcast, TV shoots, location shooting, documentaries
- Tailored for rich natural-sounding audio
- Maximizes the rejection of sound from the rear and sides
- Wide-spectrum frequency response
- Rugged alloy-aluminum construction
- Powered by 12-48V phantom power
- Includes foam windscreen, fur windshield, 60cm XLR cable, microphone stand, rubber ring, zipper bag
- Intuitive operation with no controls
Specifications
| Type: | Condenser |

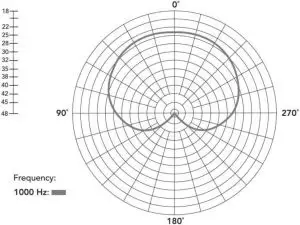

| Polar Pattern: | Cardioid |

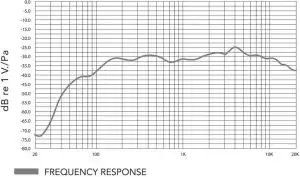

| Frequency Response: | 90Hz-20,000Hz |
| Sensitivity: | -30±3dB(OdB=1 V/Pa@1 KHz) |
| Signal-to-Noise Ratio: | 80dB |
| Maximum input sound level: | 127dB SPL,1KHz@1ck T.H.D |
| Output Impedance: | 1000 |
| Power Requirements: | 12-48V phantom power |
| Output: | 3-pin XLR |
| Dimension: | p22*180mm |
| Weight: | 100g (3.5 oz) |
Contact Us
SHENZHEN JIAYZ PHOTO INDUSTRIAL., LTD. The BOYA logo is a trademark which is registered and owned by Shenzhen Jiayz Photo Industrial., Ltd. COPY RIGHT 2010-2020
