BY-BM6060L
Professional shotgun microphone
Instruction Manual
Instruction
Thanks for purchasing BOYA!
The BY-BM6060L is an improved super-cardioid Shotgun Microphone, features an extended length that offers extreme directionality and narrows the pick-up area, it’s perfect for interviews, indie films, and also be used in ENG (News Gathering), sound design applications, etc.
Its wide frequency range of 40Hz–20 KHz and selectable high-pass filter at 150Hz delivers nature and clear sound and increases the ability to endure loud sound sources
before distortion.
Its 3-pin XLR output is in compliance with a 24-48V phantom power supply or powered by one AA battery.
In addition, the BY-BM6060L includes a fur windshield and foam windscreen for an intelligible sound effect and secure protection.
Package Contents:
- BY-BM6060L Microphone
- Shock mount
- Foam windscreen
- Fur windshield
- Zipper bag
- User Manual
- Warranty card

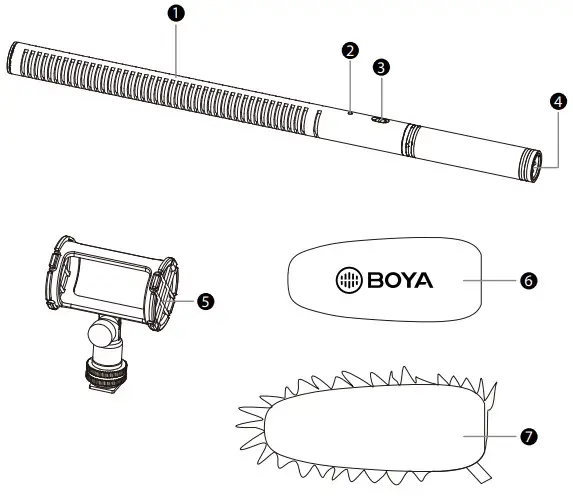

Product Structure:
- Microphone boom
- Power indicator
- High-passfilter switch
- 3-pin XLR output
- Shock mount
- Foam windscreen
- Fur windshield

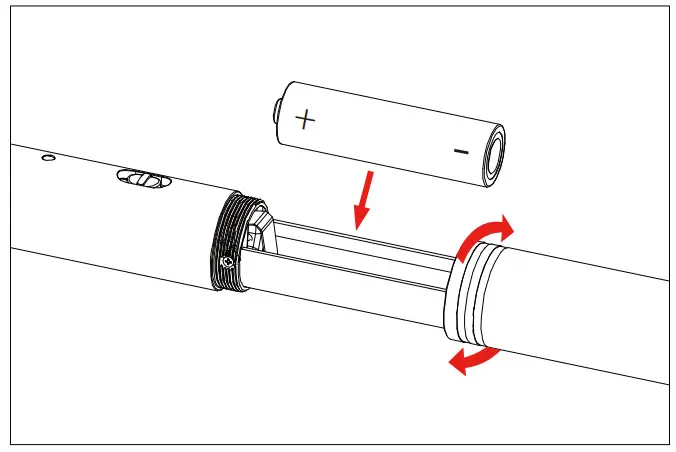

Installing the battery
Installing the battery- Unscrew the microphone by rotating the base clockwise and pull out the cover properly to reveal the battery compartment.
- Insert one AA battery into the compartment aligning with the right polarity.
- Close the compartment and rotate it anticlockwise to tighten it.
Features:
Features:– Ideal for indie films, TV programs, nature shows, and more
– Capture accurate sound in narrow pick-up range
– Maximum reduce the noise from the rear and sides
– Robust alloy-aluminum construction
– Switchable high pass filter control (150Hz)
– Powered by 24-48V phantom power or 1*1.5V AA battery
– Includes fur windshield, foam windscreen, zipper bag, shock mount adapter

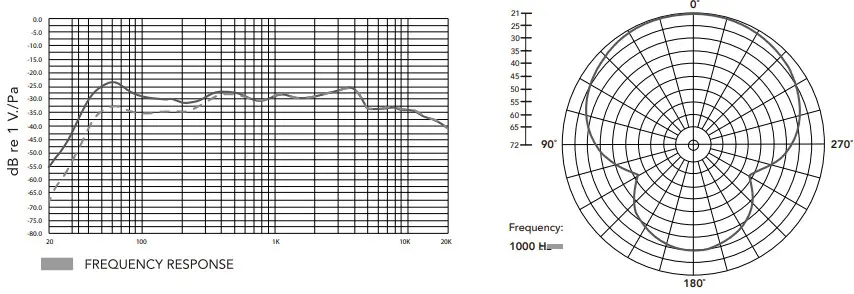

Specification:
| Type: | Condenser |
| Polar Pattern: | Super-Cardioid |
| Frequency Response: | 40Hz-20,1300Hz |
| Sensitivity: | -32±3dB(OdB=1V/Paint kHz) |
| Signal-to-Noise Ratio: | 80dB |
| Output Impedance: | 2000 |
| Power Requirements: | 24-48V phantom power or 1.13V AA battery |
| Output | 3-pin XLR |
| High Pass Filter | 150Hz |
| Weight | 1719 (6 oz) |
