BOYA B0BLSF4HHF BY-P4U Mini USB-C Microphone Phone Mic
Introduction
BYWith -P4 a is a 3.5mm miniature TRRS connector, omnidirectional it is compatible microphone. with smartphone, laptop, tablet, etc.

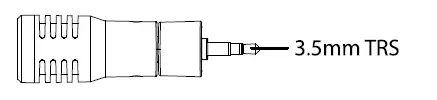

BYWith -P4A a is a 3.5mm TRS miniature connector, omnidirectional it is compatible microphone. with DSLR, camcorder, recorder, etc.
BY-P4D is a miniature omnidirectional microphone. With an MFi certificated Lightning connector, it is compatible with iPhone, iPad and iPod.
BYWith -P4U a is Type-C a miniature connector, it is omnidirectional compatible with microphone. most Android phones and otherType-C devices.
How to Use

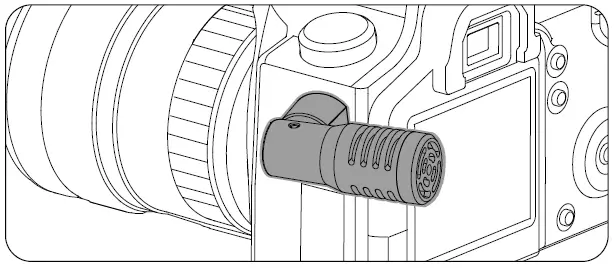

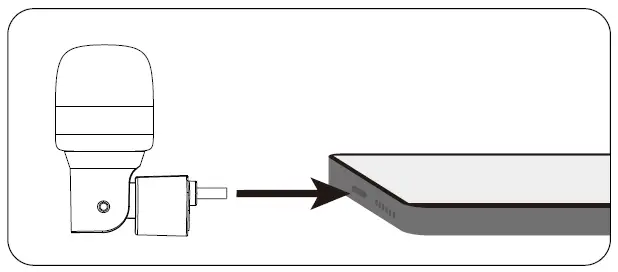

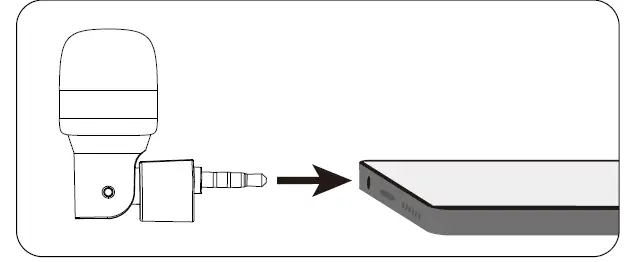

- Connect the microphone to your recording device.
- Tilt the microphone towards the subject you want to record.
- Use your recording device to start recording.

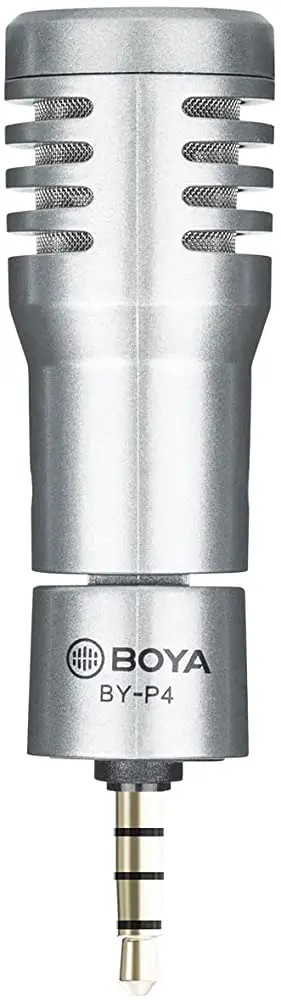

BY-P4
BY-P4A
BY-P4D
BY-P4U
Features
- Omnidirectional condenser microphone
- Ideal ° for vlogging, mobile journalism, live streaming, etc
- 90 tilt head for optimal positioning
- Ultracompact and lightweight
- Plug and play
- No batteries needed
- Foam windscreen included
Specifications
BY-P4
| Polar Pattern | Omnidirectional |
| Signal to Noise Ratio Sensitivity | 76dB SPL -30+/-2dB(0dB=1V/Pa, at 1KHZ) |
| Frequency Response Power Requirement Output Connector | 35Hz-18kHz Supplied by External Devices 3.SmmTRRS |
| Dimensions Weight | <p18.5*67mm {<p0.7×2.6″) 9g {0.3 oz) |

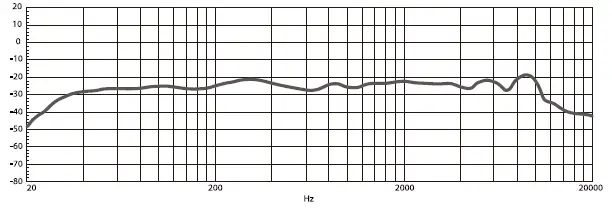

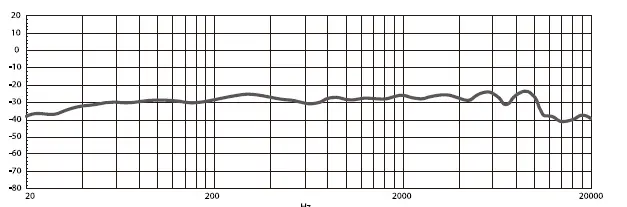

Frequency Response

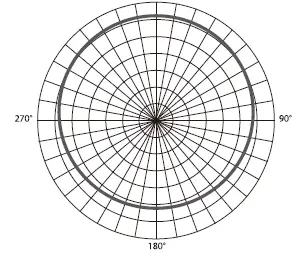

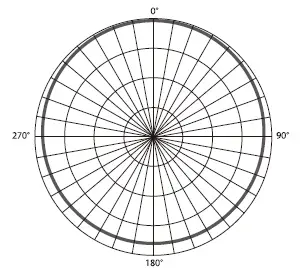

Polar Pattern
BY-P4A
| Polar Pattern Omnidirectional Signal to Noise Ratio 76dB SPL |
| Sensitivity -30+/-2dB(0dB=1V/Pa, at 1KHZ) Frequency Response 35Hz-18kHz Power Requirement Supplied by External Devices |
| Output Connector 3.5mmTRS Dimensions <p18.5*67mm(<p0.7×2.6″) Weight 9g (0.3 oz) |

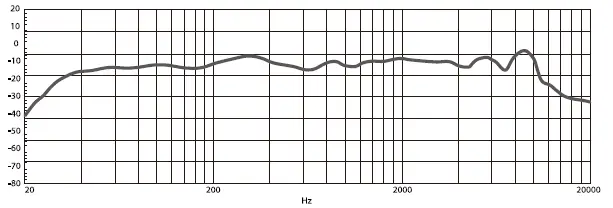

Frequency Response
Polar Pattern

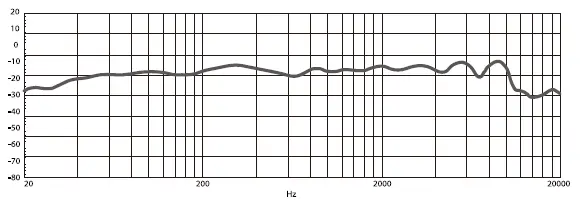

Frequency Response
Polar Pattern
Frequency Response
Polar Pattern
SHENZHEN lIAVZ PHOTO INDUSTRIAL., LTD. The BOYA logo is a trademark which is registered and owned by ShenzhenJiayz Photo Industrial., Ltd.
- TEL: 400 6131096
- Email:[email protected]
- www.boya-mic.com/ www.jiayz.com
