BOYA B0B4RWY5K5 2.4GHz Dual Channel Wireless Microphone System
QR CODE
The BOYA BY-WM3T2 is an ultracompact and portable 2.4GHz wireless microphone system for up to 2 people, compatible with mobile devices. It features automatic pairing and selectable noise cancellation. The BY-WM3T2 is ideal for live streaming, vlogging, and other audio capturing applications.
Cautions
- Don’t place this unit close to heat sources such as heater, oven, or other devices that produce heat.
- When using and storing, please pay attention to dust and moisture.
- For optimal sound pickup, please do not cover the microphone head with your hand.
Product Structure

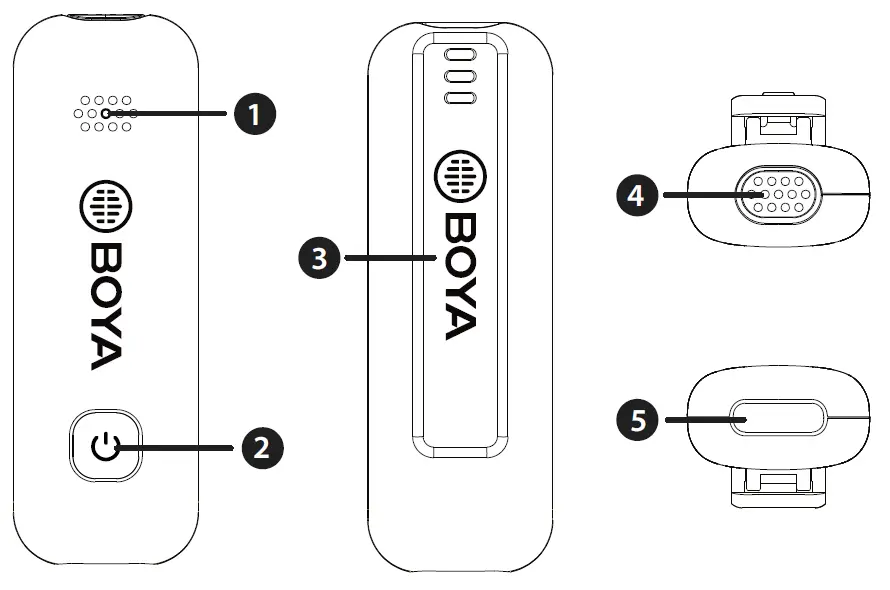

BY-WM3T2-TX
Status indicator
| Status | Indicator |
| Unpaired | Blinks blue and red alternately |
| Successfully paired | Solid blue light |
| Mute ON | Blinks blue quickly (per second) |
| Low battery | Blinks red every 5 seconds |
| Noise Cancellation ON | Blinks blue slowly (every 2.5 seconds) |
| Noise Cancellation OFF | Solid blue light |
| Charging | Solid red light |
| Fully charged | Light off |
Note: If charging the unit when it is ON, the indicator will display the current working status instead of charging status.
- Power/Mute button Long press the button for 2 seconds to turn on/off the unit. Short press the button to mute/unmute the microphone. Double click the button to turn on/off noise cancellation
- Belt clip
- Built-in mic
- USB-C charging port Use the supplied USB-C charging cable to charge the unit.

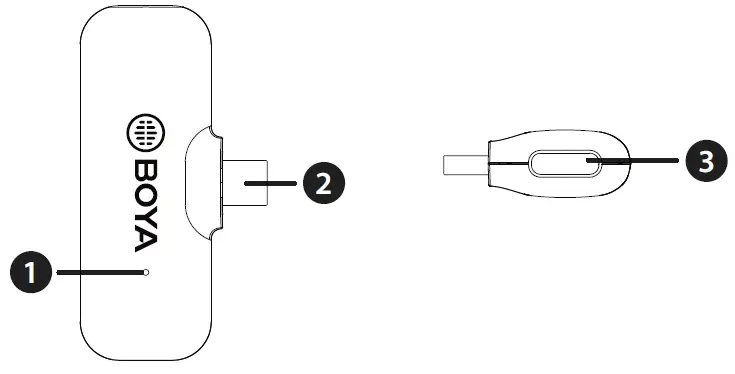

BY-WM3T2-RXU
Status indicator
| Status | Indicator |
| Unpaired | Flashing blue light |
| Successfully paired | Solid blue light |
- USB-C connector
It can be connected to an Android phone, tablet or other USB-C devices. - USB-C charging port
When the BY-WM3T2-RXU is plugged into an external device, the external device can be charged via this charging port.
Note: Most USB-C devices can be charged through this port, which also supports QC2.0, PD2.0 fast charging protocols.

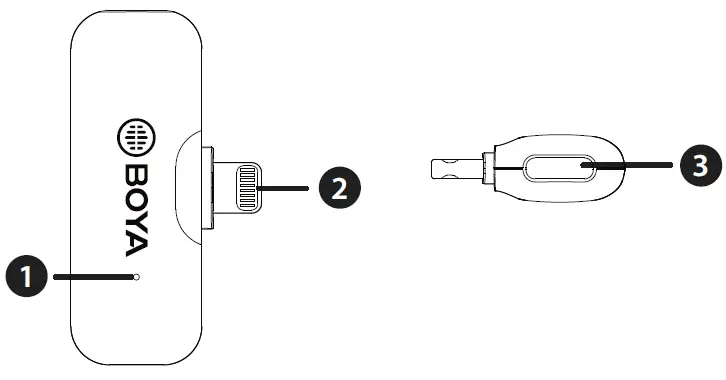

BY-WM3T2-RXD
Status indicator
| Status | Indicator |
| Unpaired | Flashing blue light |
| Successfully paired | Solid blue light |
- Lightning connector
It can be connected to an iOS lightning device. - USB-C charging port
When the BY-WM3T2-RXD is plugged into an external device, the external device can be charged via this charging port.
Note: iPad and iPhone can be charged through this port, which also supports up to 3A fast charging.
How to Use
- Press and hold the power button for 2 seconds to turn on the transmitter.
- Plug the BY-WM3T2-RXD into an iOS device or the BY-WM3T2-RXU into a USB-C device.
- Transmitter and receiver will be successfully paired within 10 seconds.
- You are ready to record.
Note: Due to 2.4GHz wireless frequency, signal can be easily attenuated. Please try to avoid obstacles, such as walls and buildings, and avoid close proximity to devices with 2.4GHz signal, such as high-power wifi antennas, radios, etc.
Features
- 2.4GHz dual-channel wireless microphone system
- Ultracompact and portable
- Comaptible with mobile devices
- Omnidirection built-in mic for 360° sound pickup
- Selectable noise cancellation
- Automatic pairing & plug and play
- Support charging ia receiver’s Type-C port for your device when in use
- Transmitter’s built-in rechargeable battery provides up to 10-hour runtime
SPECIFICATIONS
| Transmission Type | 2.4GHz |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20Hz-16kHz |
| SNR | 77 dB |
| Sensitivity | -42 dB |
| Sampling Rate | 48kHz |
| Bit Depth | 16bit |
| Transmission Range | 50m (without obstacle) |
| RF Output Power | 6dbm |
| TX’s Battery Life | 10 hours |
| Battery Capacity | 95mAh |
| Charging Port | USB-C |
| Dimensions | TX: 52×17.5×15.6 mm |
| RXU/RXD: 46×26.2×9 mm | |
| Weight | TX: 8.5g (0.30 oz) |
| RXU/RXD: 5g (0.18 oz) |
Packing List
BY-WM3T2-U1
- BY-WM3T2-TX transmitter x1
- BY-WM3T2-RXU receiverx1
- USB-C charging cable x1
- Foam windscreen x1
BY-WM3T2-D1
- BY-WM3T2-TX transmitter x1
- BY-WM3T2-RXD receiverx1
- USB-C charging cable x1
- Foam windscreen x1
BY-WM3T2-U2
- BY-WM3T2-TX transmitter x2
- BY-WM3T2-RXU receiver x1
- USB-C charging cable x2
- Foam windscreen x2
BY-WM3T2-D2
- BY-WM3T2-TX transmitter x2
- BY-WM3T2-RXD receiver x1
- USB-C charging cable x2
- Foam windscreen x2
