Lindab Architect Active Chilled Beam Instruction Manual

Lindab Architect Active Chilled Beam

Lindab Architect

lindab | for a better climate
Lindab Architect is a product designed to regulate temperature in enclosed spaces. The product comes in three models – Architect Luna, Architect Prisma, and Architect Circum.

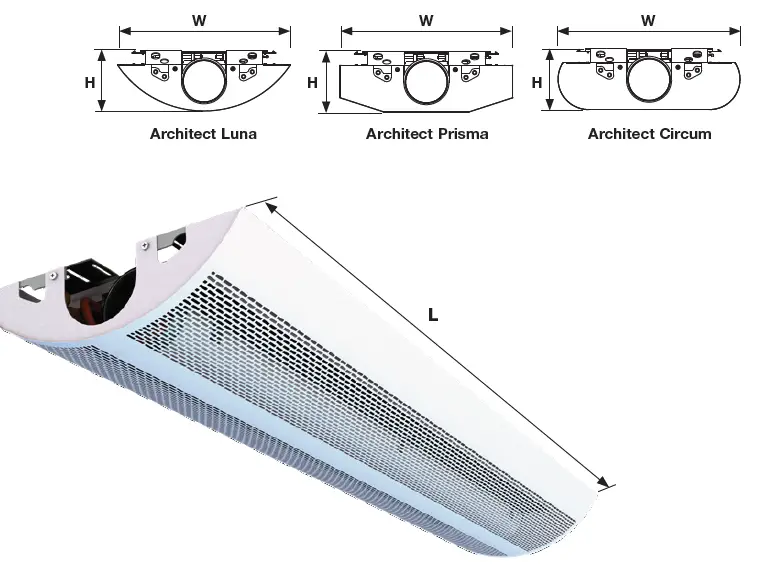

Dimensions

Symbols

• UK: Heavy Load – 2 man job. It is recommended to use a lift for mounting.
• DK: Tungt – 2 mands job.
• IT: Pesante carico – Manipolazione da parte di due persone. Si consiglia di utilizzare un lift per il montaggio.

Installation Instructions

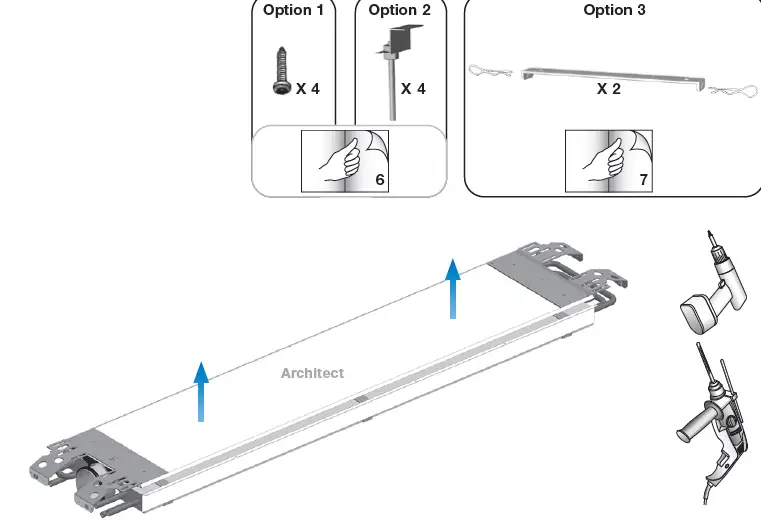

Mounting Options

• Option 1: Screws / Directly against ceiling.
• Option 2: X 4.
• Option 3: Ceiling bracket.

Mount Face Plate

To mount the face plate of the Architect model, follow these instructions:

1. Use the appropriate mounting option (Option 1, 2, or 3) based on your installation requirements.
2. Connect the heating system using the connection points A2, B2, A4, and B4.
3. Attach the face plate to the mounting option using A1, B1, A3, and B3.

Connection Dimensions

The connection dimensions for the heating system are as follows:

• Connection: 89.5mm
• Attacco: 65mm
• Raccordement: 62mm

Lindab reserves the right to make changes without prior notice as of April 3rd, 2020.

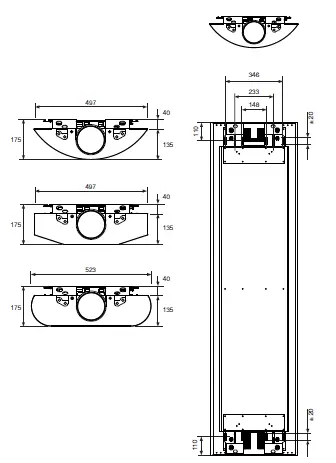

Dimensions

Architect is as standard delivered in steps of 0.1 [m] between 1.2 – 3.0 [m]

Symbols

• Heavy Load – 2 man job. It is recommended to use a “lift” for mounting
• Hot water
• Cold water

Assembly Instruction

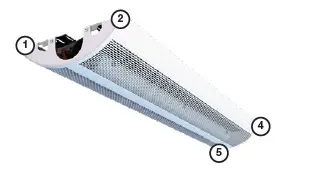

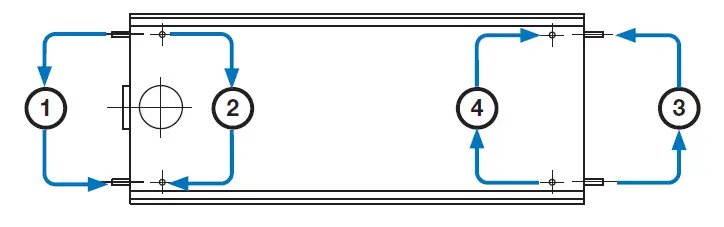

Possible connections – Supply air

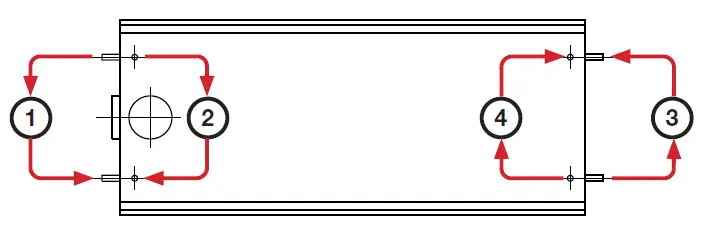

Possible connections – Water Cooling

Possible connections – Water Heating

Architect standard with cooling only – Can also be ordered with heating.
Possible combinations – Air / Water

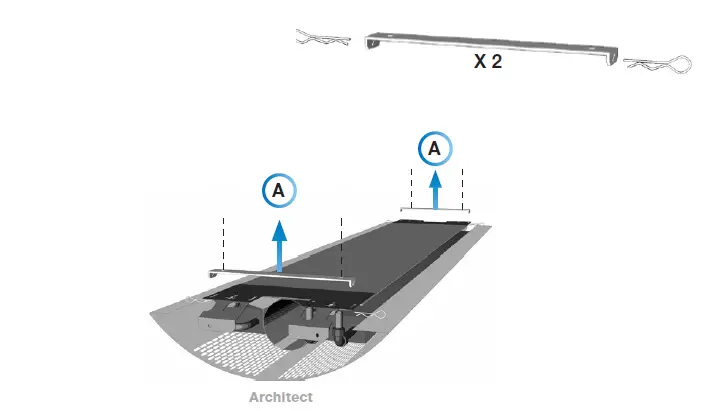

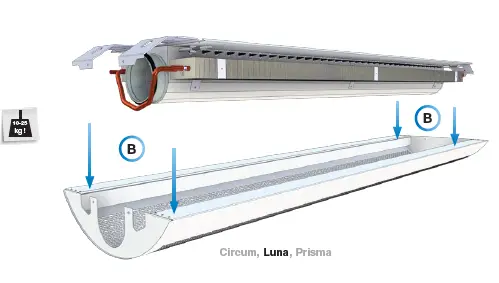

Mount upper part

Mount face plate

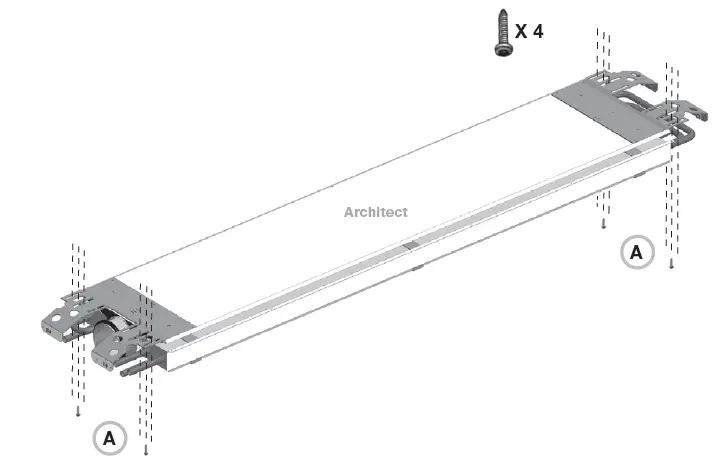

Option 1 – Screws / Directly against ceiling

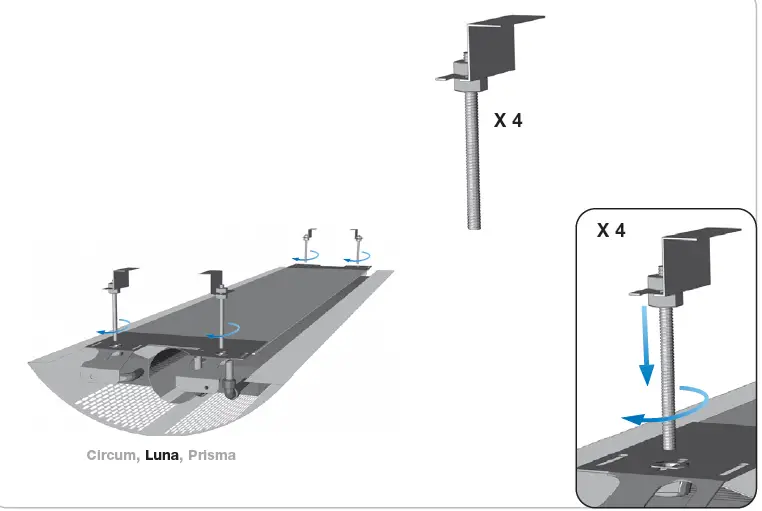

Option 2 – Suspended

Option 3 – Ceiling bracket

Suspension, connection

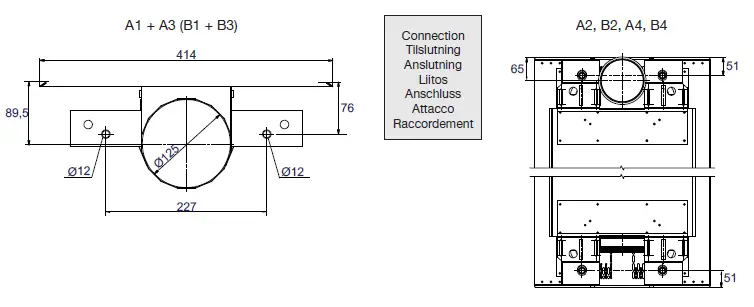

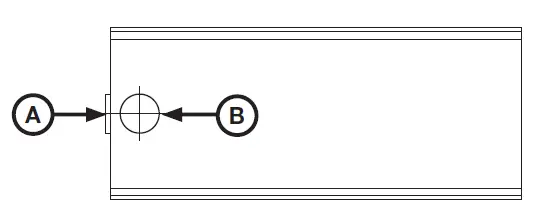

Connection dimensions Cooling

Connection dimensions Heating

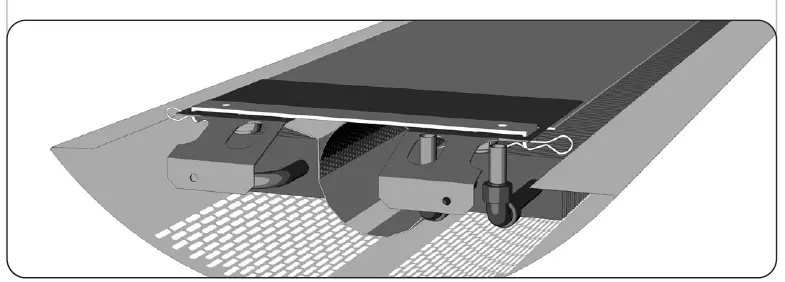

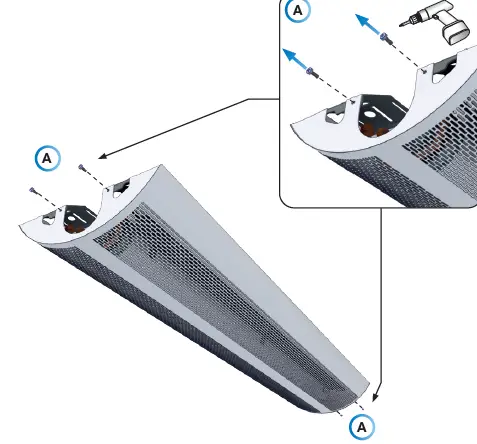

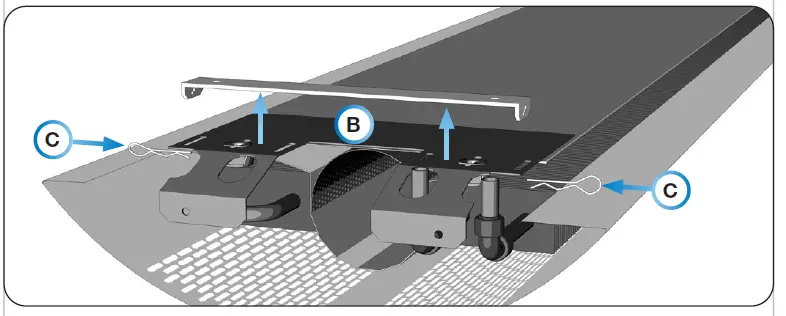

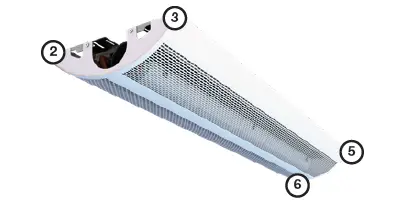

Opening face plate

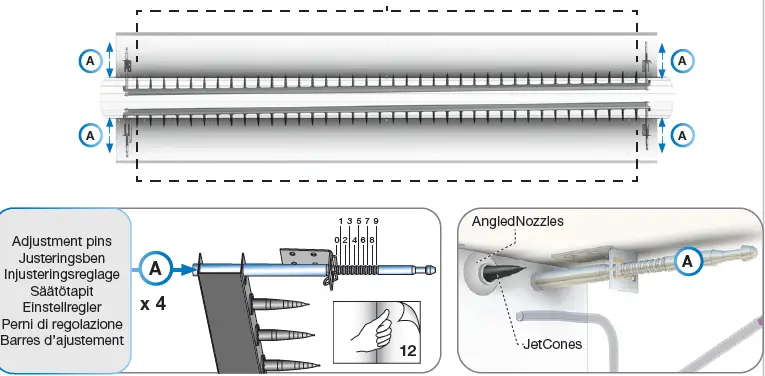

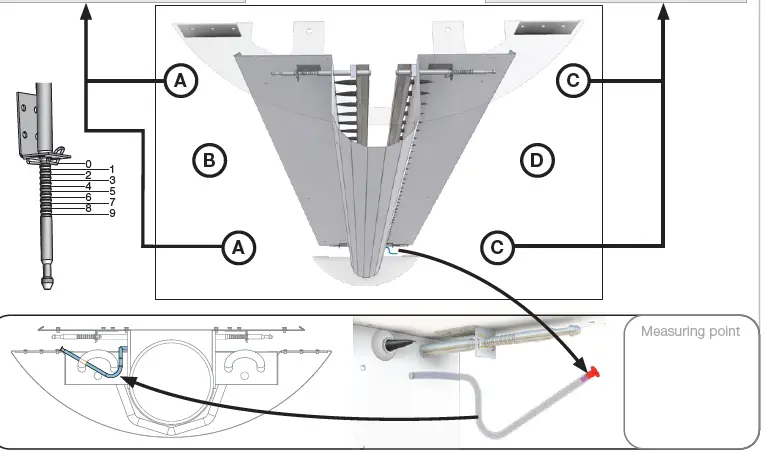

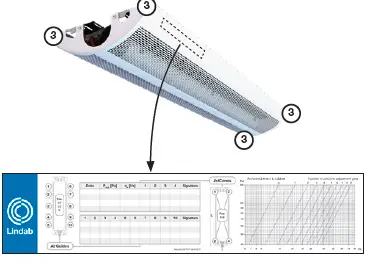

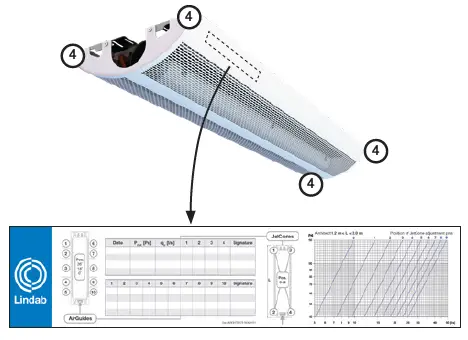

JetCone 4 adjustment points
Angled Nozzles with Jet Cones

Integrated adjustable nozzle unit

Example – Asymmetrical pattern

Jet Cone 4 adjustment points

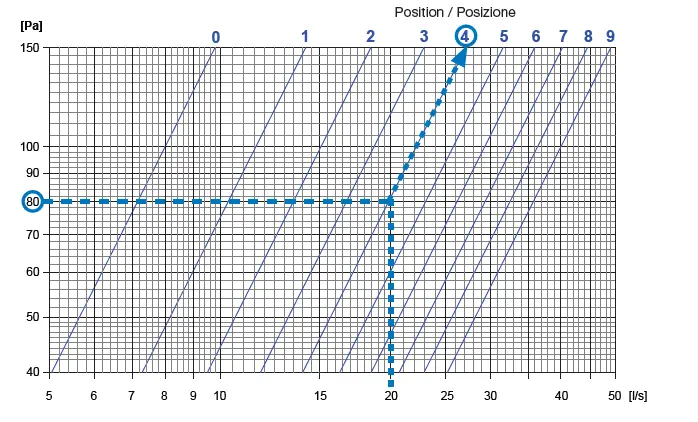

Jet Cone 4 adjustment points 1.2 [m] ≤ L ≤ 2.0 [m]

Symmetric adjustment

Asymmetric adjustment

Keep average value as read in diagram (=4).

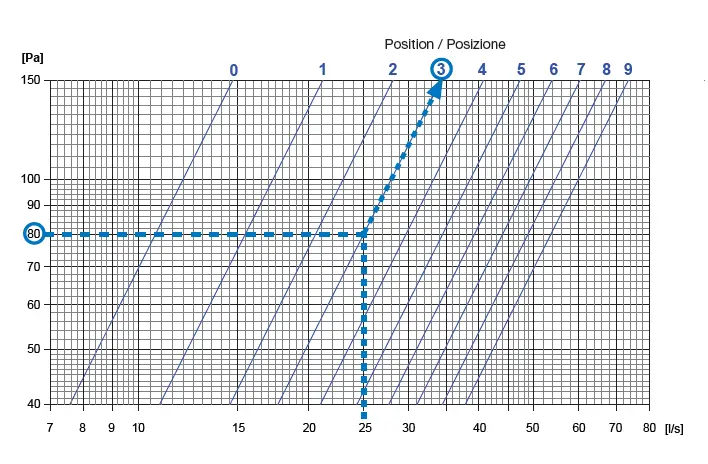

Jet Cone 4 adjustment points 2,0 [m] < L ≤ 3.0 [m]

Symmetric adjustment

Asymmetric adjustment

Keep average value as read in diagram ( =3 ).

Support

Here you can find product updates/mounting instructions and support telephone number/mail. www.lindab.com
Right to alterations reserved.

www.lindab.com
Architect 20200403
Lindab reserves the right to make changes without prior notice
2020-04-03
