BOYA BY-CM6A All-in-one USB Microphone

General Introduction

Thanks for choosing BOYA! The BOYA BY-CM6A is a desktop USB microphone with a built-in camera and an LED ring light. It is compatible with Windows and Mac comput-ers, ideal for live streaming, video conferencing, vocal performance, and more. With a cardioid pickup pattern, the BY-CM6A is designed to capture sound in front of the microphone and effectively reduce unwanted background noise. The built-in camera provides crisp, clear images with an HD resolution of 1080p at 30fps. The BOYA BY-CM6A features built-in controls for gain, headphone volume and muting, while the 3.5mm headphone jack enables real-time monitoring. An LED ring light surrounds the camera, providing even illumination for the user. Finally, an adjustable desktop stand allows you to adjust the microphone to the desired angle.

Cautions

• If you do not intend to use the microphone for a long period of time, please remove the USB cable.
• Do not touch the microphone while recording, as this will cause noise to be recorded.
• Do not let the microphone close to high-voltage equipment or to devices that emit strong electromagnetic fields, otherwise, it may cause the noise to be recorded.
• Do not use or leave the microphone in hot, humid places.

Package Contents

• BY-CM6A Microphone
• USB-A to USB-C Cable (1.2m)
• Lens Cap with Lanyard

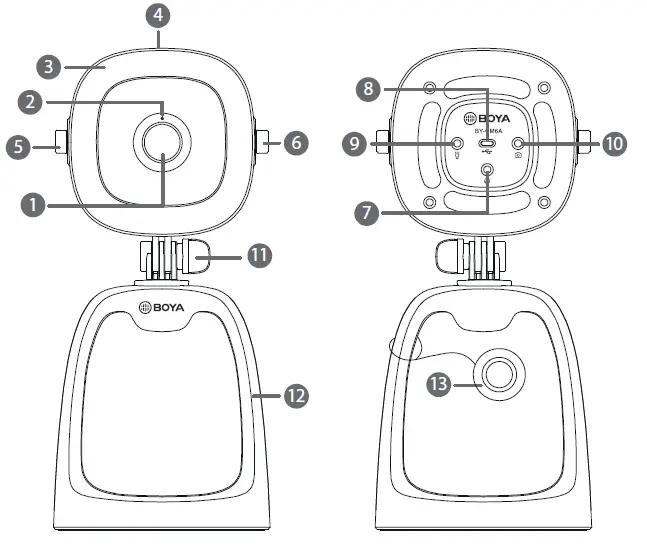

Product Structure

1. Built-in camera
2. Camera status indicator Light on: camera on Light off: camera off
3. LED ring light
4. Power indicator


   Mode	Indicator
   Power on	Solid blue light
   Power off	Light off
   Mute on	Solid red light

5. Gain control
   Turn the knob to adjust gains for microphone input level.
6. Headphone volume/mute control
   Turn the knob to adjust the headphone volume. Short press the knob to mute/unmute the microphone.
7. 3.5mm headphone output
8. USB-C port
9. LED light on/off control
   Touch to turn on/off the light or adjust the brightness.
10. Camera on/off control
    Touch to turn on/off the camera.
11. Locking knob for angle adjustment
12. Desktop stand
13. Lens Cap with

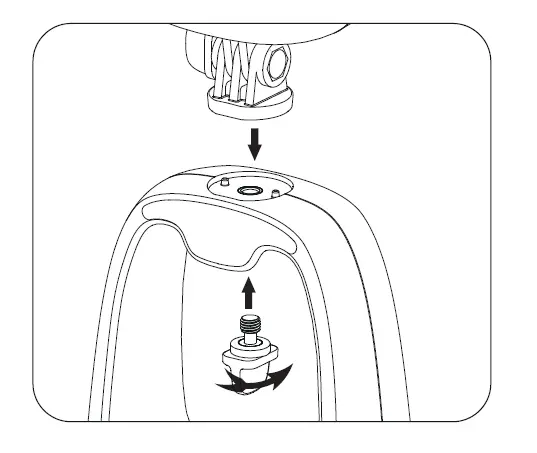

Installation Guide

How to Use

1. Loosen the locking knob, adjust the microphone to the desired angle, then tighten the knob.

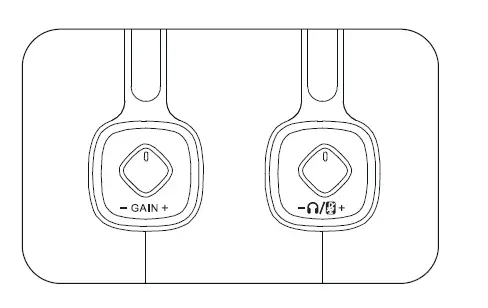

2. Turn the gain control and the volume control knobs halfway to max before recording.
   Note:
   50% levels are recommended. Please turn up/down according to your needs.
3. Connect the microphone to a computer with the supplied cable.
4. Connect your headphones to the 3.5mm headphone jack for real-time monitoring.
5. Record with camera.
   • Open the video recording app on your computer.
   • Touch the “ ” button to turn the camera on/off.
6. Use the LED ring light if necessary

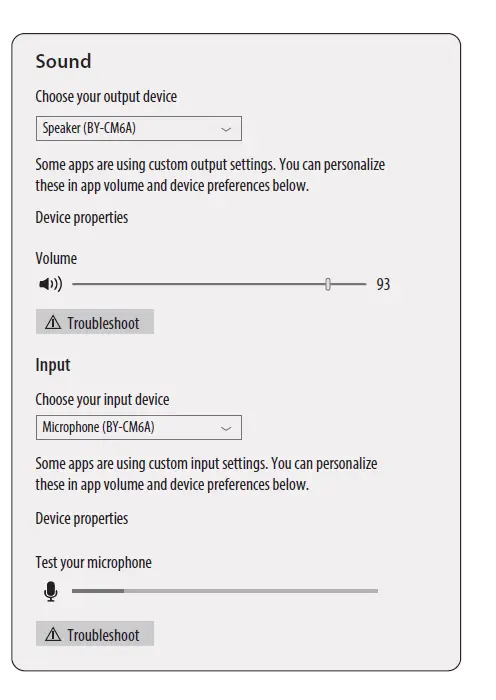

Setup for Windows 10

1. Connect the microphone to your computer using the supplied cable.
2. Go to “Setting”, choose “Sound”.
3. Select “Speaker BY-CM6A” as the output device.
4. Select “Microphone BY-CM6A” as the input device

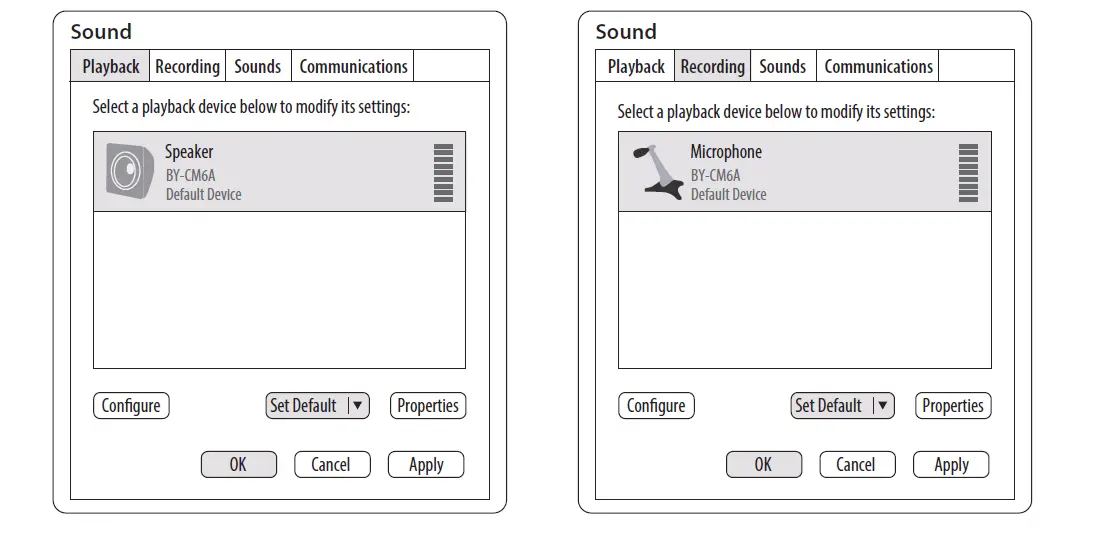

Setup for Windows 7

1. Connect the microphone to your computer using the supplied cable.
2. Go to “Control Panel”–>“Hardware and Sound”–> “Sound”.
3. Select “Speaker BY-CM6A” as the default device in “Sound”, under the “Playback” menu.
4. Select “Microphone BY-CM6A” as the default device in “Sound”, under the “Recording” menu.

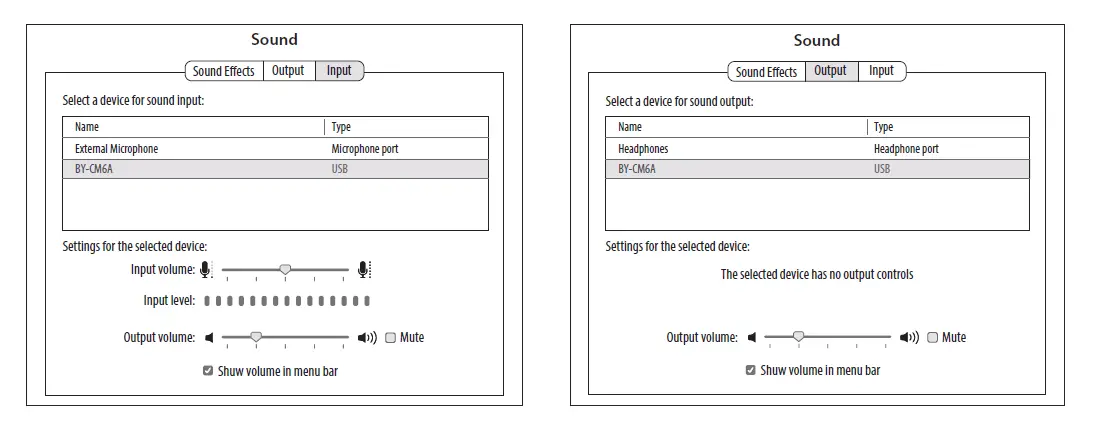

Setup for Mac

1. Connect the microphone to your computer using the supplied cable.
2. Go to Apple Icon–>System Preferences–>Sound Icon.
3. Select “BY-CM6A” under the “Input” tab.
4. Select “BY-CM6A” under the “Output” tab.

Features

• All-in-one Cardioid microphone with USB-C connectivity
• Ideal for live streaming, video conferencing, vocal performance, etc
• Compatible with Windows and Mac computers
• Built-in camera with full HD 1080p resolution
• LED ring light with three levels of brightness
• Gain control, headphone volume control and mute function
• 3.5mm headphone jack for real-time monitoring
• Durable detachable microphone desktop stand
• Plug and play, easy to operate

specifications

Microphone

Built-in Camera

LED Ring Light

Mechanical Specifications

Frequency Response

Polar Pattern
