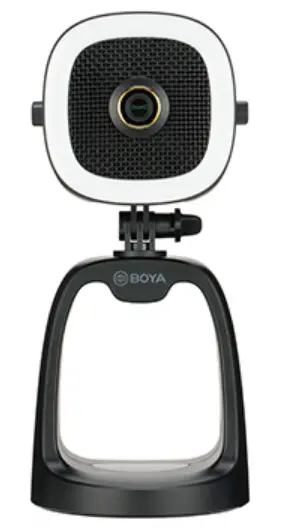

Boya By-cm6b All-in-one Usb Microphone User Manual (+ PDF)

The BOYA BY-CM6B is a desktop USB microphone with a built-in camera and LED ring light. It is compatible with Windows and Mac computers, ideal for live streaming, video conferencing, vocal performance, and more.
With a cardioid pickup pattern, the BY-CM6B is designed to capture sound in front of the microphone and effectively reduce unwanted background noise. The built-in camera provides crisp, clear images with an 4K ultra HD resolution.
The BOYA BY-CM6B features built-in controls for gain, headphone volume and muting, while the 3.5mm headphone jack enables real-time monitoring. An LED ring light surrounds the camera, providing even illumination for the user. Finally, an adjustable desktop stand allows you to adjust the microphone to the desired angle.

Cautions

If you do not intend to use the microphone for a long period of time, please remove the USB cable.
Do not touch the microphone while recording, as this will cause noise to be recorded.
Do not let the microphone close to high-voltage equipment or to devices that emit strong electromagnetic fields, otherwise, it may cause the noise to be recorded.
Do not use or leave the microphone in hot, humid places.

Package Contents

BY-CM6B Microphone
USB-A to USB-C Cable (1.2m)
Lens Cap with Lanyard

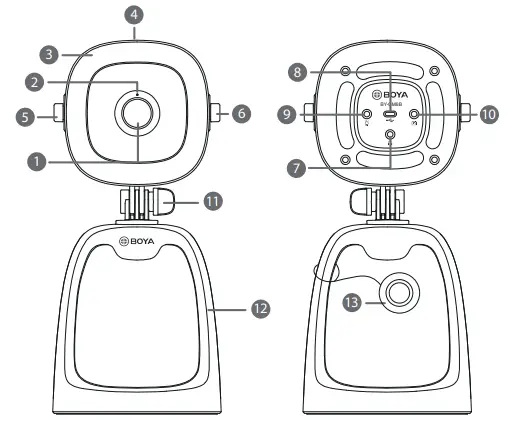

Product Structure

Built-in camera
Camera status indicator
Light on: camera on
Light off: camera off
LED ring light
Power indicator
Mode Indicator
Power on Solid blue light
Power off Light off
Mute on Solid red light
Gain control
Turn the knob to adjust gains for microphone input level.
Headphone volume/mute control
Turn the knob to adjust the headphone volume.
Short press the knob to mute/unmute the microphone.
3.5mm headphone output
USB-C port
LED light on/off control
Touch to turn on/off the light or adjust the brightness.
Camera on/off control
Touch to turn on/off the camera.
Locking knob for angle adjustment
Desktop stand
Lens Cap with

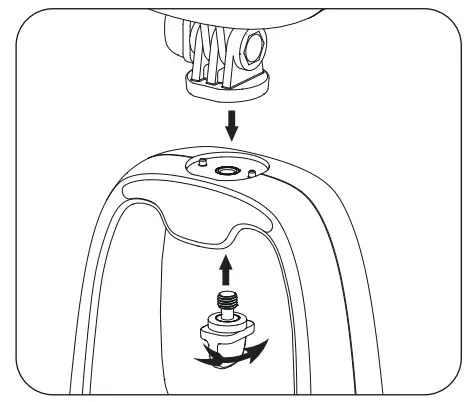

Installation Guide

How to Use

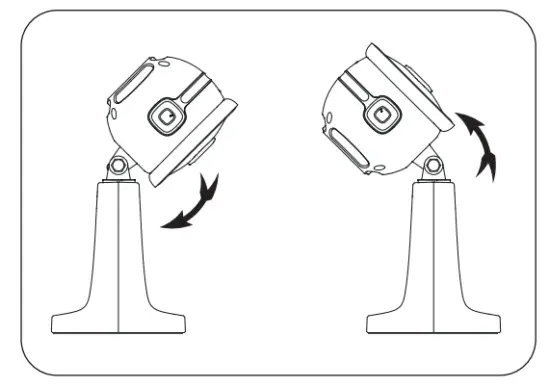

Loosen the locking knob, adjust the microphone to the desired angle, then tighten the knob

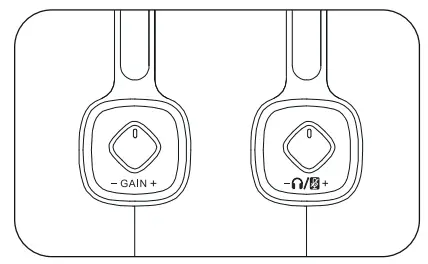

Turn the gain control and the volume control knobs halfway to max before recording.

Note: 50% levels are recommended. Please turn up/down according to your needs.
Connect the microphone to a computer with the supplied cable.
Connect your headphones to the 3.5mm headphone jack for real-time monitoring.
Record with camera.
1. Open the video recording app on your computer.
2. Touch the “ ” button to turn the camera on/off.
Use the LED ring light if necessary
Touch the “ ” button to turn the light on/off or adjust the brightness.

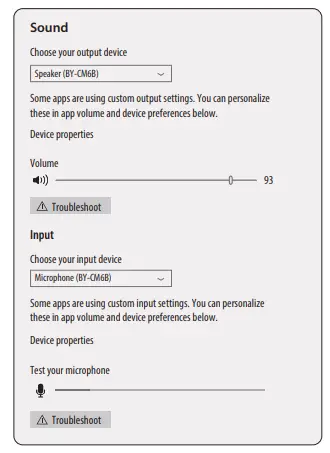

Setup for Windows 10

Connect the microphone to your computer using the supplied cable.
Go to “Setting”, choose “Sound”.
Select “Speaker BY-CM6B” as the output device.
Select “Microphone BY-CM6B” as the input device.

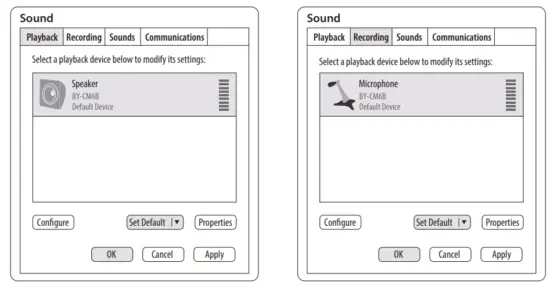

Setup for Windows 7

Connect the microphone to your computer using the supplied cable.
Go to “Control Panel”–>“Hardware and Sound”–> “Sound”.
Select “Speaker BY-CM6B” as the default device in “Sound”, under the “Playback” menu.
Select “Microphone BY-CM6B” as the default device in “Sound”, under the “Recording” menu.

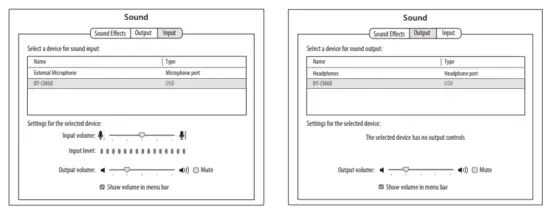

Setup for Mac

Connect the microphone to your computer using the supplied cable.
Go to Apple Icon–>System Preferences–>Sound Icon.
Select “BY-CM6B” under the “Input” tab.
Select “BY-CM6B” under the “Output” tab.

Features

All-in-one Cardioid microphone with USB-C connectivity
Ideal for live streaming, video conferencing, vocal performance, etc
Compatible with Windows and Mac computers
Built-in camera with 4K ultra HD resolution
LED ring light with three levels of brightness
Gain control, headphone volume control and mute function
3.5mm headphone jack for real-time monitoring
Durable detachable microphone desktop stand
Plug and play, easy to operate

Specifications

Microphone

Microphone Capsule	14mm capsule

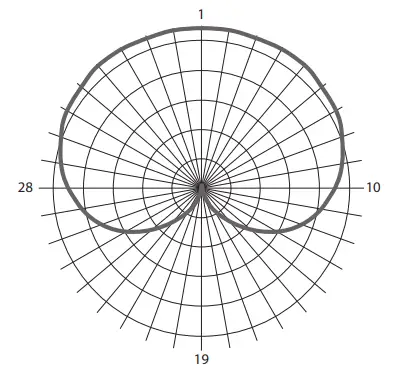

Polar Pattern	Cardioid

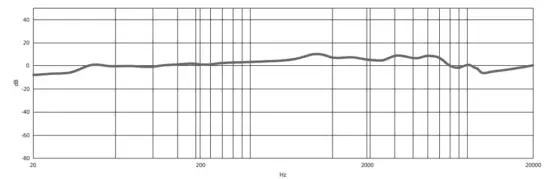

Frequency Response	20Hz-20kHz
Sensitivity	-37dB±3dB
Signal-to-Noise Ratio	80dB
Maximum SPL	120dB(OdB=1V/Pa/1KHz)
Mic Gain	42dB
Sampling Rate	48kHz
Bit Depth	24bit
Audio Output Connector	3.5mm headphone output USB-C
