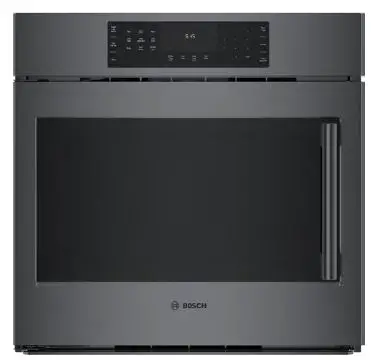

BOSCH HBL8444LUC 800 Series 30 Inch Single Wall Oven Black Stainless Steel
The Bosch SideOpening wall oven combines your favorite tools into one appliance. It’s an air fryer, convection oven, pizza oven, dough proofer and more.
Features & Benefits
Bosch black stainless steel is a special material that helps guard against scratches and fingerprints. The side-opening door offers easier access to the oven cavity so you don’t need to bend over. With Home Connect®, control and monitor your oven remotely or simply ask Alexa or Hey Google to start your oven when your hands are full. The integrated temperature probe cooks meat to your desired doneness without any guesswork. Installs flush for a sleek modern look.
| General Properties | |
| Home Connect® (WiFi enabled) | Yes |
| Oven modes | (16) Air Fry, Pizza, Bake, Broil (Hi & Low), Roast, Warm, Proof Dough, Convection Bake, Convection Broil, Convection Roast, Convection Multi- Rack, Convection Conversion, Temperature Probe, Fast Preheat, Sabbath |
| Cleaning type | Self Clean |
| Telescopic rack | 1 |
| Illumination type | Halogen |
| Interior lights | 2 |
Oven Performance
| Bake element (4-pass) | 2,400 W |
| Broil element (12-pass) | 3,800 W |
| Convection element | 2,000 W |
Technical Details
| Watts at 240 / 208 V | 6,400 / 4,800 W |
| Circuit breaker | 30 A |
| Volts | 240 / 208 V |
| Frequency | 60 Hz |
| Power cord length | 60″ |
| Plug type | Fixed Connection, No Plug |
| Energy source | Electric |

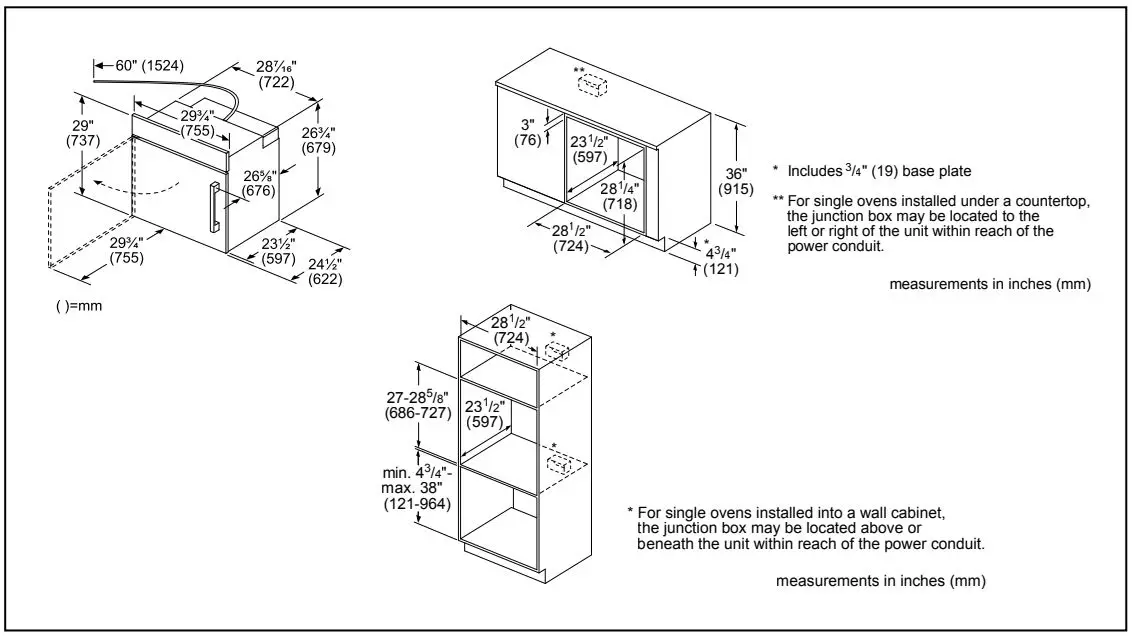

Dimensions & Weight
| Overall appliance dimensions (HxWxD) | 29″ x 29 3/4″ x 24 1/2″ |
| Required cutout size – Standard (HxWxD) | 27″–28 5/8″* x 28 1/2″ x 23 1/2″ |
| Required cutout size – Flush (HxWxD) | 29 1/8″ x 30″ x 24 1/2″ |
| Oven cavity size | 4.6 cu. ft. |
| Overall oven interior dimensions (HxWxD) | 17 13/16″ x 24 1/8″ x 18″ |
| Usable oven interior dimensions (HxWxD) | 12 5/16″ x 23 1/4″ x 15 1/4″ |
| Net weight | 159 lbs |

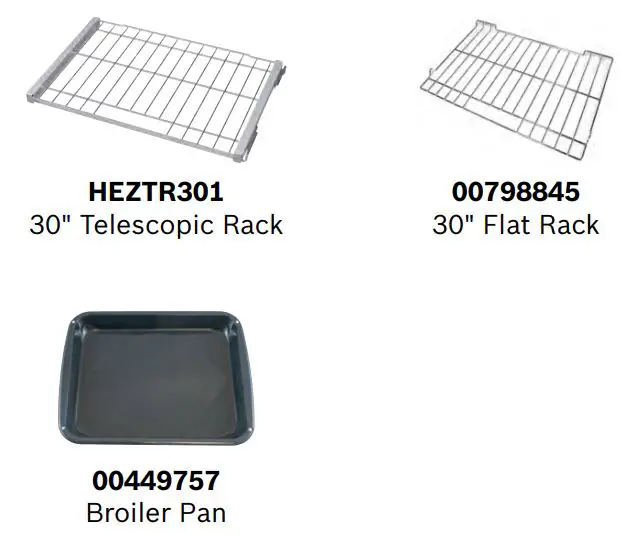

Accessories — Included
- Included 1 Telescopic and 2 Standard Oven Racks, Temperature Probe
Accessories — Optional
- For under-counter installation, standard cut-out height is 28 1/4″
- To be fully ADA-compliant, these units must be installed according to ADA guidelines. Please check current ADA requirements for guidance on installation.
Installation Details

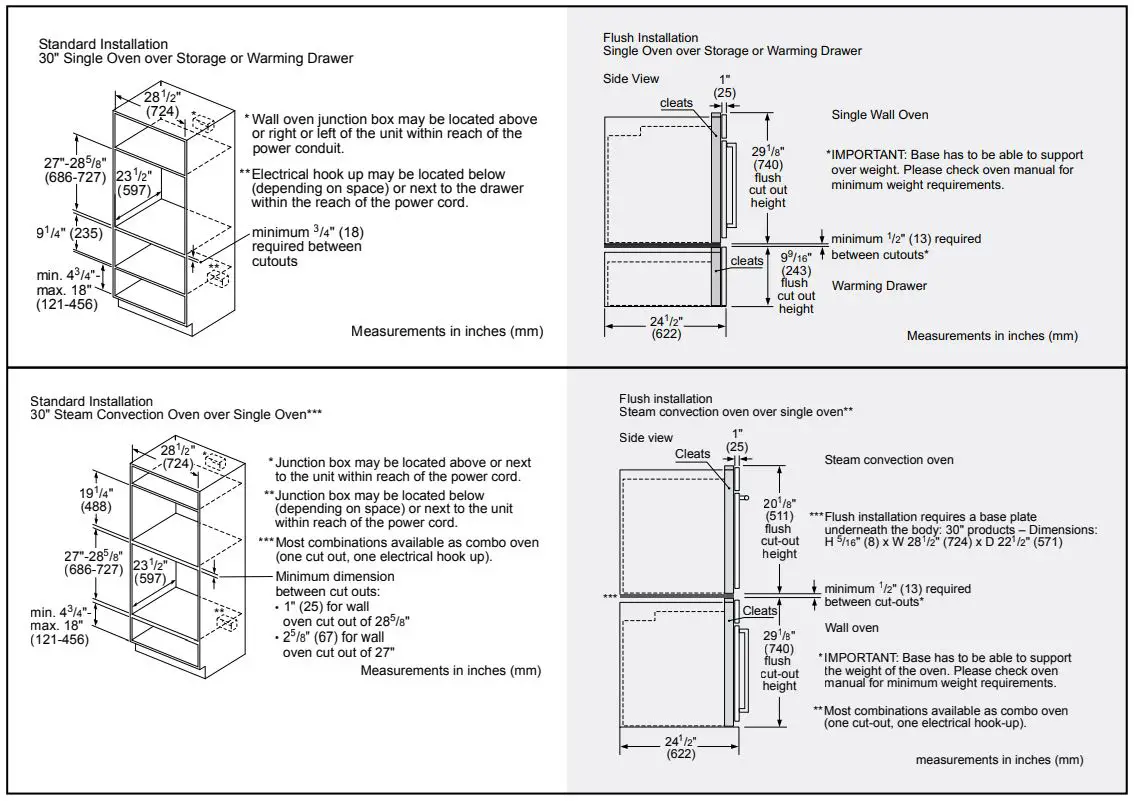

Bosch Side-By-Side Built-In Oven Approved Combination Guide
Single ovens, microwaves, speed ovens, and drawers approved by BSH Home Appliances Corporation to be installed in combination.
IMPORTANT: When installing an oven in combination, a minimum distance between the ovens is required. Refer to the oven installation manual for all other measurements. Do not install a self-cleaning oven beside another self-cleaning oven. Appliances that are not listed must be approved under local codes and/or by the local authority having jurisdiction. For the latest updates to the approved combination, refer to the website listed in your appliance’s installation instructions.
| APPROVED COMBINATIONS | ||||
| Conventional Ovens | Built-in Microwaves | Steam Ovens | Speed Ovens | Warming Drawer |
| HBLxxx1RUC, HBLxxx4RUC, | HMB50152UC | HSLP451UC | HMC80152UC, | HWD5051UC |
| HBLxxx1LUC, HBLxxx4LUC, | HMC80252UC, | |||
| HBLxxx1UC, HBLxxx3UC, | HMC80242UC, | |||
| HBLxxx4UC, HBNxxx1UC | HMCP0252UC | |||
| Coffee maker with trim kit | ||||
| BCM8450UC + HEZCMT3050 | ||||
The suitability of the following combination has been evaluated by CSA.
| Conventional Ovens | Steam Ovens | Warming Drawer |
| HBLxxx1RUC, HBLxxx4RUC, HBLxxx1LUC, HBLxxx4LUC, HBLxxx1UC, HBLxxx3UC, HBLxxx4UC, HBNxxx1UC | HSLP451UC | HWD5051UC |
Refer to product installation instructions.
| Configuration | Left Oven Type | Middle Oven Type | Right Oven Type |
| Side-by-side-by-side 1 | Conventional oven | Steam/speed/microwave | Conventional oven |
| Side-by-side-by-side 2 | Steam, speed, or microwave | Conventional oven** | Steam, speed, or microwave |
Bottom hinge door models only. Side hinge door not recommended.
Side-by-Side-by-Side Installation
| Combination type | Left oven type | Middle oven type | Right oven type |
| Side-by-side-by-side 1 | Conventional oven | Steam/speed/microwave | Conventional oven |
| Side-by-side-by-side 2 | Steam, speed, or microwave | Conventional oven** | Steam, speed, or microwave |
*Bottom hinge door modules only. Side hinge door not recommended.

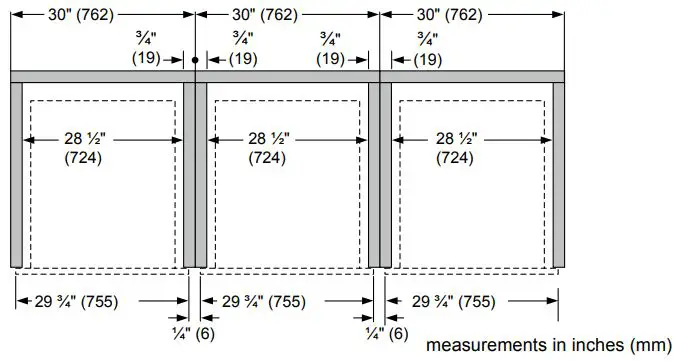

Standard Installation Side-by-side-by-side

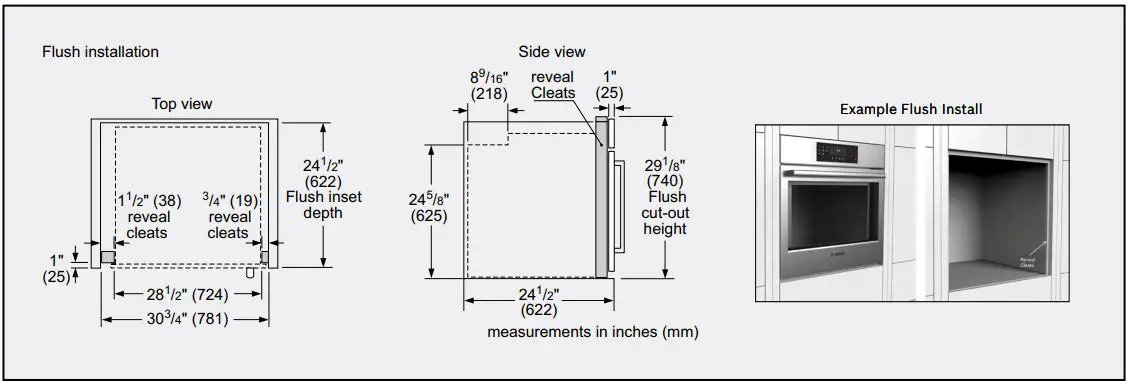

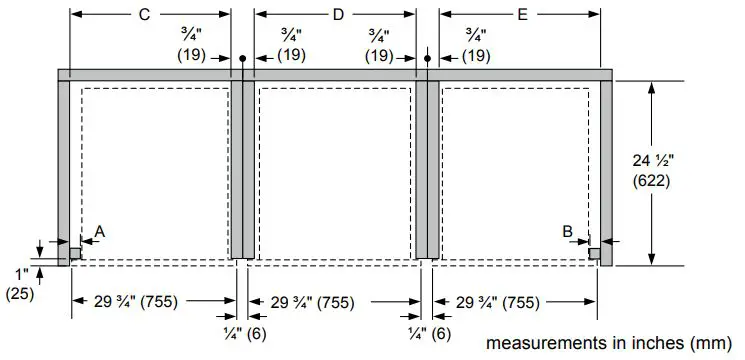

Flush Installation Side-by-side-by-side
| Combination type | A – Left reveal cleat | B – Right reveal cleat | C – Cutout width | D – Cutout width | E – Cutout width |
| Flush bottom hinge door | 3/4” (19) | 3/4” (19) | 29-1/4” (743) | 28-1/2” (724) | 29-1/4” (743) |
| Flush left hinge door | 1-1/2” (38) | N/A* | 30” (762) | N/A* | N/A* |
| Flush right hinge door | N/A* | 1-1/2” (38) | N/A* | N/A* | 30″ (762) |
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making the cutout.
Warranties: Please see Use & Care manual or Bosch website for a statement of limited warranty.
