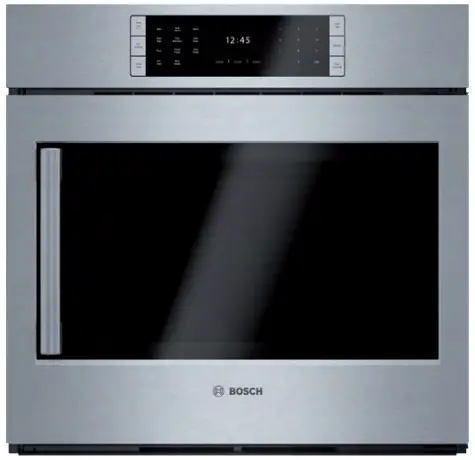

BOSCH HBLP451LUC 30 Inch Electric Single Wall Oven Instructions
The Bosch wall oven features a SideOpening door for easier cavity access and a highresolution TFT user interface.
Features & Benefits
SideOpening door offers better ergonomic access to the oven cavity.
The color TFT control panel with SteelTouch™ buttons is easy to use.
A full-extension telescopic rack offers safe access to the oven cavity.
The wall oven is designed to be installed flush with cabinetry.
Bosch wall ovens are compatible with most competitors’ cutouts.
AutoProbe takes the guesswork out of rare, medium and well done cooking.
Convection Pro combines a third heating element with a back fan for even browning and time savings by using multiple racks at one time.
Specifications
| General Properties | |
| Oven modes | Bake, Variable Broil (hi & low), Roast, Warm, Sabbath, Proof Dough, Convection Bake, Convection Broil, Convection Roast, Pizza, Convection Multi- Rack, Convection Conversion, AutoProbe, Fast Preheat, EcoChef, Speed Convection (Frozen Foods) |
| Cleaning type | Self Clean |
| Telescopic rack | 1 |
| Illumination type | Halogen |
| Interior lights | 2 |
| Oven Performance | |
| Bake element | 2,400 W |
| Broil element | 3,800 W |
| Convection element | 2,000 W |
Technical Details
| Watts | 6,325 W |
| Circuit breaker | 30 A |
| Volts | 240 / 208 V |
| Frequency | 60 Hz |
| Power cord length Plug type | 60″ Fixed Connection, No Plug |
| Energy source | Electric |
Dimensions & Weight

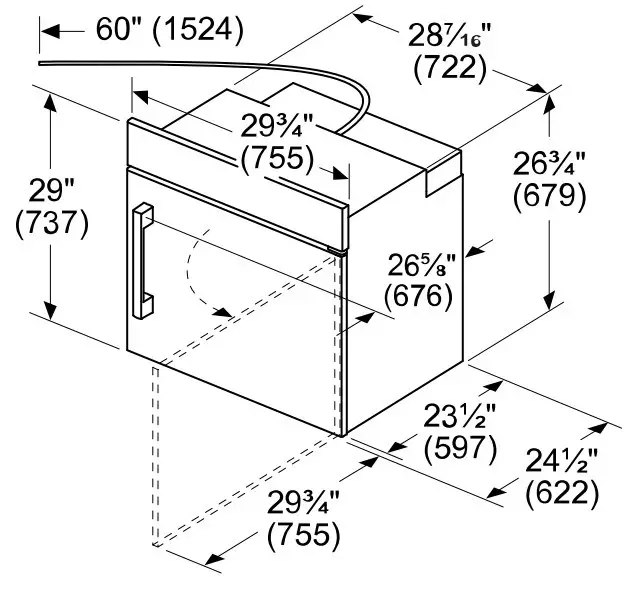

| Overall appliance dimensions (HxWxD) | 29″ x 29 3/4″ x24 1/2″ |
| Required cutout size – Standard (HxWxD) | 27″ – 28 5/8″ x28 1/2″ x 23 1/2″ |
| Required cutout size – Flush (HxWxD) | 29 1/8″ x 30 3/4″ x24 1/2″ |
| Oven cavity size | 4.6 cu. ft. |
| Overall oven interior dimensions (HxWxD) | 17 13/16″ x24 1/8″ x 18″ |
| Usable oven interior dimensions (HxWxD) | 12 5/16″ x 23 1/4″x 15 1/4″ |
| Net Weight (lbs) | 149 lbs |
Accessories—Included
Included: 1 Telescopic and 2 Standard Oven Racks, Temperature Probe, Broiler Pan
Accessories—Optional
- HEZTR301

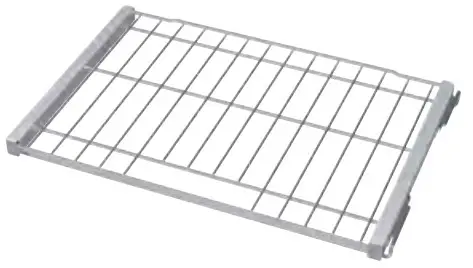

30″ Telescopic Rack
- 00798845

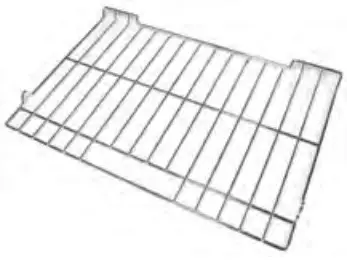

30″ Flat Rack
- 00449757

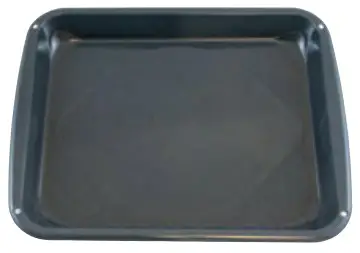

Broiler Pan
Installation Details
- Includes 3/4″ (19) base plate

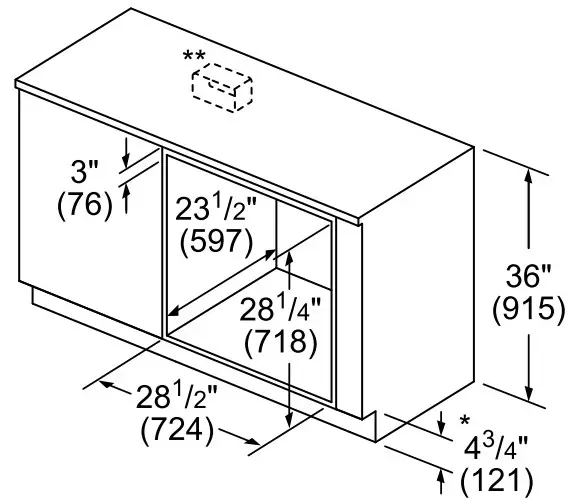

- For single ovens installed under a countertop, the junction box may be located to the left or right of the unit within reach of the power conduit.
- For single ovens installed into a wall cabinet, the junction box may be located above or beneath the unit within reach of the power conduit.
measurements in inches (mm).
Flush Install
Top View
Side View

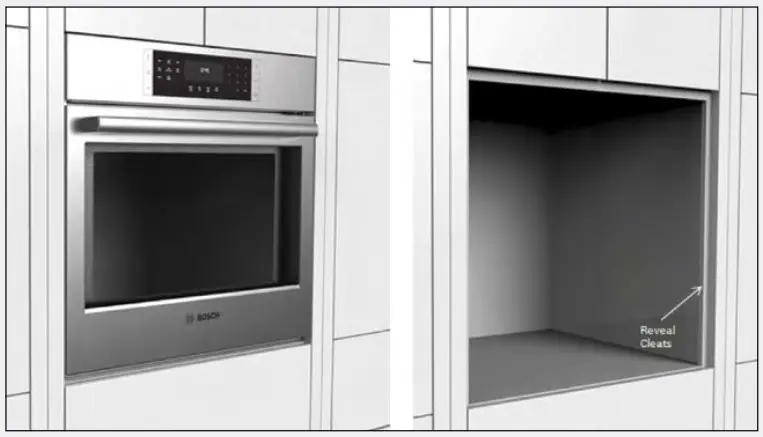

Example Flush Install
Standard oven shown. Side hinge oven needs 3/4″ gap at hinge location. This will ensure that the door can be opened up to 135° without hitting the adjacent cabinet.

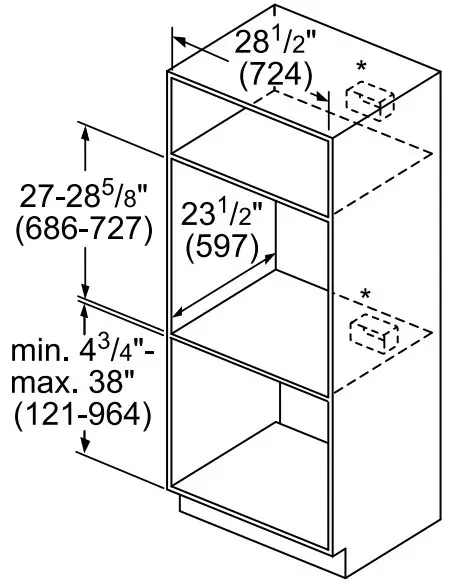

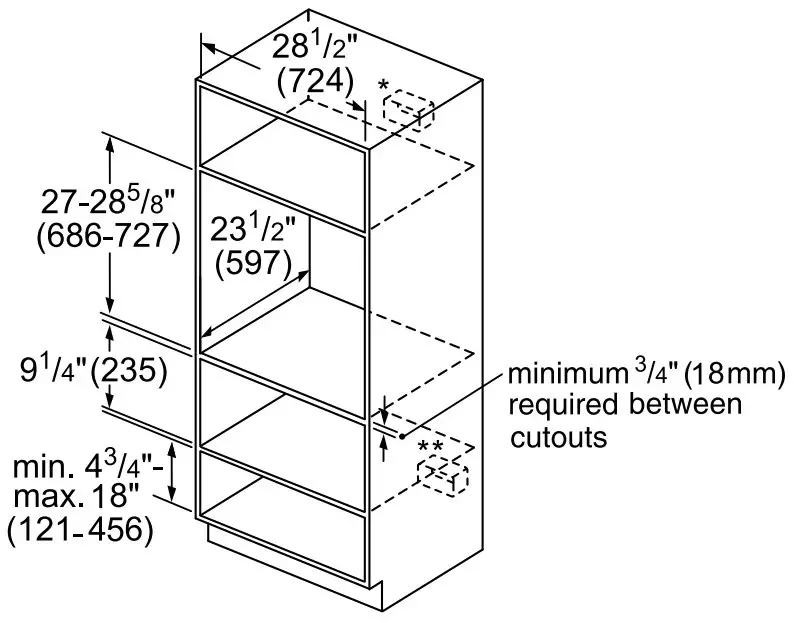

Standard Installation
- 30″ Single Oven over Storage or Warming Drawer. Wall oven junction box may be located above or right or left of the unit within reach of the power conduit.
- Electrical hook up may be located below (depending on space) or next to the drawer within the reach of the power cord.

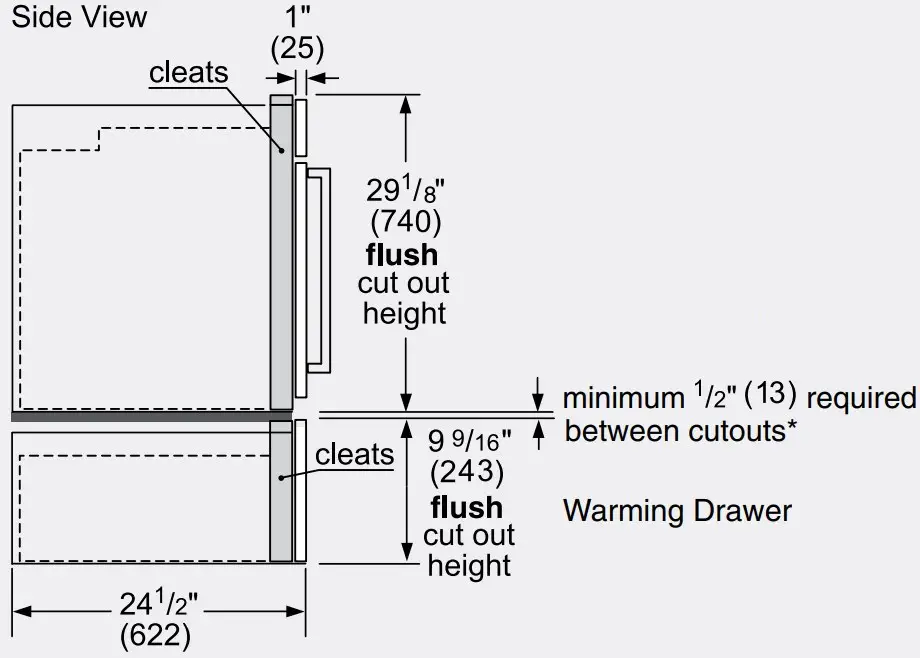

Flush Installation
Single Oven over Storage or Warming Drawer
Single Wall Oven
Important: Base has to be able to support oven weight. Please check oven manual for minimum weu=ight requirements.
Warming Drawer
meaurements in inches (mm)

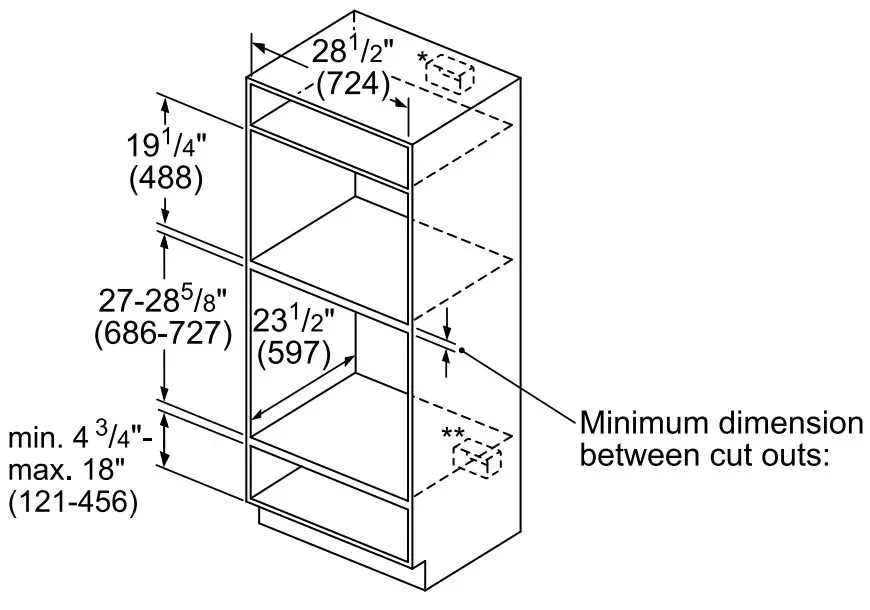

Standard Installation
30″ Speed Oven or Microwave over Single Oven
- Junction box may be located above or next to the unit within reach of the power cord.
- Junction box may be located below (depending on space) or next to the unit within reach of the power cord.
- Most combinations available as combo oven (one cut out, one electrical hook up).
Minimum dimension between cut outs:- 1″ (25 mm) for wall oven cut out height of 285/8″
- 25/8″ (67 mm) for wall oven cut out height of 27″
measurements in inches (mm)

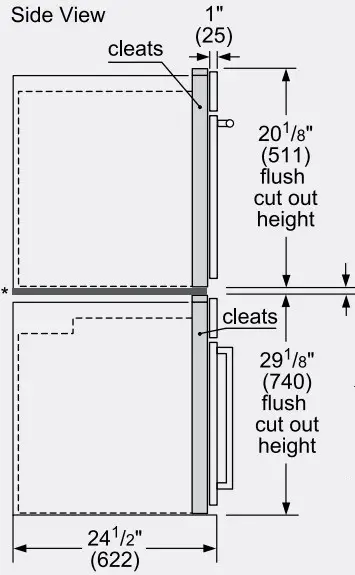

Flush Installation
Speed Oven or Microwave over 30″ Single Oven**
- Speed Oven or Microwave
- Flush installation requires a base plate underneath the body: 30″
- Products — Dimensions: H 5/16″ (8) x W 281/2″ (724) x D 221/2″ (571)
- minimum 1/2″ (13) required between cutouts*
- Wall Oven
*IMPORTANT: Base has to be able to support oven weight. Please check oven manual for minimum weight requirements. *Most combinations available as combo oven (one cut out, one electrical hook up).
measurements in inches (mm)
Bosch Side-By-Side Built-In Oven Approved Combination Guide
Single ovens, microwaves, speed ovens, and drawers approved by BSH Home Appliances Corporation to be installed in combination.
IMPORTANT: When installing an oven in combination, a minimum distance between the ovens is required. Refer to the oven installation manual for all other measurements.
Do not install a self-cleaning oven beside another self-cleaning oven.
Appliances that are not listed must be approved under local codes and/or by the local authority having jurisdiction. For the latest updates to the approved combination, refer to the website listed in your appliance’s installation instructions.
APPROVED COMBINATIONS
| Conventional Ovens | Built-in Microwaves | Steam Ovens | Speed Ovens | Warming Drawer |
| HBLxxx1RUC, HBLxxx4RUC, | HMB50152UC | HSLP451UC | HMC80152UC, | HWD5051UC |
| HBLxxx1LUC, HBLxxx4LUC, | HMC80252UC, | |||
| HBLxxx1UC, HBLxxx3UC, | HMC80242UC, | |||
| HBLxxx4UC, HBNxxx1UC | HMCP0252UC | |||
| Coffee maker with trim kit | ||||
| BCM8450UC + HEZCMT3050 | ||||
Refer to product installation instructions.
The suitability of the following combination has been evaluated by CSA.
| Conventional Ovens | Steam Ovens | Warming Drawer |
| HBLxxx1RUC, HBLxxx4RUC, HBLxxx1LUC, HBLxxx4LUC, HBLxxx1UC, HBLxxx3UC, HBLxxx4UC, HBNxxx1UC | HSLP451UC | HWD5051UC |
Refer to product installation instructions.
| Configuration | Left Oven Type | Middle Oven Type | Right Oven Type |
| Side-by-side-by-side 1 | Conventional oven | Steam/speed/microwave | Conventional oven |
| Side-by-side-by-side 2 | Steam, speed, or microwave | Conventional oven** | Steam, speed, or microwave |
** Bottom hinge door models only. Side hinge door not recommended.
Side-by-Side-by-Side Installation
| Combination type | Left oven type | Middle oven type | Right oven type |
| Side-by-side-by-side 1 | Conventional oven | Steam/speed/microwave | Conventional oven |
| Side-by-side-by-side 2 | Steam, speed, or microwave | Conventional oven** | Steam, speed, or microwave |
**Bottom hinge door modules only. Side hinge door not recommended.

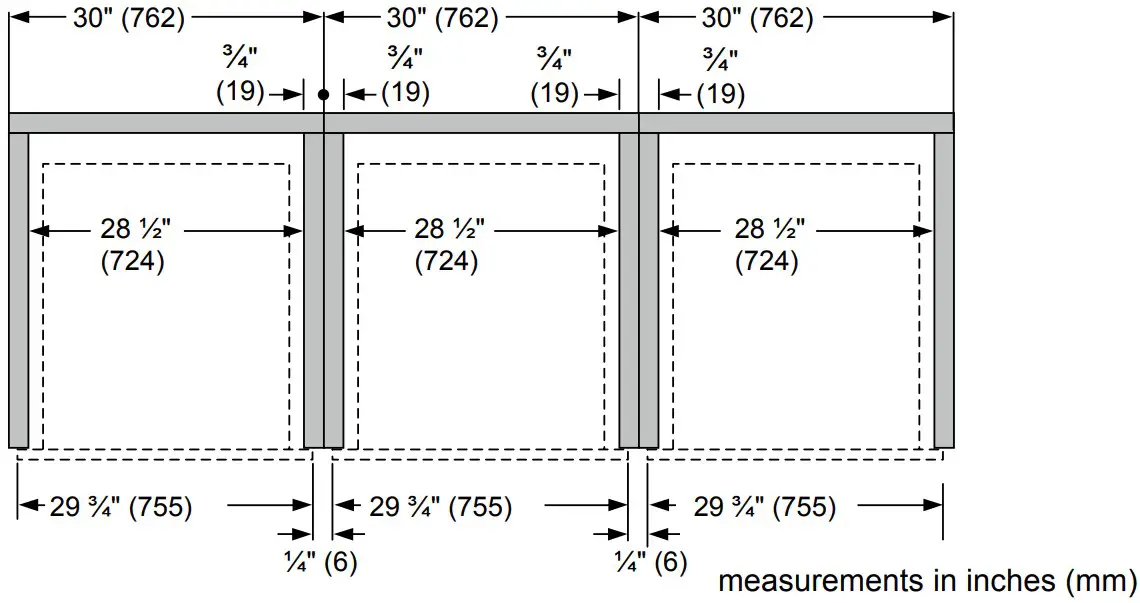

Standard Installation
Side-by-side-by-side

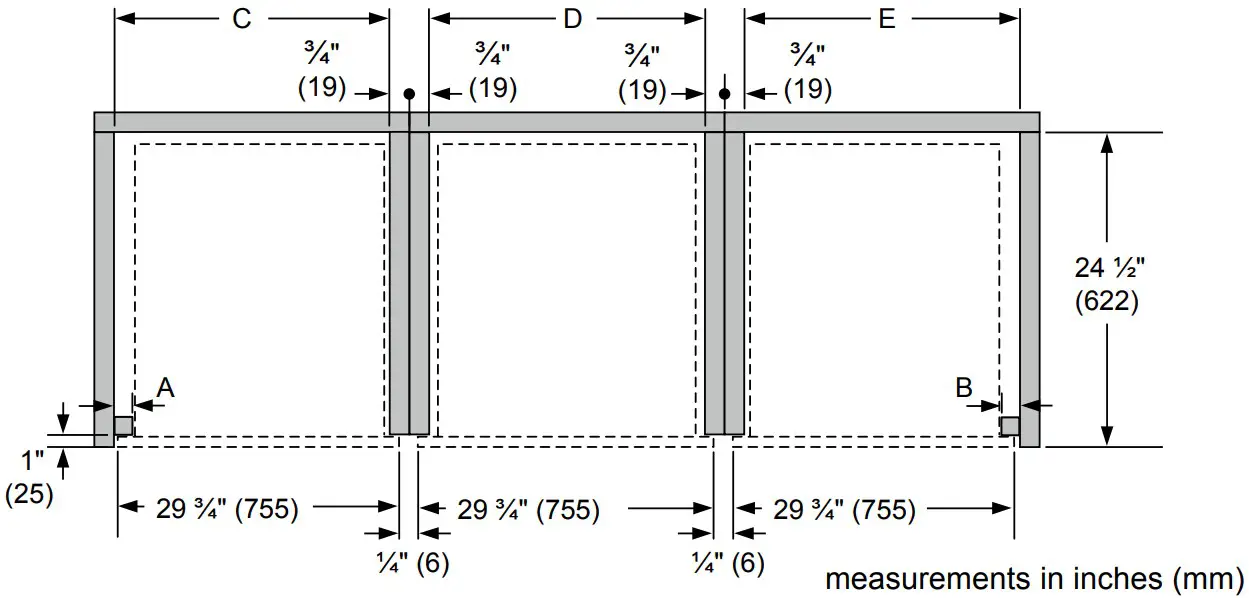

Flush Installation
Side-by-side-by-side
| Combination type | A – Left reveal cleat | B – Right reveal cleat | C – Cutout width | D – Cutout width | E – Cutout width |
| Flush bottom hinge door | 3/4” (19) | 3/4” (19) | 29-1/4” (743) | 28-1/2” (724) | 29-1/4” (743) |
| Flush left hinge door | 1-1/2” (38) | N/A* | 30” (762) | N/A* | N/A* |
| Flush right hinge door | N/A* | 1-1/2” (38) | N/A* | N/A* | 30″ (762) |
† To be fully ADA compliant, these units must be installed according to ADA guidelines. Please check current ADA requirements for guidance on installation.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
