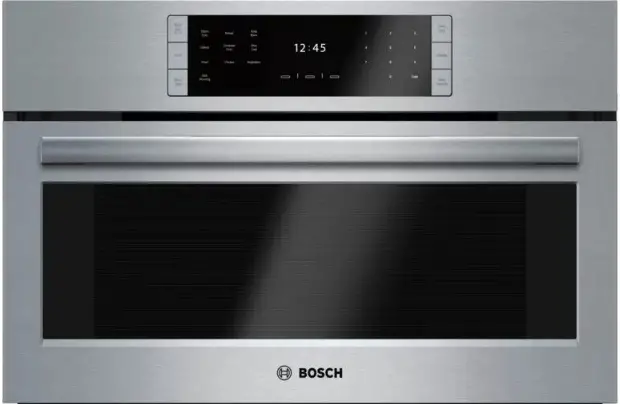

BOSCH HSLP451UC 30 Inch Electric Single Wall Steam Oven
Features & Benefits
- Steam convection cooking cooks meals that are crispy and tender.
- Steam cooking maintains more of your vegetables’ nutrients, flavors, and color.
- Designed to fit perfectly above a warming drawer or storage drawer.
- The color TFT control panel with SteelTouch® buttons is easy to use.
- Installs horizontally for perfect alignment with speed or steam oven.
- Reheats leftovers with just-out-of-the-oven taste.
| General Properties | |
| Oven modes | Steam, Steam Convection, Convection Multi- Rack, Reheat, Keep Warm, Defrost, Slow Cook, Proof, Dish Warming, 2 Chicken and 7 Vegetable Programs |
| Cleaning type | Steam Clean |
| Illumination type | Halogen |
| Interior lights | 1 |
| Oven Performance | |
| Steam element | 1,960 W |
| Convection element | 1,960 W |
Technical Details
| Watts | 1,960 W |
| Circuit breaker | 15 A |
| Volts | 240 / 208 V |
| Frequency | 60 Hz |
| Power cord length | 48″ |
| Plug type | Fixed connection, no plug |
| Energy source | Electric |
| Installation type | Non-plumbed |
| Dimensions & Weight | |

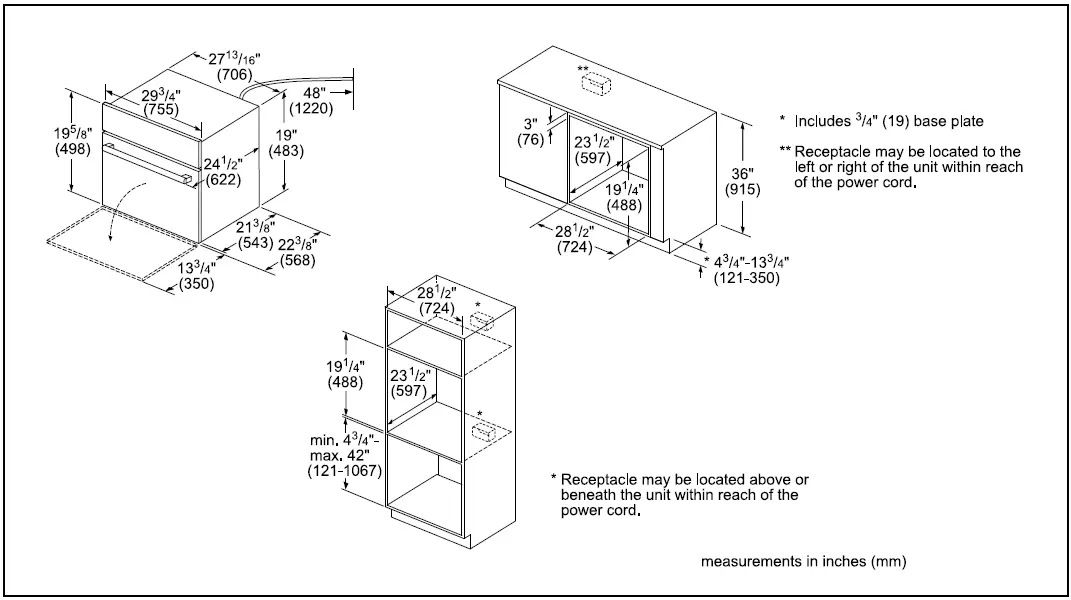

| Overall appliance dimensions (HxWxD) | 19 5/8″ x 29 3/4″ x 22 3/8″ |

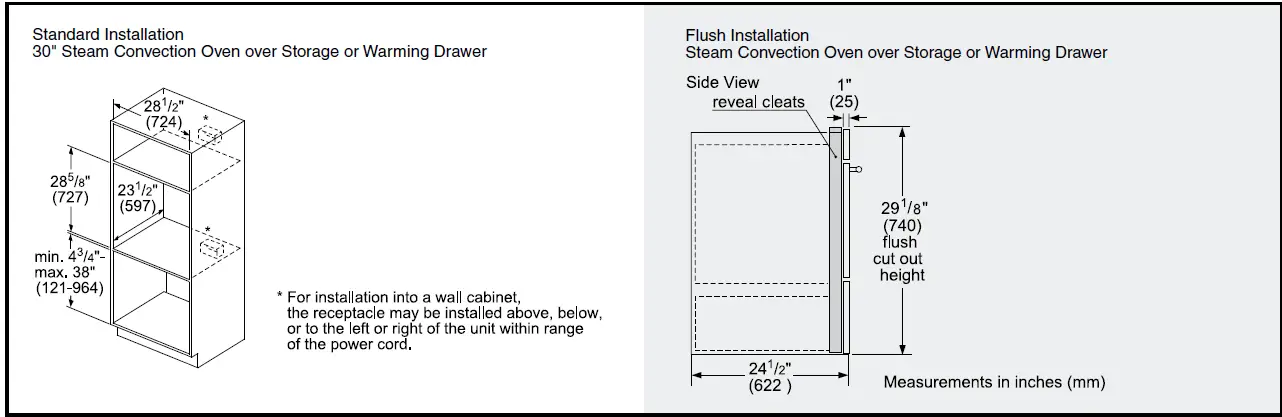

| Required cutout size – Standard (HxWxD) | 19 1/4″ x 28 1/2″ x 23 1/2″ |

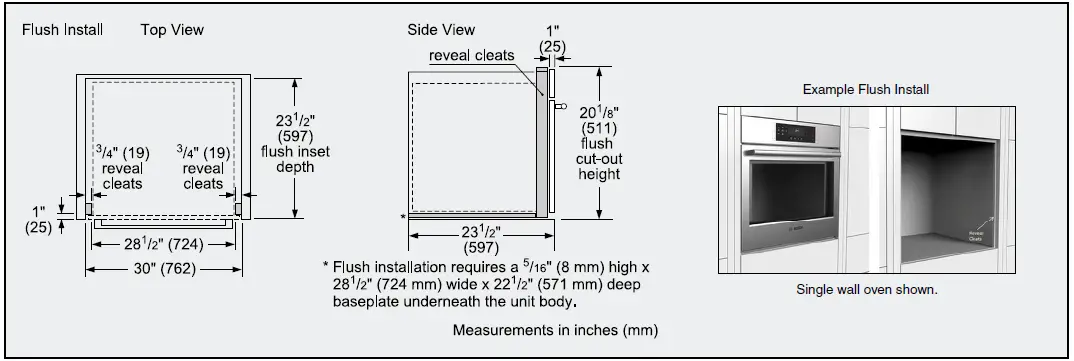

| Required cutout size – Flush (HxWxD) | 20 1/8″ x 30″ x 23 1/2″ |
| Oven cavity size | 1.4 cu. ft. |
| Net weight | 70 lbs |
| Accessories—Included | |

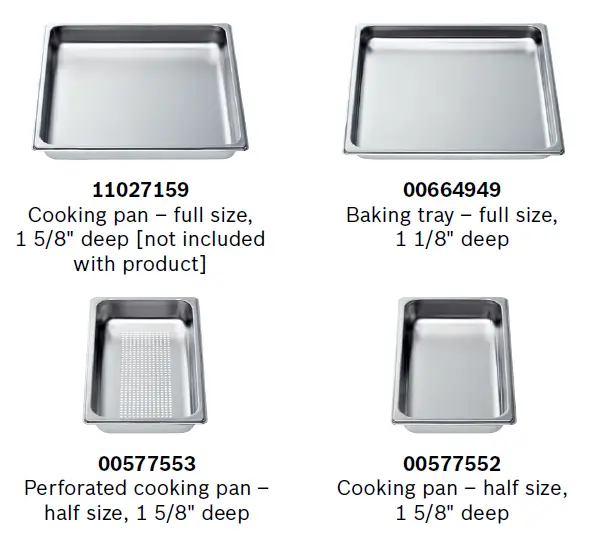

| Included | Wire Rack, Perforated Cooking Pan – Full Size, Baking Tray, Perforated Cooking Pan – Half Size, Cooking |
Accessories—Optional
Installation

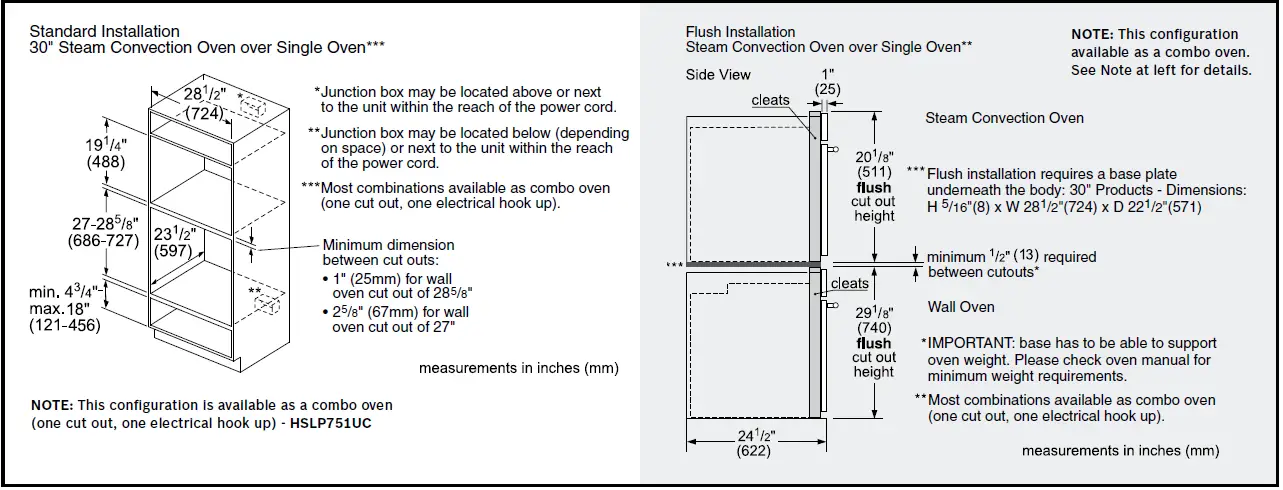

Bosch Side-By-Side Built-In Oven Approved Combination Guide
Single ovens, microwaves, speed ovens, and drawers approved by BSH Home Appliances Corporation to be installed in combination.
IMPORTANT: When installing an oven in combination, a minimum distance between the ovens is required. Refer to the oven installation manual for all other measurements.
Do not install a self-cleaning oven beside another self-cleaning oven.
Appliances that are not listed must be approved under local codes and/or by the local authority having jurisdiction. For the latest updates to the approved combination, refer to the website listed in your appliance’s installation instructions.
| APPROVED COMBINATIONS | ||||
| Conventional Ovens | Built-in Microwaves | Steam Ovens | Speed Ovens | Warming Drawer |
| HBLxxx1RUC, HBLxxx4RUC, | HMB50152UC | HSLP451UC | HMC80152UC, | HWD5051UC |
| HBLxxx1LUC, HBLxxx4LUC, | HMC80252UC, | |||
| HBLxxx1UC, HBLxxx3UC, | HMC80242UC, | |||
| HBLxxx4UC, HBNxxx1UC | HMCP0252UC | |||
| Coffee maker with trim kit | ||||
| BCM8450UC + HEZCMT3050 | ||||
Refer to product installation instructions.
The suitability of the following combination has been evaluated by CSA.
| Conventional Ovens | Steam Ovens | Warming Drawer |
| HBLxxx1RUC, HBLxxx4RUC, HBLxxx1LUC, HBLxxx4LUC, HBLxxx1UC, HBLxxx3UC, HBLxxx4UC, HBNxxx1UC | HSLP451UC | HWD5051UC |
Refer to product installation instructions.
| Configuration | Left Oven Type | Middle Oven Type | Right Oven Type |
| Side-by-side-by-side 1 | Conventional oven | Steam/speed/microwave | Conventional oven |
| Side-by-side-by-side 2 | Steam, speed, or microwave | Conventional oven** | Steam, speed, or microwave |
** Bottom hinge door models only. Side hinge door not recommended.
Side-by-Side-by-Side Installation
Standard Installation Side-by-side-by-side
| Combination type | Left oven type | Middle oven type | Right oven type |
| Side-by-side-by-side 1 | Conventional oven | Steam/speed/microwave | Conventional oven |
| Side-by-side-by-side 2 | Steam, speed, or microwave | Conventional oven** | Steam, speed, or microwave |

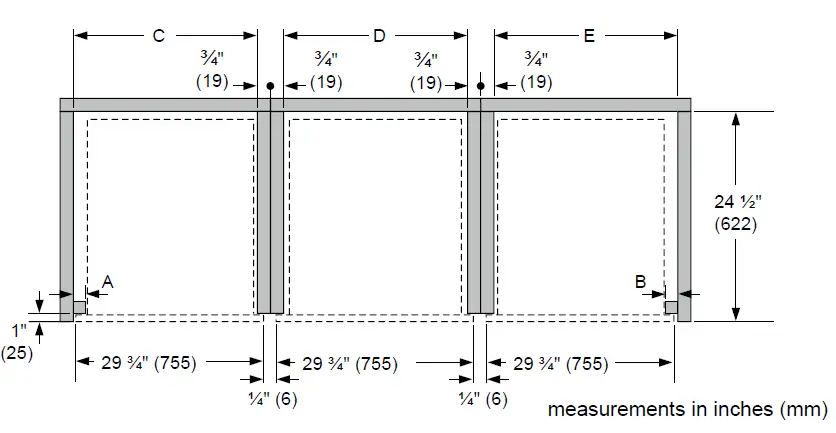

Flush Installation Side-by-side-by-side
| Combination type | A – Left reveal cleat | B – Right reveal cleat | C – Cutout width | D – Cutout width | E – Cutout width |
| Flush bottom hinge door | 3/4” (19) | 3/4” (19) | 29-1/4” (743) | 28-1/2” (724) | 29-1/4” (743) |
| Flush left hinge door | 1-1/2” (38) | N/A* | 30” (762) | N/A* | N/A* |
| Flush right hinge door | N/A* | 1-1/2” (38) | N/A* | N/A* | 30″ (762) |
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties
Please see Use & Care manual or Bosch website for statement of limited warranty. For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904 © BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
