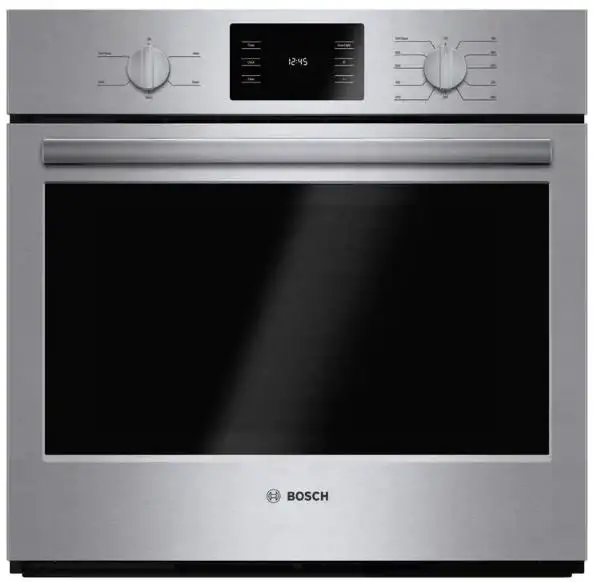

BOSCH HBL5351UC 500 Series 30 Inch Stainless Steel Electric Built In Single Oven
Stainless Steel
The Bosch wall oven installs flush and features heavy metal stainless steel knobs.
Features & Benefits
- Heavy-duty metal knobs offer a premium European feel.
- The wall oven is designed to be installed flush with cabinetry.
- Bosch wall ovens are compatible with most competitors’ cutouts.
| General Properties | |
| Oven modes | Bake, Variable Broil (hi & low), Roast, Warm, Sabbath |
| Cleaning type | Self Clean |
| Telescopic rack | 0 |
| Illumination type | Halogen |
| Interior lights | 1 |
Oven Performance
- Bake / broil element 2,400 / 3,800 W
- Convection element N/A
Technical Details
| Watts | 6,275 W |
| Circuit breaker | 30 A |
| Volts | 240 / 208 V |
| Frequency | 60 Hz |
| Power cord length | 60″ |
| Plug type | Fixed Connection, No Plug |
| Energy source | Electric |

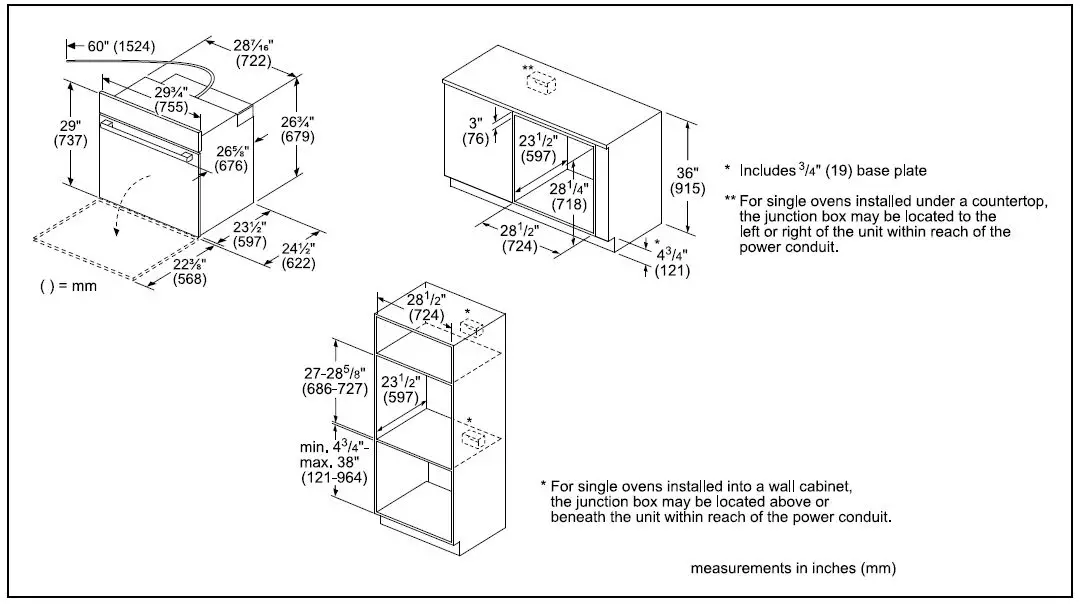

| Dimensions & Weight | |
| Overall appliance dimensions (HxWxD) | 29″ x 29 3/4″ x 24 1/2″ |
| Required cutout size – Standard (HxWxD) | 27″ – 28 5/8″ x 28 1/2″ x 23 1/2″ |

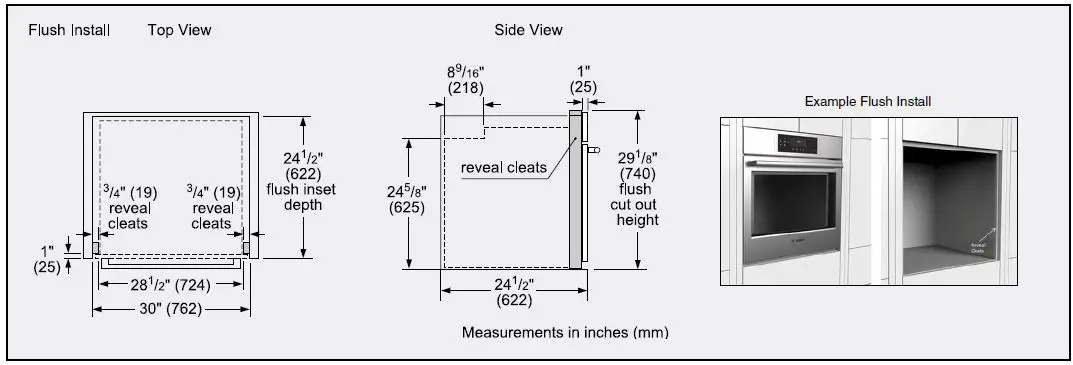

| Required cutout size – Flush (HxWxD) | 29 1/8″ x 30″ x 24 1/2″ |
| Oven cavity size | 4.6 cu. ft. |
| Overall oven interior dimensions (HxWxD) | 17 13/16″ x 24 1/8″ x 18″ |
| Usable oven interior dimensions (HxWxD) | 12 5/16″ x 23 1/4″ x 15 1/4″ |
| Net weight | 149 lbs |
Accessories—Included
Included 2 Standard Oven Racks
Accessories—Optional

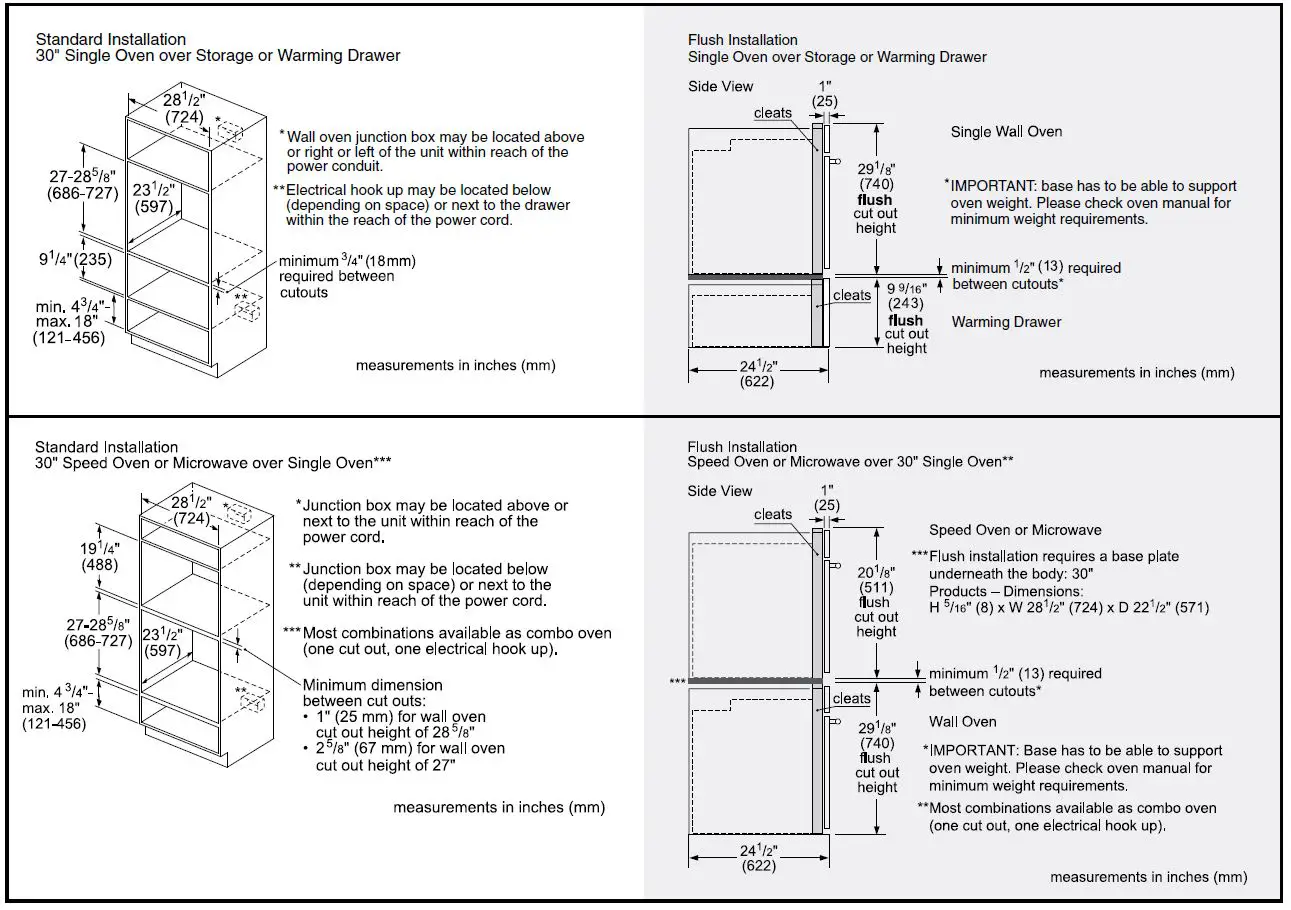

Installation Details
Bosch Side-By-Side Built-In Oven Approved Combination Guide
Single ovens, microwaves, speed ovens, and drawers approved by BSH Home Appliances Corporation to be installed in combination.
IMPORTANT: When installing an oven in combination, a minimum distance between the ovens is required. Refer to the oven installation manual for all other measurements.
Do not install a self-cleaning oven beside another self-cleaning oven.
Appliances that are not listed must be approved under local codes and/or by the local authority having jurisdiction. For the latest updates to the approved combination, refer to the website listed in your appliance’s installation instructions.
| APPROVED COMBINATIONS | ||||
| Conventional Ovens | Built-in Microwaves | Steam Ovens | Speed Ovens | Warming Drawer |
| HBLxxx1RUC, HBLxxx4RUC, | HMB50152UC | HSLP451UC | HMC80152UC, | HWD5051UC |
| HBLxxx1LUC, HBLxxx4LUC, | HMC80252UC, | |||
| HBLxxx1UC, HBLxxx3UC, | HMC80242UC, | |||
| HBLxxx4UC, HBNxxx1UC | HMCP0252UC | |||
| Coffee maker with trim kit | ||||
| BCM8450UC + HEZCMT3050 | ||||
Refer to product installation instructions.
The suitability of the following combination has been evaluated by CSA.
| Conventional Ovens | Steam Ovens | Warming Drawer |
| HBLxxx1RUC, HBLxxx4RUC, HBLxxx1LUC, HBLxxx4LUC, HBLxxx1UC, HBLxxx3UC, HBLxxx4UC, HBNxxx1UC | HSLP451UC | HWD5051UC |
Refer to product installation instructions.
| Configuration | Left Oven Type | Middle Oven Type | Right Oven Type |
| Side-by-side-by-side 1 | Conventional oven | Steam/speed/microwave | Conventional oven |
| Side-by-side-by-side 2 | Steam, speed, or microwave | Conventional oven** | Steam, speed, or microwave |
** Bottom hinge door models only. Side hinge door not recommended.

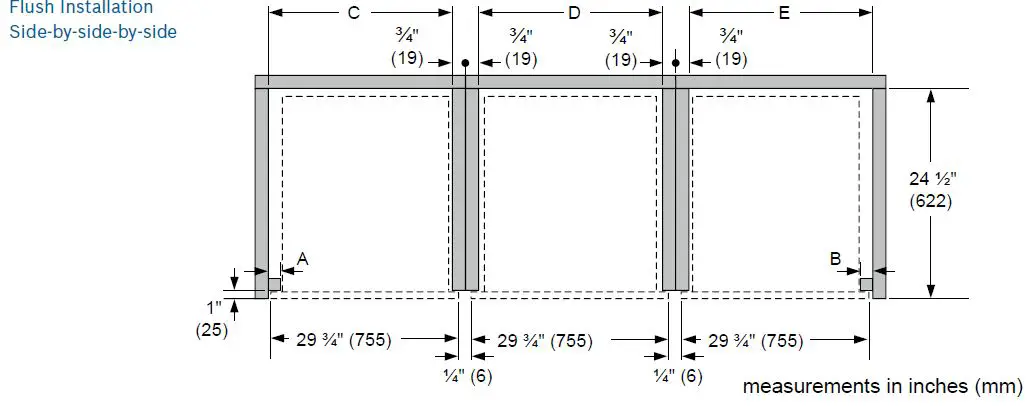

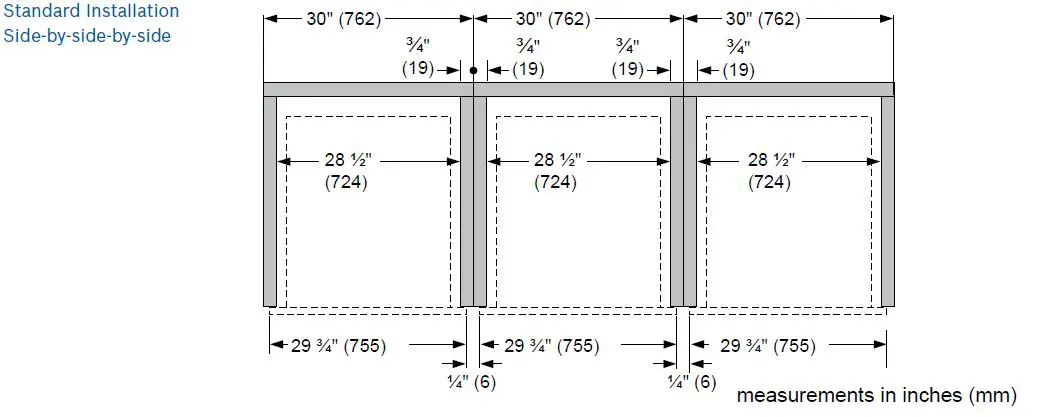

Side-by-Side-by-Side Installation
| Combination type | Left oven type | Middle oven type | Right oven type |
| Side-by-side-by-side 1 | Conventional oven | Steam/speed/microwave | Conventional oven |
| Side-by-side-by-side 2 | Steam, speed, or microwave | Conventional oven** | Steam, speed, or microwave |
**Bottom hinge door modules only. Side hinge door not recommended.
| Combination type | A – Left reveal cleat | B – Right reveal cleat | C – Cutout width | D – Cutout width | E – Cutout width |
| Flush bottom hinge door | 3/4” (19) | 3/4” (19) | 29-1/4” (743) | 28-1/2” (724) | 29-1/4” (743) |
| Flush left hinge door | 1-1/2” (38) | N/A* | 30” (762) | N/A* | N/A* |
| Flush right hinge door | N/A* | 1-1/2” (38) | N/A* | N/A* | 30″ (762) |
Installation not recommended.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
