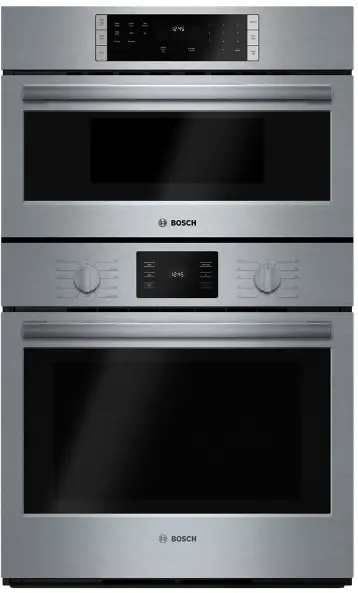

BOSCH HBL57M52UC 30 Inch Microwave Combination Oven
Single ovens, microwaves, speed ovens, and drawers approved by BSH Home Appliances Corporation to be installed in combination.
IMPORTANT: When installing an oven in combination, a minimum distance between the ovens is required. Refer to the oven installation manual for all other measurements. Do not install a self-cleaning oven beside another self-cleaning oven. Appliances that are not listed must be approved under local codes and/or by the local authority having jurisdiction. For the latest updates to the approved combination, refer to the website listed in your appliance’s installation instructions.
Coffee maker with trim kit
| Conventional ovens | Four conventionnel | Built-in microwaves | Micro-ondes encastré | Steam ovens | Fours à vapeur | Speed ovens | Four à cuisson rapide | Warming drawer | Tiroir-réchaud |
| HBLxxx1RUC, HBLxxx4RUC, HBLxxx1LUC, HBLxxx4LUC, HBLxxx1UC, HBLxxx3UC, HBLxxx4UC, HBNxxx1UC | HMB50152UC | HSLP451UC | HMC80152UC, HMC80252UC, HMC80242UC, HMCP0252UC | HWD5051UC |
| BCM8450UC + HEZCMT3050 | ||||
- The suitability of the following combination has been evaluated by CSA
- Bottom hinge door models only. Side hinge door not recommended.
DIMENSIONS

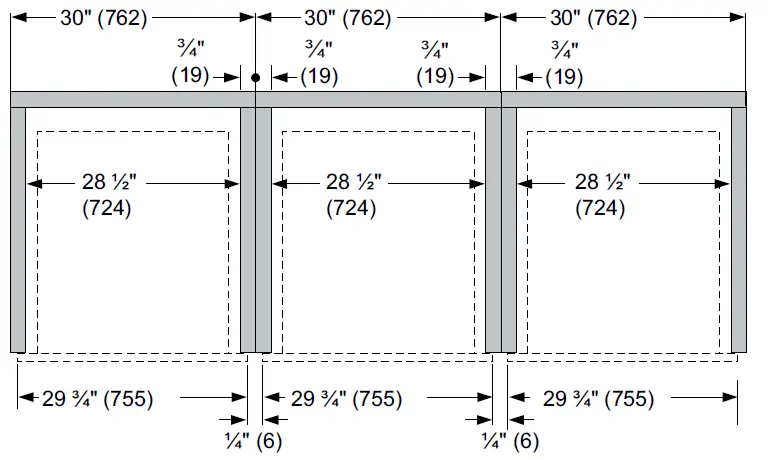

Standard side-by-sideby- side installation

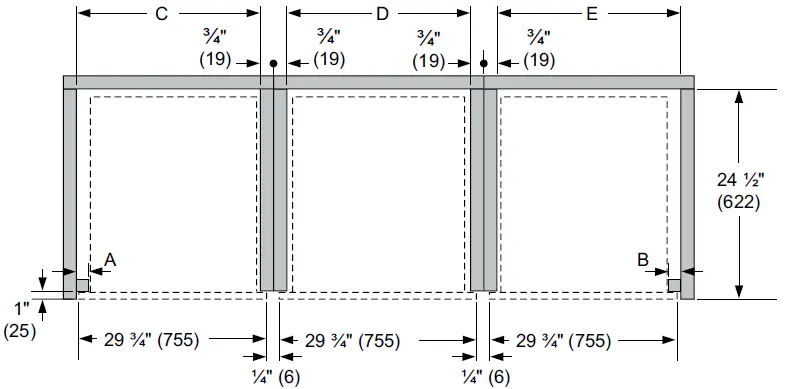

Flush side-by-side-byside installation
| Combination type | | A Left reveal cleat | B Right reveal cleat | C Cutout width | D Cutout width | E Cutout width |
| Flush bottom hinge door | ¾” (19) | ¾” (19) | 29¼” (743) | 28½”(724) | 29¼” (743) |
| Flush left hinge door | 1½” (38) | *N/A | S.O. | 30” (762) | *N/A | S.O. | *N/A | S.O. |
| Flush right hinge door | *N/A | S.O. | 1½” (38) | *N/A | S.O. | *N/A | S.O. | 30” (762) |
Installation not recommended
