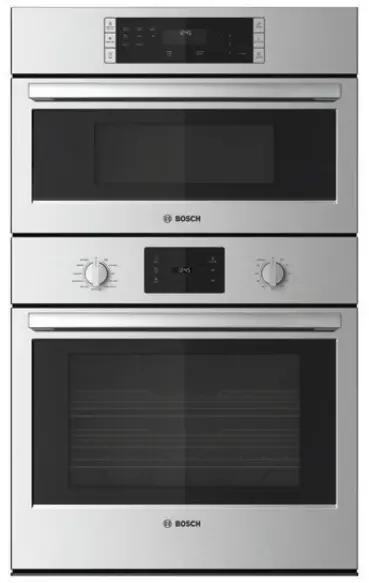

BOSCH HBL5754UC 30 Inch Speed Combination Oven
Product Information
The Bosch Combination Wall Oven is an all-in-one appliance that combines a convection oven, roaster, warming drawer, microwave, and more. With its convection pro feature that combines a third heating element with a back fan, you can evenly circulate heat and cook food more quickly, delivering consistent results every time.
Features & Benefits
- Lower oven functions as a convection oven, roaster, warming drawer, and more
- Upper-speed oven functions as a microwave and convection oven for flexible cooking options
- The convection pro feature delivers even, consistent results every time
- Self-clean feature for easy cleaning
- Telescopic rack for easier access to your food
Technical Details
- Watts at 240 / 208 V: 9,600 / 8,400 W
- Circuit breaker: 40 A
- Volts: 240 / 208 V
- Frequency: 60 Hz
- Power cord length: 60″
- Energy source: Electric
- Net weight: 269 lbs
Dimensions & Weight
- Overall appliance dimensions (HxWxD): 49 x 29 3/4 x 24 1/2″
- Standard (HxWxD): 23 1/2″
- Flush (HxWxD): 24 1/2″
- Overall upper oven interior dimensions (HxWxD): 9 7/8 x 16 1/2 x 16 1/2″
- Overall lower oven interior dimensions (HxWxD): 17 13/16 x 24 1/8 x 18″
- Usable lower oven interior dimensions (HxWxD): 12 1/4 x 23 1/4 x 15 1/4″
Accessories
Included Accessories:
- Upper Oven: Metal Turntable, Square Rack, Ceramic Cooking Tray
- Lower Oven: 3 Standard Oven Racks

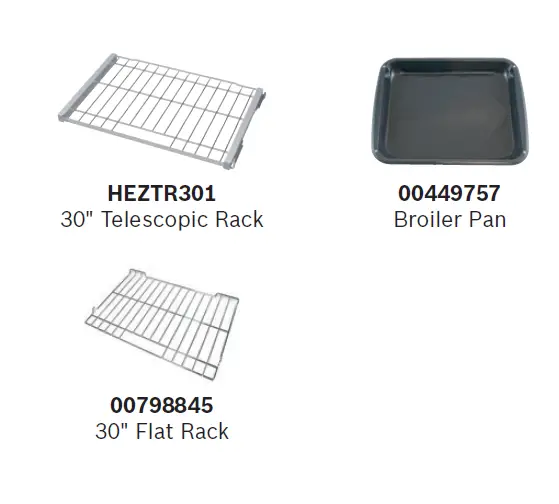

Optional Accessories:
- HEZTR301 30 Telescopic Rack
- 00449757 Broiler Pan
- 00798845 30 Flat Rack
Installation Details
Please consult the product’s installation instructions for final dimensional data and other details before making a cutout.
Product Usage Instructions
To use the Bosch Combination Wall Oven, follow these steps:
- Ensure that the oven is properly installed and connected to a power source.
- Select the desired function from the control panel. The oven offers multiple functions including bake, broil, roast, warm, proof dough, convection bake, convection broil, convection roast, pizza, convection multi-rack, convection conversion, and Sabbath mode.
- For the lower oven, adjust the temperature and cooking time as needed. Use the telescopic rack for easier access to your food.
- For the upper speed oven, select microwave or convection mode and adjust the temperature and cooking time as needed.
- After use, use the self-clean feature for easy cleaning.
Note: Always refer to the user manual for complete instructions and safety information.
Features & Benefits
- The upper speed oven functions as a microwave and convection oven so you have flexible cooking options.
- Convection pro combines a third heating element with a back fan to evenly circulate heat and cook food more quickly.
- Get even, consistent results every time, no matter where you place your pan.
General Properties
| Speed oven modes – upper oven | (36) 12 Auto Programs (including Auto Defrost, Melt Butter, Soften Ice Cream, Pizza), 10 Sensor Cook Programs, 9 SpeedChef® Programs, Hi & Lo Broil, Convection, Keep Warm, Frozen Foods Defrost | |
| Oven modes – lower oven | (13) Bake, Broil (Hi & Low), Roast, Warm, Proof Dough, Convection Bake, Convection Broil, Convection Roast, Pizza, Convection Multi Rack, Convection Conversion, Sabbath | |
| Cleaning type – lower oven | Self Clean | |
| Telescopic rack | 1 | |
| Illumination type – upper & lower oven | LED / Halogen | |
| Interior lights – upper & lower oven | 1 / 2 | |
Oven Performance
| Microwave power – upper oven | 1,000 W |
| Microwave power levels | 10 |
| Bake / broil element – upper oven | 600 / 1,750 W |
| Convection element – upper oven | 1,700 W
|
| Bake element (4-pass) – lower oven | 2,400 W
|
| Broil element (12-pass)– lower oven | 3,800 W
|
Technical Details
| Watts at 240 / 208 V | 9,600 / 8,400 W |
| Circuit breaker | 40 A |
| Volts | 240 / 208 V |
| Frequency | 60 Hz |
| Power cord length | 60″ |
| Plug type | Fixed Connection, No Plug |
| Energy source | Electric |
Dimensions & Weight
| Overall appliance dimensions (HxWxD) | 49″ x 29 3/4″ x 24 1/2″ |
| Required cutout size – Standard (HxWxD) | 48 5/8″ x 28 1/2″ x 23 1/2″ |
| Required cutout size – Flush (HxWxD) | 49 1/8″ x 30″ x 24 1/2″ |
| Oven cavity size – upper & lower oven | 1.6 / 4.6 cu. ft. |
| Overall upper oven interior dimensions (HxWxD) | 9 7/8″ x 16 1/2″ x 16 1/2″ |
| Turntable – metal max. cookware – upper | 14 13/16″ dia. |
| Turntable – ceramic tray max. cookware – upper | 13 3/4″ dia. |
| Rack – rectangular max. cookware – upper | 15″ x 12″ |
| Overall lower oven interior dimensions (HxWxD) | 17 13/16″ x 24 1/8″ x 18″ |
| Usable lower oven interior dimensions (HxWxD) | 12 1/4″ x 23 1/4″ x 15 1/4″ |
| Net weight | 269 lbs |
Accessories — Included
- Upper Oven: Metal Turntable, Square Rack, Ceramic Cooking Tray
- Lower Oven: 3 Standard Oven Racks

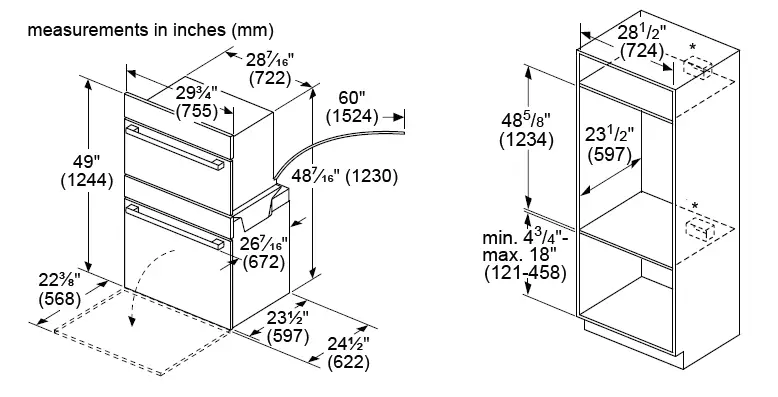

Installation Details
Junction box may be installed above, below, or to the left or right of the unit within range of the power conduit
measurements in inches (mm)

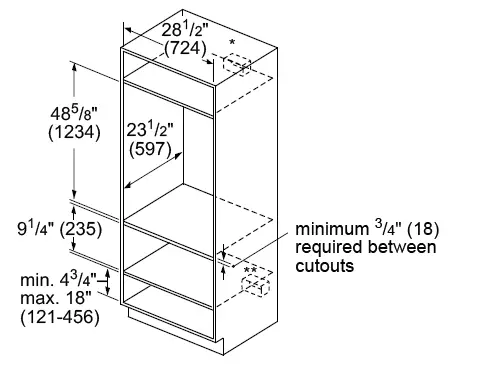

Standard Installation
Combination Oven over Storage or Warming Drawer
- Wall oven junction box may be located above or right or left of the unit within reach of the power conduit.
- Electrical hook up may be located below (depending on space) or next to the drawer within the reach of the power cord

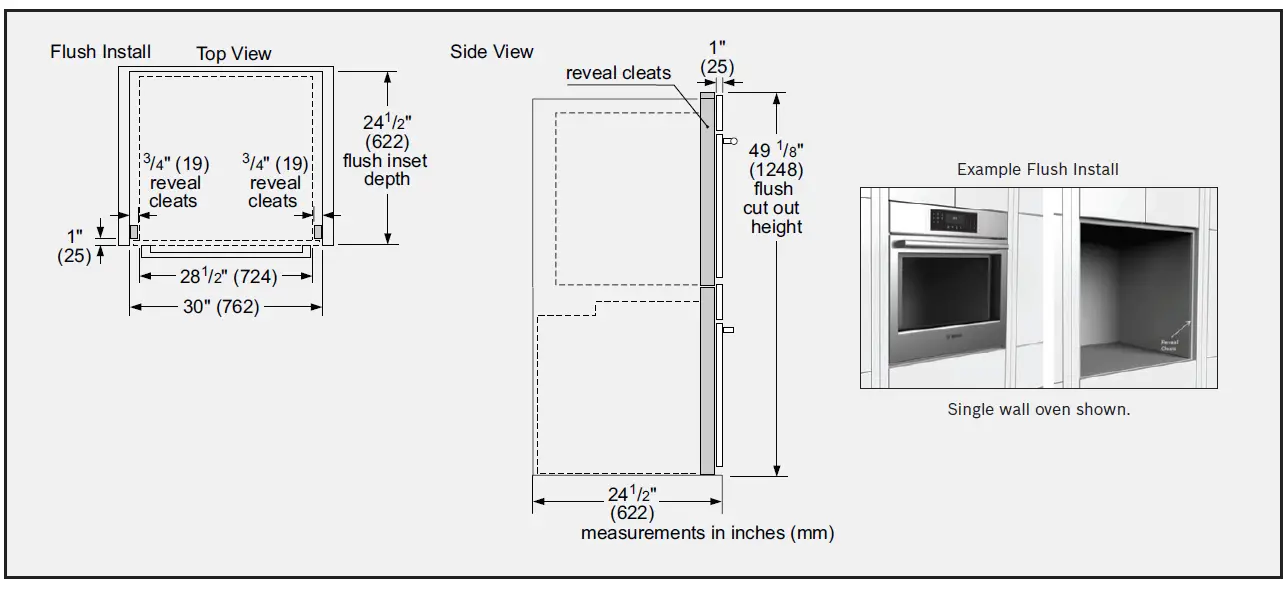

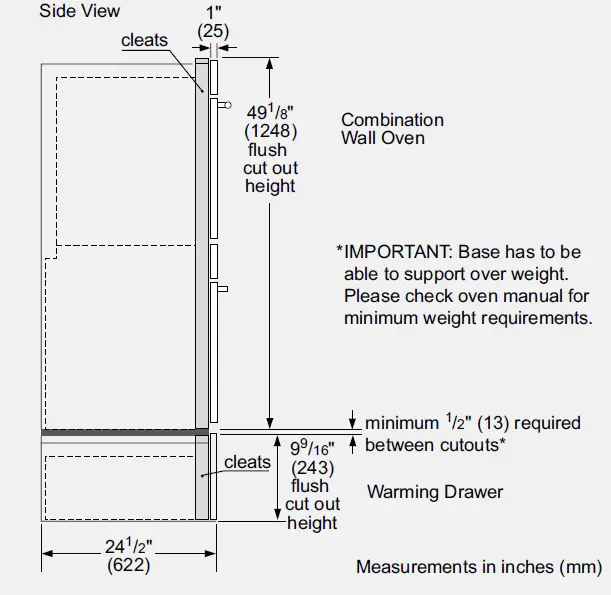

Flush Installation
Combination Oven over Storage or Warming Drawer
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranty
Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
