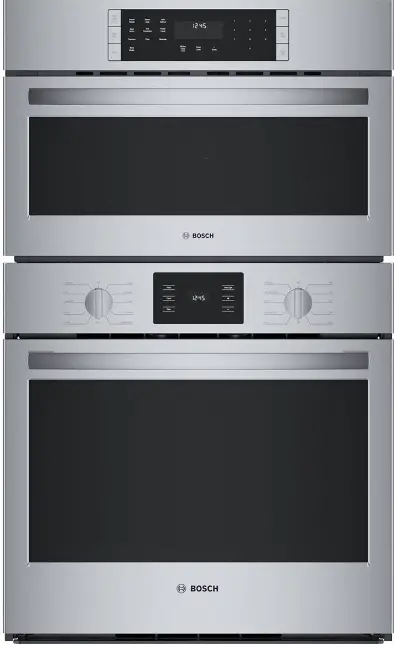

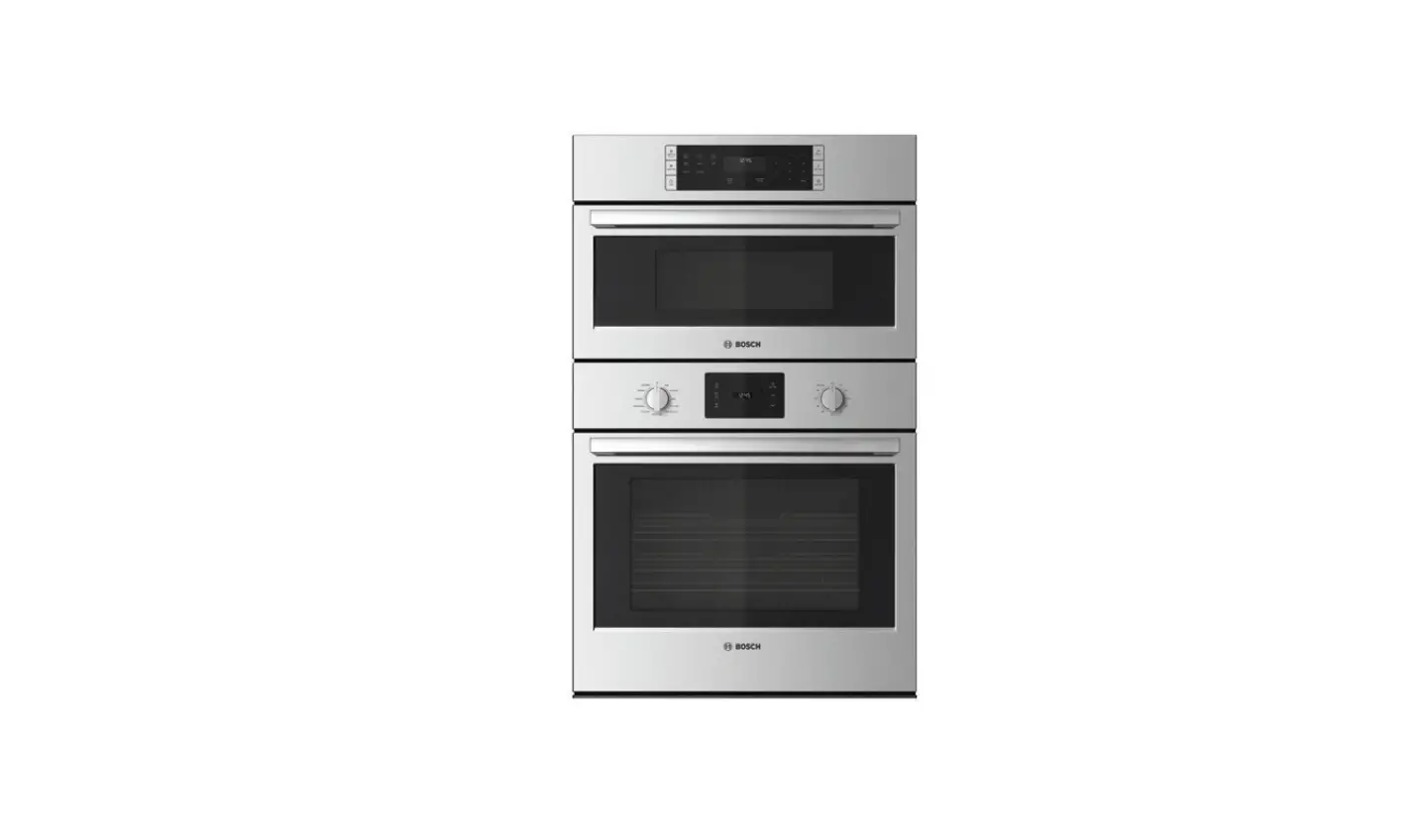

BOSCH HBL5754UC Stainless Steel 30 Inch Speed Combination Oven
The Bosch Combination Wall Oven combines your favorite tools into one appliance. The lower oven is a convection oven, roaster, warming drawer and more.
Features & Benefits
The upper speed oven functions as a microwave and convection oven so you have flexible cooking options. Convection Pro combines a third heating element with a back fan for even browning and time savings by using multiple racks at one time.
| General Properties | ||
| Speed oven modes – upper oven | (36) 12 Auto Programs (including Auto Defrost, Melt Butter, Soften Ice Cream, Pizza), 10 Sensor Cook Programs, 9 Speed Chef® Programs, Keep Warm, Frozen Foods Defrost, Convection Broil (fan + broil), Convection Bake | |
| Oven modes – lower oven | (13) Bake, Broil (Hi & Low), Roast, Warm, Proof Dough, Convection Bake, Convection Broil, Convection Roast, Pizza, Convection Multi-Rack, Convection Conversion, Sabbath | |
| Cleaning type – lower oven | Self Clean | |
| Telescopic rack | 1 | |
| Illumination type – upper & lower oven | LED / Halogen | |
| Interior lights – upper & lower oven | 1 / 2 | |
| Oven Performance | ||
| Max. microwave power – upper oven | 1,000 W | |
| Microwave power levels | 10 | |
| Bake / broil element – upper oven | 600 / 1,750 W | |
| Convection element – upper oven | 1,700 W | |
| Bake element (4-pass) – lower oven | 2,400 W | |
| Broil element (12-pass)– lower oven | 3,800 W | |
| Technical Details | ||
| Watts at 240 / 208 V | 9,600 / 8,400 W | |
| Circuit breaker | 40 A | |
| Volts | 240 / 208 V | |
| Frequency | 60 Hz | |
| Power cord length | 60″ | |
| Plug type | Fixed Connection, No Plug | |
| Energy source | Electric | |
Dimensions & Weight
| Overall appliance dimensions (HxWxD) | 49″ x 29 3/4″ x 24 1/2″ |
| Required cutout size – Standard (HxWxD) | 48 5/8″ x 28 1/2″ x 23 1/2″ |
| Required cutout size – Flush (HxWxD) | 49 1/8″ x 30″ x 24 1/2″ |
| Oven cavity size – upper & lower oven | 1.6 / 4.6 cu. ft. |
| Overall upper oven interior dimensions (HxWxD) | 9 7/8″ x 16 1/2″ x 16 1/2″ |
| Turntable – metal max. cookware – upper | 12 3/4″ dia. |
| Turntable – ceramic tray max. cookware – upper | 12 1/2″ dia. |
| Rack – rectangular max. cookware – upper | 15″ x 12″ |
| Overall lower oven interior dimensions (HxWxD) | 17 13/16″ x 24 1/8″ x 18″ |
| Usable lower oven interior dimensions (HxWxD) | 12 5/16″ x 23 1/4″ x 15 1/4″ |
| Net weight | 272 lbs |
Accessories — Included
- Upper Oven: Metal Turntable, Square Rack, Ceramic Cooking Tray
- Lower Oven: 2 Standard Oven Racks

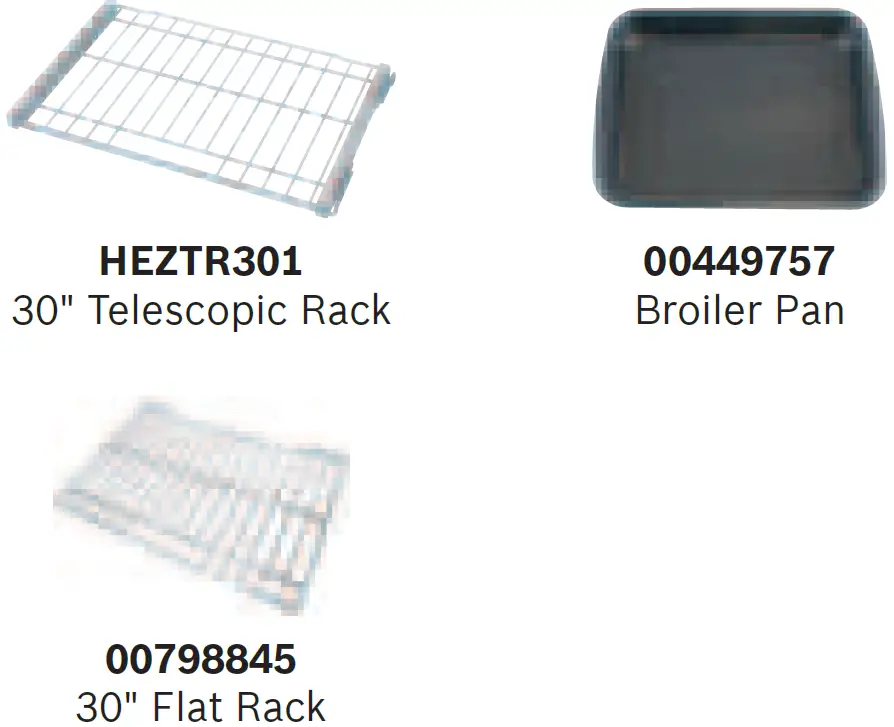

Accessories — Optional
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.

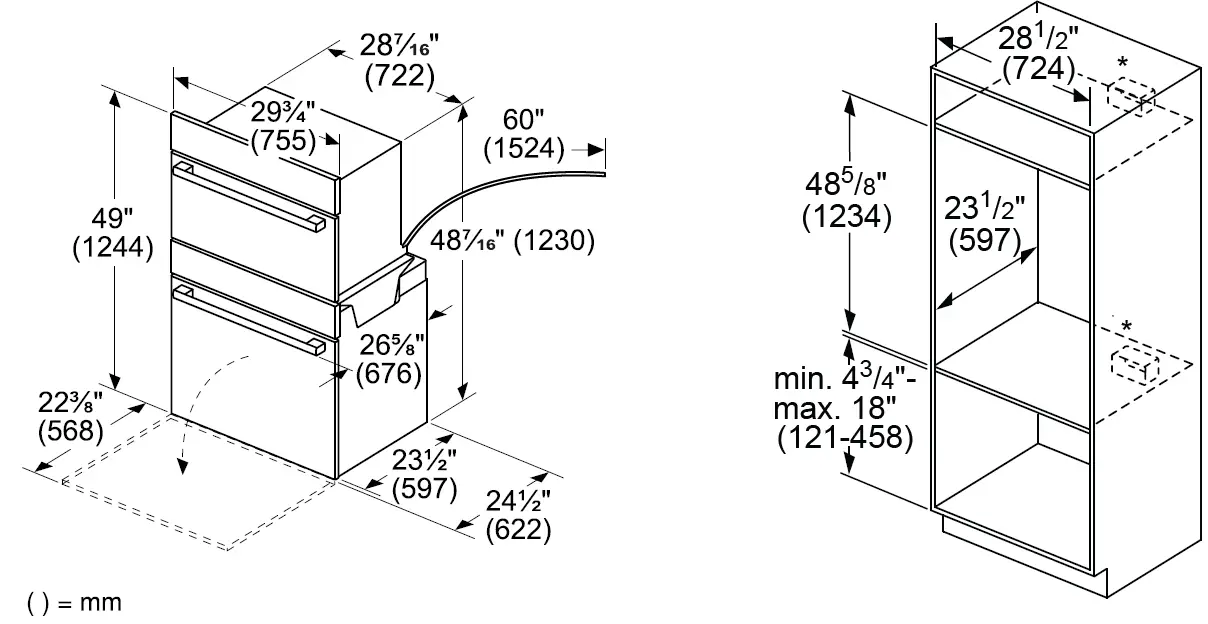

Installation Details
- * Junction box may be installed above, below, or to the left or right of the unit within range of the power conduit.

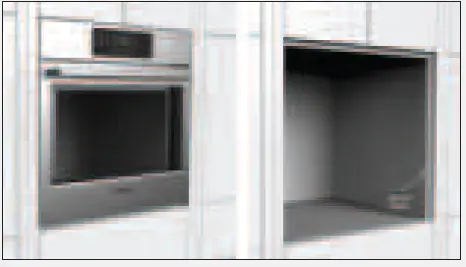

- Example Flush Install
Single wall oven shown.

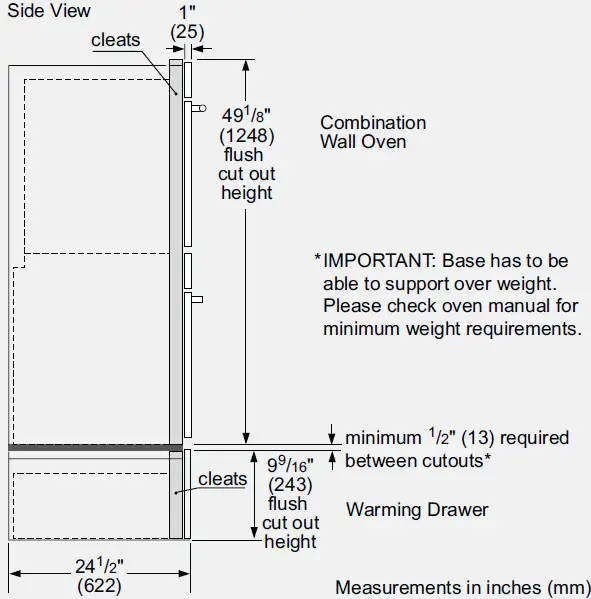

- Standard Installation
Combination Oven over Storage or Warming Drawer
Wall oven junction box may be located above or right or left of the unit within reach of the power conduit.
Electrical hook up may be located below (depending on space) or next to the drawer within the reach of the power cord.

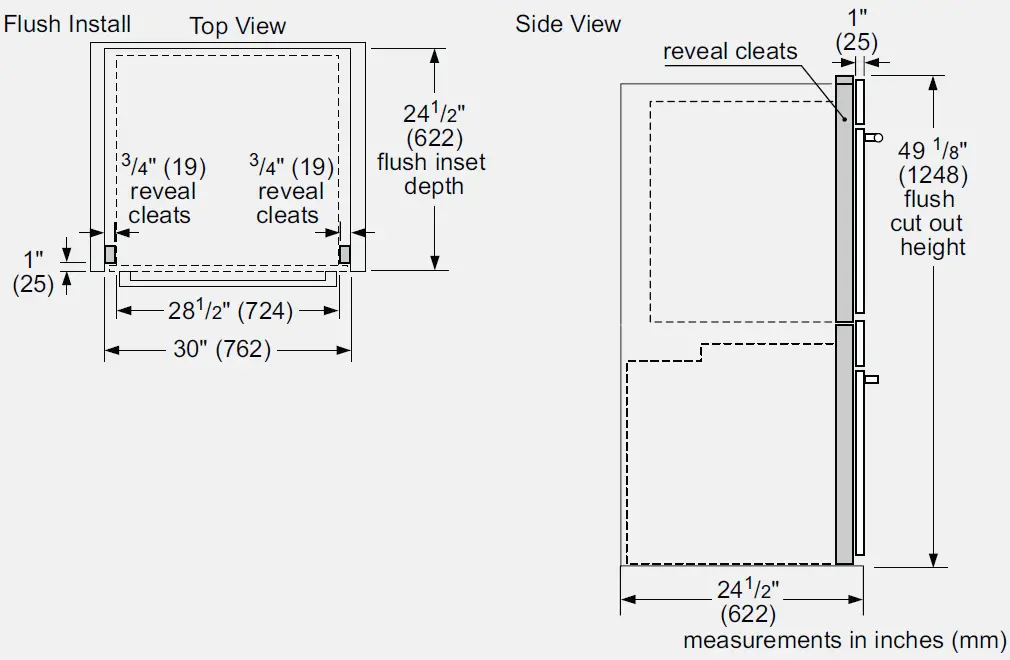

- Flush Installation
Combination Oven over Storage or Warming Drawer
