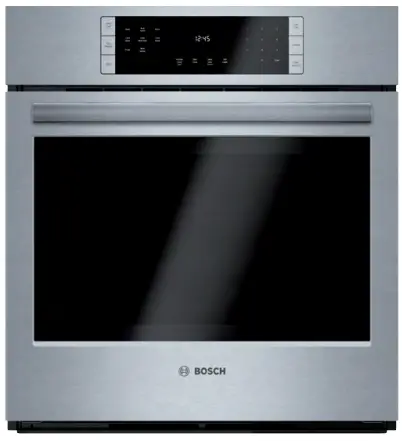

BOSCH HBN8451UC 800 Series 27 Stainless Steel Single Electric Wall Oven
Introduction
The Bosch wall oven installs flush and features a QuietClose® door.
Features & Benefits
Dampened hinges softly and quietly guide the QuietClose® door shut.
A full-extension telescopic rack offers safe access to the oven cavity.
Touch control withSteelTouch™ buttons makes operating the oven easier.
Convection Pro combines a third heating element
with a back fan for even browning and time savings by using multiple racks at one time.

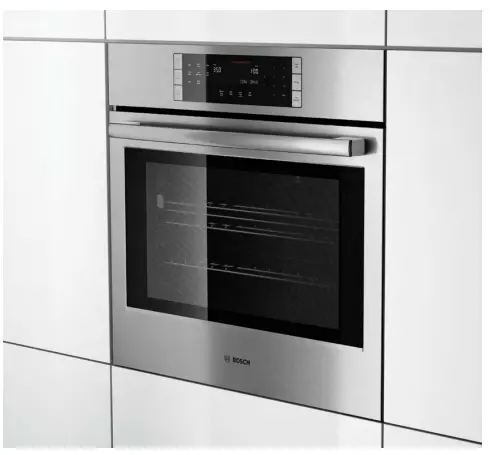

The wall oven is designed to be installed flush with cabinetry.
Bosch wall ovens are compatible with most competitors’ cutouts.
| General Properties | |
| Oven modes | Bake, Variable Broil (hi & low), Roast, Warm, Sabbath, Proof Dough, Convection Bake, Convection Broil, Convection Roast, Pizza, Convection Multitrack, Convection Conversion, Temperature Probe, Fast Preheat |
| Cleaning type | Self Clean |
| Telescopic rack | 1 |
| Illumination type | Incandescent |
| Interior lights | 2 |
| Oven Performance | |
| Bake / broil element | 2,400 / 3,800 W |
| Convection element | 2,000 W |
| Technical Details | |
| Watts | 6,325 W |
| Circuit breaker | 30 A |
| Volts | 240 / 208 V |
| Frequency | 60 Hz |
| Power cord length | 60″ |
| Plug type | Fixed Connection, No Plug |
| Energy source | Electric |
| Dimensions & Weight | |

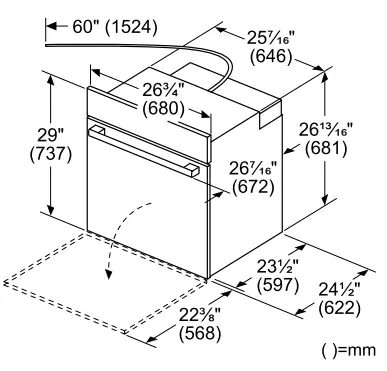

| Overall appliance dimensions (HxWxD) | 29″ x 26 3/4″ x 24 1/2″ |
| Required cutout size – Standard (HxWxD) | 27″ – 28 5/8″ x 25 1/2″ x 23 1/2″ |
| Required cutout size – Flush (HxWxD) | 29 1/8″ x 27″ x 24 1/2 |
| Oven cavity size | 3.9 cu. ft |
| Overall oven interior dimensions (HxWxD) | 17 13/16″ x 21 1/16″ x 18″ |
| Usable oven interior dimensions (HxWxD) | 12 5/16″ x 20 1/4″ x 15 1/4″ |
| Net weight | 127 lbs |
| Accessories—Included | |
| Included | 1 Telescopic and 2 Standard Oven Racks, Temperature Probe |

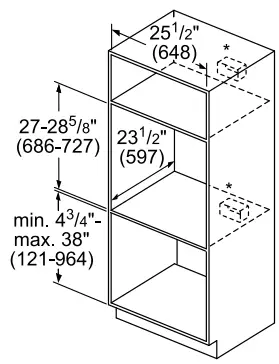

Installation Details
* Includes 3/4″ (19) base plate

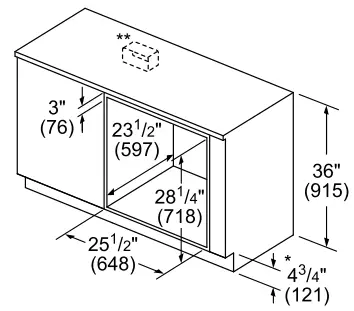

** For single ovens installed under a countertop, the junction box may be located to the left or right of the unit within reach of the power conduit.
* For single ovens installed into a wall cabinet, the junction box may be located above or beneath the unit within reach of the power cord.
measurements in inches (mm)

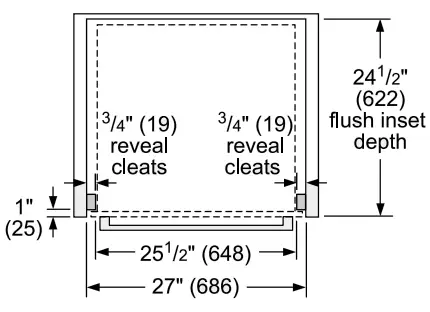

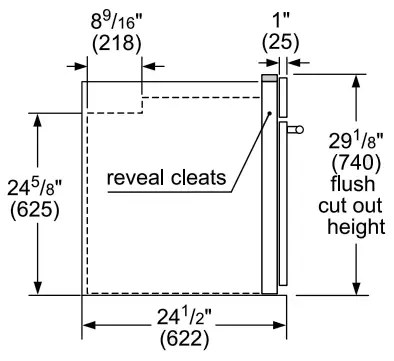

Flush Install Top View
Side View

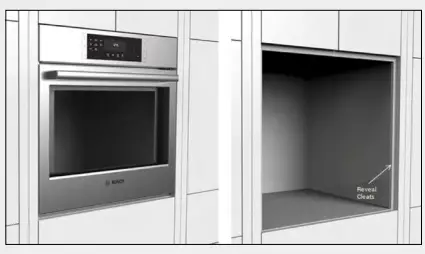

Example Flush Install

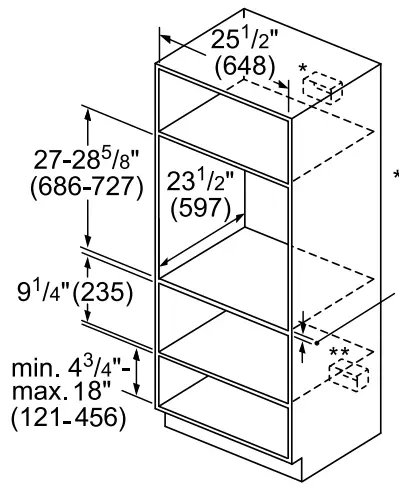

Standard Installation
27″ Single Oven over Warming Drawer
* Wall oven junction box may be located above or right or left of the unit within reach of the power conduit.
** Electrical hook up may be located below (depending on space) or next to the drawer within the reach of the power cord.
minimum 3/4″ (18mm) required between cutouts
measurements in inches (mm)

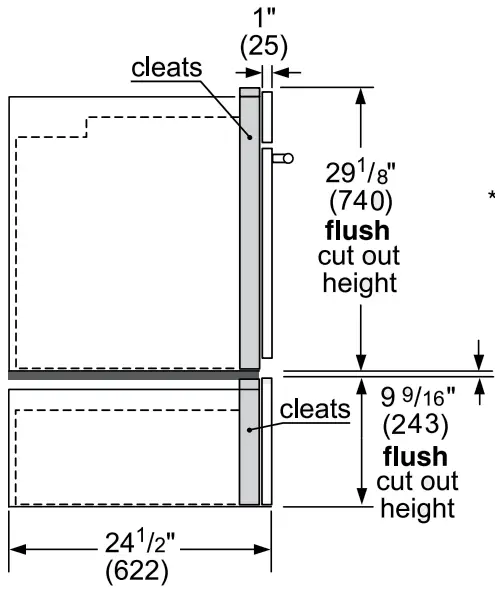

Flush Installation
Single Oven over Warming Drawer
Side View
Single Wall Oven
IMPORTANT: base has to be able to support oven weight. Please check oven manual for minimum weight requirements.
minimum 1/2”(13) required between cutouts*
Warming Drawer
measurements in inches (mm)

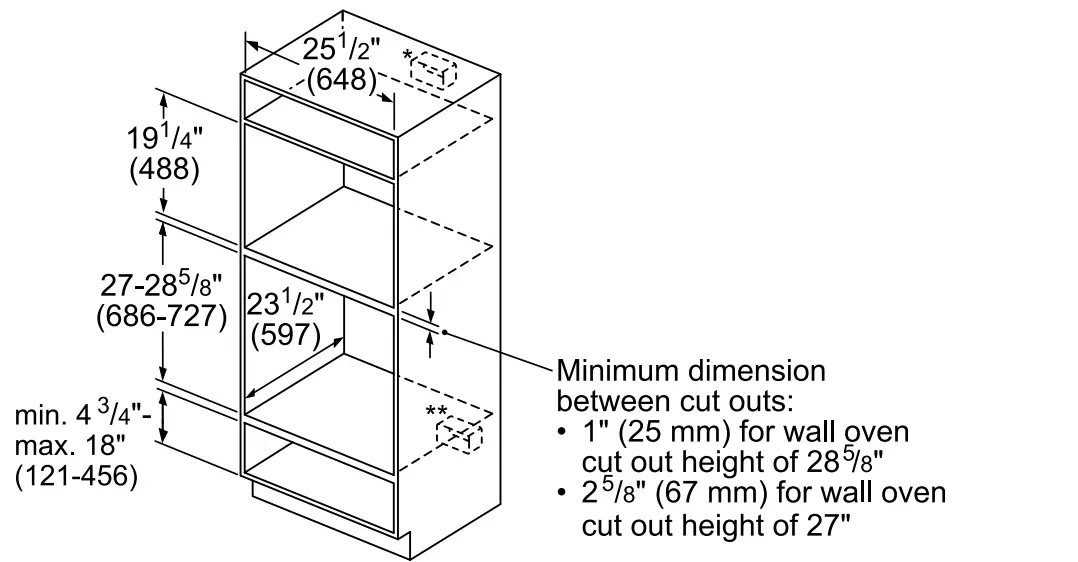

Standard Installation
27″ Speed Oven or Microwave over Single Oven
* Junction box may be located above or next to the unit within reach of the power cord.
** Junction box may be located below (depending on space) or next to the unit within reach of the power cord.
measurements in inches (mm)

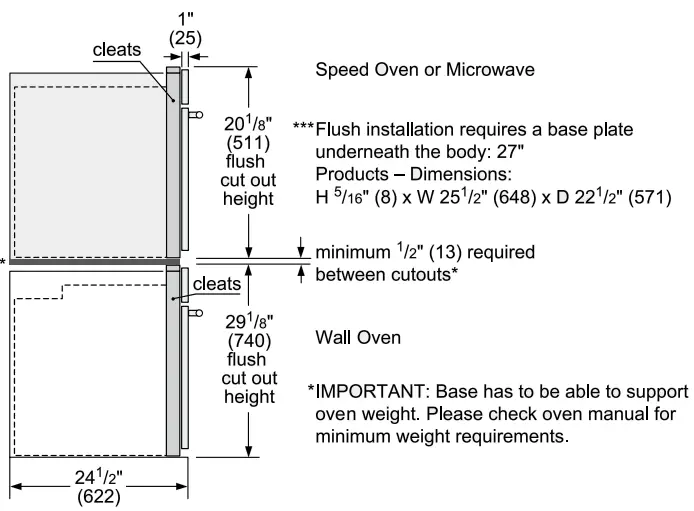

Flush Installation
Speed Oven or Microwave over 27″ Single Oven
Side View
measurements in inches (mm)
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
