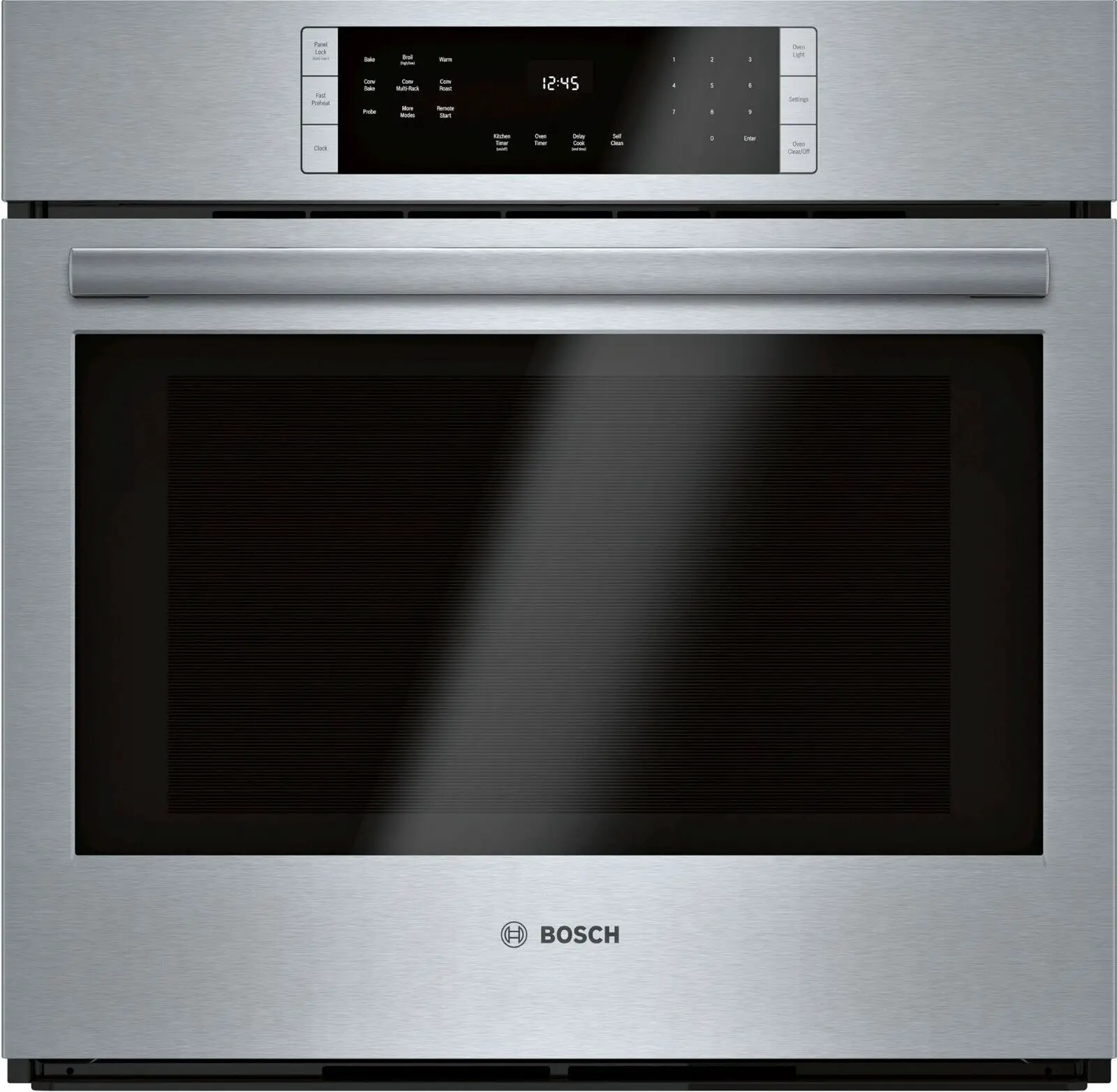

BOSCH HBL8463UC 30 Inch Electric Single Wall Oven
Also available in: Black Stainless Steel HBL8443UC
Using Convection Roast,you can create a juicy, tender roast up to 25% faster than non-convection modes.
Features & Benefits
- Get the oven up to temperature in less time using Fast Preheat™, so meals are ready sooner.
- Whether cooking poultry, beef or pork, use theTemperature Probe to monitor the internal temperature and get perfect results every time.
- Serve dinner on time with tools like an oven timer, delay cook feature, and digital kitchen timer.
- Oven is equipped with a self-cleaning cycle that easily cleans itself via 2, 3, and 4 hour cycle options.
- Download the Home Connect® app to remotely monitor and control your Bosch wall oven with your smart phone or tablet.
| General Properties | |
| Home Connect® (WiFi enabled) | Yes |
| Oven modes | Bake, Variable Broil (hi & low), Roast, Warm, Sabbath, Proof Dough, Convection Bake, Convection Broil, Convection Roast, Pizza, Convection Multi- Rack, Convection Conversion, Temperature Probe, Fast Preheat |
| Cleaning type | Self Clean |
| Telescopic rack | 1 |
| Illumination type | Halogen |
| Interior lights | 2 |
| Oven Performance | |
| Bake / broil element | 2,400 / 3,800 W |
| Convection element | 2,000 W |
| Watts | 6,325 W |
| Circuit breaker | 30 A |
| Volts | 240 / 208 V |
| Frequency | 60 Hz |
| Power cord length | 60″ |
| Plug type | Fixed Connection, No Plug |
| Energy source | Electric |
| Dimensions & Weight | |
| Overall appliance dimensions (HxWxD) | 29″ x 29 3/4″ x 24 1/2″ |
| Required cutout size – Standard (HxWxD) | 27″ – 28 5/8″ x 28 1/2″ x 23 1/2″ |
| Required cutout size – Flush (HxWxD) | 29 1/8″ x 30″ x 24 1/2″ |
| Oven cavity size | 4.6 cu. ft. |
| Overall oven interior dimensions (HxWxD) | 17 13/16″ x 24 1/8″ x 18″ |
| Usable oven interior dimensions (HxWxD) | 12 1/4″ x 23 1/4″ x 15 1/4″ |
| Net weight | 149 lbs |
| Accessories — Included | |
| Included | 1 Telescopic and 2 Standard Oven Racks, Temperature Probe |
| Accessories — Optional | |
30″ Single Wall Oven
800 Series – Stainless Steel HBL8453UC

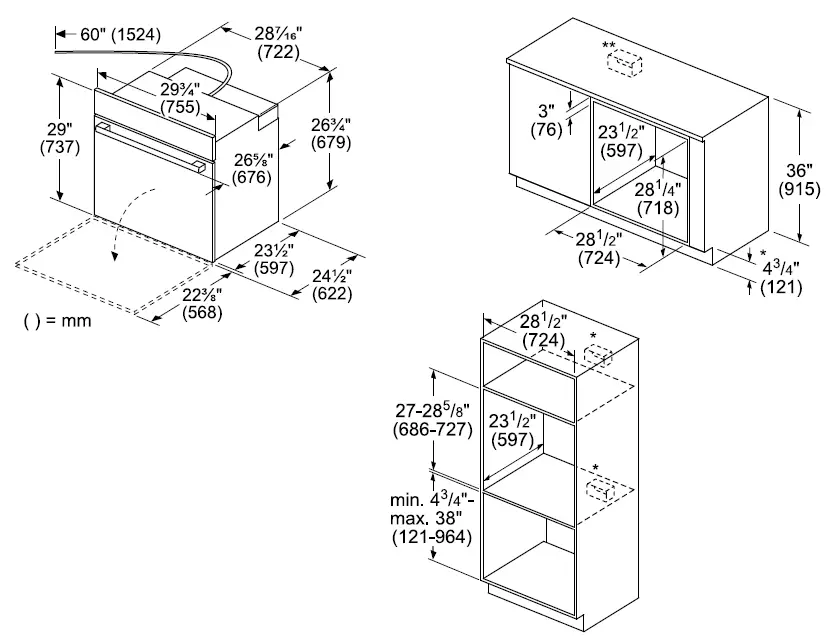

Installation Details
- Includes /4″ (19) base plate
- For single ovens installed under a worktop, the junction box may be located to the left or right of the unit within reach of the power cable. measurements in inches (mm)
- For single ovens installed in a wall cabinet, the junction box may be located above or beneath the unit within reach of the power cable. measurements in inches (mm)

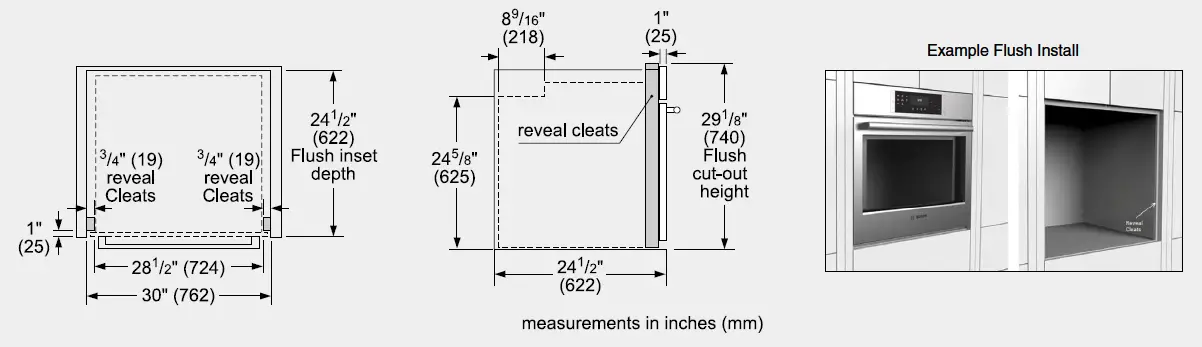

Flush installation Top view
Bosch Side-By-Side Built-In Oven Approved Combination Guide
Single ovens, microwaves, speed ovens, and drawers approved by BSH Home Appliances Corporation to be installed in combination.
IMPORTANT: When installing an oven in combination, a minimum distance between the ovens is required. Refer to the oven installation manual for all other measurements. Do not install a self-cleaning oven beside another self-cleaning oven. Appliances that are not listed must be approved under local codes and/or by the local authority having jurisdiction. For the latest updates to the approved combination, refer to the website listed in your appliance’s installation instructions.
| APPROVED COMBINATIONS | ||||
| Conventional Ovens | Built-in Microwaves | Steam Ovens | Speed Ovens | Warming Drawer |
| HBLxxx1RUC, HBLxxx4RUC, | HMB50152UC | HSLP451UC | HMC80152UC, | HWD5051UC |
| HBLxxx1LUC, HBLxxx4LUC, | HMC80252UC, | |||
| HBLxxx1UC, HBLxxx3UC, | HMC80242UC, | |||
| HBLxxx4UC, HBNxxx1UC | HMCP0252UC | |||
| Coffee maker with trim kit | ||||
| BCM8450UC + HEZCMT3050 | ||||
Coffee maker with trim kit
BCM8450UC + HEZCMT3050
Refer to product installation instructions.
The suitability of the following combination has been evaluated by CSA.
| Steam Ovens | Warming Drawer | |
| HBLxxx1RUC, HBLxxx4RUC, HBLxxx1LUC, HBLxxx4LUC, HBLxxx1UC, HBLxxx3UC, HBLxxx4UC, HBNxxx1UC | HSLP451UC | HWD5051UC |
Refer to product installation instructions
| Configuration | Left Oven Type | Middle Oven Type | Right Oven Type |
| Side-by-side-by-side 1 | Conventional oven | Steam/speed/microwave | Conventional oven |
| Side-by-side-by-side 2 | Steam, speed, or microwave | Conventional oven** | Steam, speed, or microwave |
Bottom hinge door models only. Side hinge door not recommended.
Side-by-Side-by-Side Installation
| Combination type | Left oven type | Middle oven type | Right oven type |
| Side-by-side-by-side 1 | Conventional oven | Steam/speed/microwave | Conventional oven |
| Side-by-side-by-side 2 | Steam, speed, or microwave | Conventional oven** | Steam, speed, or microwave |
Bottom hinge door modules only. Side hinge door not recommended.

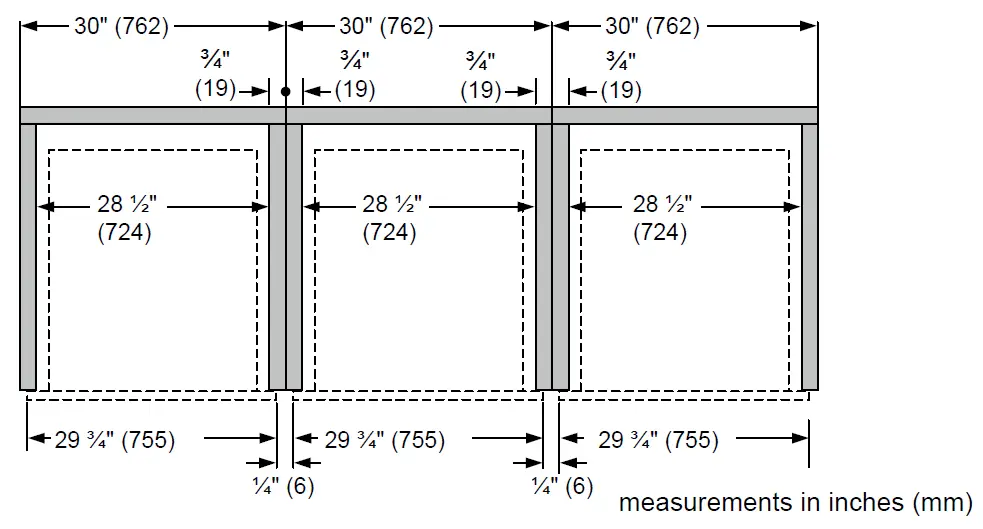

Standard Installation Side-by-side-by-side

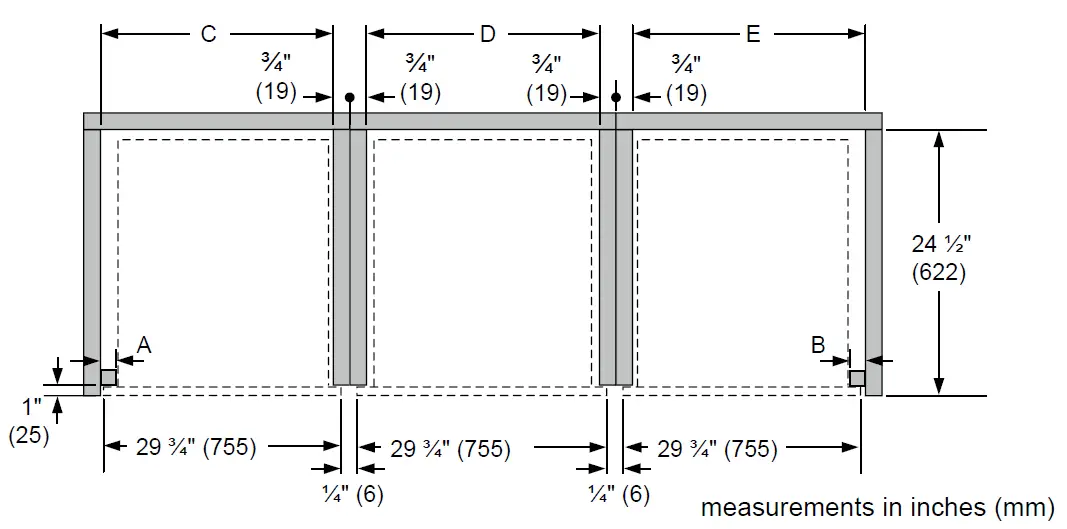

Flush Installation Side-by-side-by-side
| Combination type | A – Left reveal cleat | B – Right reveal cleat | C – Cutout width | D – Cutout width | E – Cutout width |
| Flush bottom hinge door | 3/4” (19) | 3/4” (19) | 29-1/4” (743) | 28-1/2” (724) | 29-1/4” (743) |
| Flush left hinge door | 1-1/2” (38) | N/A* | 30” (762) | N/A* | N/A* |
| Flush right hinge door | N/A* | 1-1/2” (38) | N/A* | N/A* | 30″ (762) |
Installation not recommended

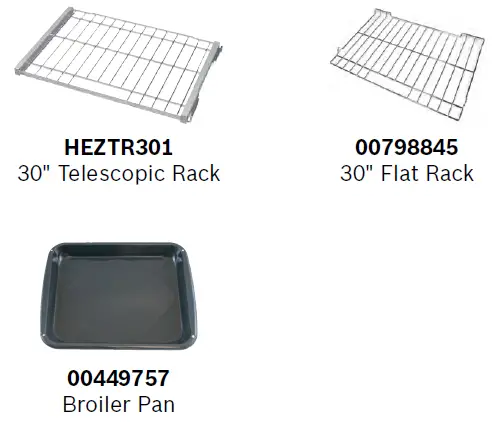

Accessories
To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties
Please see Use & Care manual or Bosch website for statement of limited warranty. For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904 © BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
