BOSCH BLP451UC 30 Inch Single Electric Wall Oven
The Bosch wall oven features a QuietClose® door that won’t slam shut and a high-resolution TFT user interface.
Features & Benefits

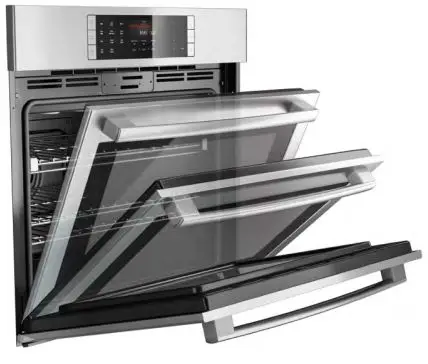

- Dampened hinges softly and quietly guide the QuietClose® door shut.

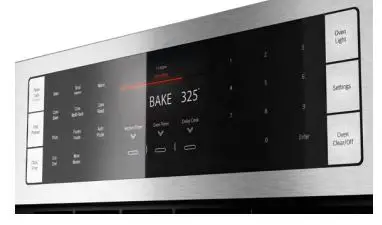

- The color TFT control panel with SteelTouch™ buttons is easy to use.
- A full-extension telescopic rack offers safe access to the oven cavity.
- Convection Pro combines a third heating element with a back fan for even browning and time savings by using multiple racks at one time.
- The wall oven is designed to be installed flush with cabinetry.
- Bosch wall ovens are compatible with most competitors’ cutouts.
- AutoProbe takes the guesswork out of rare, medium and well done cooking.
| General Properties | |
| Oven modes | Bake, Variable Broil (hi & low), Roast, Warm, Sabbath, Proof Dough, Convection Bake, Convection Broil, Convection Roast, Pizza, Convection Multi- Rack, Convection Conversion, AutoProbe, Fast Preheat, EcoChef, Speed Convection (Frozen Foods) |
| Cleaning type | Self Clean |
| Telescopic rack | 1 |
| Illumination type | Halogen |
| Interior lights | 2 |
Oven Performance
| Bake element | 2,400 W |
| Broil element | 3,800 W |
| Convection element | 2,000 W |
| Technical Details | |
| Watts | 6,325 W |
| Circuit breaker | 30 A |
| Volts | 240 / 208 V |
| Frequency | 60 Hz |
| Power cord length | 60″ |
| Plug type | Fixed Connection, No Plug |
| Energy source | Electric |

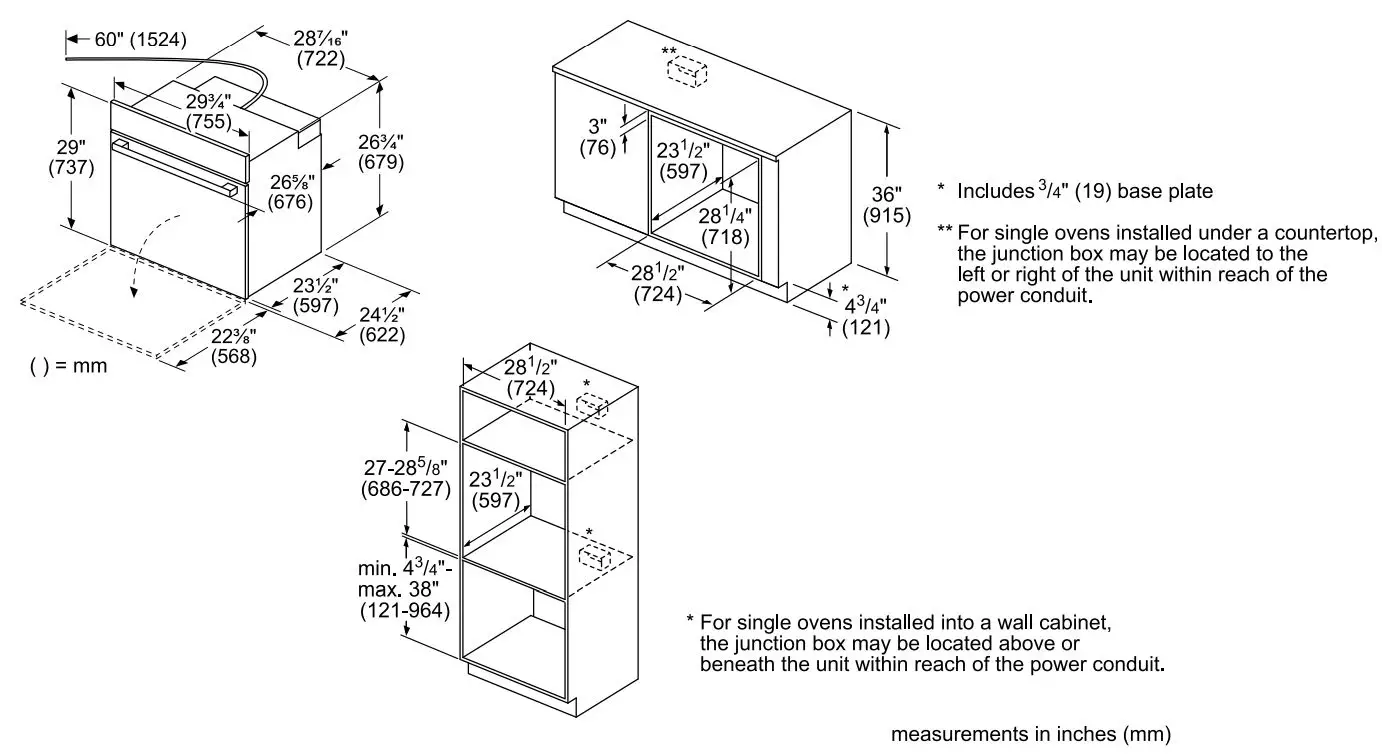

| Dimensions & Weight | |
| Overall appliance dimensions (HxWxD) | 29″ x 29 3/4″ x 24 1/2″ |
| Required cutout size – Standard (HxWxD) | 27″ – 28 5/8″ x 28 1/2″ x 23 1/2″ |

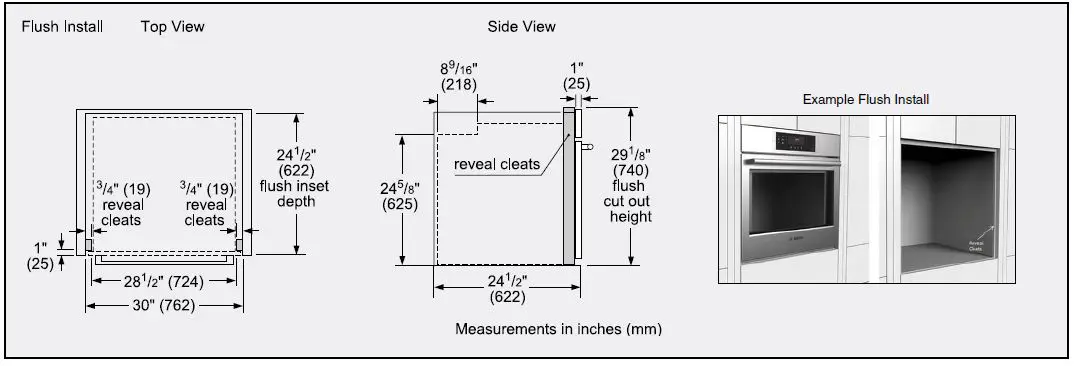

| Required cutout size – Flush (HxWxD) | 29 1/8″ x 30 3/4″ x 24 1/2″ |
| Oven cavity size | 4.6 cu. ft. |
| Overall oven interior dimensions (HxWxD) | 17 13/16″ x 24 1/8″ x 18″ |
| Usable oven interior dimensions (HxWxD) | 12 5/16″ x 23 1/4″ x 15 1/4″ |
| Net Weight | 149 lbs |
| Accessories—Included | |

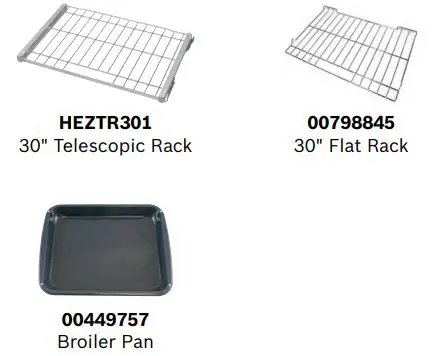

| Included | 1 Telescopic and 2 Standard Oven Racks, Temperature Probe, Broiler Pan |
Accessories—Optional
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.

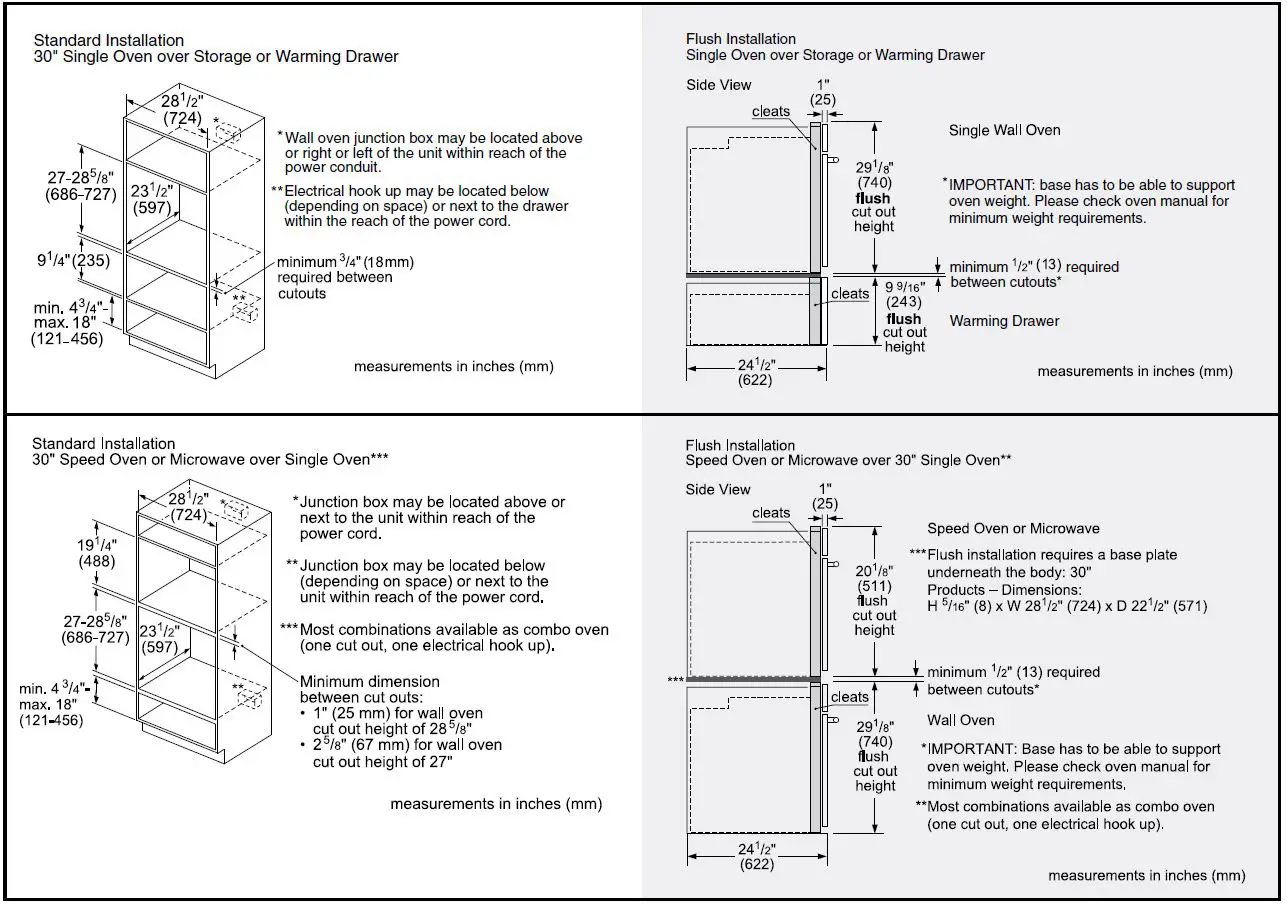

Installation Details
Bosch Side-By-Side Built-In Oven Approved Combination Guide
Single ovens, microwaves, speed ovens, and drawers approved by BSH Home Appliances Corporation to be installed in combination.
IMPORTANT: When installing an oven in combination, a minimum distance between the ovens is required. Refer to the oven installation manual for all other measurements.
Do not install a self-cleaning oven beside another self-cleaning oven.
Appliances that are not listed must be approved under local codes and/or by the local authority having jurisdiction. For the latest updates to the approved combination, refer to the website listed in your appliance’s installation instructions.
| APPROVED COMBINATIONS | ||||
| Conventional Ovens | Built-in Microwaves | Steam Ovens | Speed Ovens | Warming Drawer |
| HBLxxx1RUC, HBLxxx4RUC, | HMB50152UC | HSLP451UC | HMC80152UC, | HWD5051UC |
| HBLxxx1LUC, HBLxxx4LUC, | HMC80252UC, | |||
| HBLxxx1UC, HBLxxx3UC, | HMC80242UC, | |||
| HBLxxx4UC, HBNxxx1UC | HMCP0252UC | |||
| Coffee maker with trim kit | ||||
| BCM8450UC + HEZCMT3050 | ||||
Refer to product installation instructions.
The suitability of the following combination has been evaluated by CSA.
| Conventional Ovens | Steam Ovens | Warming Drawer |
| HBLxxx1RUC, HBLxxx4RUC, HBLxxx1LUC, HBLxxx4LUC, HBLxxx1UC, HBLxxx3UC, HBLxxx4UC, HBNxxx1UC | HSLP451UC | HWD5051UC |
Refer to product installation instructions.
| Configuration | Left Oven Type | Middle Oven Type | Right Oven Type |
| Side-by-side-by-side 1 | Conventional oven | Steam/speed/microwave | Conventional oven |
| Side-by-side-by-side 2 | Steam, speed, or microwave | Conventional oven** | Steam, speed, or microwave |

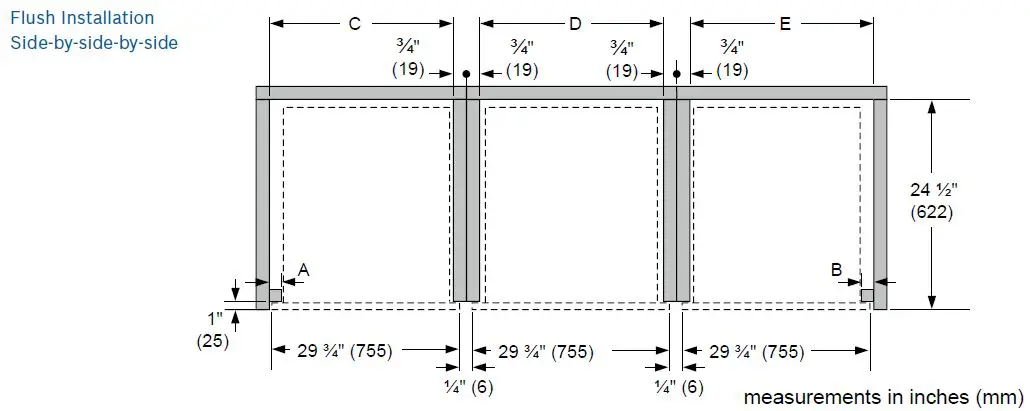

Side-by-Side-by-Side Installation
| Combination type | Left oven type | Middle oven type | Right oven type |
| Side-by-side-by-side 1 | Conventional oven | Steam/speed/microwave | Conventional oven |
| Side-by-side-by-side 2 | Steam, speed, or microwave | Conventional oven** | Steam, speed, or microwave |
**Bottom hinge door modules only. Side hinge door not recommended.
| Combination type | A – Left reveal cleat | B – Right reveal cleat | C – Cutout width | D – Cutout width | E – Cutout width |
| Flush bottom hinge door | 3/4” (19) | 3/4” (19) | 29-1/4” (743) | 28-1/2” (724) | 29-1/4” (743) |
| Flush left hinge door | 1-1/2” (38) | N/A* | 30” (762) | N/A* | N/A* |
| Flush right hinge door | N/A* | 1-1/2” (38) | N/A* | N/A* | 30″ (762) |
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
