amber connect AIT450-la Insight Advanced OBDII Tracker
Safety information
This message contains information on how to operate AIT 450-LA safely. By following these requirements and recommendations, you will avoid dangerous situations. You must read these instructions carefully and follow them strictly before operating the device!
- The device uses SELV limited power source. The nominal voltage is +12 V DC. The
allowed voltage range is +10…+30 V DC. - To avoid mechanical damage, it is advised to transport the device in an impact-proof package. Before usage, the device should be placed so that its LED indicators are
visible. They show the status of device operation. - Before mounting device make sure that a ≥3A fuse is present on OBD connector power supply.
- Before unmounting the device from vehicle, the ignition MUST be OFF.
- Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply.
- All wireless data transferring devices produce interference that may affect other devices which are placed nearby.
- Please consult representatives of your vehicle model regarding OBDII location on your vehicle. In case you are not sure about proper connection, please consult qualified personnel.
- The programming must be performed using a PC with an autonomic power supply.
- Installation and/or handling during a lightning storm is prohibited.
- The device is susceptible to water and humidity.
- Amber is not responsible for any harm caused by wrong cables used for the connection between PC and AIT 450-LA
- WARNING! Do not use AIT 450-LA device if it distracts driver or causes inconvenience due to OBDII placement. Device must not interfere with driver.
- Battery should not be disposed of with general household waste. Bring damaged or worn-out batteries to your local recycling center or dispose of them to battery recycle bin found in stores.

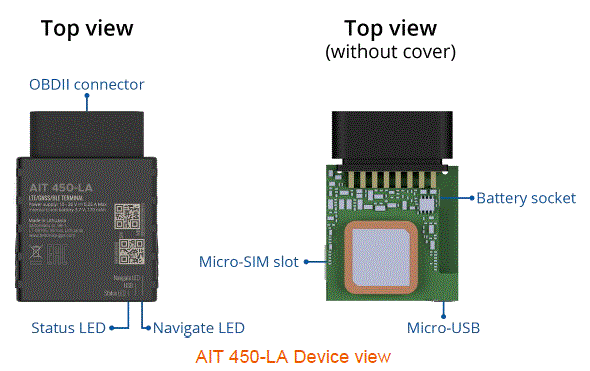

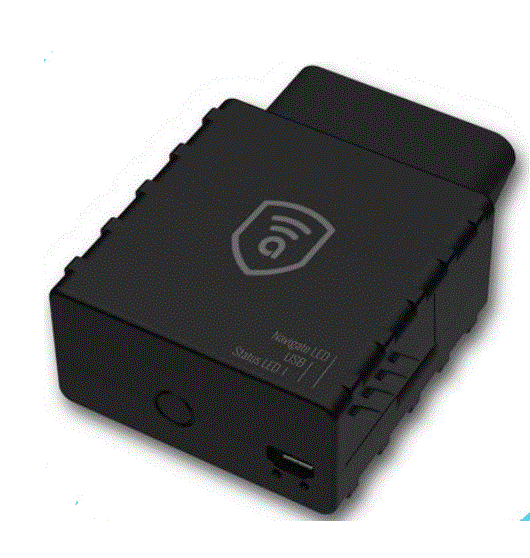

Know your device

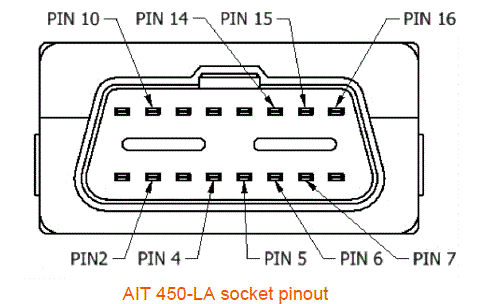

Pinout
| Pin number | Pin name | Description |
| 2 | PWM_BUS+/VPW | |
| 4 | GND (-) | Ground |
| 5 | GND (-) | Ground |
| 6 | CAN_H | CAN high |
| 7 | K-Line | |
| 10 | PWM_BUS- | |
| 14 | CAN_L | CAN low |
| 15 | L-Line | |
| 16 | VCC (12 – 30)V DC(+) | Power supply (+10-30 V DC) |
Set up your device

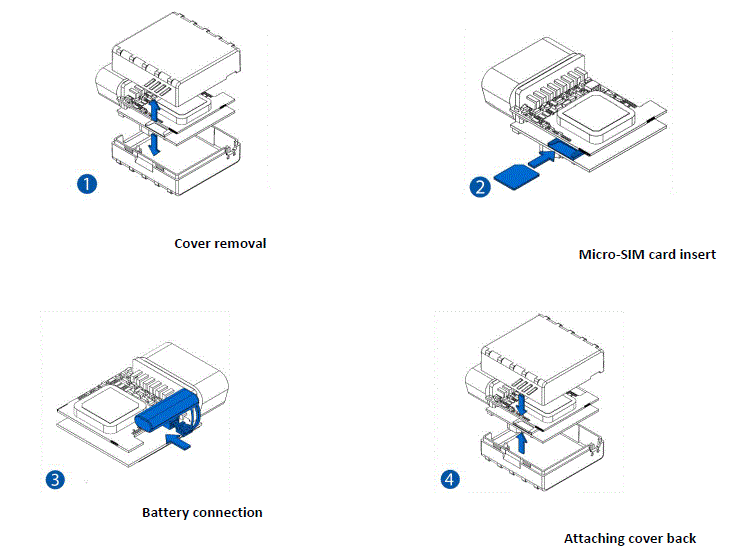

- How to insert Micro-SIM card and connect the battery 1. Gently remove AIT 450-LA cover using plastic pry tool from both sides.
- Insert Micro-SIM card as shown with PIN request disabled or read our Wiki how to enter it later in Amber Configurator. Make sure that Micro-SIM card cut-off corner is pointing forward to slot.
- Connect battery as shown to device. Position the battery in place where it does not obstruct other components.’
- Attach device cover back.
Device is ready to be connected.
Mounting recommendations
Connecting the device to the vehicle:

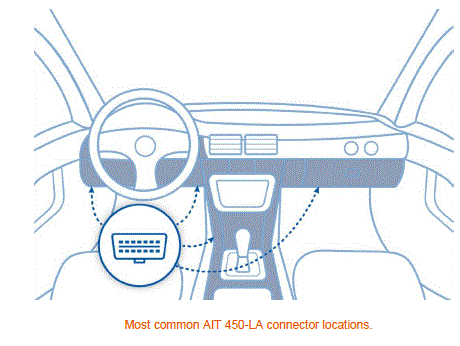

- Find OBDII connector in your vehicle (Most common OBDII connector locations.).
- Before connecting the device to the OBDII socket, make sure that ≥3A fuse is present on OBD connector power supply.
LED indications
Navigation LED indications
| Behaviour | Meaning |
| Permanently switched on | GNSS signal is not received |
| Blinking every second | Normal mode, GNSS is working |
| Off | GNSS is turned off because: Device is not working or Device is in sleep mode |
| Blinking fast constantly | Device firmware is being flashed |
Status LED indications
| Behaviour | Meaning |
| Blinking every second | Normal mode |
| Blinking every two seconds | Sleep mode |
| Blinking fast for a short time | Modem activity |
| Off | Device is not working or Device is in boot mode |
Characteristics
Basic characteristics
| Module | |
| Name | AIT 450-LA |
| Technology | LTE(CAT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/ GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| Technology | LTE CAT1, UMTS/HSPA+ and GSM/GPRS/EDGE |
| 2G bands | EG91-EX: GSM: B3/B8 |
| 3G bands | EG91-EX: WCDMA: B1/B8 |
| 4G bands | EG91-EX: LTE FDD: B1/B3/B7/B8/B20/B28 |
| Data transfer | LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) UMTS: WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) GSM: GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL) |
| Data support | SMS (text/data) |
| Power | |
| Input voltage range | 10 – 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Po battery 3.7 V (0.63 Wh) |
| Internal fuse | 3 A, 125 V |
| Power consumption | GPRS: max 50 mA rms Nominal with no load: average 35 mA rms GPS sleep: average 12 mA Deep Sleep: average 4.5 mA |
| Bluetooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support |
| OBD INTERFACE | |
| Data | K-Line, CAN Bus data |
| Data reading | Up to 32 vehicle onboard parameters, 9 supported OBD protocols |
| Interface | |
| Connection | OBDII socket |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Physical specification | |
| Dimensions | 67,2 x 49,6 x 25 mm (L x W x H) |
| Weight | 63 g |
| Operating environment | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Amber Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | OBDII |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM |
Certification and Approvals
AIT 450-LA RoHS
- This sign on the package means that it is necessary to read the User‘s Manual before your start using the device. Full User‘s Manual version can be found in our Wiki.
- This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste.
17 Warranty
Amber connect guarantees its products to be free of any manufacturing defects for a period of 24 months. With additional agreement we can agree on a different warranty period, for more detailed information please contact our sales manager. All batteries carry a reduced 6 month warranty period.
If a product should fail within this specific warranty time, the product can be:
- Repaired
- Replaced with a new product
- Replaced with an equivalent repaired product fulfilling the same functionality
- Amber can also repair products that are out of warranty at an agreed cost.
Warranty Disclaimer
Amber products are intended to be used by persons with training and experience. Any other use renders the limited warranties expressed herein and all implied warranties null and void and same are hereby excluded. also excluded from this limited warranty are any and all incidental or consequential damages including but not limited to, loss of use or revenue, loss of time, inconvenience or any other economic loss.
