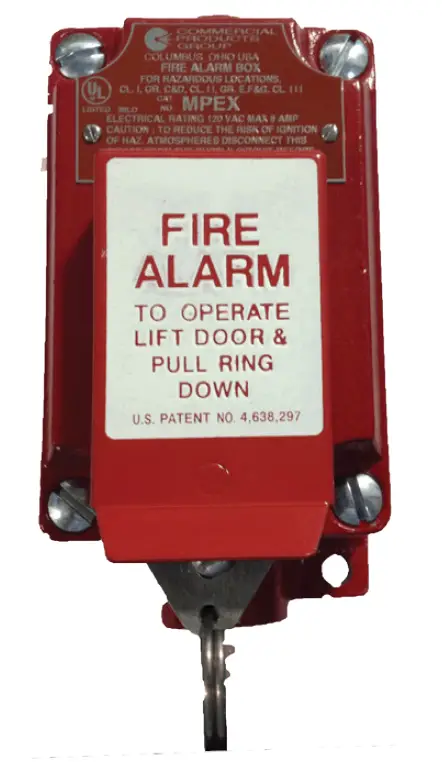

POTTER Federal Signal MPEX Series Explosion Proof Manual Pull Station
Features
- Enclosure is made of copper free cast aluminum alloy
- 120VAC, 60Hz, 6 amps, with 2 – 3/4” NPT feed through conduit openings
- Red, textured powder epoxy paint finish is standard on box and cover, providing high visibility for alarm station
- UL Listed for Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F and G; and Class III
- Rated NEMA 7 for Groups C & D and NEMA 9 for Groups E, F and G
- Lift cover and pull down ring to activate
- UL, ULC, and CSFM Listed
Description
The Federal Signal Model MPEX Explosion-Proof Pull Station is designed for hazardous locations where flammable gases, vapors,combustible dusts or easily ignitable fibers are present. The unique swing-up front cover exposes a pull-down ring which activates the alarm; this two-step process prevents accidental activation. The MPEX is reset by depressing the shaft and returning the plate to its original position.
Technical Specifications
| Shipping Weight | 2.7 lbs. |
| Material | Copper-free cast aluminum |
| Operating Temp | -31°F to 104°F |
| Dimensions | 6.4” x 3.1” x 4.1” |
Ordering Information
| Model | Ordering Part Number | Description |
| MpeX | 1000548 | Explosion Proof Pull Station |
