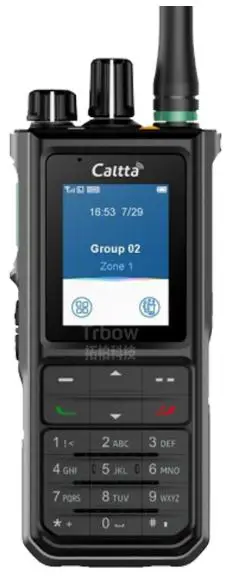

Caltta PH690Ex Explosion-Proof Digital Radio
Product Information
The product is a receiver that has explosion-proof levels frequency with a sensitivity of 0.18uV for both analog and digital modes. It has a channel capacity of 1024 with 60 dB sensitivity at 12.5KHz/70 dB at 20/25KHz (TIA603A) -1T. The device has zone capacity channel spacing with 64 maximum and 32 groups per area. The adjacent channel has 45dB at 12.5KHz /70 dB at 20/25KHz (TIA603D) -2T selectivity.
The device has an operating voltage battery capacity with a long battery life of up to 14 hours for analog mode and 18 hours for digital mode. It also features intermodulation, spurious rejection, blocking, and desensitization with high levels of accuracy and reliability.
The device is designed with environmental specifications of -20 ~ +60 operating temperature, ESD protection, dust, and water resistance with an IP68 rating. It also supports basic software encryption, optional high-level software encryption, or TF card hardware encryption. The device is also equipped with GPS technology for location services.
Product Usage Instructions
Before using the device, make sure to fully charge the battery by attaching the device to the charger provided in the package. Insert the battery into the battery slot located at the back of the device and attach the antenna. Turn on the device by pressing and holding the power button until the device vibrates.
To use the device, select the desired channel by using the navigation buttons on the front panel. You can adjust the volume level by using the volume control button located on the side of the device. The device also features AMBE++Vocoder for voice encoding and decoding.
The device supports VOX and Man Down features. The VOX feature allows you to use voice activation to transmit without pressing the PTT button. The Man Down feature automatically sends an emergency signal to the control center when the device detects a fall or a lack of movement for a certain period. The device also features GPS location services. To use this feature, make sure that the GPS function is enabled in the device settings. The device will then provide location information to the control center.
When you are finished using the device, turn it off by pressing and holding the power button until the device vibrates. Remove the battery from the battery slot and store the device in a safe and dry place.
Specifications
General
| Explosion-proof Levels | CQST：Ex ib IIB T3 Gb / Ex ibD 21 T150℃ |
| Frequency | UHF1：400-470MHz |
| Channel Capacity | 1024 |
| Zone Capacity | 64（Maximum 32 groups per area） |
| Channel Spacing | 12.5kHz/20KHz/25KHz |
| Frequency Stability | ±0.5ppm |
| Operating Voltage | 7.4V |
| Battery Capacity | 2200mAh（Standard） |
| Battery Life | Analog: 14 hrs Digital: 18 hrs (5:5:90 duty cycle, highpower Tx) |
| Size ( H×W×D ) | 126*54.5*32mm (without Antenna) |
| Weight | About 290g（with the Antenna and Battery） |
| Screen | 2.0″ Transflective LCD, 240×320, 6 Lines |
| Vocoder | AMBE++Vocoder |
| VOX | Support |
| Man Down | Support |
| Location | Beidou/GPS |
| Encryption | Support basic software encryption, optionally high-level software encryption or TF card hardware encryption |
| Environmental | ||
| Operating Temperature | -20℃ ~ +60℃ | |
| Storage Temperature | -40℃ ~ +85℃ | |
| ESD | IEC 61000-4-2 （level 4） ±8kV （Contact） ±15kV（Air） | |
| Dust and Water Resistance | IP68 | |
| Reliability | GJB 150A-2009 & MIL-STD-810 G | |
| GPS | ||
| Accuracy specs are for long-term tracking( 95th percentile values > 5 satellites visible at nominal – 130 dBm signal strength ) | ||
| TTFF ( Time To First Fix ) – Cold Start | <60 s | |
| TTFF ( Time To First Fix ) – Hot Start | <10 s | |
| Horizontal Accuracy | <10 m | |
Receiver
| Sensitivity (Analog) | 0.18uV(12dB SINAD) |
| Sensitivity (Digital) | 0.18uV (5% BER) |
|
Adjacent Channel Selectivity | 60 [email protected]/70 dB@20/25KHz (TIA603A) -1T |
| [email protected] /70 dB@20/25KHz (TIA603D) -2T | |
| [email protected] /70 dB@20/25KHz ( ETSI ) | |
| Intermodulation | 70 dB (TIA603D) |
| 65 dB (ETSI) | |
| Spurious Rejection | 70 dB (TIA603D) |
| 70 dB (ETSI) | |
| Blocking or Desensitization | 80dB(TIA603D) |
| 84dB(ETSI) | |
| Co-channel Rejection | -12~0 dB @12.5KHz/-8~0 dB @20/25KHz |
| Hum and Noise | -40 [email protected] /-43 dB@20KHz /-45 dB@25KHz |
| Rated Audio Power | 0.5W |
| Max Audio Power | 2.0W |
| Audio Distortion @ Rated Audio | ≤3% (Typical) |
| Audio Response | +1～-3dB (TIA603D) |
| Conducted Spurious Emission | -57 dBm (TIA603D) |
| Transmitter | |
Transmitter
| Low Power Output | 1 W |
| High Power Output | ≤ 3.5W (UHF1) |
| FM Modulation | 12.5KHz: 11K0F3E / 20KHz: 14K0F3E / 25KHz: 16K0F3E |
| 4FSK Digital Modulation | 12.5KHz Data Only: 7K60F1D&7K60FXD |
| 12.5KHz Voice Only: 7K60F1E&7K60FXE | |
| 12.5KHz Voice And Data: 7K60F1W | |
| Conducted / Radiated Emission | -36dBm ≤1GHz ; -30dBm >1GHz |
| Modulation Limiting | ±2.5KHz @12.5KHz /±4KHz @20KHz /±5.0KHz @25KHz |
| FM Hum and Noise | -40 [email protected] /-43dB@20KHz /-45 dB@25KHz |
| Adjacent Channel Power | 60 [email protected] /70 dB @20/25KHz |
| Audio Distortion | ≤3% (Typical) |
| Audio Response | +1～-3dB(TIA603D) |
Remarks:
The above specifications are in accordance with the applicable standard test, due to the continuous development of technology, in the future data may change without notice.
Features
Clear and Loud
- 2W high-power loudspeaker, combined with excellent sound.
- chamber and noise-reduction design brings a clear and loud voice with no fear of noisy environments.
High Sensitivity, Longer Communication Distance
The Rx sensitivity reaches 0.18uV, providing a longer communication distance and ensuring the efficient transmission of every call and message over a longer range.
IP68 Protection, Military Standard Quality
With IP68-level protection, it is not afraid of rain, water immersion, and dust. It has passed the certification of Standard MIL-STD-810G.
Digital and Analog Compatible, Extended ECS
It supports DMR digital and is compatible with analog. Supports digital DMO/Repeater dual time slots and can be expanded to ECS. Automatic cross-st nation roaming provides an uninterrupted call.
High-capacity, Long-lasting Battery Life
Equipped with a 2200mAh explosion-proof high-capacity battery, can work for 18 hours under a 5-5-90 duty cycle in digital mode. A long battery life facilitates users’ focus on essential jobs.
Rich Configuration, Complete Services
Support VOX to free your hands, making call more convenient, and also support coordination with the dispatching system, achieving more efficient command and dispatch.
Multiple Security Protection
It provides functions such as a lone worker, emergency alarm, and man-down alarm to protect users’ operation security. Combined with the GPS/BDS positioning system, it provides a solid guarantee for users’ safe operation.
IIB T3 Standard Explosion-proof
Gas and dust double explosion-proof, it meets Ex ib IIB T3 Gb/Ex ibD 21 T150℃ explosion-proof standard, providing a more secure communication guarantee.
Application

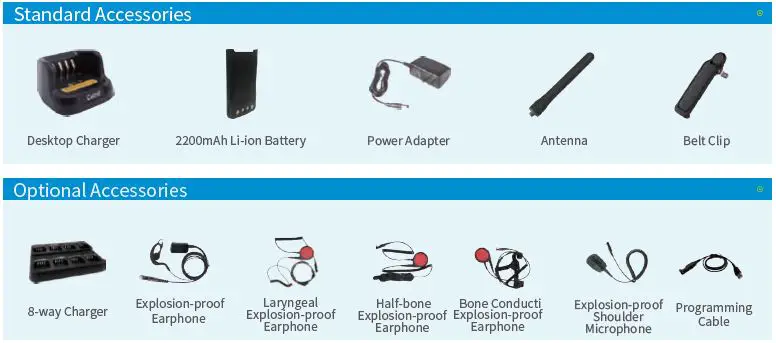

Accessories
After-sales Services
With abundant technologies and a highly specialized technical team, Caltta can provide users with high-quality products, tailored solutions, and perfect after-sales services. Each product provided by Caltta has undergone strict factory tests, can meet communication requirements in harsh and dangerous environments, and provide users with secure, reliable, and efficient communication. Meanwhile, Caltta also provides users with professional pre-sales and after-sales technical support, comprehensive technical documentation and training services, expert remote telephone support, local after-sales service, active software maintenance, software updates, etc. All-round services bring a worry-free user experience all the way.
