HOCHIKI HPS-SAH-WP Explosion Proof Manual Pull Station
DESCRIPTION

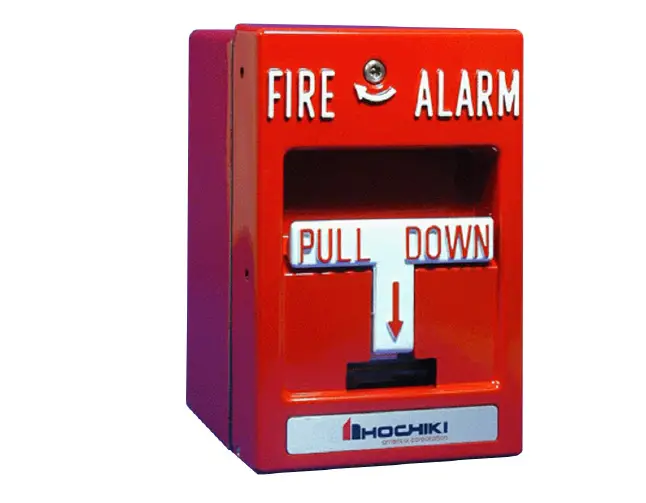

- The Hochiki HPS-SAH-WP Weatherproof Manual Pull Station is a UL Listed fire alarm initiating device suitable for applications requiring outdoor mounting of the manual fire alarm pull station. The HPS-SAH-WP is appropriate for applications where the manual pull station may be subject to wet conditions.
- The HPS-SAH-WP consists of a die-cast aluminum back box, a Neoprene sealing gasket, and a special manual fire alarm box. The unit is a high-quality pull station constructed entirely of nontoxic materials with a low profile and rounded edges to fit most design requirements. All components are pre-painted or have plated surfaces to inhibit corrosion.
- The latching pull-down lever on the HPS-SAH-WP requires a hex key to reset it. This allows only authorized personnel to reset the manual pull station so that the origin of the alarm can be determined easily.

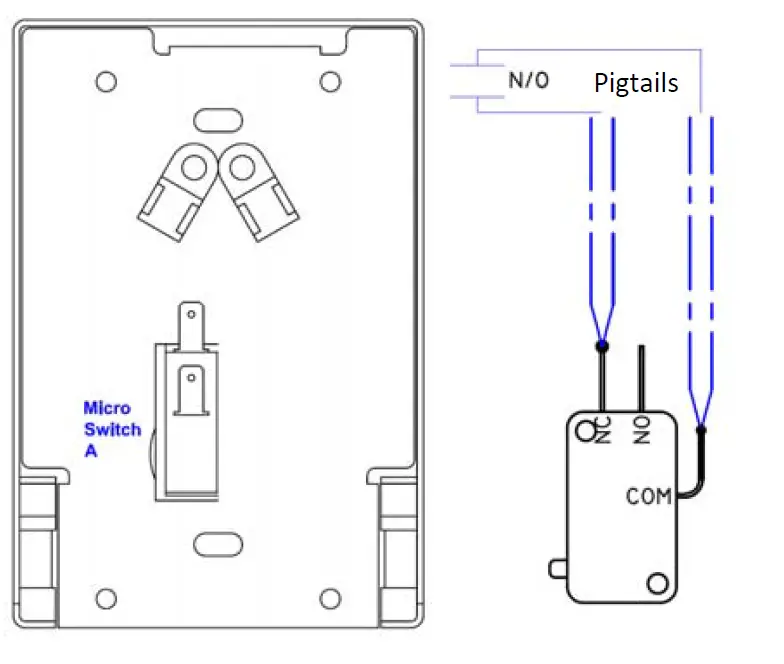

- The HPS-SAH-WP has one set of Normally Open contacts rated for 10A @ 120 VAC, making the device suitable for installations involving large current loads.
- The HPS-SAH-WP conforms with the Americans with Disabilities Act (ADA).
STANDARD FEATURES
- Weatherproof Manual Pull Station
- 10 A, 120 VAC contacts
- Rugged die-cast aluminum housing
- Neoprene sealing gasket
- Corrosion-resistant construction
- Hex reset
- Latching pull-down lever
- Screw terminal connections
SPECIFICATIONS
| SPECIFICATIONS | |
| Model | HPS-SAH-WP |
| Contact | (1) Form A |
| Contact Rating | 10A @ 120 VAC |
| Operating Temperature | -30°F (-35°C) ~ 150°F (66°C) |
| HPS-BB Dimension | 1-3/4” Backbox |
Specifications subject to change without notice.
Hochiki America Corporation 7051 Village Drive, Suite 100, Buena Park, CA 90621-2268 Phone: 714-522-2246 Fax: 714-522-2268
Technical Support: 800-845-6692 or [email protected]
