Mircom XAL-53 Explosion Proof Fire Alarm Station
EXPLOSION-PROOF FIRE ALARM STATION
XAL-53
Operation

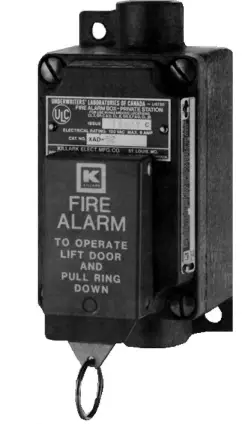

The Killark XAL-53 Explosion-Proof Fire Alarm Station is activated by lifting the front cover and pulling down the ring. This quick, easy-to-use two-step process prevents unintentional operation. The unit is reset by depressing the shaft and returning the plate to the original position.
Applications
- Hazardous areas due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
- Installation at petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled and stored
- Areas where emergency control of fire alarm or signal circuits is required.
Features
- Enclosure is made of copper free aluminum alloy
- Conduit openings are 3/4” NPT feed through
- Red, textured powder epoxy paint finish is standard on box and cover and provides high visibility for alarm station
- Bilingual nameplates included per CSA requirement
- Internal ground screw is standard
Hazardous Area Classifications
- Class I, Divison 1 and 2, Group C and D.
- Class l, Zones 1 & 2, Groups llB, llA
- Class II, Division 1 and 2, Group E, F, and G.
- Class III
- NEMA 7 (C,D) 9 (E,F,G).

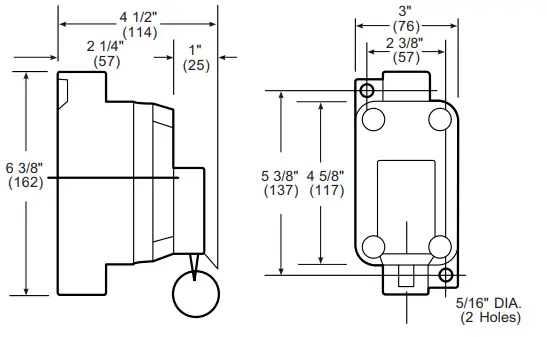

Dimensions
Contact Block Rating
| AC | DC | |||||||
| Volts | Make Amperes | VA | Break Amperes | VA | Continous Carrying Amperes | Volts | Make Break | Continuous Carrying Amperes |
| 120 | 60 | 7200 | 6 | 720 | 10 | 125 | 1.1 | 2.5 |
| 240 | 30 | 7200 | 3 | 720 | 10 | 250 | 0.55 | 2.5 |
| 480 | 15 | 7200 | 1.5 | 720 | 10 | 600 | 0.2 | 2.5 |
| 600 | 12 | 7200 | 1.2 | 720 | 10 | — | — | — |
Ordering Information
| Model | Description |
| XAL-53 | Explosion-Proof Manual Fire Alarm Station |
NOT TO BE USED FOR INSTALLATION PURPOSES.
