Mircom LT-1007 Fire Alarm Panels

FX-2000 Series UL Listed Compatible Devices

FX-2000 Series UL Listed Compatible Addressable Loop Modules

Manufacturer & Model	Description
Mircom
MIX-1251/B	Low-Profile Analog Ionization Smoke Sensor
MIX-2251/T	Low-Profile Analog Photoelectronic Smoke Sensor/plus Thermal
MIX-2251TM	Low-Profile Acclimate™ Intelligent Photoelectric Thermal Sensor
MIX-7251	Pinnacle™ Intelligent Laser Smoke Sensor
MIX-5251P/RP	Low-Profile Analog Thermal Sensor/Rate of Rise
MIX-5251/R	Low-Profile Analog Thermal Sensor/Rate of Rise
MIX-M500MB	Monitor Module (Universal)
MIX-5251H	Low Profile Intelligent Thermal Sensor
MIX-M500CH	Addressable Control Module
MIX-M501M	Addressable Mini-Monitor Module
MIX-M502M	Universal Monitor Module
MIX-M500R	Addressable Relay Output Module
MIX-M500S	Addressable Supervised Output Module
MIX-M500DM	Addressable Dual Input Monitor Module
MIX-DH200PL	Intelligent Smoke Detector
MIX-DH200RPL	Intelligent Smoke Detector (with relay)
MIX-210LP	200 Series Low Profile Intelligent Base
MIX-B501BH	200 Series Low Profile Intelligent Base with Horn
MIX-B501BHT	200 Series Low Profile Intelligent Base with Horn (Temporal Code)
System Sensor
FTX-P1	Filtrex™ Intelligent Photoelectric Smoke Sensor
M500X	Fault Isolator Module
IM-10	Ten Input Monitor Addressable Module
CR-6	Six Relay Control Module
SC-6	Six Supervised Control Module
B224BI	Analog Base with Isolator
B501B	Analog Base
B210LP	200 Series Low Profile Intelligent Base

System Sensor continued
B501B-FTX	Filtrex Base
B501BH	200 Series Low Profile Intelligent Base with Horn
B501BHT	200 Series Low Profile Intelligent Base with Horn (Temporal Code)
CZ-6	Six Addressable Universal Zone Module
BEAM200	Intelligent Addressable Beam Detector
BEAM200S	Intelligent Addressable Beam Detector (with Sens Test)

FX-2000 Series UL Listed Compatible Two-Wire Smoke Detectors
Notes:

Whether mixing different models of compatible smoke detectors or using the same model on the same circuit, total standby current of all detectors must not exceed 3 mA.
The below listed smoke detectors are compatible with initiating circuits having Compatibility Identifier “A”.

Smoke Detector Manufacturer Model / Base	Compatibility Identifier Head / Base	Rated Standby Current	Maximum # of devices per circuit
Mircom
MIR-525U	FDT-1	0.10 mA	30
MIR-525TU	FDT-1	0.10 mA	30
Apollo
55000-225 / 45681-251, -255, -256, -258	225 / 251, 255, 256, 258	0.045 mA	30
55000-325 / 45681-251, -255, -256, -258	325 / 251, 255, 256, 258	0.045 mA	30
Detection Systems Inc.
DS250	B – N/A	0.10 mA	30
DS250TH	B – N/A	0.10 mA	30
DS282	B – N/A	0.10 mA	30
DS282TH	B – N/A	0.10 mA	30
Hochiki
DCD-135/NS6-220	HD-3/HB-72	0.035mA	30
DCD-135/NS4-220	HD-3/HB-3	0.035mA	30
DCD-135/HSC-220R	HD-3/HB-3	0.035mA	30
DCD-190/NS6-220	HD-3/HB-3	0.035mA	30
DCD-190/NS4-220	HD-3/HB-3	0.035mA	30
DCD-190/HSC-220R	HD-3/HB-3	0.035mA	30
SIJ-24/NS6-220	HD-3/HB-72	0.040mA	30
SIJ-24/NS4-220	HD-3/HB-3	0.040mA	30
SIJ-24/HSC-220R	HD-3/HB-3	0.040mA	30
SLR-24/NS6-220	HD-3/HB-72	0.045mA	30
SLR-24/NS4-220	HD-3/HB-3	0.045mA	30
SLR-24/HSC-220R	HD-3/HB-3	0.045mA	30
SLR-24H/NS6-220	HD-3/HB-3	0.045mA	30
SLR-24H/NS4-220	HD-3/HB-3	0.045mA	30

Hochiki continued
SLR-24H/HSC-220R	HD-3/HB-72	0.045mA	30
SLR-835/NS6-220	HD-3/HB-3	0.045mA	30
SLR-835/NS4-220	HD-3/HB-3	0.045mA	30
SLR-835/HSC-220R	HD-3/HB-72	0.045mA	30
SLR-835B-2	HD-6	55µa @ 24VDC	30
NAPCO
FW-2	HD-6	55µA @ 24VDC	30
Sentrol – ESL
429C	S10A – N/A	0.10 mA	30
429CT	S10A – N/A	0.10 mA	30
429CST	S11A – N/A	0.10 mA	30
429CRT	S11A – N/A	0.10 mA	30
711U/701E, 701U, 702E, 702U	S10A – S00	0.10 mA	30
712U / 701E, 701U, 702E, 702U	S10A – S00	0.10 mA	30
713-5U / 701E, 701U, 702E, 702U	S10A – S00	0.10 mA	30
721U / 702E, 702U	S10A – S00	0.10 mA	30
732U / 702E, 702U, 702RE, 702RU	S11A – S00	0.10 mA	30
721UT / 702E, 702U	S10A – S00	0.10 mA	30
722U / 702E, 702U	S10A – S00	0.10 mA	30
731U / 702E, 702U, 702RE, 702RU	S11A – S00	0.10 mA	30
721UT / 702E, 702U	S10A – S00	0.10 mA	30
721UT / 702E, 702U	S10A – S00	0.10 mA	30
System Sensor
4451HT / B401	A – A	0.12 mA	25
5451 / B401B	A – A	0.12 mA	25
5451 / B401	A – A	0.12 mA	25
2451 / B401B	A – A	0.12 mA	25
2451 / B406B	A – A	0.12 mA	25
2451 / DH400	A – N/A	0.12 mA	25
2451TH / B406B	A – A	0.12 mA	25

System Sensor continued
2451 / B401	A – A	0.12 mA	25
2451TH / B401	A – A	0.12 mA	25
4451HT / B401B	A – A	0.12 mA	25
4451HT / B406B	A – A	0.12 mA	25
1100	A – N/A	0.12 mA	25
1151/ B110LP	A – A	0.12 mA	25
1151/ B116LP	A – A	0.12 mA	25
1400	A – N/A	0.10 mA	25
1451/B401	A – A	0.12 mA	25
1451/ B401B	A – A	0.12 mA	25
1451/ B406B	A – A	0.12 mA	25
1451DH/ DH400	A – A	0.12 mA	25
2100	A – N/A	0.12 mA	25
2100T	A – N/A	0.12 mA	25
2151/ B110LP	A – A	0.12 mA	25
5451 / B406B	A – A	0.12 mA	25
2151/ B116LP	A – A	0.12 mA	25
2400	A – N/A	0.12 mA	25
2400TH	A – N/A	0.12 mA	25
2WTA-B	A – N/A	0.1 mA	1
2WTR-B	A – N/A	0.1 mA	1
2W-B, 2WT-B	A – N/A	0.1 mA	30

FX-2000 Series UL Listed Compatible Four-Wire Smoke Detectors

Manufacturer & Model/Circuit	Maximum # of Devices
Mircom
MIR-545U	30
MIR-545TU	30
Sentrol-ESL
541C	N/A
541CXT	N/A
709-MV-21	N/A
709-24V-21	N/A
741U WITH 702U or 702E Base	N/A
449AT, 449C, 449CT, 449CRT, 449CST, 449CSTE, 449CSRT, 449CSRH, 449CSST, 449CSSTE, 449CTE, 449CSLT	N/A
System Sensor
1424	25
6424	30
6424A	30
A77-716B
DH400ACDCI	8
DH400ACDCP	8
DH400ACDCIHT	8

FX-2000 Series UL Listed Compatible Signalling Devices

System Sensor – SpectrAlert	Wheelock continued	Wheelock continued
P2415	AS-2475C-FW	AMT-12/24-R-ULC
P2415W	AS-24100C-FW	AMT-24-LS-VFR-ULC
P241575	AH-24-R	MB-G6-24-R
P241575W	AH-24-WP-R	MB-G10-24-R
P2475	NS-2415W-FR	SM-12/24-R
P2475W	NS-241575W-FR	DSM-12/24-R
P24110	NS-2430W-FR
P24110W	NS-2475W-FR
S2415	NS-24110W-FR
S2415W	NS4-2415W-FR
S241575	NS4-241575W-FR
S241575W	NS4-2430W-FR
S2475	NS4-2475W-FR
S2475W	NS4-24110W-FR
S24110	RS-2415W-FR
S24110W	RSS-241575W-FR
H12/24	RSS-2415W-FR
H12/24W	RSS-241575W-FR
MDL	RSS-2430W-FR
MDLW	RSS-2475W-FR
Wheelock	RSS-24110W-FR
AS-2415W-24-FR	RSS-2415C-FW
AS-241575W-FR	RSS-2430C-FW
AS-2430W-FR	RSS-2475C-FW
AS-2475W-FR	RSS-24100C-FW
AS-24110W-FR	MT-12/24-ULC
AS-2415C-FW	MT-24-LS-VFR-ULC
AS-2430C-FW	MT-24-WS-VFR-ULC

FX-2000 Series ULC Listed Compatible Devices

FX-2000 Series ULC Listed Compatible Addressable Loop Modules

Manufacturer & Model	Description
Mircom
MIX-1551A	Analog Ionization Smoke Sensor
MIX-1251A/BA	Low-Profile Analog Ionization Smoke Sensor
MIX-2551A	Analog Photoelectronic Smoke Sensor
MIX-2251A/2551TA	Low-Profile Analog Photoelectronic Smoke Sensor / Plus Thermal
MIX-2251TMA	Low-Profile Acclimate™ Intelligent Photoelectric Thermal Sensor
MIX-7251A	Pinnacle™ Intelligent Laser Smoke Sensor
MIX-M500MA	Monitor Module (Universal)
MIX-M500CHA	Addressable Control Module
MIX-M501MA	Addressable Mini-Monitor Module
MIX-DH200PLA	Intelligent Smoke Detector
MIX-DH200RPLA	Intelligent Smoke Detector (with relay)
MIX-210LPA	200 Series Low Profile Intelligent Base
MIX-B501BHA	200 Series Low Profile Intelligent Base with Horn
MIX-B501BHTA	200 Series Low Profile Intelligent Base with Horn (Temporal Code)
System Sensor
5551A	Analog Thermal Sensor
5551RA	Analog Rate of Rise Thermal Sensor
5251PA	Low-Profile Analog Thermal Sensor
5251RPA	Low-Profile Analog Rate of Rise Thermal Sensor
FTX-P1A	Filtrex™ Intelligent Photoelectric Smoke Sensor
M500X	Fault Isolator Module
B224BIA	Analog Base with Isolator
B501B	Analog Base
IM-10A	Ten Input Monitor Addressable Module
CR-6A	Six Relay Control Module
SC-6A	Six Supervised Control Module

FX-2000 Series ULC Listed Compatible Hardwire Smoke Detectors
Notes:
Whether mixing different models of compatible smoke detectors or using the same model on the same circuit, total standby current of all detectors must not exceed 3 mA.

Manufacturer & Model	Maximum # of Devices/ Circuit	Manufacturer & Model	Maximum # of Devices/ Circuit
Mircom		Fenwal continued
MIR-525	30	PSD-7130/70-201000-003	base
MIR-525T	30	PSD-7130/70-201000-005	base
MIR-1400A	30	PSD-7128/70-201000-001	base
MIR-2400A	25	PSD-7126/70-201000-002	base
Apollo		PSD-7126/70-201000-003	base
55000-325	30	PSD-7126/70-201000-005	base
55000-325 / 45681-251, -255, – 256, -258	30	PSD-7129/70-201000-000	base
Cerebrus Pyrotronics		PSD-7125/70-201000-001	base
DI-2	base	PSD-7126/70-201000-002	base
DI-3/DB-3S	30	PSD-7125/70-201000-003	base
Edwards		PSD-7125/70-201000-005	base
6249C	base	CPD-7021/70-201000-001	base
6250C	base	CPD-7021/70-201000-002	base
6264C	base	CPD-7021/70-201000-003	base
6266C	base	CPD-7021/70-201000-005	base
6269C	base	Hochiki
6270C	base	DCD-135/NS6-220	30
6269C-003	base	DCD-135/NS4-220	30
6270C-003	base	DCD-135/HSC-220R	30
Fenwal		DCD-190/NS6-220	30
PSD-7131/70-201000-001	base	DCD-190/NS4-220	30
PSD-7131/70-201000-002	base	DCD-190/HSC-220R	30
PSD-7131/70-201000-003	base	SIJ-24/NS6-220	30
PSD-7131/70-201000-005	base	SIJ-24/NS4-220	30
PSD-7130/70-201000-001	base	SIJ-24/HSC-220R	30
PSD-7130/70-201000-002	base	SLR-24/NS6-220	30

Hochiki continued		System Sensor continued
SLR-24/NS4-220	30	1451DH/DH400A	30
SLR-24/HSC-220R	30	2451-A/DH400A	25
SLR-24H/NS6-220	30	1151A	30
SLR-24H/NS4-220	30	2151A	30
SLR-24H/HSC-220R	30	C2W-BA/C2WT-BA	30
SLR-835/NS6-220	30	C2WTR-B	1
SLR-835/NS4-220	30	C2WTA-BA	1
SLR-835/HSC-220R	30	NAPCO
SLR-835B-2	30	FW-2	30
Mirtone
73471	base
73494	base
73575	base
73495/73486	base
73495/73487	base
73595/73486	base
73595/73497	base
73594/73400	base
73405/73400	base
73594/73401	base
73405/73401	base
Simplex
2098-9110	base
System Sensor
1400-A	30
2400-A	25
1451-A/B401B	25
1451-A/B406B	25
2451-A/B401B	25
2451-A/B406B	25

FX-2000 Series Compatible Synchronized Modules and Strobes
Notes:

Strobes and horns must be connected to separate circuits since the horn is a non-synchronized audible appliance.
Do not mix and match sync module with strobes from different manufacturers because each manufacturer uses different synchronization protocols.

Manufacturer	Brand	Sync. Module	Strobe Model	Max. Strobe / NAC
Amseco / Potter	Mircom	SDM 240	FHS-240-110	15
Gentex Corp.	Secutron	AVS44 R	MRA-HS3-24ww	20
SpectrAlert	System Sensor	MDL	P1224 MC	25
Wheelock	Wheelock	DSM 12/24	NS-24 MCW -FW	25
Faraday	Faraday	5406	6234B-14-24	26*

FX-350 Series UL/ULC Listed Compatible Addressable Devices

Model	Description
Detectors
MIX-3000	Ionization Smoke Detector (U.S. Model Only)
MIX-3100	Photoelectric Smoke Detector
MIX-3200	* Multi-sensor (photoelectric with supplemental rate-of-rise heat sensor)
Note: * Unit employs an integral heat sensor; however it must not be used as a regular heat detector. Refer to the product data sheet for detailed functionality, operation and application. Manual configuration for the MIX-3200 is NOT PERMITTED. This device must be configured via the AUTO CONFIG.
MIX-3300	Heat Detector
Bases
MIX-2000	4 inch Standard Base
MIX-2001	6 inch E-Z Fit Base
MIX-2001R	6 inch Base with Relay
MIX-2001H	6 inch Base with Sounder
MIX-2001HT	6 inch Base with Temporal Tone Sounder
Ancillary Modules
MIX-100P	Priority Monitor Module
MIX-101P	Mini Priority Monitor Module
55000-820	Single Relay Output Module (1 Form C Contacts, 2 Gang Mount)
MIX-100S	Supervised Control Module
MIX-100X (Kit), 100XH (Isolator), 100XB (Base)	Isolator c/w Mounting Base
Addressable Duct Detectors
MIX-DH3000	Ionization Duct Smoke Detector (UL Listed)
MIX-DH3001	Photoelectric Duct Smoke Detector (UL Listed)
MIX-DH3000R	Ionization Duct Smoke Detector with relay (UL Listed)
MIX-DH3001R	Photoelectric Duct Smoke Detector with relay (UL Listed)
Addressable Pull Stations
MS-401ID(U)	Addressable Single Stage Pull Station
MS-402ID	Addressable Two Stage Pull Station (Canadian Model Only)
MS-701ID(U)	Addressable Single Stage Single Action Pull Station

Addressable Pull Stations continued
MS-702ID(U)	Addressable Two Stage Single Action Pull Station
MS-710IDU	Addressable Two Stage Dual Action Pull Station

FX-350 Compatible Receivers

DACR Receiver Model	Protocols
SurGard MLR2 Multi-Line Receiver (ULC, ULI approved)	SIA-DCS and Ademco Contact ID
SurGard SLR Single-Line Receiver (ULC, ULI approved)	SIA-DCS and Ademco Contact ID
Osborne-Hoffman Quickalert! II Receiver (ULI approved)	SIA-DCS and Ademco Contact ID
Osborne-Hoffman OH-2000 Receiver (ULI Approved)	SIA-DCS and Ademco Contact ID
Silent Knight Model 9500 Receiver (ULI Approved)	SIA-DCS and Ademco Contact ID
Radionics Model D6500 Receiver (ULI Approved)	SIA-DCS and Ademco Contact ID
Radionics Model D6600 Receiver (ULI Approved)	SIA-DCS and Ademco Contact ID

FR-320 Series UL Listed Compatible Devices

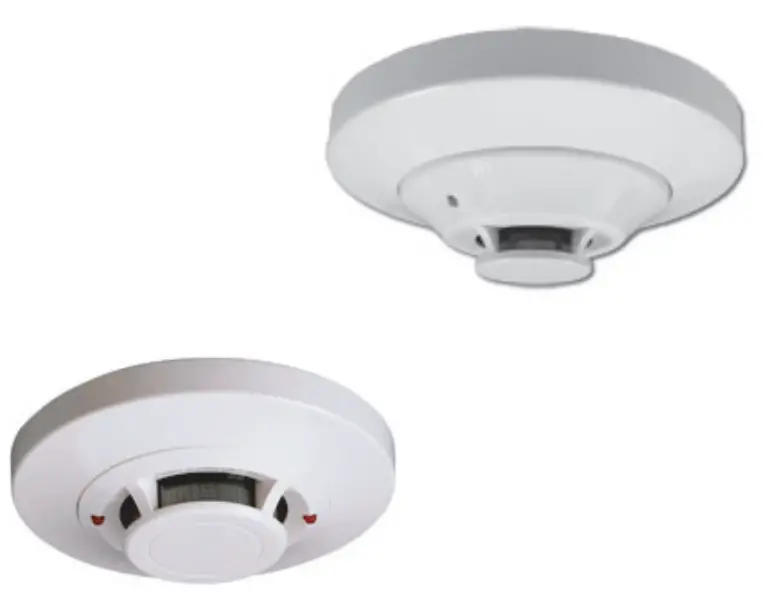

FR-320 Compatible UL Listed Two-Wire Smoke Detectors

Make Model / Base	Compatibility Identifier Head/Base	Rated Standby Current (mA)	Maximum # of devices per circuit
Mircom
MIR-525U	FDT-1	0.1	30
MIR-525TU	FDT-1	0.1	30
MIR-1400A	A-N/A	0.1	30
MIR-2400A	A/ N/A	0.1	30
Mircom Bases MSB-65B, MSB-65B-4, MSB-65B-4R
MID-65I	MID-65I	0.045	25
MPD-65P	MPD-65P	0.045	20
MHD-65-135	MHD-65-135	0.055	25
MHD-65-200	MHD-65-200	0.055	25
Apollo
Series 60A Bases 45681-200,-220,-232,-251
Series 65A Bases 45681-255,-256,-257,-258
55000-225	55000-225	0.045	25
55000-226	55000-226	0.045	25
55000-227	55000-227	0.028	25
55000-325	55000-325	0.045	20
55000-326	55000-326	0.045	20
55000-327	55000-327	0.04	20
55000-328	55000-328	N/A	30
55000-138	55000-138	0.055	25
55000-139	55000-139	0.055	25
55000-140	55000-140	0.045	25
Hochiki
DCD-135/HSC-220R	HD-3/HB-72	0.035	12
DCD-135/NS6-220	HD-3/HB-3	0.035	12
DCD-190/HSC-220R	HD-3/HB-72	0.035	12

Hochiki continued
DCD-190/NS4-220	HD-3/HB-3	0.035	12
DCD-190/NS6-220	HD-3/HB-3	0.035	12
SIJ-24/HSC-220R	HD-3/HB-72	0.04	12
SIJ-24/NS4-220	HD-3/HB-3	0.04	12
SIJ-24/NS6-220	HD-3/HB-3	0.04	12
SLR-24/HSC-220R	HD-3/HB-72	0.045	12
SLR-24/NS4-220	HD-3/HB-3	0.045	12
SLR-24/NS6-220	HD-3/HB-3	0.045	12
Sentrol-ESL
429C / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
429CRT / (702E, 702RE, 702RU, 702U)	S11A-S00	0.1	30
429CST / (702E, 702RE, 702RU, 702U)	S11A-S00	0.1	30
429CT / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
711U / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
713-5U / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
713-6U / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
721U / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
721UT / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
722U / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
731U / (702E, 702RE, 702RU, 702U)	S11A-S00	0.1	30
732U / (702E, 702RE, 702RU, 702U)	S11A-S00	0.1	30
System Sensor
1100	A-N/A	0.12	25
1400	A-N/A	0.1	25
2100	A-N/A	0.12	25
2400	A-N/A	0.12	25
1151/B110LP	A-A	0.12	25
1151/B116LP	A-A	0.12	25
1451/B401	A-A	0.12	25
1451/B401B	A-A	0.12	25

System Sensor continued
1451/B406B	A-A	0.12	25
1451DH/DH400	A-A	0.12	25
2100T	A-N/A	0.12	25
2151/B110LP	A-A	0.12	25
2151/B116LP	A-A	0.12	25
2400TH	A-N/A	0.12	25
2451/B401	A-A	0.12	25
2451/B401B	A-A	0.12	25
2451/B406B	A-A	0.12	25
2451/DH400	A-A	0.12	25
2451TH/B401	A-A	0.12	25
2451TH/B401B	A-A	0.12	25
2451TH/B406B	A-A	0.12	25
5451/B401	A-A	0.12	25
5451/B401B	A-A	0.12	25
5451/B406B	A-A	0.12	25
System Sensor i3
2W-B c/w base	A-A	0.1	30
2WT-B c/w base	A-A	0.1	30

FR-320 Series ULC Listed Compatible Devices

FR-320 Series ULC Listed Compatible Two-Wire Smoke Detectors

Make Model / Base	Maximum # of devices per circuit	Make Model / Base	Maximum # of devices per circuit
Mircom		Hochiki continued
MIR-525	30	SLR-24/HSC-220	12
MIR-525T	30	SLR-24/NS4-220	12
MIR-1400A	30	SLR-24/NS6-220	12
MIR-2400A	30	System Sensor i3
Apollo		C2W-BA c/w base	30
Series 60A Bases 45681-200,-220,-232,-251		C2WT-BA c/w base	30
Series 65A Bases 45681-255,-256,-257,-258		System Sensor
55000-225	30	1400A	20
55000-226	30	2400A	20
55000-227	30	1451/B401B	20
55000-325	30	2451/B401B	20
55000-326	30
55000-327	30
55000-328	30
55000-138	30
55000-139	30
55000-140	30
Hochiki
DCD-135/HSC-220R	12
DCD-135/NS6-220	12
DCD-190/HSC-220R	12
DCD-190/NS4-220	12
DCD-190/NS6-220	12
SIJ-24/HSC-220R	12
SIJ-24/NS4-220	12
SIJ-24/NS6-220	12

FR-320 Series Compatible Solenoids

Manufacturer	Description
ASCO 8210 series
T8210A107 24VDC
R8210A107 24VDC
8210A107 24VDC
AMEREX
17014	Actuator
BSCO
510006	Actuator
Kidde Fenwal Protection Systems
486500-01	Actuator
Parker
73212	Valve Solenoid
Parker Skinner Valve Division Cardox 7-061-0006
V5L 72750	Valve Solenoid
SIEMENS
CPYEC-24
TSP
17842	Actuator

FR-320 Fire Panel Maximum Number of Horn/Strobes

Manufacturer	Maximum # of Horn/Strobes
Wheelock
NS-24MCW-FW	13
Gentex
MRA-HS3-24	8
System Sensor
P1224 MC	12
Mircom
FHS-240-110	9
Faraday
Note: Separate Circuit for Horn & Strobe
6234 Series	9

FA-300 Series UL Listed Compatible Devices

FA-300, FA-300-6L Series UL Listed Compatible Two-Wire Smoke Detectors
Notes:

Detectors of different models are not to be mixed in a circuit.
Please refer to applicable installation Manual (LT-905, LT-906, LT-950 or LT-951) for specific wiring details.

Make Model / Base	Compatibility Identifier Head/ Base	Rated Standby Current (mA)	Maximum # of devices per circuit
Mircom
MIR-525U	FDT-1	0.1	30
MIR-525TU	FDT-1	0.1	30
MIR-1400A	A-N/A	0.1	30
MIR-2400A	A/ N/A	0.1	30
Bases MSB-65B, MSB-65B-4, MSB-65B-4R
MID-65I	MID-65I	0.045	25
MPD-65P	MPD-65P	0.045	25
MHD-65-135	MHD-65-135	0.055	25
MHD-65-200	MHD-65-200	0.055	25
Apollo
Series 60A Bases 45681-200,-220,-232,-251
Series 65A Bases 45681-255,-256,-257,-258
55000-225	55000-225	0.045	30
55000-226	55000-226	0.045	30
55000-227	55000-227	0.028	30
55000-325	55000-325	0.045	30
55000-326	55000-326	0.045	30
55000-327	55000-327	0.04	30
55000-328	55000-328	N/A	30
55000-138	55000-138	0.055	30
55000-139	55000-139	0.055	30
55000-140	55000-140	0.045	30

Hochiki
DCD-135/HSC-220R	HD-3/HB-72	0.035	12
DCD-135/NS6-220	HD-3/HB-3	0.035	12
DCD-190/HSC-220R	HD-3/HB-72	0.035	12
DCD-190/NS4-220	HD-3/HB-3	0.035	12
DCD-190/NS6-220	HD-3/HB-3	0.035	12
SIJ-24/HSC-220R	HD-3/HB-72	0.04	12
SIJ-24/NS4-220	HD-3/HB-3	0.04	12
SIJ-24/NS6-220	HD-3/HB-3	0.04	12
SLR-24/HSC-220R	HD-3/HB-72	0.045	12
SLR-24/NS4-220	HD-3/HB-3	0.045	12
SLR-24/NS6-220	HD-3/HB-3	0.045	12
Sentrol-ESL
429C / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
429CRT / (702E, 702RE, 702RU, 702U)	S11A-S00	0.1	30
429CST / (702E, 702RE, 702RU, 702U)	S11A-S00	0.1	30
429CT / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
711U / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
713-5U / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
713-6U / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
721U / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
721UT / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
722U / (701E, 701U, 702E, 702U)	S10A-S00	0.1	30
731U / (702E, 702RE, 702RU, 702U)	S11A-S00	0.1	30
732U / (702E, 702RE, 702RU, 702U)	S11A-S00	0.1	30
System Sensor
1100	A-N/A	0.12	25
1400	A-N/A	0.1	25
2100	A-N/A	0.12	25
2400	A-N/A	0.12	25
1151/B110LP	A-A	0.12	25
1151/B116LP	A-A	0.12	25

System Sensor continued
1451/B401	A-A	0.12	25
1451/B401B	A-A	0.12	25
1451/B406B	A-A	0.12	25
1451DH/DH400	A-A	0.12	25
2100T	A-N/A	0.12	25
2151/B110LP	A-A	0.12	25
2151/B116LP	A-A	0.12	25
2400TH	A-N/A	0.12	25
2451/B401	A-A	0.12	25
2451/B401B	A-A	0.12	25
2451/B406B	A-A	0.12	25
2451/DH400	A-A	0.12	25
2451TH/B401	A-A	0.12	25
2451TH/B401B	A-A	0.12	25
2451TH/B406B	A-A	0.12	25
5451/B401	A-A	0.12	25
5451/B401B	A-A	0.12	25
5451/B406B	A-A	0.12	25
2W-B c/w base	A-A	0.1	30
2WT-B c/w base	A-A	0.1	30

FA-300 Series ULC Listed Compatible Devices

FA-300, FA-300-6L Series ULC Listed Two-Wire Smoke Detectors

Make Model / Base	Maximum # of devices per circuit	Make Model / Base	Maximum # of devices per circuit
Mircom		Hochiki continued
MIR-525	30	SLR-24/NS4-220	12
MIR-525T	30	SLR-24/NS6-220	12
MIR-1400A	30	System Sensor i3
MIR-2400A	30	C2W-BA c/w base	30
Apollo		C2WT-BA c/w base	30
Series 60A Bases 45681-200,-220,-232,-251		System Sensor
Series 65A Bases 45681-255,-256,-257,-258		1400A	25
55000-225	30	2400A
55000-226	30	1451/B401B
55000-227	30	2451/B401B
55000-325	30
55000-326	30
55000-327	30
55000-328	30
55000-138	30
55000-139	30
55000-140	30
Hochiki
DCD-135/HSC-220R	12
DCD-135/NS6-220	12
DCD-190/HSC-220R	12
DCD-190/NS4-220	12
DCD-190/NS6-220	12
SIJ-24/HSC-220R	12
SIJ-24/NS4-220	12
SIJ-24/NS6-220	12
SLR-24/HSC-220	12

FA-300 and FA-300-6L Series UL and ULC Listed Supported Synchronous Horn/Strobe

Device	Mircom Equivalent Part #	Amseco Part #
Horns/Strobes	FHS-240R/FHS-240W	SH24W-153075
Strobes	FS-240R/FS-240W	SL24W-153075

FA-300-6L Maximum Number of Horn/Strobes

Horn/Strobe Manufacturer	Maximum # of Horn/Strobes	Horn/Strobe Manufacturer	Maximum # of Horn/Strobes
Mircom		Gentex
FHS-240-110	20	MRA-HS3-24	32
Faraday		System Sensor
Note: Separate Circuit for Horn & Strobe.		P1224 MC	32
6234 Series	16	Wheelock
		NS-24MCW-FW	40

FA-300 Compatible Solenoids

Manufacturer Description		Manufacturer Description
ASCO 8210 series		Parker
T8210A107 24VDC		73212	Valve Solenoid
R8210A107 24VDC		Parker Skinner Valve Division Cardox 7-061- 0006
8210A107 24VDC		V5L 72750	Valve Solenoid
AMEREX		SIEMENS
17014	Actuator	CPYEC-24
BSCO		TSP
510006	Actuator	17842	Actuator
Kidde Fenwal Protection Systems
486500-01	Actuator

FA-300 Compatible Receivers

DACR Receiver Model	Protocols
SurGard MLR2 Multi-Line Receiver (ULC, ULI approved)	SIA-DCS and Ademco Contact ID
SurGard SLR Single-Line Receiver (ULC, ULI approved)	SIA-DCS and Ademco Contact ID
Osborne-Hoffman Quickalert! II Receiver (ULI approved)	SIA-DCS and Ademco Contact ID
Osborne-Hoffman OH-2000 Receiver (ULI Approved)	SIA-DCS and Ademco Contact ID
Silent Knight Model 9500 Receiver (ULI Approved)	SIA-DCS and Ademco Contact ID
Radionics Model D6500 Receiver (ULI Approved)	SIA-DCS and Ademco Contact ID
Radionics Model D6600 Receiver (ULI Approved)	SIA-DCS and Ademco Contact ID

FA-1000 & FA-100 Series UL Listed Compatible Devices

FA-1000 & FA-100 Series UL Listed Two-Wire Smoke Detectors
Notes:

Whether mixing different models of compatible smoke detectors or using the same model on the same circuit, total standby current of all detectors must not exceed 3 mA.
The below listed smoke detectors are compatible with initiating circuits having Compatibility Identifier “A”.

Smoke Detector Make Model / Base	Compatibility Identifier Head / Base	Rated Standby Current	Maximum # of devices per circuit
Mircom
MIR-525U	FDT-1	0.10 mA	30
MIR-525TU	FDT-1	0.10 mA	30
Apollo
55000-225 / 45681-251, -255, -256, -258	225 / 251, 255, 256, 258	0.045 mA	30
55000-325 / 45681-251, -255, -256, -258	325 / 251, 255, 256, 258	0.045 mA	30
Detection Systems Inc.
DS250	B – N/A	0.10 mA	30
DS250TH	B – N/A	0.10 mA	30
DS282	B – N/A	0.10 mA	30
DS282TH	B – N/A	0.10 mA	30
Edwards
C2M-PD/CM2M-PD
EC-103-3/CSBU
Hochiki
DCD-135/NS6-220	HD-3/HB-72	0.035mA	30
DCD-135/NS4-220	HD-3/HB-3	0.035mA	30
DCD-135/HSC-220R	HD-3/HB-3	0.035mA	30
DCD-190/NS6-220	HD-3/HB-3	0.035mA	30
DCD-190/NS4-220	HD-3/HB-3	0.035mA	30
DCD-190/HSC-220R	HD-3/HB-3	0.035mA	30
SIJ-24/NS6-220	HD-3/HB-72	0.040mA	30
SIJ-24/NS4-220	HD-3/HB-3	0.040mA	30
SIJ-24/HSC-220R	HD-3/HB-3	0.040mA	30
SLR-24/NS6-220	HD-3/HB-72	0.045mA	30

Hochiki continued
SLR-24/NS4-220	HD-3/HB-3	0.045mA	30
SLR-24/HSC-220R	HD-3/HB-3	0.045mA	30
SLR-24H/NS6-220	HD-3/HB-3	0.045mA	30
SLR-24H/NS4-220	HD-3/HB-3	0.045mA	30
SLR-24H/HSC-220R	HD-3/HB-72	0.045mA	30
SLR-835/NS6-220	HD-3/HB-3	0.045mA	30
SLR-835/NS4-220	HD-3/HB-3	0.045mA	30
SLR-835/HSC-220R	HD-3/HB-72	0.045mA	30
SLR-835B-2	HD-6	55µa @ 24VDC	30
Napco
FW-2	HD-6	55µA @ 24VDC	30
Sentrol – ESL
429C	S10A – N/A	0.10 mA	30
429CT	S10A – N/A	0.10 mA	30
429CST	S11A – N/A	0.10 mA	30
429CRT	S11A – N/A	0.10 mA	30
711U / 701E, 701U, 702E, 702U	S10A – S00	0.10 mA	30
712U / 701E, 701U, 702E, 702U	S10A – S00	0.10 mA	30
713-5U / 701E, 701U, 702E, 702U	S10A – S00	0.10 mA	30
713-6U / 701E, 701U, 702E, 702U	S10A – S00	0.10 mA	30
721U / 702E, 702U	S10A – S00	0.10 mA	30
732U / 702E, 702U, 702RE, 702RU	S11A – S00	0.10 mA	30
721UT / 702E, 702U	S10A – S00	0.10 mA	30
722U / 702E, 702U	S10A – S00	0.10 mA	30
731U / 702E, 702U, 702RE, 702RU	S11A – S00	0.10 mA	30
721UT / 702E, 702U	S10A – S00	0.10 mA	30
721UT / 702E, 702U	S10A – S00	0.10 mA	30
System Sensor
4451HT / B401	A – A	0.12 mA	25
5451 / B401B	A – A	0.12 mA	25
5451 / B401	A – A	0.12 mA	25

System Sensor continued
2451 / B401B	A – A	0.12 mA	25
2451 / B406B	A – A	0.12 mA	25
2451 / DH400	A – N/A	0.12 mA	25
2451TH / B406B	A – A	0.12 mA	25
2451 / B401	A – A	0.12 mA	25
2451TH / B401	A – A	0.12 mA	25
4451HT / B401B	A – A	0.12 mA	25
4451HT / B406B	A – A	0.12 mA	25
1100	A – N/A	0.12 mA	25
1151 / B110LP	A – A	0.12 mA	25
1151 / B116LP	A – A	0.12 mA	25
1400	A – N/A	0.10 mA	25
1451 / B401	A – A	0.12 mA	25
1451 / B401B	A – A	0.12 mA	25
1451 / B406B	A – A	0.12 mA	25
1451DH / DH400	A – A	0.12 mA	25
2100	A – N/A	0.12 mA	25
2100T	A – N/A	0.12 mA	25
2151/ B110LP	A – A	0.12 mA	25
5451 / B406B	A – A	0.12 mA	25
2151 / B116LP	A – A	0.12 mA	25
2400	A – N/A	0.12 mA	25
2400TH	A – N/A	0.12 mA	25
2400AT	A – N/A	0.12 mA	25
2400AIT	A – N/A	0.12 mA	25
2451TH / B401B	A – A	0.12 mA	25
2WTA-B	A – N/A	0.1 mA	1
2WTR-B	A – N/A	0.1 mA	1
2W-B, 2WT-B	A – N/A	0.1 mA	30

FA-1000 & FA-100 Series UL Listed Compatible Four-Wire Smoke Detectors

Smoke Detector Make Model / Base	Maximum # of devices per circuit
Mircom
MIR-545U	30
MIR-545TU	30
Sentrol-ESL
541C	N/A
541CXT	N/A
709-MV-21	N/A
709-24V-21	N/A
741U WITH 702U or 702E Base	N/A
449AT, 449C, 449CT, 449CRT, 449CST, 449CSTE, 449CSRT, 449CSRH, 449CSST, 449CSSTE, 449CTE, 449CSLT	N/A
System Sensor
1424	25
6424	30
6424A	30
A77-716B
DH400ACDCI	8
DH400ACDCP	8
DH400ACDCIHT	8

FA-1000 & FA-100 Series UL Listed Compatible Signaling Devices

System Sensor – SpectrAlert	Wheelock continued	Wheelock continued	Gentex continued
P2415	AS-2430C-FW	MT-24-LS-VFR-ULC	SHG24-110-1
P2415W	AS-2475C-FW	MT-24-WS-VFR-ULC	GOT24
P241575	AS-24100C-FW	AMT-12/24-R-ULC	GOS24-15-1
P241575W	AH-24-R	AMT-24-LS-VFR-ULC	GOS24-15/75
P2475	AH-24-WP-R	MB-G6-24-R	GOS24-15/75
P2475W	NS-2415W-FR	MB-G10-24-R	GOS24-30/75
P24110	NS-241575W-FR	SM-12/24-R	GOS24-110-1
P24110W	NS-2430W-FR	DSM-12/24-R	GMH-24
S2415	NS-2475W-FR	Gentex	GMS-24-15-1
S2415W	NS-24110W-FR	AVP-4-15-1	GMS-24-15/75-W
S241575	NS4-2415W-FR	AVP-4-15/75	GMS-24-30/75-W
S241575W	NS4-241575W-FR	AVP-4-30-75	GMS-24-15/75-C
S2475	NS4-2430W-FR	AVP-4-110-1	GMS-24-110-1
S2475W	NS4-2475W-FR	GXS-4-15-1	WGMS-4/75
S24110	NS4-24110W-FR	GXS-4-15/75-W	Mircom
S24110W	RS-2415W-FR	GXS-4-30/75W	FH-240R
H12/24	RSS-241575W-FR	GXS-4-15/75-C	FH-240W
H12/24W	RSS-2415W-FR	GXS-4-110-1	FHS-240R
MDL	RSS-241575W-FR	GX90S-4-15-1	FHS-240R/110
MDLW	RSS-2430W-FR	GX90S-4-15/75-W	FHS-240W
Wheelock	RSS-2475W-FR	GX90S-4-30/75W	FHS-240W/110
AS-2415W-24-FR	RSS-24110W-FR	GX90S-4-15/75-C	FS-240R
AS-241575W-FR	RSS-2415C-FW	GX90S-4-110-1	FS-240R/110
AS-2430W-FR	RSS-2430C-FW	SHG24-15-1	FS-240W
AS-2475W-FR	RSS-2475C-FW	SHG15/75-W	FS-240W/110
AS-24110W-FR	RSS-24100C-FW	SHG24-30/75-W	SDM-240
AS-2415C-FW	MT-12/24-ULC	SHG24-15/75-C

FA-1000 & FA-100 Series ULC Listed Compatible Devices

FA-1000 & FA-100 Series ULC Listed Compatible Hardwire Smoke Detectors
Notes: Whether mixing different models of compatible smoke detectors or using the same model on the same circuit, the total standby current of all detectors must not exceed 3 mA.

Make & Model/Base	Maximum # of Devices	Make & Model/Base	Maximum # of Devices
Mircom		Fenwal continued
MIR-525	30	PSD-7131/70-201000-003	–
MIR-525T	30	PSD-7131/70-201000-005	–
MIR-1400A	30	PSD-7130/70-201000-001	–
MIR-2400A	25	PSD-7130/70-201000-002	–
Apollo		PSD-7130/70-201000-003	–
55000-325	30	PSD-7130/70-201000-005	–
55000-325 / 45681-251, -255, -256, -258	30	PSD-7128/70-201000-001	–
Cerebrus Pyrotronics		PSD-7126/70-201000-002	–
DI-2	–	PSD-7126/70-201000-003	–
DI-3/DB-3S	30	PSD-7126/70-201000-005	–
Edwards		PSD-7129/70-201000-000	–
6249C	–	PSD-7125/70-201000-001	–
6250C	–	PSD-7126/70-201000-002	–
6264C	–	PSD-7125/70-201000-003	–
6266C	–	PSD-7125/70-201000-005	–
6269C	–	CPD-7021/70-201000-001	–
6270C	–	CPD-7021/70-201000-002	–
6269C-003	–	CPD-7021/70-201000-003	–
6270C-003	–	CPD-7021/70-201000-005	–
C2M-PD/CM2M-PD	–	Hochiki
EC-103-3/CSBU	–	DCD-135/NS6-220	30
Fenwal		DCD-135/NS4-220	30
PSD-7131/70-201000-001	–	DCD-135/HSC-220R	30
PSD-7131/70-201000-002	–	DCD-190/NS6-220	30

Hochiki continued		System Sensor
DCD-190/NS4-220	30	1400-A	30
DCD-190/HSC-220R	30	2400-A	25
SIJ-24/NS6-220	30	1451-A/B401B	25
SIJ-24/NS4-220	30	1451-A/B406B	25
SIJ-24/HSC-220R	30	2451-A/B401B	25
SLR-24/NS6-220	30	2451-A/B406B	25
SLR-24/NS4-220	30	1451DH/DH400A	30
SLR-24/HSC-220R	30	2451-A/DH400A	25
SLR-24H/NS6-220	30	1151A	30
SLR-24H/NS4-220	30	2151A	30
SLR-24H/HSC-220R	30	C2W-BA/C2WT-BA	30
SLR-835/NS6-220	30	C2WTR-B	1
SLR-835/NS4-220	30	C2WTA-BA	1
SLR-835/HSC-220R	30
SLR-835B-2	30
Mirtone
73471	–
73494	–
73575	–
73495/73486	–
73495/73487	–
73595/73486	–
73595/73497	–
73594/73400	–
73405/73400	–
73594/73401	–
73405/73401	–
NAPCO
FW-2	30
Simplex
2098-9110	–

FX-2200 UL Listed Compatible Devices

FX-2200 UL Listed Compatible Addressable Devices

Model	Description	Typical Current Draw µA
MIX-1251	Ionization type smoke detector	300
MIX-1251B	Ionization type smoke detector	300
MIX-2251	Photoelectric type smoke detector	300
MIX-2251B	Photoelectric type smoke detector	360
MIX-2251T	Photoelectric type smoke detector w/ thermal element	300
MIX-2251TB	Photoelectric type smoke detector w/ thermal element	360
MIX-2251TM	Acclimate Photo-Thermal Detector	300
MIX-2251TMB	Acclimate Photo-Thermal Detector	360
MIX-5251P	Thermal detector	200
MIX-5251B	Thermal detector	300
MIX-5251RP	Thermal detector w/ rate of rise	200
MIX-5251RB	Thermal detector w/ rate of rise	300
MIX-5251H	High Temperature Thermal detector	300
IM-10	10 Input Monitor Module	3.50 mA
CR-6	6 Relay Control Module	1.45 mA
SC-6	6 Supervised Control Module	2.25 mA
CZ-6	6 Zone Conventional Interface Module	2.00 mA
MIX-M500DM	Dual Input Monitor Module	300
MIX-M500M	Monitor module, Classes A/B initiating	300
MIX-M501M	Mini Monitor module, Class B initiating	300
MIX-M502M	Monitor Module for 2- wire smoke detectors Classes A/B initiating	200
MIX-M500S	Control module	300
MIX-M500R	Relay Module	300
MIX-M500X	Fault isolator module	450

FX-2200 UL Listed Compatible Synchronized Notification Appliances

Manufacturer	Appliance Module	Candela	# of Appliances
Mircom	FHS-210-110	75	18
Secutron	MRA-24 WW	15	24
System Sensor	P12224MC	15	30
Wheelock	NS-24 MCW-FW	15	38
Amseco	SH24W-75110	75	18
Gentex	GEC3-24WW	15	24

FA-262/FA-265 Series Compatible Devices (UL Listed)

FA-262/FA-265 Series Compatible Two-Wire Smoke Detectors (UL Listed)
Notes:

Whether mixing different models of compatible smoke detectors or using the same model on the same circuit, total standby current of all detectors must not exceed 3 mA.
The below listed smoke detectors are compatible with initiating circuits having Compatibility Identifier “A”.

Smoke Detector Make Model / Base	Compatibility Identifier Head / Base	Rated Standby Current	Smoke Detector Make Model / Base	Compatibility Identifier Head / Base	Rated Standby Current
Hochiki			2451 / DH400	A – N/A	0.12 mA
DCD-135/NS6-220	HD-3/HB-72	0.035mA	2451TH / B406B	A – A	0.12 mA
DCD-135/NS4-220	HD-3/HB-3	0.035mA	2451 / B401	A – A	0.12 mA
DCD-135/HSC-220R	HD-3/HB-3	0.035mA	2451TH / B401	A – A	0.12 mA
DCD-190/NS6-220	HD-3/HB-3	0.035mA	4451HT / B401B	A – A	0.12 mA
DCD-190/NS4-220	HD-3/HB-3	0.035mA	4451HT / B406B	A – A	0.12 mA
DCD-190/HSC-220R	HD-3/HB-3	0.035mA	1100	A – N/A	0.12 mA
SIJ-24/NS6-220	HD-3/HB-72	0.040mA	1151/ B110LP	A – A	0.12 mA
SIJ-24/NS4-220	HD-3/HB-3	0.040mA	1151/ B116LP	A – A	0.12 mA
SIJ-24/HSC-220R	HD-3/HB-3	0.040mA	1400	A – N/A	0.10 mA
SLR-24/NS6-220	HD-3/HB-72	0.045mA	1451/B401	A – A	0.12 mA
SLR-24/NS4-220	HD-3/HB-3	0.045mA	1451/ B401B	A – A	0.12 mA
SLR-24/HSC-220R	HD-3/HB-3	0.045mA	1451/ B406B	A – A	0.12 mA
SLR-24H/NS6-220	HD-3/HB-3	0.045mA	1451DH/ DH400	A – A	0.12 mA
SLR-24H/NS4-220	HD-3/HB-3	0.045mA	2100	A – N/A	0.12 mA
SLR-24H/HSC-220R	HD-3/HB-72	0.045mA	2100T	A – N/A	0.12 mA
SLR-835/NS6-220	HD-3/HB-3	0.045mA	2151/ B110LP	A – A	0.12 mA
SLR-835/NS4-220	HD-3/HB-3	0.045mA	2112/24T	A – N/A	0.12mA
SLR-835/HSC-220R	HD-3/HB-72	0.045mA	4451HT / B401	A – A	0.12 mA
SLR-835B-2	HD-6	55µa @ 24VDC	5451 / B401B	A – A	0.12 mA
SLR-835/NS6-220	HD-3/HB-3	0.045mA	5451 / B401	A – A	0.12 mA
System Sensor			5451 / B406B	A – A	0.12 mA
2400AIT	A – N/A	0.12 mA	2151/ B116LP	A – A	0.12 mA
2451 / B401B	A – A	0.12 mA	2400	A – N/A	0.12 mA
2451 / B406B	A – A	0.12 mA	2400TH	A – N/A	0.12 mA

System Sensor (cont’d)			Detection Systems Inc.
2400AT	A – N/A	0.12 mA	DS250	B – N/A	0.10 mA
Sentrol – ESL			DS250TH	B – N/A	0.10 mA
429C	S10A – N/A	0.10 mA	DS282	B – N/A	0.10 mA
429CT	S10A – N/A	0.10 mA	DS282TH	B – N/A	0.10 mA
429CST	S11A – N/A	0.10 mA	Mircom
429CRT	S11A – N/A	0.10 mA	MIR-525U	FDT-1	0.10 mA
711U/701E, 701U, 702E, 702U	S10A – S00	0.10 mA	MIR-525TU	FDT-1	0.10 mA
712U / 701E, 701U, 702E, 702U	S10A – S00	0.10 mA	NAPCO
713-5U / 701E, 701U, 702E, 702U	S10A – S00	0.10 mA	FW-2	HD-6	55µA @ 24VDC
721U / 702E, 702U	S10A – S00	0.10 mA	Apollo
721UT / 702E, 702U	S10A – S00	0.10 mA	55000-225	5500-225/45681 -251, -255, -256, -258	0.11mA
722U / 702E, 702U	S10A – S00	0.10 mA	55000-325	5500-225/45681 -251, -255, -256, -258	0.11mA
731U / 702E, 702U, 702RE, 702RU	S11A – S00	0.10 mA	System Sensor i3
732U / 702E, 702U, 702RE, 702RU	S11A – S00	0.10 mA	2W-B	A – A	0.10 mA
			2WT-B	A – A	0.10 mA
			2WTA-B	A – A	0.10 mA
			2WTR-B	A – A	0.10 mA

Panel CID	Max. # Detectors	Manufacturer	Model	Model CID	Base	Base CID	Description
01	25	System Sensor	1400/ 1400A	A	N/A	N/A	Ionization type smoke, 2-wire 12/24VDC
01	25	System Sensor	1451	A	B401 B401B	N/A	Plug-in – Ionization type smoke detector
01	25	System Sensor	2400	A	N/A	N/A	Photoelectric, 2-wire, 12/24VDC
01	25	System Sensor	2400TH	A	N/A	N/A	Photoelectric with Thermal, 2-wire, 12/ 24VDC
01	25	System Sensor	2400AT	A	N/A	N/A	Photoelectric with Thermal and Horn, 2- wire, 24VDC
01	25	System Sensor	2400AIT	A	N/A	N/A	Photoelectric with isolated Thermal and Horn, 2-wire, 24VDC
01	25	System Sensor	2451	A	B401 B401B DH400	N/A	Plug-in – Photoelectric type smoke detector
01	25	System Sensor	2451TH	A	B401 B401B	N/A	Plug-in – Photoelectric type smoke detector with Thermal
01	25	System Sensor	1100	A	N/A	N/A	Ionization, 2-wire, 12/ 24VDC, terminal strip
01	25	System Sensor	2100	A	N/A	N/A	Photoelectric, 2-wire, 12/24VDC, terminal strip
01	25	System Sensor	2100T	A	N/A	N/A	Photoelectric, 2-wire, 12/24VDC, thermistor, terminal strip
01	25	System Sensor	2112/24T	A	N/A	N/A	Photoelectric, 12/ 24VDC, terminal strip
01	25	System Sensor	4451HT 4451HTA	A	B401 B401B DH400	N/A	Plug-in – High Temp Heat 88°C (190°F)
01	25	System Sensor	5451	A	B401 B401B DH400	N/A	Plug-in – Fixed Temp/ Rate of Rise Detector

01	25	System Sensor	1151 1151A	A	B401 B401B DH400	N/A	Plug-in – Low Profile Ion
01	25	System Sensor	2151 2151A	A	B401 B401B DH400	N/A	Plug-in – Low Profile Photo
01	25	System Sensor	2100S	A	N/A	N/A	2-wire direct wire Photoelectric
01	25	System Sensor	2100TS	A	N/A	N/A	2-wire direct wire Photoelectric Thermal
01	30	System Sensor	2100AT	A	N/A	N/A	2-wire direct wire Photoelectric Audible Thermal
01	30	System Sensor	2100TR	A	N/A	N/A	2-wire direct wire Photoelectric Thermal Auxiliary Relay

FA-262/FA-265 Series Smoke Detector Bases (UL Listed)

Max. # Detectors	Manufacturer	Model	Base CID	Description
25	System Sensor	B401	N/A	2-wire standard base, 4”, 12/24VDC
25	System Sensor	B401B	N/A	2-wire standard base, 6”, 12/24VDC
25	System Sensor	B406B	N/A	2-wire base, 24VDC, form contact
25	System Sensor	B401BH	N/A	24VDC sounder base for use with B401
25	System Sensor	B110LP	N/A	2-wire, flangeless, 12/24VDC
25	System Sensor	B116LP	N/A	2-wire base, 24VDC, form contact
25	System Sensor	DH400	N/A	Duct Detector Mount
25	System Sensor	RMK400	N/A	Recessed mount kit for Series 400

FA-262/FA-265 Series Compatible Four-Wire Smoke Detectors (UL Listed)

Manufacturer	Models
System Sensor	1124B	2124B	2124TB	2124S	2124TS	2124R
	2124TR	2124AT	2124ATR	2124AITR	1424	2424
	2424TH	2424AT	1151*	2151*	–	–
	2424AIT	6424	1451**	2451**	22451TH**	–
	Detector with B112LP Base *Detector with B402B Base
Detection Systems	DS284	DS284TH	DS284THS	DS284THR	DS284THSR	DS284THCS
Detection Systems	DS284THC	DS284THE	DS284ES	DS284IS	–	–
Gentex	8240	8240T	8240P	8243P	8240PH	8243PH
Gentex	8240PT	8243PT	–	–	–	–
Mircom	MIR-545U	MIR-545TU	–	–	–	–
Sentrol-ESL	541C	541CXT	709-MV-21	709-24V-21	541C	–
Sentrol-ESL	741U WITH 702U or 702E Base	449AT, 449C, 449CT, 449CRT, 449CST, 449CSTE, 449CSRT, 449CSRH, 449CSST, 449CSSTE, 449CTE, 449CLTCSLT			741U WITH 702U or 702E Base	–
System Sensor	1424	6424	6424A	A77-716B	1424
System Sensor	DH400AC DCI	DH400ACD CP	DH400ACDC IHT		DH400ACDC I
Hochiki	SIJ-24	SLR-24	SLR-24H	SLR-835B	–	–
DSC	MN240	MN240T	MN240R	MN240RT	MN240S	MN240ST
DSC	MN240SR	MN240SRT	–	–	–	–
ESL	741U	741UT	–	–	–	–

FA-262/FA-265 Series Compatible Horns/Strobes (UL Listed)

System Sensor	Type	Cd	Voltage (FWR)
P2415(W)(A)	H/S	15	20-30
P241575(W)(A)	H/S	15/75	20-30
P2475(W)(A)	H/S	75	20-30
P24110(W)(A)	H/S	110	20-30
S2415(W)(A)	S	15	20-30
S241575(W)(A)	S	15/75	20-30
S2475(W)(A)	S	75	20-30
S24110(W)(A)	S	110	20-30
H24(W)(A)	H	–	20-30

MDL(W)(A)	Synch	Module	20-30
No suffix = Red, suffix W = White, suffix A = Canadian version

Gentex	Type	Cd	Voltage (FWR)
GEH24	H	–	20-31
GES24-15	S	15	20-31
GES24-15/75	S	15/75	20-31
GES24-30	S	30	20-31
GES24-60	S	60	20-31
GES24-75	S	75	20-31
GES24-110	S	110	20-31
GEC24-15	H/S	15	20-31
GEC24-15/75	H/S	15/75	20-31
GEC24-30	H/S	30	20-31
GEC24-60	H/S	60	20-31
GEC24-75	H/S	75	20-31
GEC24-110	H/S	110	20-31
Available in Red and White

Wheelock	Type	Cd	Voltage (FWR)
NS-2415W-FR(W)	H/S	15	20-31
NS-241575W-FR(W)	H/S	15/75	20-31
NS-2430W-FR(W)	H/S	30	20-31
NS-2475W-FR(W)	H/S	75	20-31
NS-24110W-FR(W)	H/S	110	20-31
NS4-2415W-FR(W)	H/S	15	20-31
NS4-241575W-FR(W)	H/S	15/75	20-31
NS4-2430W-FR(W)	H/S	30	20-31
NS4-2475W-FR(W)	H/S	75	20-31
NS4-24110W-FR(W)	H/S	110	20-31
NS = 2-wire, NS4 = 4-wire
AS-2415W-FR(W)	S	15	20-31
AS-241575W-FR(W)	S	15/75	20-31
AS-2430W-FR(W)	S	30	20-31
AS-2475W-FR(W)	S	75	20-31
AS-24110W-FR(W)	S	110	20-31
AS4-2415C-FR(W)	S	15	20-31
AS4-2430C-FR(W)	S	30	20-31
AS4-2475C-FR(W)	S	75	20-31
AS4-24110C-FR(W)	S	110	20-31
AH-24-R	H	–	20-31
AH-24-WP-R	H	–	20-31
MT-24-R	H		20-31
MT4-24-R	H		20-31
MT-24-SL-VFR	H/S	15	20-31
MT-24-SLM-VFR	H/S	15/75	20-31
MT-24-MS-VFR	H/S	30	20-31
MT-24-IS-VFR	H/S	75	20-31
MT-24-WM-VFR	H/S	117	20-31

FA-262/FA-265 Series Compatible Signalling Devices (UL Listed)

System Sensor – SpectrAlert
P2415	P2415W	P241575	P241575W	P2475
P2475W	P24110	P24110W	S2415	S2415W
S241575	S241575W	S2475	S2475W	S24110
S24110W	H12/24	H12/24W	MDL	MDLW
Wheelock
AS-2415W-24-FR	AS-2415W-FR	AS-241575W-FR	AS-2430W-FR	AS-2475W-FR
AS-24110W-FR	AS-2415C-FW	AS-2430C-FW	AS-2475C-FW	AS-24100C-FW
AS4-2415C-FR	AS4-2430C-FR	AS4-2475C-FR	AS4-24110C-FR	AH-24-R
AH-24-WP-R	AMT-12/24-R- ULC	AMT-24-LS-VFR- ULC	DSM-12/24-R	MB-G6-24-R
MB-G10-24-R	MT-12/24-ULC	MT-24-LS-VFR- ULC	MT-24-WS-VFR- ULC	MT-24-R
MT4-24-R	MT-24-SL-VFR	MT-24-SLM-VFR	MT-24-MS-VFR	MT-24-IS-VFR
MT-24-WM-VFR	NS-2415W-FR	NS-241575W-FR	NS-2430W-FR	NS-2475W-FR
NS-24110W-FR	NS4-2415W-FR	NS4-241575W-FR	NS4-2430W-FR	NS4-2475W-FR
NS4-24110W-FR	RS-2415W-FR	RSS-241575W-FR	RSS-2415W-FR	RSS-241575W-FR
RSS-2430W-FR	RSS-2475W-FR	RSS-24110W-FR	RSS-2415C-FW	RSS-2430C-FW
RSS-2475C-FW	RSS-24100C-FW	SM-12/24-R
Gentex
AVP-4-15-1	AVP-4-15/75	AVP-4-30/75	AVP-4-110-1	GXS-4-15-1
GXS-4-15/75-W	GXS-4-30/75-W	GXS-4-15/75-C	GXS-4-110-1	GX90S-4-15-1
GX90S-4-15/75-W	GX90S-4-30/75W	GX90S-4-15/75-C	GX90S-4-110-1	SHG24-15-1
SHG15/75-W	SHG24-30/75-W	SHG24-15/75-C	SHG24-110-1	GOT24
GOS24-15-1	GOS24-15/75	GOS24-15/75	GOS24-30/75	GOS24-110-1
GMH-24	GMS-24-15-1	GMS-24-15/75-W	GMS-24-30/75-W	GMS-24-15/75-C
GMS-24-110-1	WGMS-4/75	GEH24	GES24-15	GES24-15/75
GES24-30	GES24-60	GES24-75	GES24-110	GEC24-15
GEC24-15/75	GEC24-30	GEC24-60	GEC24-75	GEC24-110

FA-262/FA-265 Series Hardwire Smoke Detectors (ULC Listed)

Note: Whether mixing different models of compatible smoke detectors or using the same model on the same circuit, the total standby current of all detectors must not exceed 3 mA.

Make Model / Base	Make Model / Base	Make Model / Base	Make Model / Base
Apollo	Edwards	Mirtone (cont’d)	Fenwal
55000-225	6249C	73595/73497	PSD-7131/70-201000-001
55000-325	6250C	73594/73400	PSD-7131/70-201000-002
Hochiki	6264C	73405/73400	PSD-7131/70-201000-003
DCD-135/NS6-220	6266C	73594/73401	PSD-7131/70-201000-005
DCD-135/NS4-220	6269C	73405/73401	PSD-7130/70-201000-001
DCD-135/HSC-220R	6270C	System Sensor	PSD-7130/70-201000-002
DCD-190/NS6-220	6269C-003	1400-A	PSD-7130/70-201000-003
DCD-190/NS4-220	6270C-003	2400-A	PSD-7130/70-201000-005
DCD-190/HSC-220R	Cerebrus Pyrotronics	1451-A/B401B	PSD-7128/70-201000-001
SIJ-24/NS6-220	DI-2	1451-A/B406B	PSD-7126/70-201000-002
SIJ-24/NS4-220	DI-3/DB-3S	2451-A/B401B	PSD-7126/70-201000-003
SIJ-24/HSC-220R	Mircom	2451-A/B406B	PSD-7126/70-201000-005
SLR-24/NS6-220	MIR-525	1451DH/DH400A	PSD-7129/70-201000-000
SLR-24/NS4-220	MIR-525T	2451-A/DH400A	PSD-7125/70-201000-001
SLR-24/HSC-220R	MIR-1400A	1151A	PSD-7126/70-201000-002
SLR-24H/NS6-220	MIR-2400A	2151A	PSD-7125/70-201000-003
SLR-24H/NS4-220	Mirtone	C2W-BA	PSD-7125/70-201000-005
SLR-24H/HSC-220R	73471	C2WT-BA	CPD-7021/70-201000-001
SLR-835/NS6-220	73494	NAPCO	CPD-7021/70-201000-002
SLR-835/NS4-220	73575	FW-2	CPD-7021/70-201000-003
SLR-835/HSC-220R	73495/73486	Simplex	CPD-7021/70-201000-005
SLR-835B-2	73495/73487	2098-9110
	73595/73486

FA-200 Series UL Listed Compatible Devices

FA-200 Series UL Listed Two-Wire Smoke Detectors

Smoke Detector Make Model / Base	Compatibility Identifier Head / Base	Rated Standby Current
Mircom
MIR-525U	FDT-1	0.10 mA
MIR-525TU	FDT-1	0.10 mA
Detection Systems Inc.
DS250	B – N/A	0.10 mA
DS250TH	B – N/A	0.10 mA
DS282	B – N/A	0.10 mA
DS282TH	B – N/A	0.10 mA
Hochiki
DCD-135/NS6-220	HD-3/HB-72	0.035mA
DCD-135/NS4-220	HD-3/HB-3	0.035mA
DCD-135/HSC-220R	HD-3/HB-3	0.035mA
DCD-190/NS6-220	HD-3/HB-3	0.035mA
DCD-190/NS4-220	HD-3/HB-3	0.035mA
DCD-190/HSC-220R	HD-3/HB-3	0.035mA
SIJ-24/NS6-220	HD-3/HB-72	0.040mA
SIJ-24/NS4-220	HD-3/HB-3	0.040mA
SIJ-24/HSC-220R	HD-3/HB-3	0.040mA
SLR-24/NS6-220	HD-3/HB-72	0.045mA
SLR-24/NS4-220	HD-3/HB-3	0.045mA
SLR-24/HSC-220R	HD-3/HB-3	0.045mA
SLR-24H/NS6-220	HD-3/HB-3	0.045mA
SLR-24H/NS4-220	HD-3/HB-3	0.045mA
SLR-24H/HSC-220R	HD-3/HB-72	0.045mA
SLR-835/NS6-220	HD-3/HB-3	0.045mA
SLR-835/NS4-220	HD-3/HB-3	0.045mA
SLR-835/HSC-220R	HD-3/HB-72	0.045mA
SLR-835B-2	HD-6	55ua @ 24VDC

NAPCO
FW-2	HD-6	55uA @ 24VDC
Sentrol – ESL
429C	S10A – N/A	0.10 mA
429CT	S10A – N/A	0.10 mA
429CST	S11A – N/A	0.10 mA
429CRT	S11A – N/A	0.10 mA
711U / 701E, 701U, 702E, 702U	S10A – S00	0.10 mA
712U / 701E, 701U, 702E, 702U	S10A – S00	0.10 mA
713-5U / 701E, 701U, 702E, 702U	S10A – S00	0.10 mA
713-6U / 701E, 701U, 702E, 702U	S10A – S00	0.10 mA
721U / 702E, 702U	S10A – S00	0.10 mA
721UT / 702E, 702U	S10A – S00	0.10 mA
722U / 702E, 702U	S10A – S00	0.10 mA
731U / 702E, 702U, 702RE, 702RU	S11A – S00	0.10 mA
732U / 702E, 702U, 702RE, 702RU	S11A – S00	0.10 mA
System Sensor
1100	A – N/A	0.12 mA
1151 / B110LP	A – A	0.12 mA
1151 / B116LP	A – A	0.12 mA
1400	A – N/A	0.10 mA
1451 / B401	A – A	0.12 mA
1451 / B401B	A – A	0.12 mA
1451 / B406B	A – A	0.12 mA
1451DH / DH400	A – A	0.12 mA
2100	A – N/A	0.12 mA
2100T	A – N/A	0.12 mA
2151/ B110LP	A – A	0.12 mA
2151/ B116LP	A – A	0.12 mA
2400	A – N/A	0.12 mA
2400TH	A – N/A	0.12 mA
2400AT	A – N/A	0.12 mA

System Sensor continued
2400AIT	A – N/A	0.12 mA
2451 / B401B	A – A	0.12 mA
2451 / B406B	A – A	0.12 mA
2451 / DH400	A – N/A	0.12 mA
2451TH / B406B	A – A	0.12 mA
2451 / B401	A – A	0.12 mA
2451TH / B401	A – A	0.12 mA
4451HT / B401B	A – A	0.12 mA
4451HT / B406B	A – A	0.12 mA
4451HT / B401	A – A	0.12 mA
5451 / B401B	A – A	0.12 mA
5451 / B401	A – A	0.12 mA
5451 / B406B	A – A	0.12 mA

FA-200 Series UL Listed Four-Wire Smoke Detectors

Mircom	Sentrol-ESL	System Sensor
MIR-545U	541C	1424
MIR-545TU	541CXT	6424
	709-MV-21	6424A
	709-24V-21	A77-716B
	741U WITH 702U or 702E Base	DH400ACDCI
	449AT, 449C, 449CT, 449CRT, 449CST, 449CSTE, 449CSRT, 449CSRH, 449CSST, 449CSSTE, 449CTE, 449CLTCSLT	DH400ACDCP
		DH400ACDCIHT

FA-200 Series UL Listed Signaling Devices

Gentex	System Sensor – SpecrAlert	Wheelock continued
AVP-4-15-1	P2415	NS-2415W-FR
AVP-4-15/75	P2415W	NS-241575W-FR
AVP-4-30/75	P241575	NS-2430W-FR
AVP-4-110-1	P241575W	NS-2475W-FR
GXS-4-15-1	P2475	NS-24110W-FR
GXS-4-15/75-W	P2475W	NS4-2415W-FR
GXS-4-30/75-W	P24110	NS4-241575W-FR
GXS-4-15/75-C	P24110W	NS4-2430W-FR
GXS-4-110-1	S2415	NS4-2475W-FR
GX90S-4-15-1	S2415W	NS4-24110W-FR
GX90S-4-15/75-W	S241575	RS-2415W-FR
GX90S-4-30/75W	S241575W	RSS-241575W-FR
GX90S-4-15/75-C	S2475	RSS-2415W-FR
GX90S-4-110-1	S2475W	RSS-241575W-FR
SHG24-15-1	S24110	RSS-2430W-FR
SHG15/75-W	S24110W	RSS-2475W-FR
SHG24-30/75-W	H12/24	RSS-24110W-FR
SHG24-15/75-C	H12/24W	RSS-2415C-FW
SHG24-110-1	MDL	RSS-2430C-FW
GOT24	MDLW	RSS-2475C-FW
GOS24-15-1	Wheelock	RSS-24100C-FW
GOS24-15/75	AS-2415W-24-FR	MT-12/24-ULC
GOS24-15/75	AS-241575W-FR	MT-24-LS-VFR-ULC
GOS24-30/75	AS-2430W-FR	MT-24-WS-VFR-ULC
GOS24-110-1	AS-2475W-FR	AMT-12/24-R-ULC
GMH-24	AS-24110W-FR	AMT-24-LS-VFR-ULC
GMS-24-15-1	AS-2415C-FW	MB-G6-24-R
GMS-24-15/75-W	AS-2430C-FW	MB-G10-24-R
GMS-24-30/75-W	AS-2475C-FW	SM-12/24-R
GMS-24-15/75-C	AS-24100C-FW	DSM-12/24-R
GMS-24-110-1	AH-24-R
WGMS-4/75	AH-24-WP-R

FA-200 Series ULC Listed Compatible Devices

FA-200 Series ULC Two-wire Smoke Detector Control Panel Compatibility
Notes: Whether mixing different models of compatible smoke detectors or using the same model on the same circuit, the total standby current of all detectors must not exceed 3 mA.

Make Model / Base	Make Model / Base	Make Model / Base
Hochiki	2451-A/DH400A	Fenwal
DCD-135/NS6-220	Edwards	PSD-7131/70-201000-001
DCD-135/NS4-220	6249C	PSD-7131/70-201000-002
DCD-135/HSC-220R	6250C	PSD-7131/70-201000-003
DCD-190/NS6-220	6264C	PSD-7131/70-201000-005
DCD-190/NS4-220	6266C	PSD-7130/70-201000-001
DCD-190/HSC-220R	6269C	PSD-7130/70-201000-002
SIJ-24/NS6-220	6270C	PSD-7130/70-201000-003
SIJ-24/NS4-220	6269C-003	PSD-7130/70-201000-005
SIJ-24/HSC-220R	6270C-003	PSD-7128/70-201000-001
SLR-24/NS6-220	Cerebrus Pyrotronics	PSD-7126/70-201000-002
SLR-24/NS4-220	DI-2	PSD-7126/70-201000-003
SLR-24/HSC-220R	DI-3/DB-3S	PSD-7126/70-201000-005
SLR-24H/NS6-220	Mircom	PSD-7129/70-201000-000
SLR-24H/NS4-220	MIR-525	PSD-7125/70-201000-001
SLR-24H/HSC-220R	MIR-525T	PSD-7126/70-201000-002
SLR-835/NS6-220	Mirtone	PSD-7125/70-201000-003
SLR-835/NS4-220	73471	PSD-7125/70-201000-005
SLR-835/HSC-220R	73494	CPD-7021/70-201000-001
SLR-835B-2	73575	CPD-7021/70-201000-002
System Sensor	73495/73486	CPD-7021/70-201000-003
1400-A	73495/73487	CPD-7021/70-201000-005
2400-A	73595/73486	NAPCO
1451-A/B401B	73595/73497	FW-2
1451-A/B406B	73594/73400	Simplex
2451-A/B401B	73405/73400	2098-9110
2451-A/B406B	73594/73401
1451DH/DH400A	73405/73401

ABOUT COMPANY

CANADA – Main Office
- 25 Interchange Way
- Vaughan, ON L4K 5W3
- Tel: (888) 660-4655
- (905) 660-4655
- Fax: (905) 660-4113
U.S.A
- 4575 Witmer Industrial Estates
- Niagara Falls, NY 14305
- Tel: (888) 660-4655
- (905) 660-4655
- Fax: (905) 660-4113
TECHNICAL SUPPORT
North America
- Tel: (888) Mircom5
- (888) 647-2665
- International
- Tel: (905) 647-2665
© Mircom 2012
Printed in Canada
Subject to change without prior notice
www.mircom.com
