Description

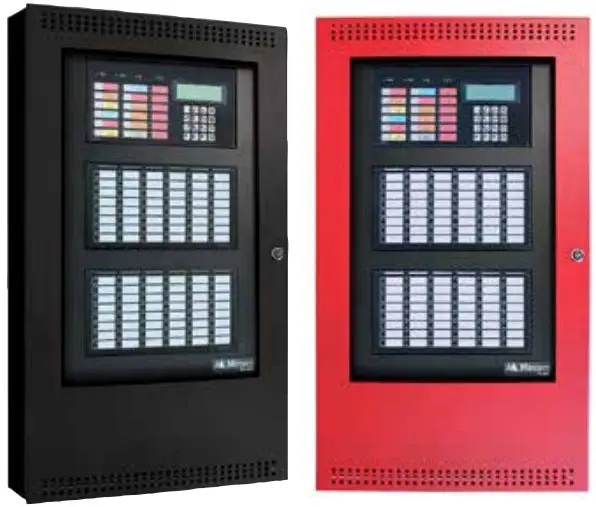

The FX-401 Addressable Fire Alarm Control Panel is an intelligent addressable multi-zoned panel, ideal for small to medium jobs.

The FX-401 is shipped pre-assembled with mainboard, power supply, black backbox, and black or red door enclosure.

Compatible with MGC Devices (MIX-4000 Series), the FX-401 can have up to three addressable (SLC) loop with a maximum of 720 MGC devices in total

The FX-401 is equipped with a built-in dialer. The dialer provides a means to communicate panel status to the remote central monitoring station using two dedicated phone lines.

Features

Mircom’s FX-401 Addressable Fire Alarm Control Panel provides the following:

• Main Board, Power Supply and Backbox.
• One on-board addressable (SLC) loop for MGC Devices (MIX-4000 Series), 240 devices per loop.
• Expandable to three addrassable loops for a maximum of 720 MGC devices (MIX-4000 Series), 240 devices per loop.
• Multi-zone fire alarm control panel.
• Compatible with MGC devices (MIX-4000).
• Compatible with conventional detectors using MGC MIX- 4042 Conventional Zone module, refer to document LT-1023 for compatible detectors.
• Main Display with 4 x 20 LCD display.
• Class A (DCLA), Class X (DCLC), or Class B (DCLB) analog loop(s).
• Four Power Limited Class B, Class A NAC circuits (max 1.5 Amps each – 6.0 Amps total)
• NAC circuits may be configured as silenceable signal, nonsilenceable signal, silenceable strobes, non-silenceable strobes, or relay output. The audible signal may be Steady,
• Temporal Code, California Code, or March Time.
• Supports sync strobe protocols from major manufacturers.
• Software configuration.
• Configurable Signal Silence Inhibit, Auto Signal Silence, and One-Man Walk Test.
• Two-stage, alarm verification, and positive alarm sequence operations.
• Subsequent Alarm, Supervisory, Monitor and Trouble operation.
• Dedicated common alarm, supervisory, trouble, and auxiliary alarm relays.
• Additional RAX-1048TZDS Display Adder Module can be added to provide 96 annunciation points per Adder.
• Relay Contacts for Common Alarm, Common Supervisory and Common Trouble all non disconnectable and Auxiliary Alarm Relay (disconnectable).
• Additional outputs include connections for a RTI remote trouble indicator, PR-300 Reverse Polarity Module, an RS- 485 bus for connection of up to seven RAX-LCD-LITEs, RAM- 3500-LCDs, SRM-312s and RA1000 Series annunciators.
• Auxiliary power is available in the form of 24V FWR unfiltered and unsupervised, 24VDC filtered and regulated, and resettable auxiliary power supply.
• Built-in Dialer.

System Components

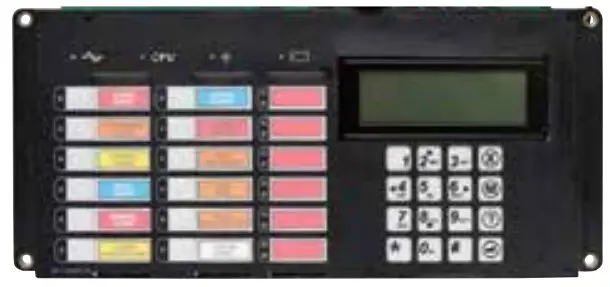

RAM-3500 Remote Annunciator

The RAM-3500-LCD provides remote annunciation through a 4 line by 20 character LCD display. It is a direct mimic of the main panel display so that the LCD, LEDs and switches are an exact duplicate of the main display. The RAM-3500-LCD provides control switches for System Reset, Signal Silence, Fire Drill and Acknowledge, four Status Queues with selector  switches and LEDs for Alarm, Supervisory, Trouble and Monitor, along with a numeric keypad to access the menu functions.  The RAM-3500-LCD mounts in separately orderable single unit enclosures or in larger enclosures that support up to two optional RAX-1048TZDS remote LED annunciators. All remote enclosures are equipped with a CAT-30 Lock and key. The RAM-3500-LCD occupies one display position in the BB-1000 enclosures .

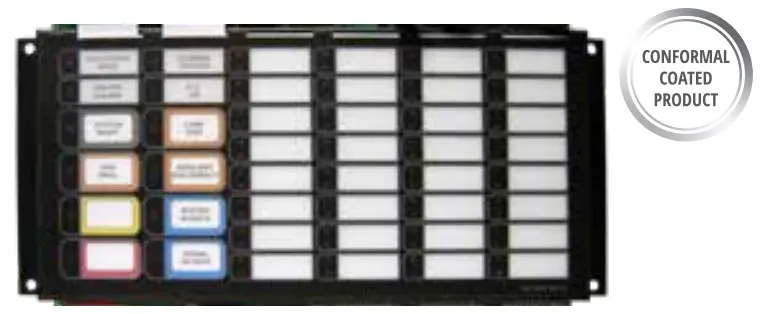

RAM-1032TZDS-CC Conformal Coated Main Remote LED Annunciator

The RAM-1032TZDS-CC Conformal Coated Main Remote LED Annunciator provides common annunciator functions and 32 points of LED annunciation. The RAM-1032TZDSCC has indicators for A.C. On, Common Trouble and Signal Silence and controls for System Reset, Lamp Test, Fire Drill, Buzzer Silence and Signal Silence. Each display point can be identified by the slide-in label that slides in beside the LED. The RAM-1032TZDS-CC occupies one display position in the BB-1001WP(R)A or BB-1002WP(R)A enclosures.

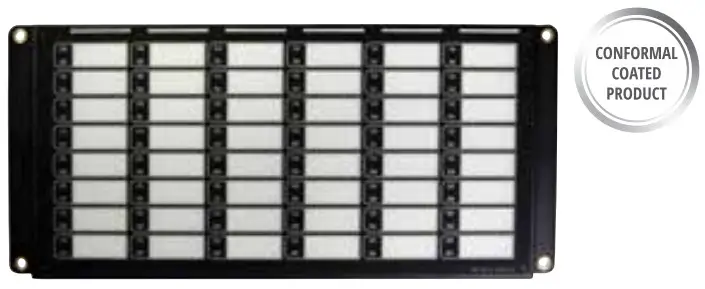

RAX-1048TZDS-CC Conformal Coated Programmable LED Annunciator Module

The RAX-1048TZDS-CC Conformal Coated Programmable LED Annunciator Module provides 48 programmable bi-colored LEDs. The RAX-1048TZDS-CC connects to the main control unit or main annunciator module (RAM-1032TZDS) when mounted remotely. Each display point can be identified by the slide-in label that slides in besides the LED. The RAX-1048TZDS occupies one display position in the BB1001WP(R)A or BB 1002WP(R)A Series enclosures.

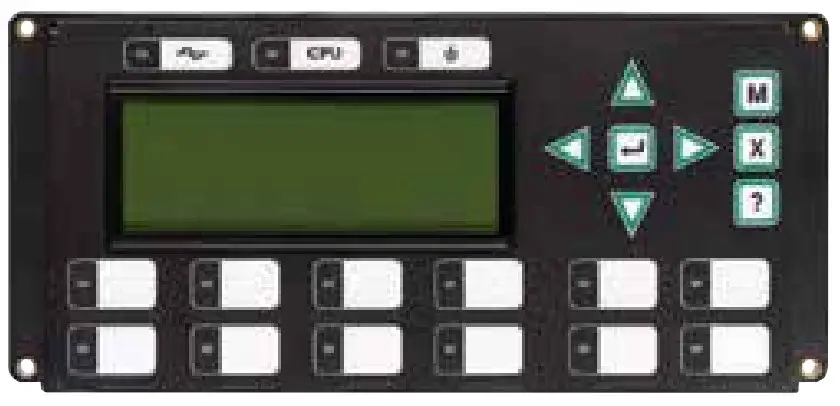

RAX-LCD-LITE Remote LCD Annunciator

The FX-401 also supports the RAX-LCD-LITE Remote LCD Annunciator. It is equipped with a large 4-line x 20-character back-lit alphanumeric LCD display that uses a simple menu system complete with a directional keypad and switches for Enter, Menu, Cancel and Info. The RAX-LCD-Lite occupies one display position in the BB-1000 enclosures.

RAM-1032TZDS Main Remote LED Annunciator

The RAM-1032TZDS Main Remote LED Annunciatorprovides common annunciator functions and 32 points of LED annunciation. The RAM-1032TZDS has indicators for A.C. On, Common Trouble and Signal Silence and controls for System  Reset, Lamp Test, Fire Drill, Buzzer Silence and Signal Silence.The RAM-1032TZDS occupies one display position in the BB-1000 enclosure

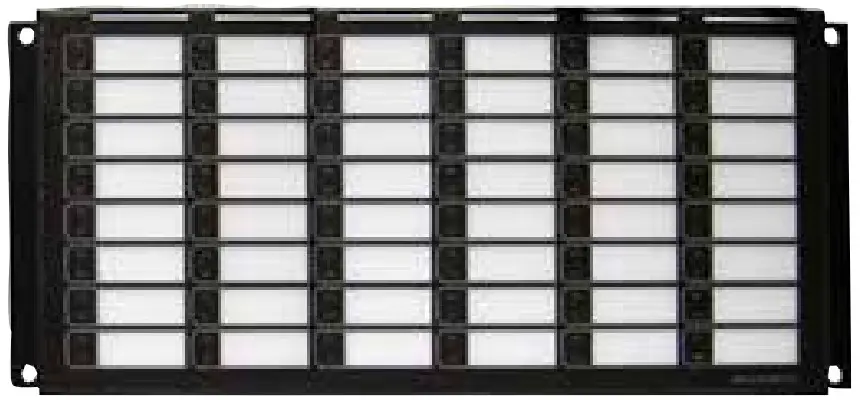

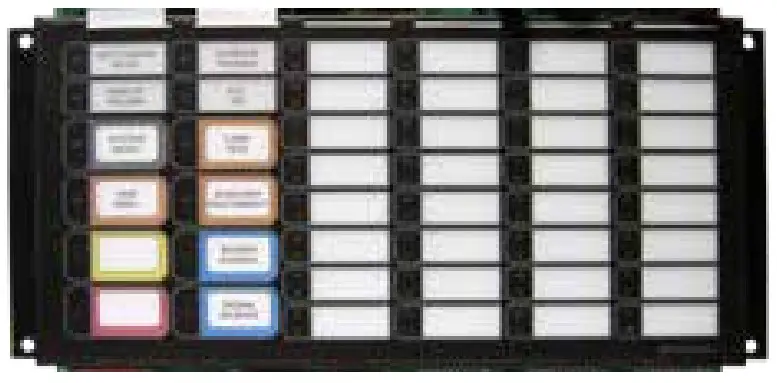

RAX-1048TZDS Programmable LED Annunciator Module

The RAX-1048TZDS Programmable LED Annunciator Module provides 48 programmable bi-colored LEDs. The RAX-1048TZDS connects to the main control unit or main annunciator module (RAM-1032TZDS) when mounted remotely.  Each display point can be identified by the slide-in label thatslides in beside the LED. The RAX-1048TZDS occupies one display position in the BB-1000 Series enclosures.

AGD-048 Graphic Annunciator Adder Driver Board

The AGD-048 Adder Graphic Driver Module can be used with the MGD-32 Master Graphic Driver modules, or if located remotely it must be connected and mounted with the RAX-LCD Shared Display. The AGD-048 will support an additional supervised outputs. As with the master modules, the AGD-048 will support both LEDs and incandescent lamps.

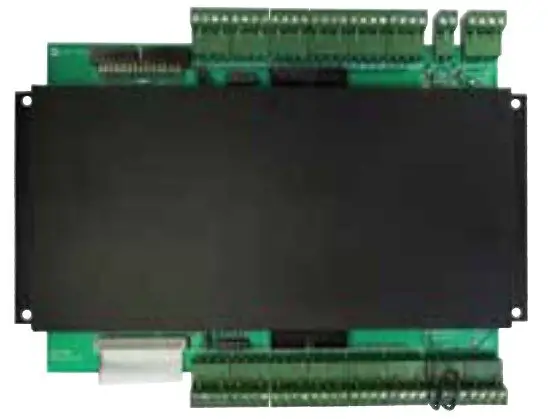

MGD-32 Master Graphic Driver Module

For use with FX-401 Fire Alarm Control Panel. The MGD-32 Master Graphic Driver Module provides common control inputs for the switches such as System Reset, Signal Silence, Auxiliary Disconnect, Fire Drill, Lamp Test and Acknowledge.

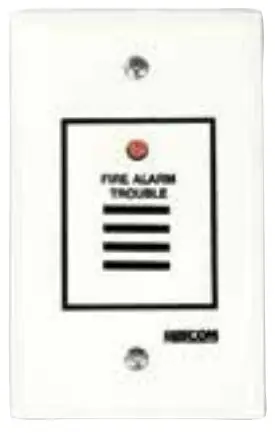

RTI-1 Trouble Remote Indicator

Mircom’s Remote Trouble Indicator provides remote  annunciation of fire alarm troubles. The RTI-1 mounts onto astandard single gang electrical box. The RTI-1 can be used with any of Mircom’s fire alarm control panels.

UIMA4 Interface for Configuring MGC Fire Panels

The UIMA4 is an interface for configuring FX-401. The UIMA4’s ribbon cable can be disconnected and replaced – the replacement part number is RPL-WC-25022 (it comes with 3 replacement cables). The UIMA4 interface has 3 connectors: 9 pin male serial connector, USB B female connector, and 10 pin female connector.

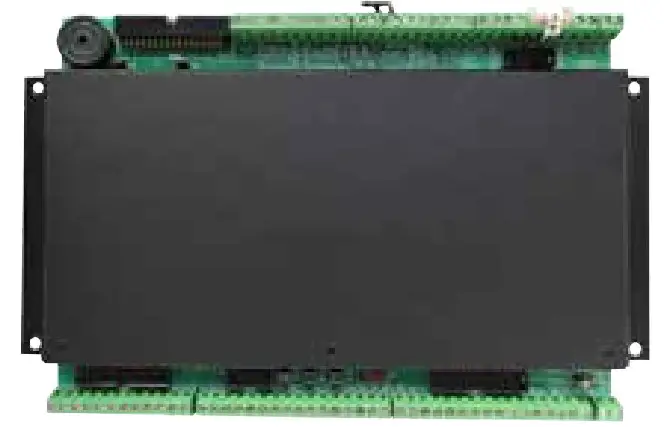

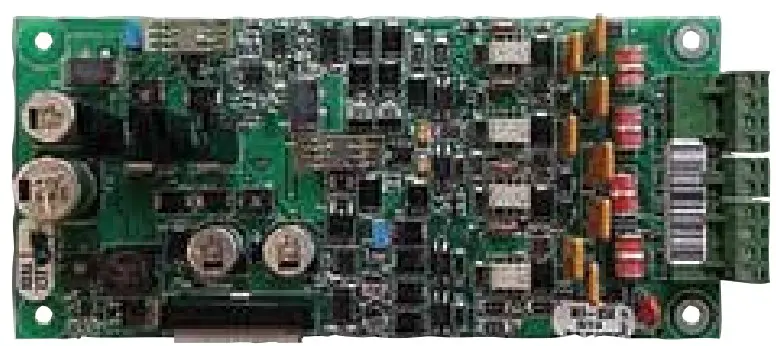

ALC-480 480-Point Dual Loop Adder

The ALC-480 provides two addressable (SLC) loop for MGC Devices (MIX-4000 Series), 240 devices per loop. 480 devices total in loop Adder

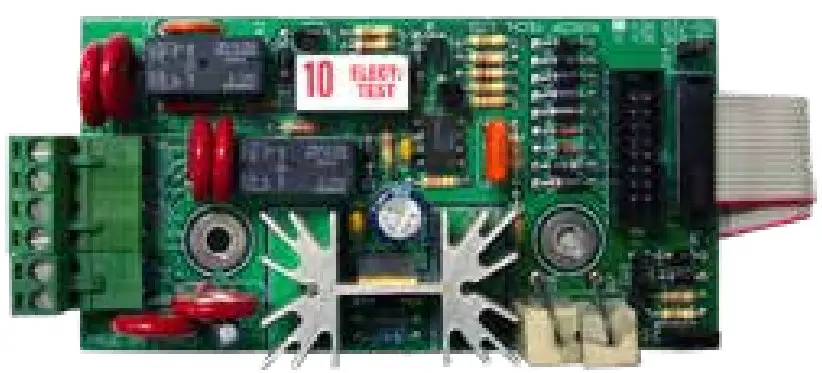

PR-300 Polarity Reversal/City Tie Module

The PR-300 provides outputs for city box and polarity reversal applications. As a city tie module, the PR300 provides an interface between the control panel indicating circuits and a master box. It provides off-premises signal transmission for systems that must comply with NFPA requirements for Auxiliary Protective Systems. As a polarity reversal module, the PR-300 provides an interface between the control panel and a reverse polarity receiver.

MP-300 End of Line Plates

Mircom’s MP-300 is a 3.9K End Of Line resistor for use with Mircom conventional panels and detection circuits.

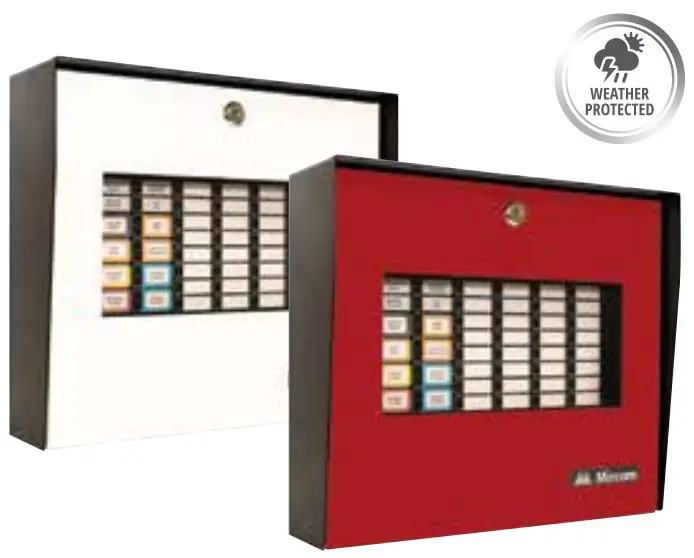

BB-1001WP(R)A Outdoor Weather Protected Enclosure

The BB-1001WP(R)A is a complete enclosure that comes witheither a RED or WHITE door, a black back-box, two keys and a durable lock at the top of the door. The door comes hinged to the bottom side of the box for added weather protection. The box is capable of handling one RAM-1032TZDS-CC Main Annunciator Chassis which provides up to 32 points of annunciation. RAM-1032TZDS-CC is ordered separately conform with the UL, ULC installation requirements.
Note: there is no need for thermostat or heater. RAM-1032TZDS-CC must be ordered separately to match UL, ULC installation requirements.

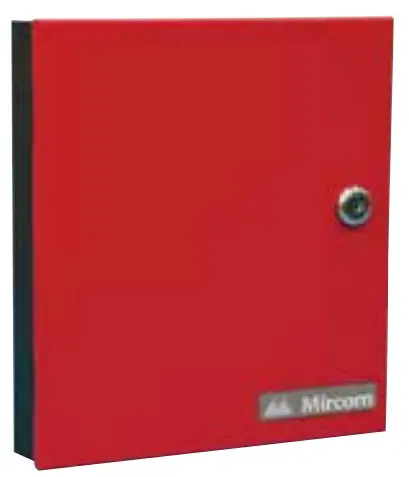

SRM-312R Smart Relay Module with Red Enclosure

The SRM-312R provides twelve configurable relay circuits, rated @ 28 VDC, 1 amp (resistive). Each circuit can be  configured as a Normally Open (N.O.) or Normally Closed(N.C.) contact. Each relay is equipped with an LED that is lit when the relay is energized. The relays can be configured as relay per zone (1 to 1), Common on Alarm, Common on Supervisory or programmable for a logical or adjacent zone configuration. An adjacent zone configuration will turn on an adjacent zone when the configured zone is active. A chaining configuration allows for multiple relays to turn on. The  SRM-312R is DIP switch configurable and connects to theRS-485 bus. The SRM-312R come complete with a red enclosure and a CAT-30 lock and key.

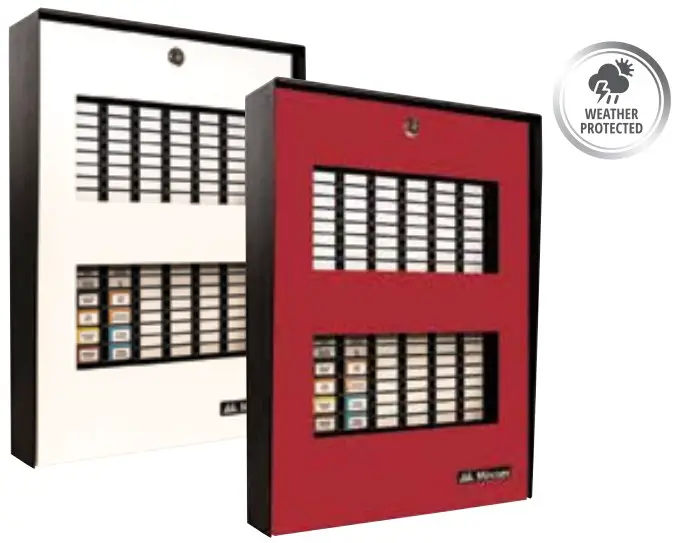

BB-1002WP(R)A Outdoor Weather Protected Enclosure

The BB-1002WP(R)A is a complete enclosure that comes with either a RED or WHITE door, a black back-box, two keys and a durable lock at the top of the door. The door comes hinged to the bottom side of the box for added weather protection. The box is capable of handling one RAM-1032TZDS-CC Main Annunciator Chassis which provides up to 32 points of annunciation and one RAX1048TZDS-CC Adder Annunciator, which provides up to 48 points of annunciation. RAM-1032TZDS-CC and RAX1048TZDS-CC are ordered separately to match the UL, ULC installation requirements.
Note: there is no need for thermostat or heater. RAM-1032TZDS-CC and RAX-1048TZDS-CC must be ordered separately to match UL, ULC installation requirements

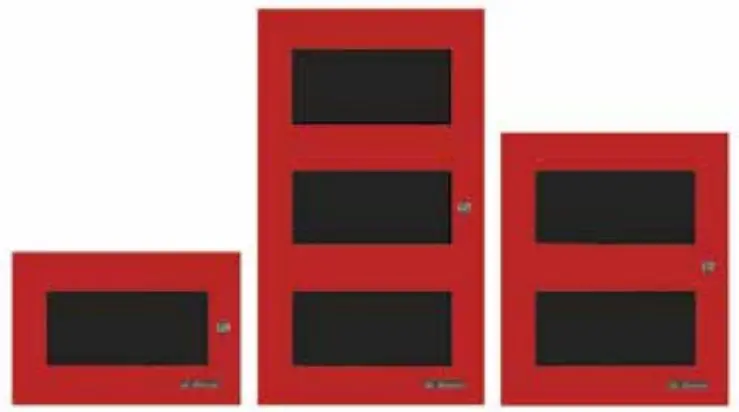

BB-1001 / 2 / 3 / 8 / 12 Remote Annunciator Enclosures

The BB-1000 Series comes complete with a backbox, door  and hinge. The enclosures doors come with Lexan windows,two keys and a durable lock. The enclosures can handle the RAM-1032TZDS, RAM-3318-LCD, RAXN-LCD-LITE, Main Annunciator Chassis.

Ordering Information

Ordering Information cont’d

Support

Canada
25 Interchange Way Vaughan, Ontario L4K 5W3
Telephone: (905) 660-4655
Fax: (905) 660-4113
www.mircom.com

U.S.A.
4575 Witmer Industrial Estates Niagara Falls, NY 14305
Toll Free: (888) 660-4655
Fax Toll Free: (888) 660-4113

THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY.

For complete and accurate technical information relating to performance, installation, testing and certification, refer to technical literature. This document contains intellectual property of Mircom. The information is subject to change by Mircom without notice. Mircom does not represent or warrant correctness or completeness.
