FIRE ALARM CONTROL UNITS
FA-1000 SERIES
Description
Mircom’s FA-1000 Series Microprocessor Based Fire Alarm Control Panels are Multi-Zone units designed for maximum flexibility and easy installation and operation. Fully configurable from the front panel using push buttons and DIP switches, the FA-1000 Series enables the user to configure the system to meet their specific requirements. With a large capacity of supervised Class A (Style D) or Class B (Style B) Initiating Circuits and supervised Class A (Style Z) or Class B (Style Y) Indicating Circuits, the FA-1000 Series is designed to meet virtually all applications.
The FA-1000 Series consists of a Main Fire Alarm Chassis which houses and controls all other modules. Additional modules may be installed to configure the system to meet any requirements that the user may have. The FA-1000 Series allows for additional Indicating Circuit, Initiating Circuit and Relay modules to be added to the system. In addition it allows for optional modules such as the UDACT300A Digital Communicator and the PR-300 Polarity Reversal/City Tie Module.
Equipped with Configuration DIP Switches on the Main Display Module the FA-1000 Series Fire Alarm Control Panels are configured through a combination of DIP switch and button settings. Through this configuration method the user can define the system as a Single Stage or Two Stage operation as well as perform various functions such as a One Man Walk Test.
Features
- Listed to UL 864, 9th edition
- Large system capacity
- Modular design
- Each Indicating Circuit can be configured as Silenceable or Non-Silenceable
- Audibles may be configured as Steady, Temporal Code, California Code or March Time
- Each Initiating Circuit can be configured as Alarm, Supervisory, Waterflow or Trouble
- Two LEDs per Initiating circuit; one for Trouble and one for Status
- Initiating and Indicating Circuits may be individually disconnected by a DIP switch
- Configurable Signal Silence Inhibit, Auto Signal Silence, Two-Stage Operation and One Man Walk Test
- Subsequent Alarm, Supervisory and Trouble operation
- Two outputs for 4 wire resettable smoke power supply (200 mA Max. each)
- Auxiliary relay contacts for Common Alarm and Common Supervisory as well as a Common Trouble Relay (Each relay contact Form C, 28 VDC @ 1 Amp (resistive))
- RS-485 Interface for RA-1000 Remote Multiplex Annunciators
- Interface for Remote Trouble Indicator
- Easy configuration via push buttons and DIP switches on the front panel
- Fully site or field programmable Indicating Circuits and Auxiliary Relays
- Extensive Transient Protection
- Slide-in labels for zone identification
- 6 Amp or 12 Amp power supplies available
- Removable door for easy installation and servicing
- Removable terminal blocks for easy wiring and servicing
Optional Modules
- UDACT-300A Digital Communicator Module
- Polarity Reversal and City Tie Module
System Components

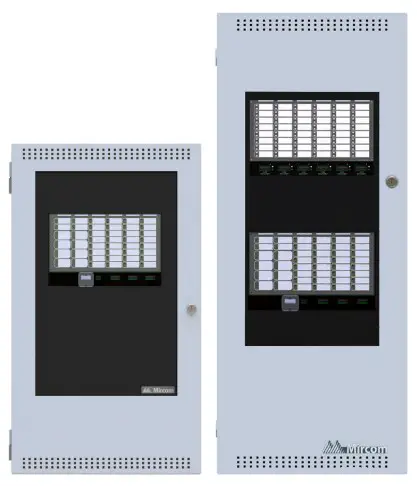

MCC-1024-6ADS/MCC-1024-12ADS
The MCC-1024-6ADS Main Control Unit comes complete with 8 Class B (Style B) or 4 Class A (Style D) Initiating Circuits, 4 Class A/B (Style Z/Y) Indicating circuits, a common control and zone identification display board for up to 24 points and a 6 Amp Power Supply which charges 10-24 AH batteries. The MCC-1024-12ADS is equipped with a 12 Amp Power Supply which charges 17-40 AH batteries. Both models areexpandable with up to two adder modules of any type plus one of a UDACT-300A Digital Communicator or PR-300 Polarity Reversal/City Tie Module. Both models mount in a UB-1024DS(R) backbox.
MCC-1024-12XTDS

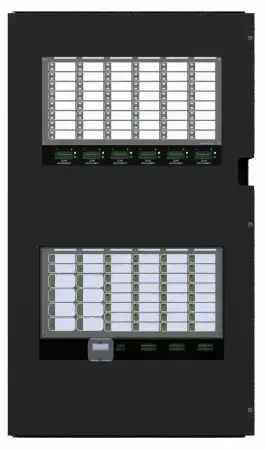

The MCC-1024-12XTDS Main Control Unit comes complete with 8 Class B (Style B) or 4 Class A (Style D) Initiating Circuits, 4 Class A/B (Style Z/Y) Indicating circuits, a common control and zone identification display board for up to 72 points and a 12 Amp Power Supply which charges 17-40 AH batteries. It is expandable with up to eight adder modules of any type plus one of a UDACT-300A Digital Communicator or PR-300 Polarity Reversal/City Tie Module. The MCC1024-12XTDS mounts in a BBX-1024XT(R) enclosure.
Adder Hardwire Modules
DM-1008A Eight Initiating Circuit Module
The DM-1008A provides 8 Style B (Class B) or 4 Style D (Class A) Initiating Circuits configurable for Alarm, Supervisory or Trouble zones. The DM-1008A occupies one module slot.
SGM-1004A Four Notification Appliance Circuit Module
The SGM-1004A provides 4 Style Z/Y(Class A/B) Notification Appliance Circuits configurable as Silenceable or Non-Silenceable. Each NAC circuit is rated at 1.7 Amps. The SGM-1004A occupies one module slot.
RM-1008A Eight Relay Circuit Module
The RM-1008A provides the FX-2003-12NXTDS with eight individual configurable relays per module. Each relay provides one Form C contact rated at 28 VDC @1 Amp (resistive load) as well as a Green LED to indicate that the relay is active. The RM-1008A occupies one module slot.
UDACT-300A Digital Alarm Communicator Module
The UDACT-300A Digital Alarm Communicator Module allows the FX-2003-12NXTDS to transmit addressable point information to a central station. The UDACT-300A occupies one module slot.
PR-300 Polarity Reversal/City Tie Module
The PR-300 Polarity Reversal/City Tie Module provides the system with a supervised City Tie and Polarity Reversal connection. The PR-300 occupies one module slot.
FA-1000 Series Enclosures

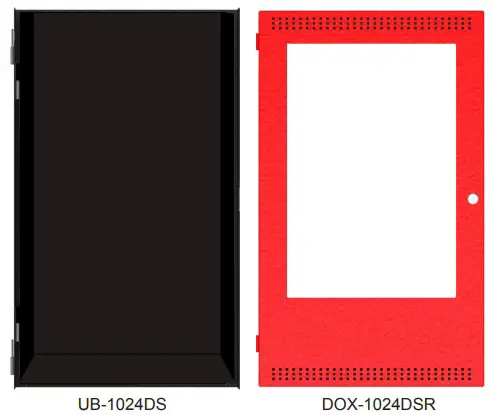

UB-1024DS Universal Backbox
The UB-1024DS Universal backbox houses the MCC-10246ADS/12ADS and provides space to mount up to 17 AH batteries. A DOX-1024DS(R) door is ordered separately. Dimensions (minus built-in trim ring): 26”H x 14.5”W x 4.2”D
DOX-1024DS(R) Door
The DOX-1024DS mounts on the UB-1024DS backbox. The door features the universal CAT-30 lock and is available in a white (DOX-1024DS) or red exterior (DOX1024DSR).
RA-1000 Series Remote Multiplex Annunciators

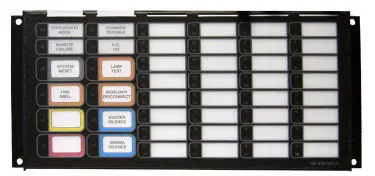

RAM-1032TZDS Main Remote LED Annunciator
The RAM-1032TZDS Main Remote LED Annunciator provides common annunciator functions and 32 points of LED annunciation. The RAM-1032TZDS has indicators for A.C. On, Common Trouble and Signal Silence and controls for System Reset, Lamp Test, Fire Drill, Buzzer Silence and Signal Silence. The RAM-1032TZDS occupies one display position in the BB-1000 or BB-5000 enclosures.

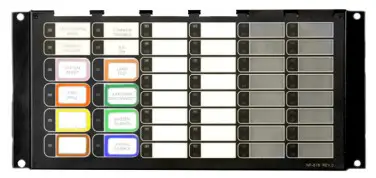

RAM-1016TZDS Main Remote LED Annunciator
The RAM-1016TZDS Remote LED Annunciator provides 16 points of LED annunciation as well as 16 trouble LEDs. The RAM-1016TZDS has indicators for A.C. On, Common Trouble and Signal Silence and controls for System Reset, Lamp Test, Fire Drill, Buzzer Silence and Signal Silence. The RAM-1016TZDS mounts in a BB-1000 series enclosure.

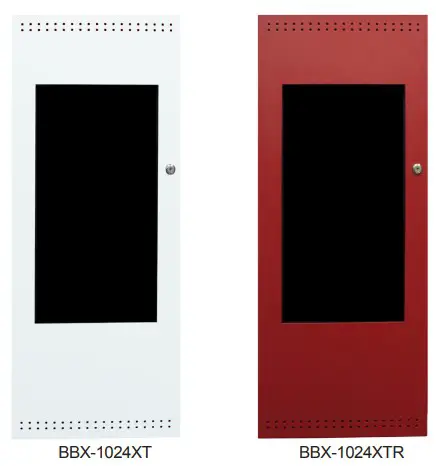

BBX-1024XT(R) Enclosure
The BBX-1024XT enclosure supports one MCC-102412XTDS and up to 18 AH Batteries. The enclosure features the universal CAT-30 lock and a removable door for easy installation and servicing. The enclosure is available in a white (BBX-1024XT) or red exterior (BBX-1024XTR). The FA-XT-TRB Semi-Flush Trim Ring is required for semi- flush mounting.
BBX-1024XT(R) Dimensions: 35 ½”H x 14 ½”W x 5 ¼”D

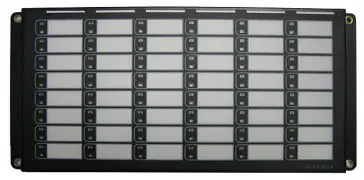

RAX-1048TZDS Programmable LED Annunciator Module
The RAX-1048TZDS Programmable LED Annunciator Module provides 48 programmable bi-colored LEDs. The RAX-1048TZDS connects to the main unit or either the RAXN-LCD or RAM-1032TZDS when mounted remotely. The RAX-1048TZDS occupies one display position in the FX-2003-12NXTDS,BB-1000 or BB-5000 Series enclosures.
Dimensions for Annunciator Module Enclosures
| Model | Dimensions |
| BB-1001 | 9”H x 12.75”W x 1.2”D |
| BB-1002 | 18”H x 12.75”W x 1.2”D |
| BB-1003 | 26.4”H x 12.75”W x 1.2”D |
| BB-1008 | 33”H x 22.5”W x 1.25”D |
| BB-1012 | 45”H x 22.5”W x 1.25”D |
Electrical Ratings
MCC-1024-6ADS
| AC Line Voltage | 120V 60Hz / 240V 50 Hz, 2A/ 1A primary | |
| Power Supply Ratings | 6 Amps. max. (secondary) | |
| For Indicating Circuits | 24VDC unfiltered, 5 Amps maximum | |
| Charging Capability | 10-24 AH batteries | |
| Current Consumption | Standby | 200 mA |
| Alarm | 350 mA | |
MCC-1024-12ADS/MCC-1024-12XTDS
| AC Line Voltage | 120V 60Hz / 240V 50 Hz, 4A/ 2A primary | |
| Power Supply Ratings | 6 Amps. max. (secondary) | |
| For Indicating Circuits | 24VDC unfiltered, 10 Amps maximum | |
| Charging Capability | 17-40 AH batteries | |
| Current Consumption | Standby | 200 mA |
| Alarm | 350 mA | |
Ordering Information
| Model | Description |
| Main Control Unit | |
| MCC-1024-6ADS | Main Control Unit, 6 Amps. Mounts in UB-1024DS. |
| MCC-1024-12ADS | Main Control Unit, 12 Amps. Mounts in UB-1024DS. |
| MCC-1024-12XTDS | Main Control Unit, 12 Amps. Mounts in BBX-1024DS(R) |
| Adder Modules | |
| DM-1008A | Eight Class B (Style B) or 4 Class A (Style D) Initiating Circuit Module |
| SGM-1004A | Four Class A/B (Style Z/Y) Notification Appliance Circuit Module (Rated at 1.7 Amps per circuit) |
| RM-1008A | Eight Relay Circuit Module c/w eight form C relays (Rated for 28 VDC @ 1 Amp max. per relay) |
| Auxiliary Modules | |
| UDACT-300A | Digital Alarm Communication Transmitter/Dialer Module |
| PR-300 | Polarity Reversal and City Tie Module |
| Enclosures | |
| UB-1024DS | Universal black backbox. Requires DOX-1024DS(R) door. |
| DOX-1024DS | White door for UB-1024DS backbox |
| DOX-1024DSR | Red door for UB-1024DS backbox |
| BBX-1024XT | Enclosure for MCC-1024-12XTDS c/w removable white door, black backbox and CAT-30 lock and key. |
| BBX-1024XTR | Enclosure for MCC-1024-12XTDS c/w removable red door, black backbox and CAT-30 lock and key. |
| FA-XT-TRB | Black Semi-Flush Trim Ring for BBX-1024XT(R) enclosure |
| Remote Annunciators | |
| RAM-1032TZDS | Main Remote LED Annunciator c/w 32 Bi-Colored LEDs and 32 Trouble LEDS |
| RAM-1016TZDS | Main Remote LED Annunciator c/w 16 Bi-Colored LEDs and 16 Trouble LEDS |
| RAX-1048TZDS | Programmable LED Annunciator Module c/w 48 Bi-Coloured LEDs and 48 Trouble LEDs |
| BB-1001 | Remote Enclosure. Houses one module. Add suffix “R” for red door. |
| BB-1002 | Remote Enclosure. Houses two modules. Add suffix “R” for red door. |
| BB-1003 | Remote Enclosure. Houses three modules. Add suffix “R” for red door. |
| BB-1008 | Remote Enclosure. Houses eight modules. Add suffix “R” for red door. |
| BB-1012 | Remote Enclosure. Houses twelve modules. Add suffix “R” for red door. |
CATALOG NUMBER
5620
NOT TO BE USED FOR INSTALLATION PURPOSES.
Mircom reserves the right to make changes at any time without notice in prices, colours, materials, components, equipment, specifications and models and also to discontinue models.
Canada
25 Interchange Way
Vaughan, Ontario L4K 5W3
Telephone: (905) 660-4655
Fax: (905) 660-4113
U.S.A.
4575 Witmer Industrial Estates
Niagara Falls, NY 14305
Toll Free: (888) 660-4655
Fax Toll Free: (888) 660-4113
NOT TO BE USED FOR INSTALLATION PURPOSES.
Distributed by:
Web page: http://www.mircom.com
Email: [email protected]
CAT. 5620
