POTTER P32-1T Die-Cast Metal Manual Pull Stations

Description

The Potter Pull Station Series provides a range of die-cast pull stations suitable for a variety of applications primarily concentrating on fire alarm systems. The pull stations come in single or dual action models and feature a 10-amp snap action switch and a dedicated terminal block for easy wire connections. The metal is completely coated to prevent corrosion and provide a uniform finish.

Specifications

• Switch Rating: 1 Amp @ 30 VDC, 10 Amps @ 125 VAC
• Dimensions: 4-3/4 H x 3-1/4 W x 7/8 D
• Color: Red with raised white letters, white pull bar with raised red letters

1. For special application manual stations see bulletin #8910014.
2. For explosion-proof manual stations see bulletin #8880014.

Ordering Information

Operation

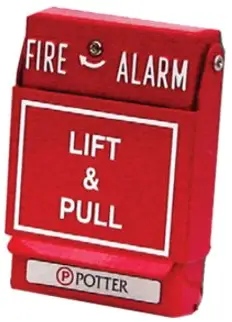

The Potter single action pull stations are operated by pulling the white operating handle straight down until it locks into place. The dual action stations require lifting the front cover and then pulling the white operating handle straight down. The stations can be reset by opening the front cover and placing the handle in the normal position.

Note that the standard models have a hex key reset, but a key reset is also available. The models come with shallow and deep  surface mount back boxes and as a weatherproof version.

For more information on manual stations for special applications or explosion-proof manual stations, please refer to bulletin #8910014 and bulletin #8880014 respectively.

Instruction

• UL and cUL Listed, FM Approved, CSFM Listed, MEA Approved, ADA Compliant
• Single or Dual Action
• Terminal connectors
• 10 Amp Snap Action Switch
• Gold plated SPST contacts
• Optional auxiliary contacts
• Mounts on standard single gangbox
• Surface backboxes available
• High-gloss red enamel finish
• Glass break rod
• Made in the U.S.A.

Description

The Potter Pull Station Series offers a complete line of die-cast pull stations for a variety of applications focusing mainly on fire alarm systems. The pull stations are available in single or dual action models. All of the pull stations have a 10-amp snap action switch and a dedicated terminal block for the ease of wire connections. All of the metal is completely coated to inhibit corrosion and provide for a uniform and quality finish.
The standard models have a hex key reset, however a key reset is also available. The models are available with shallow and deep surface mount back boxes and as a weatherproof version.

Operation

The Potter single action series of pull stations operate by pulling the white operating handle straight down and the handle will lock into place. The dual action stations require the lifting of the front cover and then pulling the white operating handle straight down. The stations are reset by opening the front and placing the handle in the normal position.

Engineering Specifications

The contractor shall furnish and install the Potter series of pull stations as indicated. The pull station shall be die cast construction with a “T” type pull handle that is ADA compliant. Single action pull stations shall be a P32-1T. Dual action pull stations shall be the Potter P32-1T-LP. Any manual pull station installed in an outdoor or wet location shall be a RMS-1T-WP weather proof unit. The contact shall be a single pole, single throw switch rated at 1 amp 30V DC/125V AC. The device shall have a terminal block for ease of wiring. Once activated, the pull station shall be reset by opening the front cover. Opening of the cover in a normal state shall initiate an alarm.

Ordering Information

• Potter Electric Signal Co., LLC
• St. Louis, MO
• Cust Service: 866-240-1870
• Tech Support: 866-956-1211
• Canada 888-882-1833
• ww.pottersignal.com
