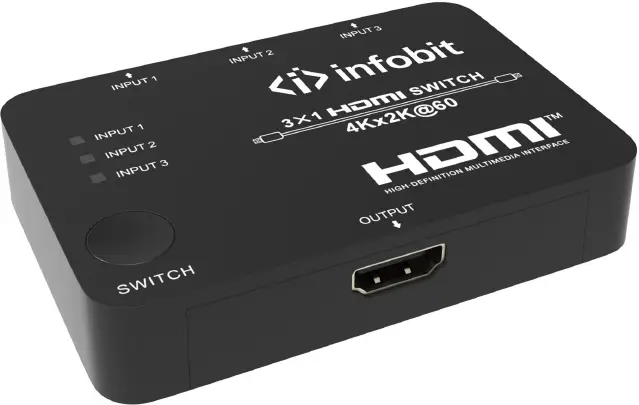

infobit iSwitch S301 18Gbps 3 by 1 HDMI Switcher
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Introduction
The 18Gbps 3 by 1 HDMI Switcher can switch any of 3 HDMI sources to 1 HDMI display. Supported video resolution is up to 4K2K@50/60Hz YCbCr 4:4:4. The product supports HDR, HDR10, Dolby Vision and HLG. It supports all 3D video formats.The product has low power consumption. It can also be controlled by the panel button and remote control
Features
- HDCP 2.2/1.x and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- HDR, HDR10, Dolby Vision and HLG are supported
- Support video resolution up to 4K2K@50/60Hz YCbCr 4:4:4
- Support 3D video format
- Low power consumption
- Support IR remote control and panel button control
- Compact design for easy and flexible installation
Package Contents
- 1× HDMI 3×1 Switcher
- 1× IR Receiver Cable
- 1× 5V USB Power Cable
- 1× Remote Control
- 1× User Manual
Specifications
| Technical | |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4k2k@60Hz |
| Color Depth | 8-bit (4K60Hz) |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4 |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio |
| ESD Protection | Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input Ports | 3×HDMI Type A (19-pin female) 1×IR IN [3.5mm Stereo Mini-jack] |
| Output Ports | 1×HDMI Type A (19-pin female） |
| Mechanical | |
| Housing | Plastic Enclosure |
| Silkscreen Color | Black |
| Dimensions | 87mm (W) × 59.5mm (D) × 19mm (H) |
| Weight | 60g |
| Power Supply | Input: 5V/1A |
| Power Consumption | 1.5W |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |

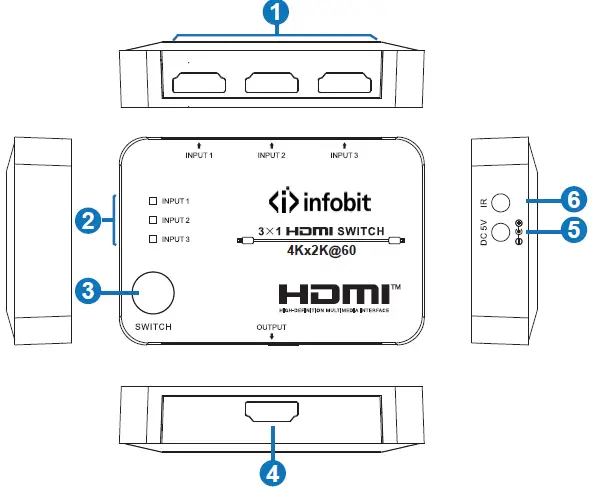

Operation Controls and Functions
| No. | Name | Function Description |
| 1 | HDMI INPUT (1/2/3) | Connect to HDMI source devices such as DVD player or PS3 with HDMI cable. |
| 2 | INPUT 1/2/3 LED | The corresponding LED will illuminate when the HDMI input port connects an active source device. |
| 3 | SWITCH button | Press this button to switch HDMI source signal for the HDMI OUTPUT. |
| 4 | HDMI OUTPUT | Connect to one HDMI display device such as HDTV or Monitor with an HDMI cable. |
| 5 | DC 5V | DC 5V power input interface. |
| 6 | IR IN | Connect IR Receiver cable to receive the remote control signal. |

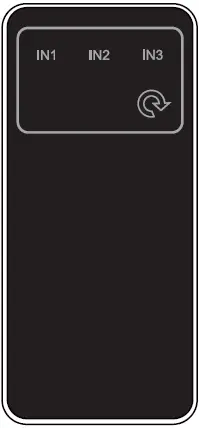

Remote Control
IN1/IN2/IN3: Press IN1/IN2/IN3 button to switch HDMI source signal to output display, and the corresponding LED will illuminate.
- Press this button to cyclically select input source to output display.

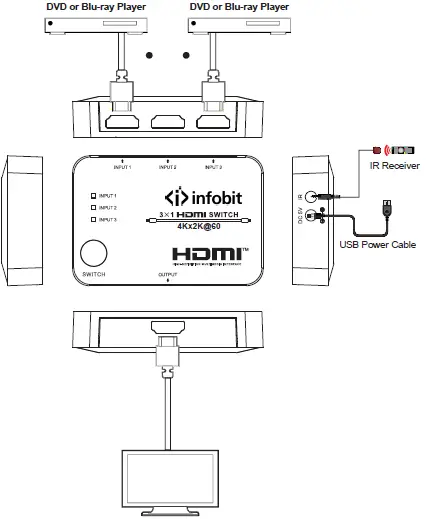

Application Example
