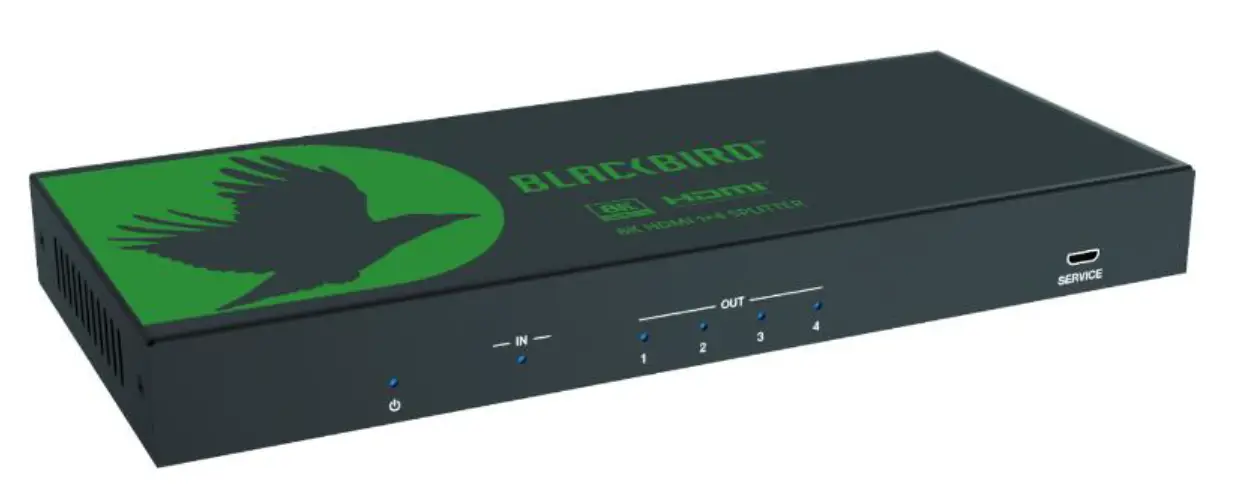

MONOPRICE P-N 44437 8K HDMI 1×4 Switcher
Thank you for purchasing this product
To ensure optimum performance and safety, read the following instructions before connecting, operating, or adjusting the product. Keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may have been damaged by electrical spikes, surges, electric shocks, lightning strikes, etc. The use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Introduction
The SK HDMI® 1×4 Splitter can distribute one HDMI source signal to any four display devices. With video resolution up to SK@60Hz 4:2:0, it also supports advanced EDID management and audio de-embedding function (output through the optical and analog ports). This multi-functional product is useful for any event that needs big-screen presentations such as video conferences, multimedia teachings, and more.
Features
- HDMI 2.1 and HDCP 2.3 compliant
- 40Gbps video bandwidth
- Support video resolution up to SK@60Hz 4:2:0 10bit, SK@30Hz 4:4:410bit, and 4K@120Hz 4:4:4 10bit
- VRR, FV A, and ALLM
- HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
- HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Built-in Equalizer, Retiming, and Driver
- Advanced EDID management
- Audio de-embedding function (output through the optical and analog port)
- Compact design for easy and flexible installation
Package Contents
- 1 x SK HDMI 1×4 Splitter
- 1 x 12V/2.5A Multinational Power Supply
- 1 x User Manual
Operation Controls and Functions

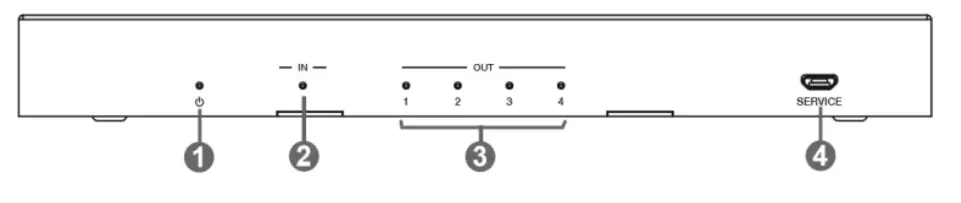

Front Panel
Rear Panel
| Name | Function Description | |
| POWER LED | When the device is powered on, the blue LED will be on. | |
| IN LED | When the HDMI IN port connects to an active source device, the blue LED will be on. | |
| OUT LED {1-4) | When the HDMI OUT 1/2/3/4 port connects a display device and outputs a signal, the corresponding blue LED will be on. | |
| SERVICE | Firmware update port. | |
| IN port | HDMI signal input port, connecting to HDMI source devices such as DVD players or gaming consoles with an HDMI cable. | |
| OUT port (1-4) | HDMI signal output port, connecting to HDMI display devices such as televisions or monitors with an HDMI cable. | |
| OPTICAL | Optical fiber audio output port. | |
| L/R | Analog audio output port. | |
| EDID DIP | Use the DIP switch to set EDID. | |
| switch | 111- Copy OUT1 port sink EDID (as factory default) 110- HDMI 1080p@60Hz, Audio 2ch PCM 101- HDMI 4K@60Hz 4:4:4, Audio 2ch PCM, HDR | |
| 100- HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY, HDR 011- HDMI 4K@60Hz 4:4:4, Audio 7.1ch | ||
| PCM/DTS/DOLBY /HD, HDR 010- HDMI 8K@60Hz 4:2:0+8K@30Hz 4:4:4, 4K@120Hz 4:4:4, | ||
| Audio 2ch PCM, HDR 01- HDMI BK@60Hz 4:2:0+8K@30Hz 4:4:4, 4K@120Hz 4:4:4, | ||
| Audio 5.1ch PCM/DTS/DOLBY, HDR 000- HDMI BK@60Hz 4:2:0+8K@30Hz 4:4:4, 4K@120Hz 4:4:4, | ||
| Audio 7.1ch PCM/DTS/DOLBY /HD, HDR | ||

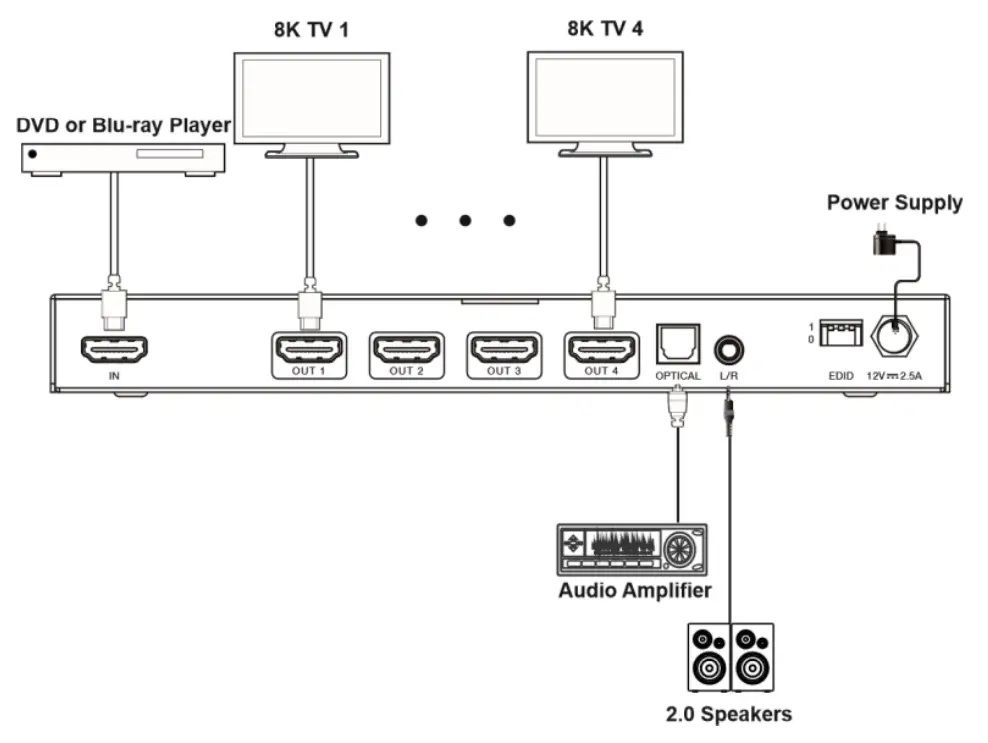

Application Example
Specifications
| echnical | |||
| HDMI Compliance | HDMI 2.1 | ||
| HDCP Compliance | HDCP 2.3 | ||
| ideo Bandwidth | 0Gbps | ||
| Video Resolution | Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, K@120Hz 4:4:4 10bit | ||
| olor Depth | 8/10/12-bit | ||
| olor Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 | ||
| Audio Formats | HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio de-embedding output: | ||
| SD Prot ction | Human body model – ±SkV (Air-gap discharge) & ±4kV (Contact discharge) | ||
| Connection | |||
| x HDMI IN [Type A, 19-pin female] | |||
| Input Output | 4 x HDMI OUT [Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack] | ||
| Techanical | |||
| ousing | Metal Enclosure | ||
| ilkscreen Color | Black | ||
| Dimensions 12mm (W) x 94mm (D) x 23mm (H) | |||
| eight 539g | |||
| Input: AC100 – 240V 50/60Hz, Output: DC 12V/2.SA (US standards, FCC/UL certified) | |||
| W(Max) consumption | |||
| °C – 40°C I 32°F – 104°F | |||
| -20°C – 60°C / -4°F -140°F temperature | |||
| Relative Humidity 0-90% RH (non-condensing) | |||
